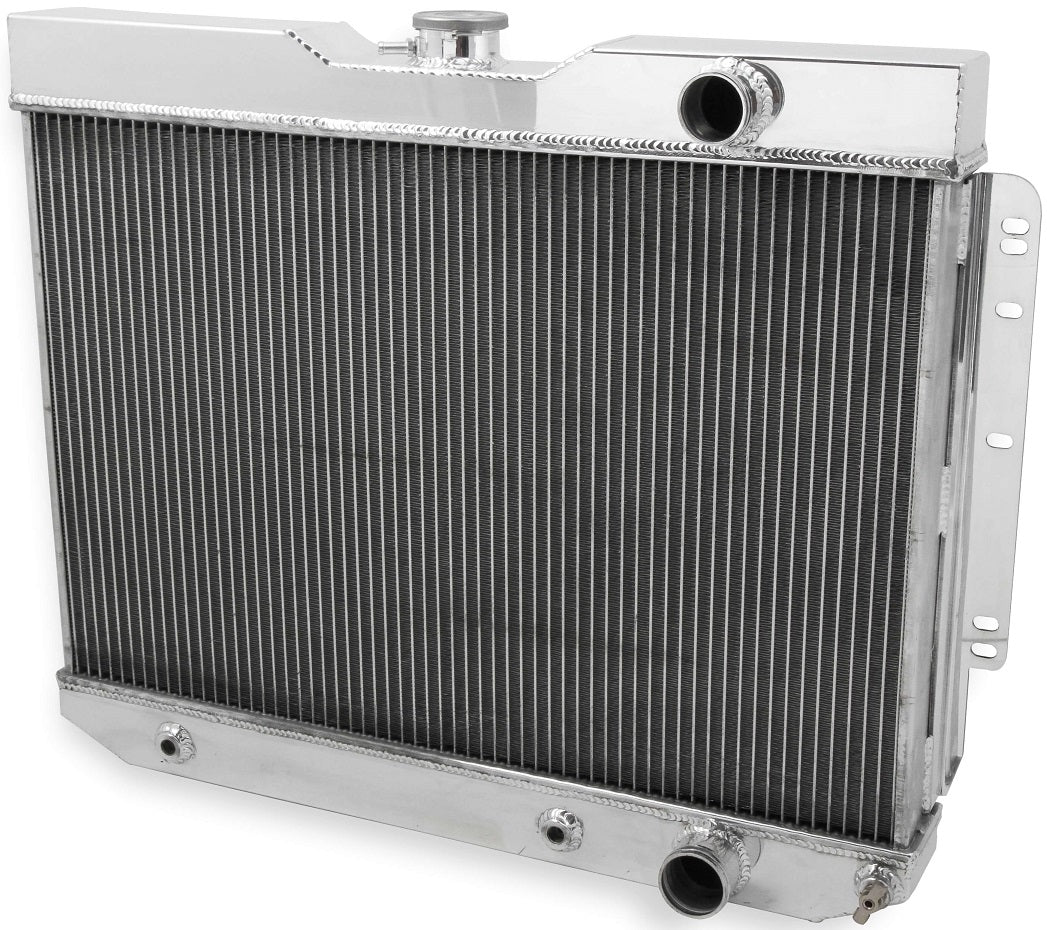

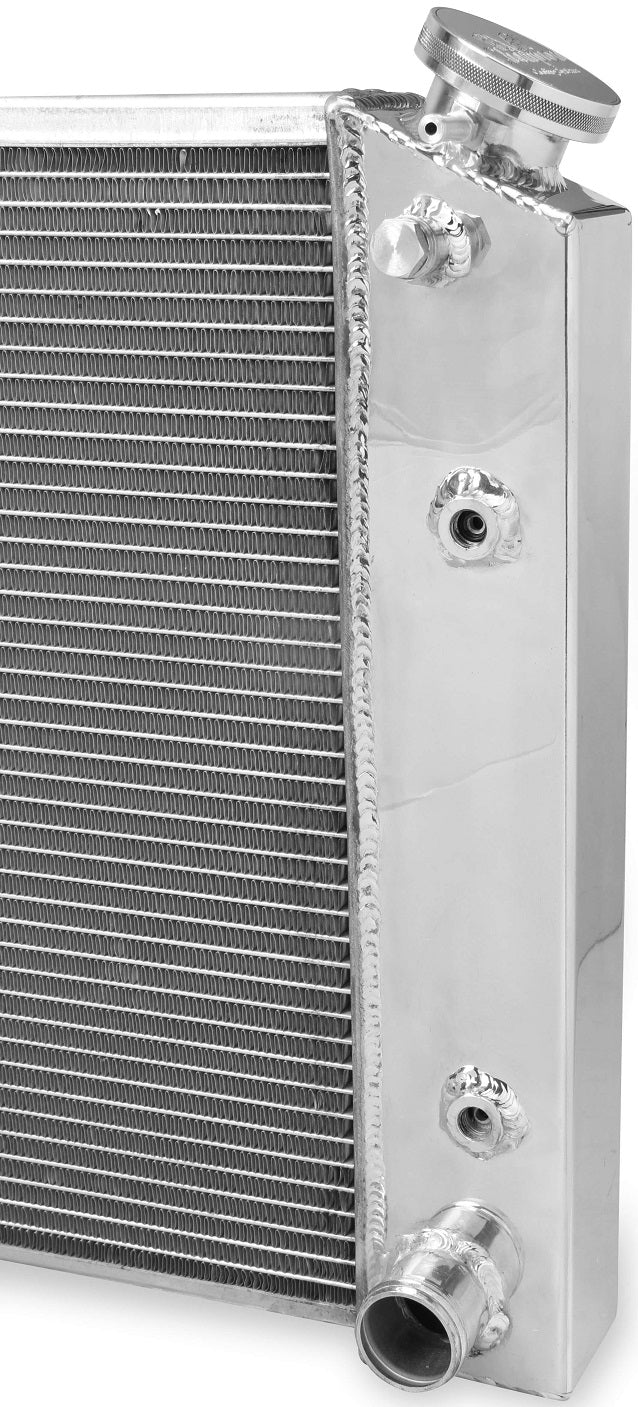

BRAND NEW FROSTBITE ALUMINUM RADIATOR (3 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB113). HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE! FITS:
CHEVROLET: - 1959-1961 KINGSWOOD
- 1959-1963 IMPALA
- 1959-1965 BEL AIR
- 1959-1965 EL CAMINO
- 1960-1965 BISCAYNE
- 1964-1965 CHEVELLE
*FITS APPLICATIONS WITH L6/V8 ENGINE (194/230/283/327/409/427)* SPECS:
# OF PASSES: SINGLE
COOLING ROW DIAMETER: 11/16"
CORE DIMENSION: 16-1/4" X 24-5/8"
CORE THICKNESS: 2.20"
FLOW STYLE: DOWN FLOW
HOSE LOCATION INLET: PASSENGER
HOSE LOCATION OUTLET: PASSENGER
INLET SIZE: 1-1/2"
MOUNTING TYPE: FLANGES
OUTLET SIZE: 1-3/4"
OVERALL DIMENSION: 21-1/4" X 27-3/4"
ROWS: 3
TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4
FEATURES:

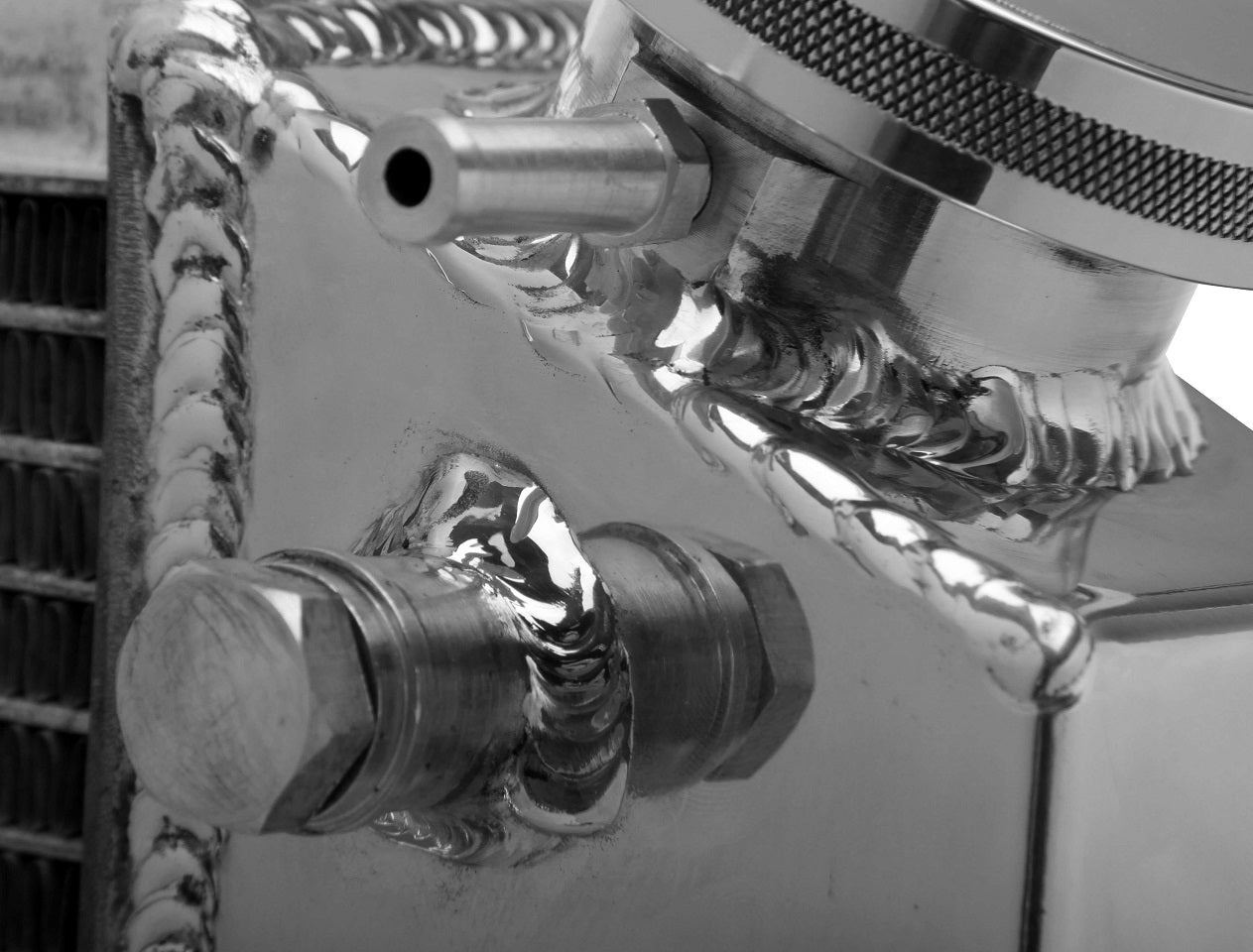

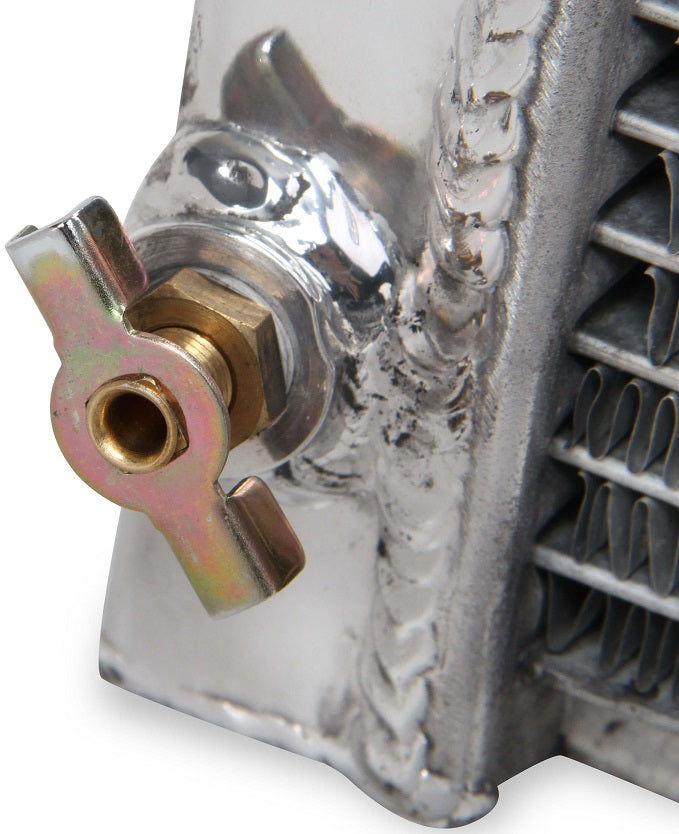

100% TIG WELDED (BRAZED) SEAMS AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS) BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE 3-ROW RADIATORS SUPPORTING APPLICATIONS W/ 450-750 HP YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
