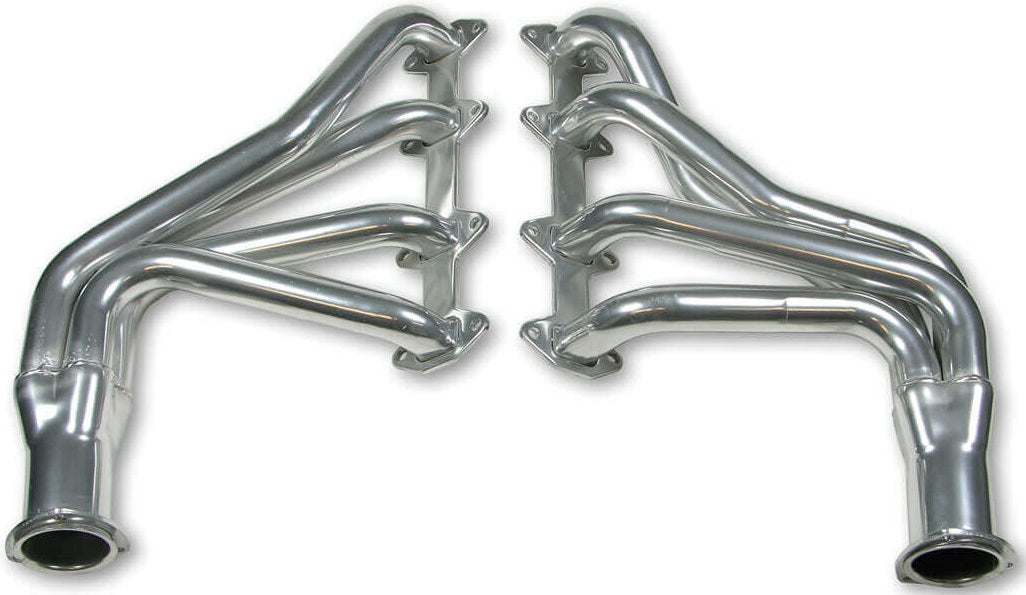

HEADER,352F,1 3/4,75-76 TRUCK,LONG,3,CERAMIC COATED

BRAND NEW PAIR OF FLOWTECH LONG TUBE HEADERS, 3" COLLECTORS, 1.75" TUBES, 352-428, COMPATIBLE WITH 1975-76 FORD F-100,150 & 250 2WD

FLOWTECH HEADERS ARE PRECISION ENGINEERED AND LEAK TESTED TO GET MAXIMUM PERFORMANCE AND FUEL ECONOMY FROM YOUR ENGINE. EACH HEADER IS FORMED FROM SPECIALLY SELECTED .049 COLD ROLL FLASH CONTROLLED TUBING, AND FEATURES EXCLUSIVE, THICK, MANDREL-FORMED POWER PLENUM COLLECTORS. ALL PORTS ARE PRECISELY FITTED AND FINISHED WITH STURDY, LEAK-PROOF O-RINGED PORT SEALS, AND ALL FLOWTECH HEADERS INCLUDE ALL MOUNTING HARDWARE INCLUDING BOLTS, NUTS AND PREMIUM GASKETS.

NOTE: BREAKING IN AN ENGINE WITH CERAMIC COATED HEADERS WILL RESULT IN DAMAGE TO THE COATING AND WILL VOID ALL WARRANTIES. CERAMIC COATED HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING CAST IRON EXHAUST MANIFOLDS OR OLD HEADERS TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE. THE USE OF HEADER WRAPS CAN CAUSE THE HEADER TUBES TO CRACK OR RUST DUE TO EXCESSIVE HEAT AND MOISTURE BUILD-UP.

NOTE: MUST MODIFY STOCK EXHAUST TO RETAIN CATALYTIC CONVERTERS

NOTE: ON SOME MODELS WITH THE C-6 TRANSMISSION, IT MAY BE NECESSARY TO BEND THE LINKAGE ARM ON THE TRANSMISSION. BEND IT 1/2" TO 3/4" IN TOWARDS THE TRANSMISSION & MAKE AN ADJUSTMENT AT THE STEERING COLUMN.

FITS:

• FORD 2WD:
• 1975-76 F-100
• 1975-76 F-150
• 1975-76 F-250

FEATURES:

• FUEL ECONOMY FROM THE ENGINE
• LEAK TEST FOR MAX PERFORMANCE
• RUST & CORROSION RESISTANCE
• MANDREL-FORMED POWER PLENUM
• LEAKPROOF O-RINGED PORT SEALS
• INCLUDES ALL MOUNTING HARDWARE

SPECS:

• COLLECTOR DIAMETER: 3"
• HEADER FINISH: SILVER METALLIC CERAMIC
• HEADER STYLE: LONG TUBE
• PRIMARY TUBE DIAMETER: 1.75"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THESE HEADERS HERE.
