HEADER,SBC,1 1/2,75-81 PASSENGER,MID,2 1/2,CERAMIC COATED

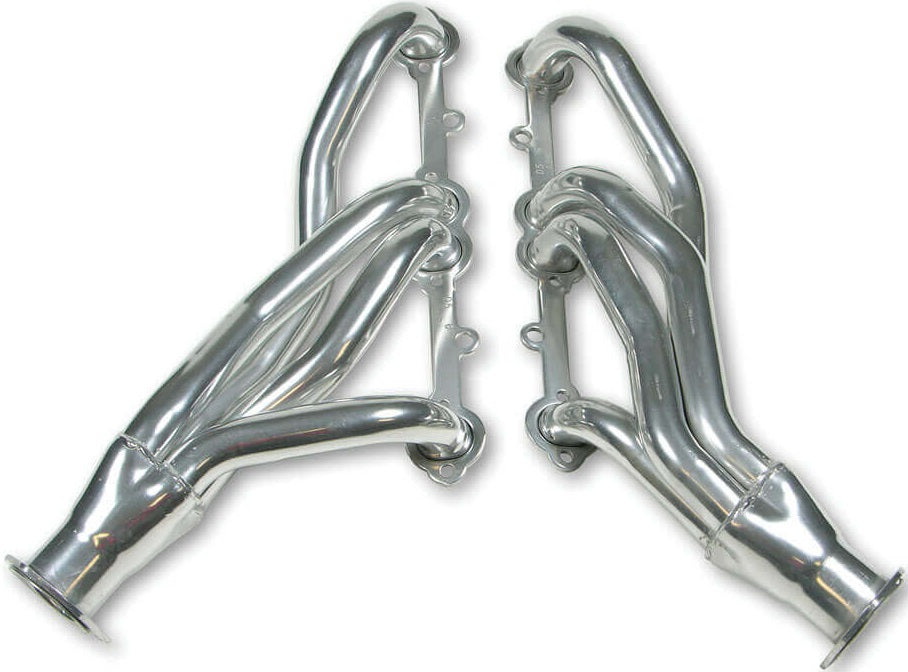

BRAND NEW FLOWTECH MID-LENGTH HEADERS, CERAMIC FINISH, 1.5" PRIMARY TUBE DIAMETER, 2.5" COLLECTORS, COMPATIBLE WITH 1975-1981 CHEVROLET CAMARO

FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS & 5/16" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE & GASKETS ARE INCLUDED FOR INSTALL. HEADERS ARE COATED IN A HIGH HEAT & CORROSION RESISTANT METALLIC CERAMIC THERMAL COATING THAT INCREASES EXHAUST VELOCITY & REDUCES UNDERHOOD TEMPS FOR INCREASED PERFORMANCE.

NOTE: INSTALL REQUIRES FLOWTECH A/C BRACKET 10042FLT. 1979 & LATER VEHICLES EQUIPPED WITH SHORT COMPRESSOR, USE ORIGINAL BRACKET. MUST MODIFY STOCK EXHAUST TO RETAIN CATALYTIC CONVERTERS. WILL FIT WITH ANGLE PLUG HEADS.

NOTE: NOT COMPATIBLE WITH MANUAL TRANSMISSION.

NOTE: BREAKING IN AN ENGINE WITH CERAMIC COATED HEADERS WILL RESULT IN DAMAGE TO THE COATING & VOID ALL WARRANTIES. CERAMIC COATED HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING CAST IRON EXHAUST MANIFOLDS OR OLD HEADERS TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE. THE USE OF HEADER WRAPS CAN CAUSE THE HEADER TUBES TO CRACK OR RUST DUE TO EXCESSIVE HEAT & MOISTURE BUILD-UP.

COMPATIBLE WITH:

• CHEVROLET:
• 1975 & 1981 BEL-AIR
• 1975-1981 CAMARO
• 1975-1990 CAPRICE
• 1975-1985 IMPALA
• 1975-1976 LAGUNA
• 1975-1988 MONTE CARLO
• 1975-1979 NOVA
• OLDSMOBILE:
• 1978-1981 CUTLASS
• 1985-1987 CUTLASS

FEATURES:

• TUNED-LENGTH PRIMARY TUBES FOR STREET PERFORMANCE
• MANDREL-BENT TUBING FOR SMOOTH EXHAUST FLOW
• LIGHT WEIGHT & STURDY 16 GAUGE TUBING
• MANDREL-FORMED POWER PLENUM COLLECTOR FOR LOW BACK PRESSURE
• STURDY, LEAK-TESTED O-RING PORT SEALS
• ENGINEERED FOR A PRECISION FIT
• DESIGNED FOR EASY, TROUBLE-FREE INSTALL
• INCLUDES ALL MOUNTING HARDWARE & PREMIUM GASKETS
• SHORTY STYLE HEADER, WILL ALSO WORK ON CATALYTIC CONVERTER EQUIPPED VEHICLES. HEAD PIPE FABRICATION REQUIRED

SPECS:

• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 2.5"
• EMISSION CODE: 4
• ENGINE: CHEVROLET SMALL BLOCK
• HEADER FINISH: SILVER CERAMIC
• HEADER STYLE: MID LENGTH
• PRIMARY TUBE DIAMETER: 1.5"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
