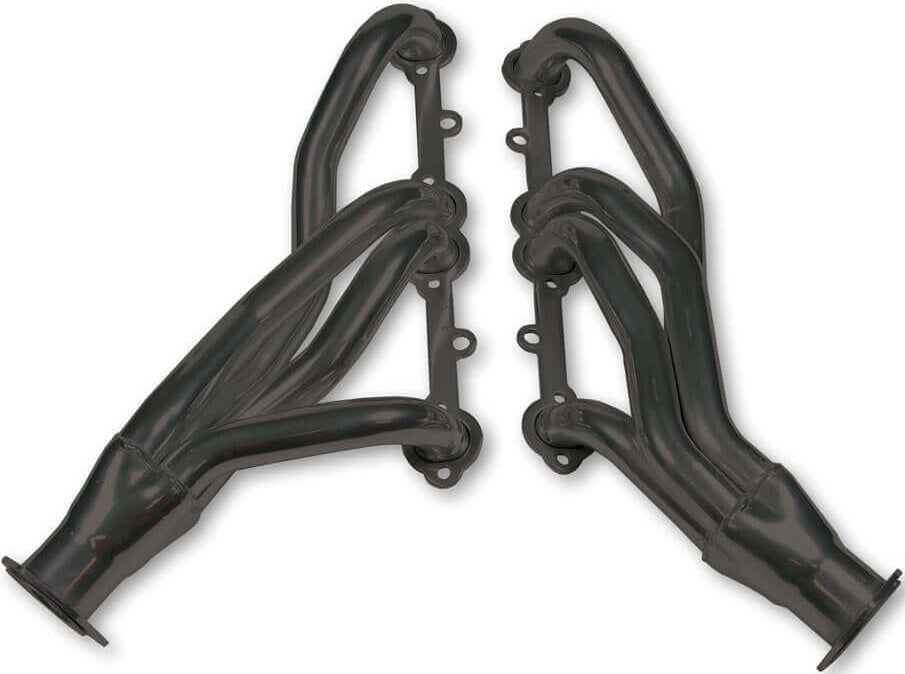

HEADER,SBC,1 1/2,75-81 PASSENGER,MID,2 1/2,BLACK

BRAND NEW FLOWTECH MID-LENGTH HEADER, PAINTED BLACK, 1.5" PRIMARY TUBES, 2.5" COLLECTORS, 267-400CI, COMPATIBLE WITH 1975-1981 CHEVROLET CAMARO

FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS & 5/16" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE & GASKETS ARE INCLUDED FOR A SIMPLE INSTALL. THIS HEADER IS COATED IN A HIGH HEAT RESISTANT BLACK PAINT FOR A STEALTHY APPEARANCE.

NOTE: THIS PART IS LEGAL FOR SALE AND USE ON EMISSIONS CONTROLLED VEHICLES, IN ALL 50 STATES, WHEN USED IN ACCORDANCE WITH THE MANUFACTURERS APPLICATION GUIDE BECAUSE IT HAS A CALIFORNIA AIR RESOURCES BOARD (CARB) EXECUTIVE ORDER (EO) NUMBER CARB EO #D-115-16.

NOTE: INSTALL REQUIRES FLOWTECH A/C BRACKET, PART #10042FLT

NOTE: 1979 & LATER VEHICLES EQUIPPED WITH SHORT COMPRESSOR, USE ORIGINAL BRACKET

NOTE: MUST MODIFY STOCK EXHAUST TO RETAIN CATALYTIC CONVERTERS

COMPATIBLE WITH:

• DODGE:
• 1975 & 1981 BEL AIR
• 1975-1981 CAMARO
• 1975-1990 CAPRICE
• 1975-1985 IMPALA
• 1975-1976 LAGUNA
• 1988-1993 MONTE CARLO
• 1975-1979 NOVA
• OLDSMOBILE:
• 1979-1981 CUTLASS
• 1985-1987 CUTLASS

FEATURES:

• TUNED-LENGTH PRIMARY TUBES FOR STREET PERFORMANCE
• MANDREL-BENT TUBING FOR SMOOTH EXHAUST FLOW
• LIGHT WEIGHT & STURDY 16 GAUGE TUBING
• MANDREL-FORMED POWER PLENUM COLLECTOR FOR LOW BACK PRESSURE
• STURDY, LEAK-TESTED O-RING PORT SEALS
• ENGINEERED FOR A PRECISION FIT
• DESIGNED FOR EASY, TROUBLE-FREE INSTALLATION
• INCLUDES ALL MOUNTING HARDWARE & PREMIUM GASKETS
• MID-LENGTH STYLE HEADER, WILL ALSO WORK WITH CATALYTIC CONVERTER EQUIPPED VEHICLES. HEAD PIPE FABRICATION REQUIRED

SPECS:

• COLLECTOR DIAMETER: 2.5"
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• HEADER FINISH: BLACK PAINT
• HEADER STYLE: MID LENGTH
• PRIMARY TUBE DIAMETER: 1.5"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
