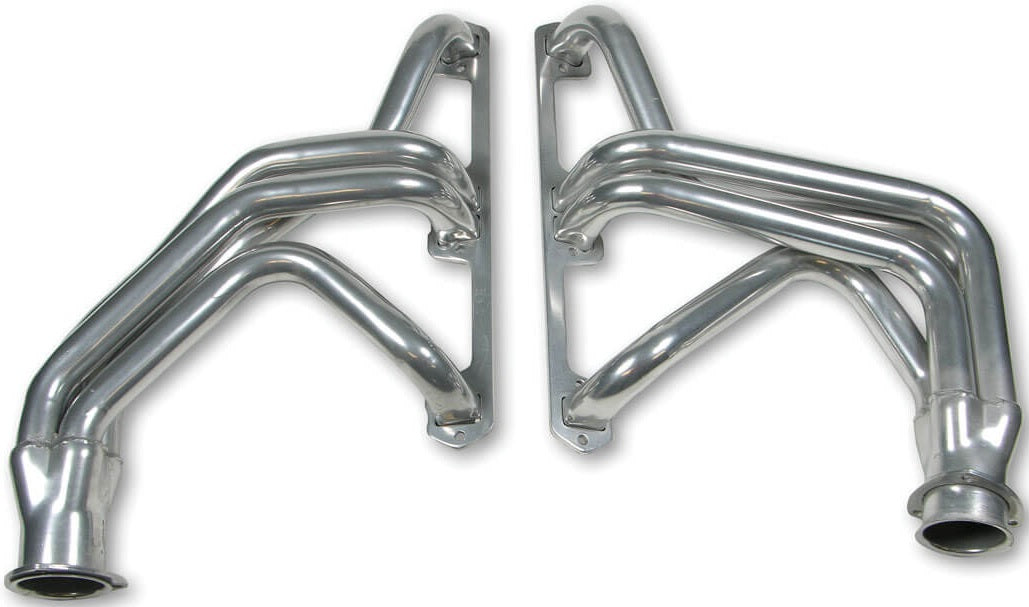

HEADER,JEEP,CJ,V-8,1 5/8,72-74,CERAMIC

BRAND NEW FLOWTECH LONG TUBE HEADERS, SILVER CERAMIC FINISH, 1.625" TUBES, 3" COLLECTORS, COMPATIBLE WITH 290-401 1972-1974 JEEP CJ5

FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS & 5/16" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE & GASKETS ARE INCLUDED FOR A SIMPLE INSTALL. COATED IN SILVER CERAMIC FOR RUST & CORROSION RESISTANCE. AUTOMATIC SHIFT COLUMN & STANDARD SHIFT FLOOR.

NOTE: BREAKING IN AN ENGINE WITH CERAMIC-COATED HEADERS WILL RESULT IN DAMAGE TO THE COATING & WILL VOID ALL WARRANTIES. THESE HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING A CAST-IRON EXHAUST MANIFOLD OR AN OLD HEADER TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE.

COMPATIBLE WITH:

• JEEP:
• 1972-1974 CJ5
• 1972-1974 CJ6
• 1972-1974 CJ7

FEATURES:

• FUEL ECONOMY FROM THE ENGINE
• LEAK TEST FOR MAX PERFORMANCE
• MANDREL-FORMED POWER PLENUM
• LEAKPROOF O-RINGED PORT SEALS
• INCLUDE ALL MOUNTING HARDWARE
• CONSTRUCTED OF .049 COLD ROLL FLASH MILD STEEL TUBING
• PRECISION ENGINEERED FOR FIT, PERFORMANCE & ECONOMY

SPECS:

• BOLT SIZE: 3/8-16 X 3/4
• COLLECTOR DIAMETER: 3"
• ENGINE: AMERICAN MOTORS V8
• HEADER FINISH: SILVER CERAMIC
• HEADER STYLE: LONG TUBE
• PRIMARY TUBE DIAMETER: 1-5/8"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
