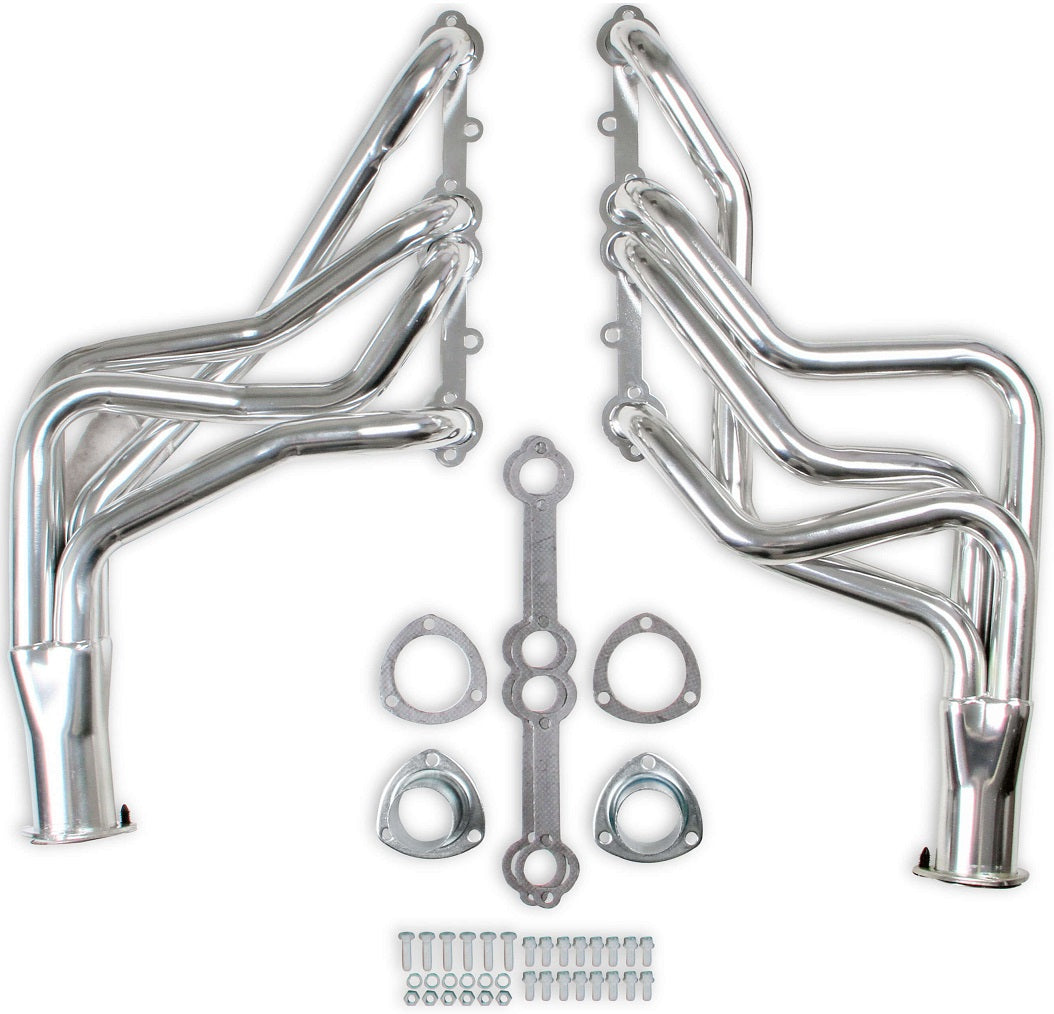

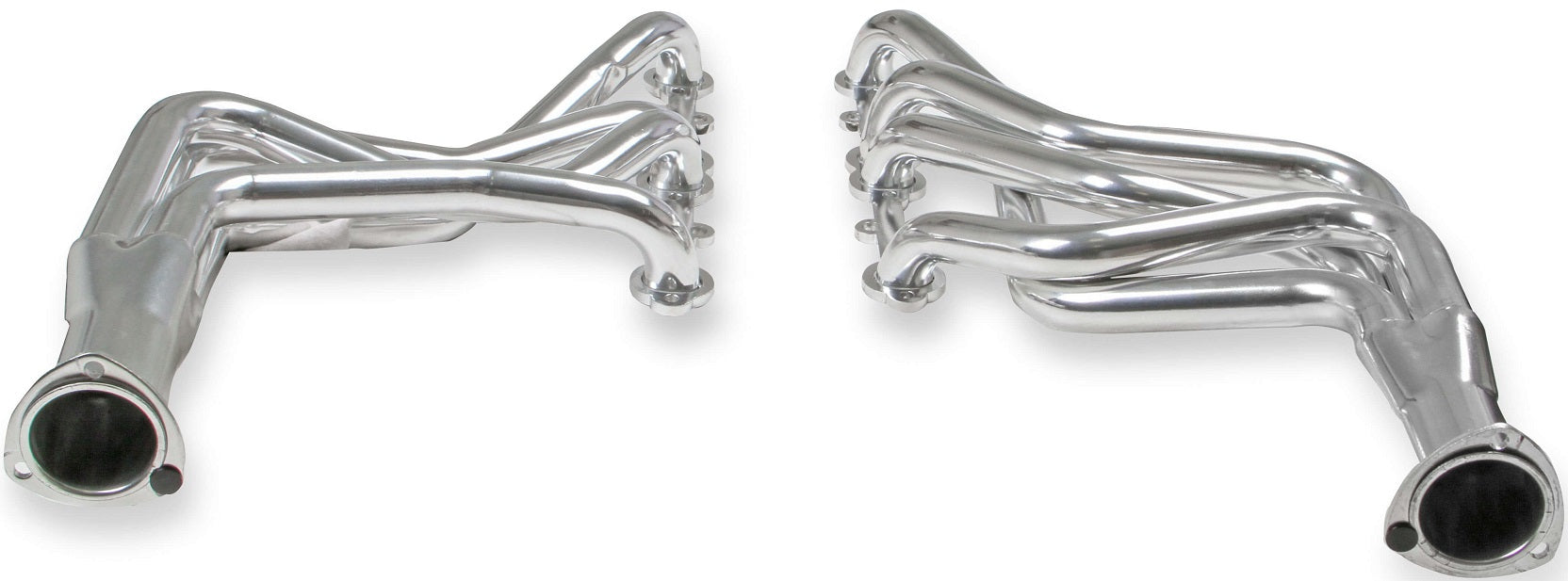

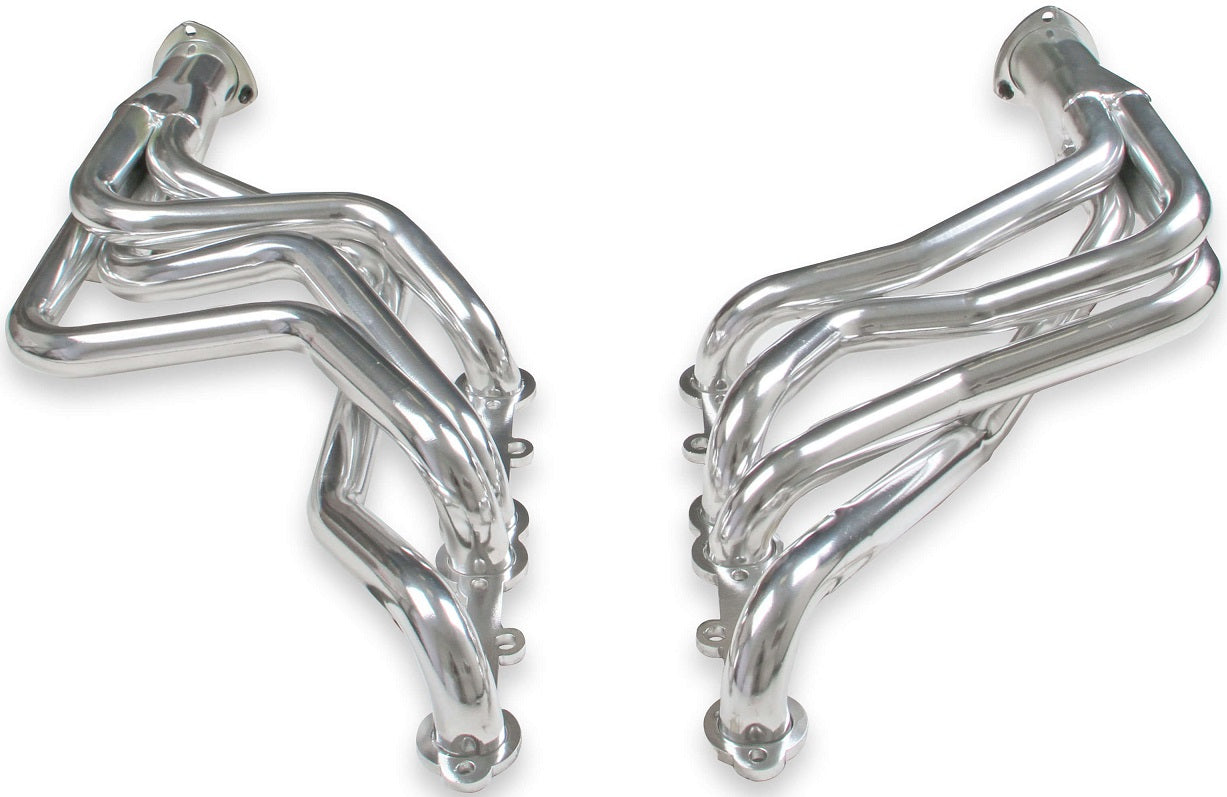

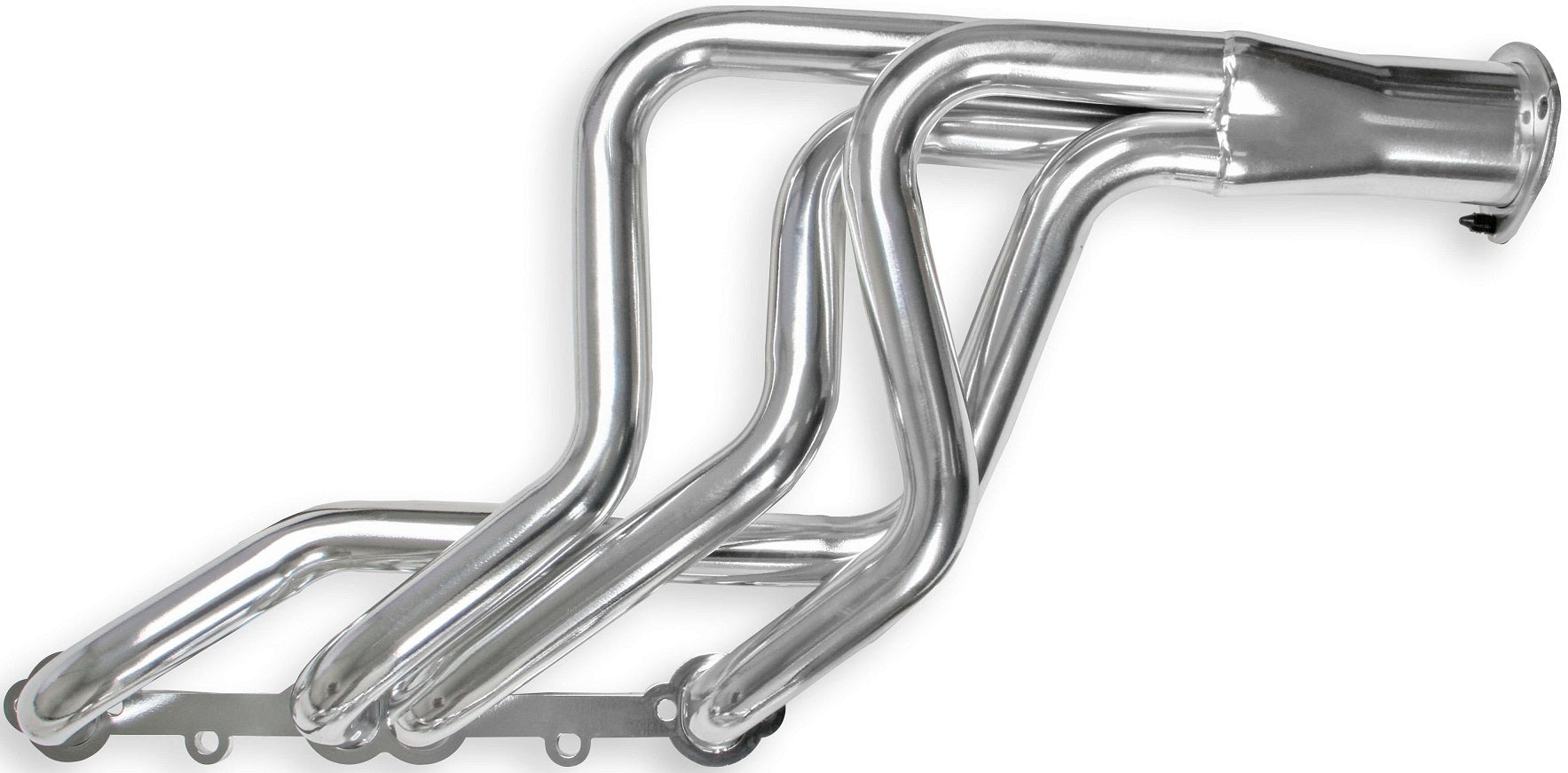

HEADER,SBC,1 5/8,64-74 PASSENGER,LONG TUBE,3,CERAMIC COATED

BRAND NEW PAIR OF FLOWTECH LONG TUBE HEADERS, 3" COLLECTORS, 1.625" TUBES, COMPATIBLE WITH SMALL BLOCK CHEVY 283-400 ENGINES

FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS & 5/16" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE & GASKETS ARE INCLUDED FOR A SIMPLE INSTALL. THIS HEADER IS COATED IN A HIGH HEAT & CORROSION RESISTANT METALLIC CERAMIC THERMAL COATING THAT INCREASES EXHAUST VELOCITY & REDUCES UNDERHOOD TEMPS FOR INCREASED PERFORMANCE.

NOTE: WILL NOT FIT THE FOLLOWING: 67-69 CAMARO W/ A/C, ANGLE PLUG HEADS OR RAISED PORT HEADS, FACTORY MOTOR MOUNTS MUST BE USED FOR PROPER ENGINE PLACEMENT, AND MANUAL TRANSMISSION ON MONTE CARLO & LATE MODEL PASSENGER WAGONS.

FITS:

• CHEVROLET 283-400 ENGINES:
• 1964-74 EL CAMINO
• 1964-74 MALIBU
• 1965-74 IMPALA
• 1965-74 BEL AIR
• 1965-74 CAPRI
• 1967-69 CAMARO
• 1964-74 CHEVELLE
• 1968-74 CHEVY II / NOVA (WILL NOT FIR A.I.R. INJECTION PUMP)
• 1970-74 MONTE CARLO 305-400CI
• BUICK 283-400 ENGINES:
• 1964-72 SKYLARK
• 1973-74 REGAL
• PONTIAC 283-400 ENGINES:
• 1967-69 FIREBIRD
• 1971-74 VENTURA
• 1969-74 GRAND PRIX
• OLDSMOBILE 283-400 ENGINES:
• 1964-74 CUTLASS
• 1964-74 442
• 1964-74 F-85
• 1964-74 VISTA CRUISER

FEATURES:

• TUNED-LENGTH PRIMARY TUBES FOR STREET PERFORMANCE
• MANDREL-BENT TUBING FOR SMOOTH EXHAUST FLOW
• LIGHT WEIGHT & STURDY 16 GAUGE TUBING
• MANDREL-FORMED POWER PLENUM COLLECTOR FOR LOW BACK PRESSURE
• STURDY, LEAK-TESTED O-RING PORT SEALS
• ENGINEERED FOR A PRECISION FIT
• DESIGNED FOR EASY, TROUBLE-FREE INSTALL
• INCLUDES ALL MOUNTING HARDWARE AND PREMIUM GASKETS
• WORKS WITH FACTORY POWER STEERING & POWER BRAKES

SPECS:

• COLLECTOR DIAMETER: 3"
• HEADER FINISH: SILVER METALLIC CERAMIC
• HEADER STYLE: LONG TUBE
• PRIMARY TUBE DIAMETER: 1.625"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THESE HEADERS HERE.
