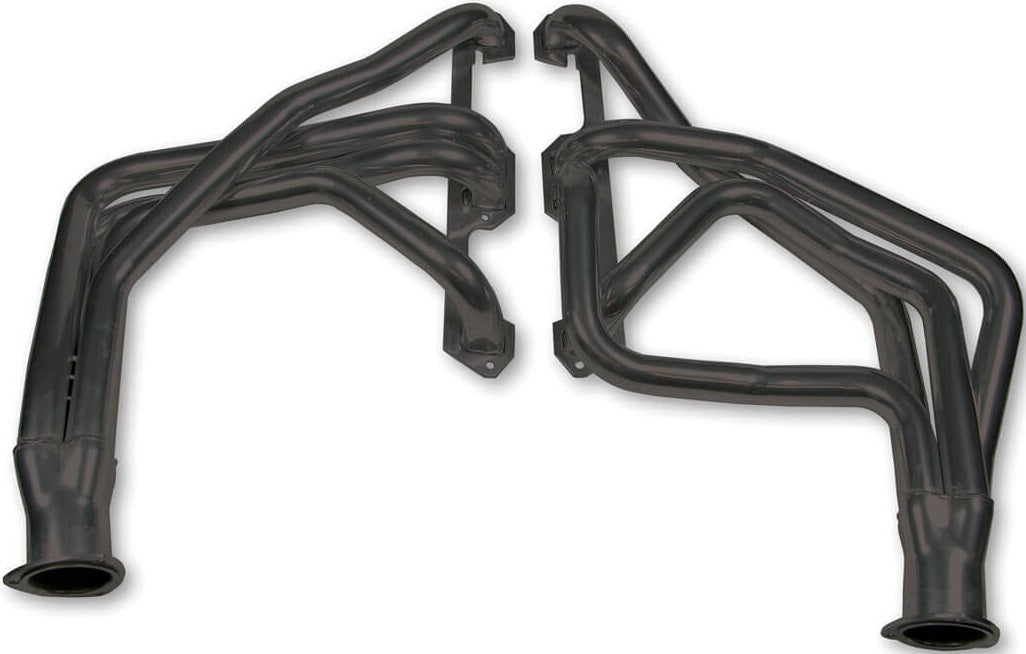

HEADER,SB MOPAR,1 5/8,72-74,LONG,3,BLACK

BRAND NEW FLOWTECH LONG TUBE HEADERS, BLACK FINISH, 1.625" TUBE DIAMETER, 3" COLLECTORS, 273-360, COMPATIBLE WITH 1974 TRAILDUSTER

FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS & 5/16" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE & GASKETS ARE INCLUDED FOR A SIMPLE INSTALL. COATED IN A HIGH HEAT RESISTANT BLACK PAINT FOR A STEALTHY APPEARANCE.

NOTE: BREAKING IN AN ENGINE WITH CERAMIC-COATED HEADERS WILL RESULT IN DAMAGE TO THE COATING & WILL VOID ALL WARRANTIES. THESE HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING A CAST-IRON EXHAUST MANIFOLD OR AN OLD HEADER TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE.

COMPATIBLE WITH:

• PLYMOUTH:
• 1974 TRAILDUSTER 4WD
• DODGE:
• 1972-1974 D100 PICKUP
• 1972-1974 D200 PICKUP
• 1972-1974 W100 PICKUP
• 1972-1974 W200 PICKUP
• 1974 RAMCHARGER 4WD

FEATURES

• FUEL ECONOMY FROM THE ENGINE
• LEAK TEST FOR MAX PERFORMANCE
• MANDREL-FORMED POWER PLENUM
• LEAK-PROOF O-RINGED PORT SEALS
• INCLUDE ALL MOUNTING HARDWARE
• CONSTRUCTED OF .049 COLD ROLL FLASH MILD STEEL TUBING
• PRECISION ENGINEERED FOR FIT, PERFORMANCE & ECONOMY

SPECS:

• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 3"
• EMISSION CODE: 4
• ENGINE: SMALL BLOCK LA
• FLANGE THICKNESS: 5/16"
• HEADER FINISH: BLACK PAINT
• HEADER STYLE: LONG TUBE
• PRIMARY TUBE DIAMETER: 1-5/8"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
