HEADER,352F,1 3/4,65-74 TRUCK,2WD,LONG,3,BLACK

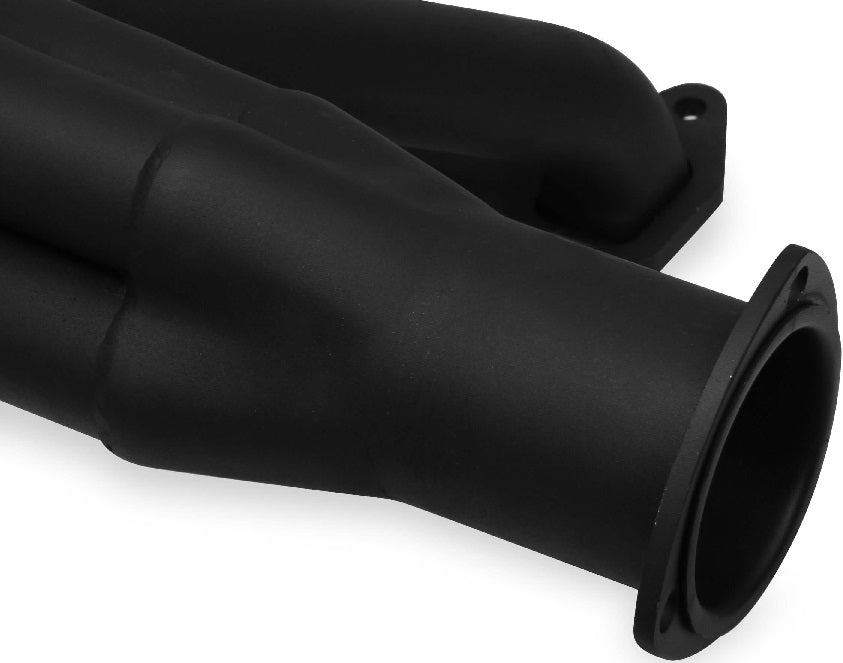

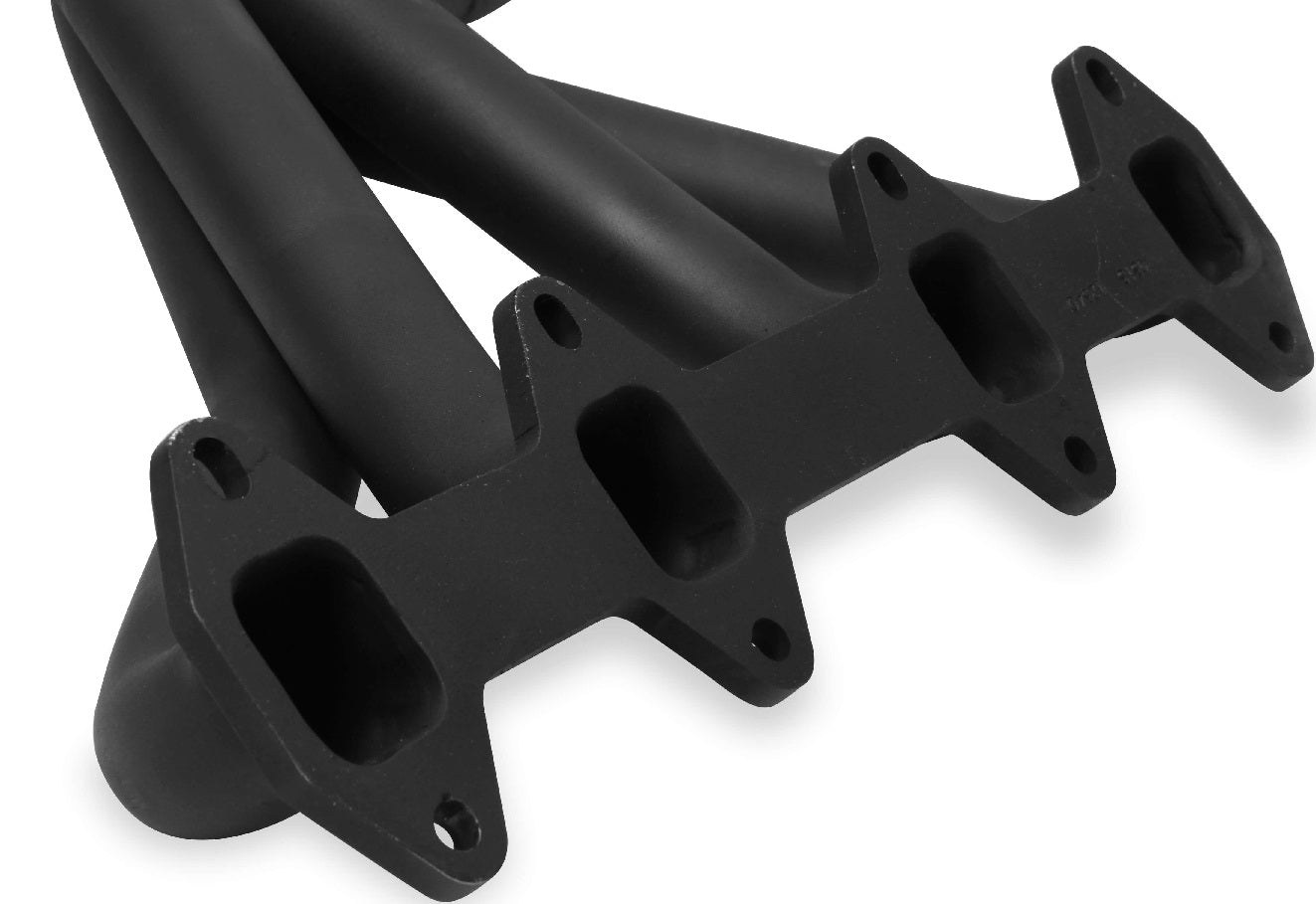

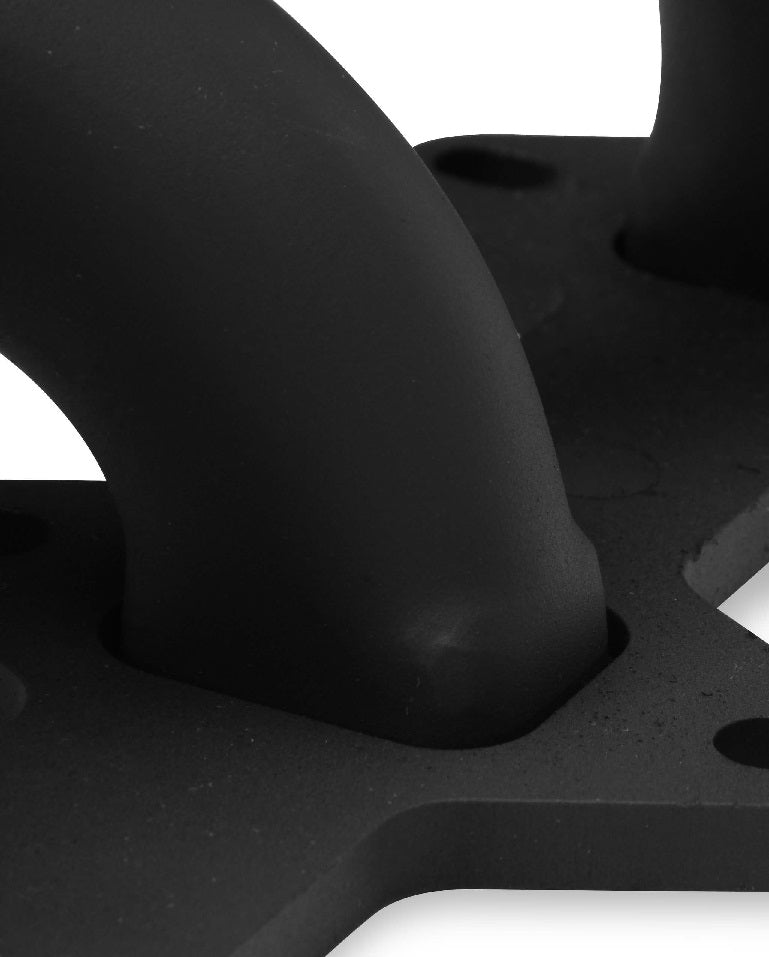

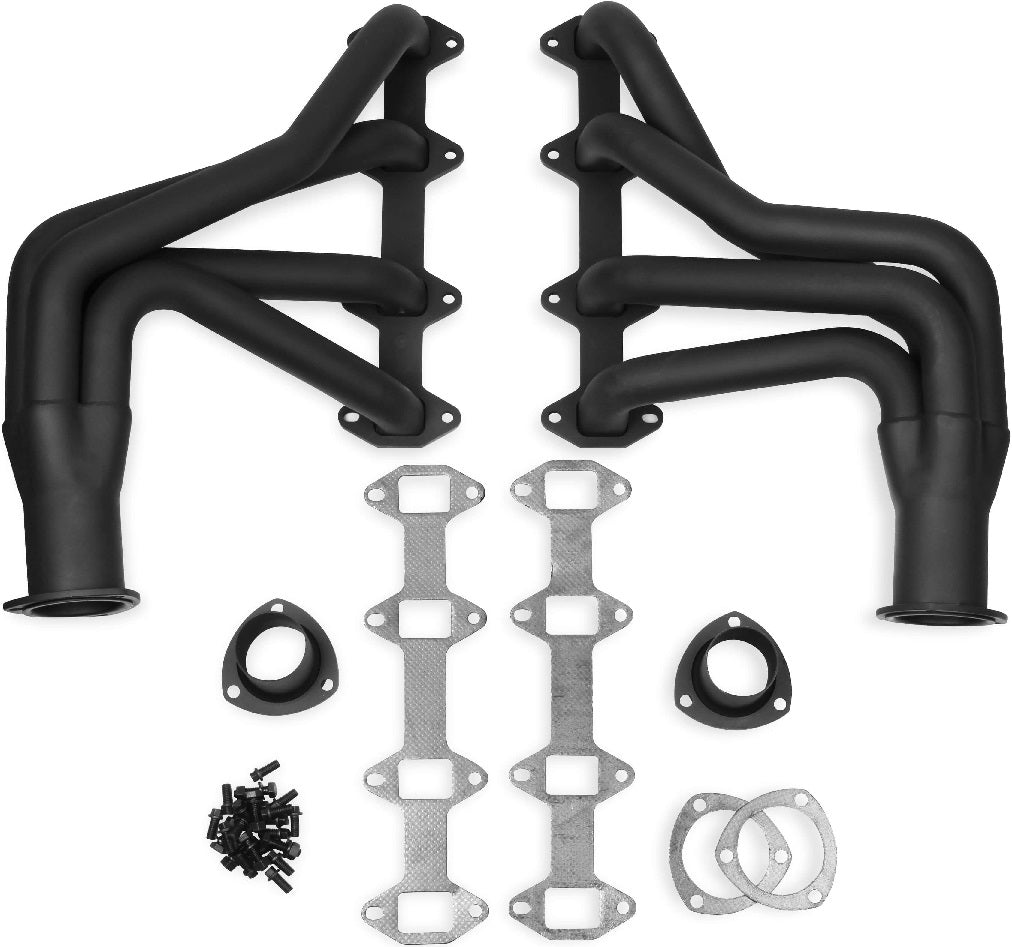

BRAND NEW FLOWTECH LONG TUBE HEADERS, BLACK FINISH, 1-3/4" TUBE DIAMETER, 3" COLLECTORS, COMPATIBLE WITH 1965-74 FORD F-100, F-150 & F-250 2WD 352-428

FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS & 5/16" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE & GASKETS ARE INCLUDED FOR A SIMPLE INSTALL. COATED IN A HIGH HEAT RESISTANT BLACK PAINT.

NOTE: BREAKING IN AN ENGINE WITH CERAMIC-COATED HEADERS WILL RESULT IN DAMAGE TO THE COATING AND WILL VOID ALL WARRANTIES. THESE HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING A CAST-IRON EXHAUST MANIFOLD OR AN OLD HEADER TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE.

NOTE: WILL NOT FIT 1968-72 / CAMPER SPECIAL GAS TANKS

NOTE: MUST MODIFY STOCK EXHAUST TO RETAIN CATALYTIC CONVERTERS

NOTE: ON SOME C-6 TRANSMISSION MODELS, IT MAY BE NECESSARY TO BEND LINKAGE ARM ON TRANSMISSION. BEND IT 1/2" TO 3/4" IN TOWARDS THE TRANSMISSION & MAKE AN ADJUSTMENT AT STEERING COLUMN.

COMPATIBLE WITH:

• FORD:
• 1965-74 F-100 2WD
• 1965-74 F-150 2WD
• 1965-74 F-250 2WD

FEATURES

• FUEL ECONOMY FROM THE ENGINE
• LEAK TEST FOR MAX PERFORMANCE
• MANDREL-FORMED POWER PLENUM
• LEAKPROOF O-RINGED PORT SEALS
• INCLUDE ALL MOUNTING HARDWARE
• CONSTRUCTED OF .049 COLD ROLL FLASH MILD STEEL TUBING
• PRECISION ENGINEERED FOR FIT, PERFORMANCE & ECONOMY

SPECS:

• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 3.00"
• EMISSION CODE: 4
• ENGINE: BBF
• HEADER FINISH: BLACK PAINT
• HEADER STYLE: LONG TUBE
• PRIMARY TUBE DIAMETER: 1-3/4"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
