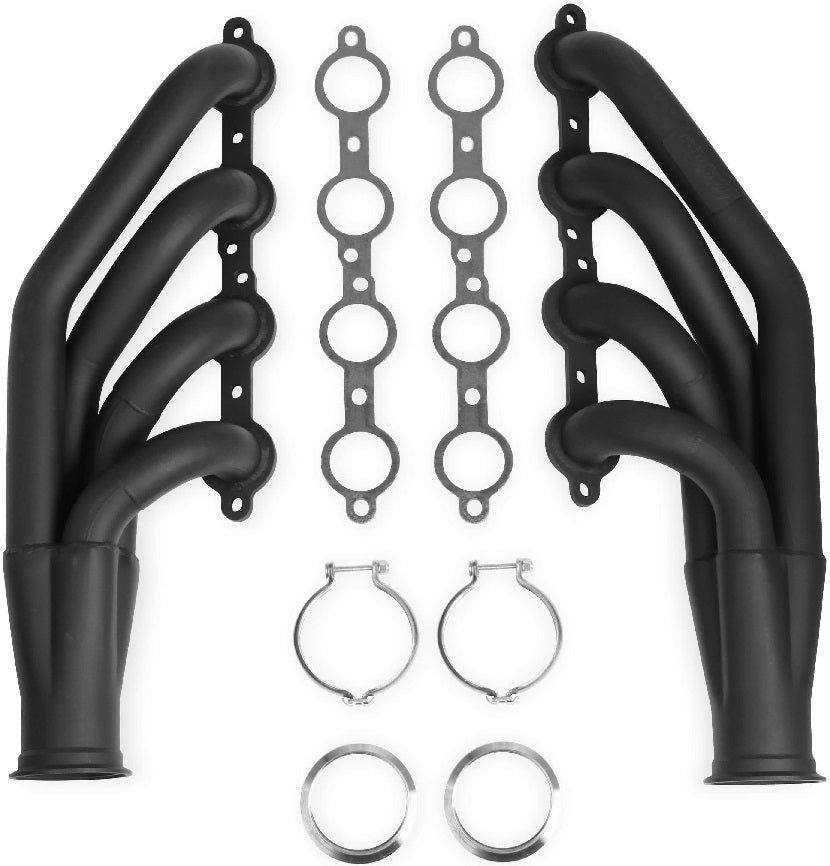

HEADER,LS TURBO,1 7/8,UP&FWD,3,BLACK

BRAND NEW FLOWTECH LS TURBO HEADERS, PAINTED BLACK FINISH, 1.875" PRIMARY TUBES, 3" COLLECTORS, COMPATIBLE WITH GM SMALL BLOCK GEN III/IV LS BASED ENGINES

THESE FLOWTECH "4 TO 1" LS TURBO HEADERS WITH 1-7/8" TUBE DIAMETERS ARE AN IDEAL DESIGN CREATING A COMPACT PACKAGE ALLOWING A VARIETY OF CONFIGURATIONS (UP & FORWARD, DOWN & FORWARD, OR DOWN & BACK) TO BE USED AS A UNIVERSAL FIT TURBO HEADER.

FEATURES:

• CNC MANDREL-BENT TUBES PROVIDE CONSISTENT TUBING DIAMETERS FOR SMOOTH FLOW & INCREASES THE CYLINDER SCAVENGING EFFECT & IMPROVES ENGINE BREATHING
• 409SS TUBING FOR INCREASED STRENGTH & DURABILITY
• 1-7/8" TUBING DIAMETERS FOR INCREASED EXHAUST FLOW INCREASING PERFORMANCE & IMPROVED THROTTLE RESPONSE

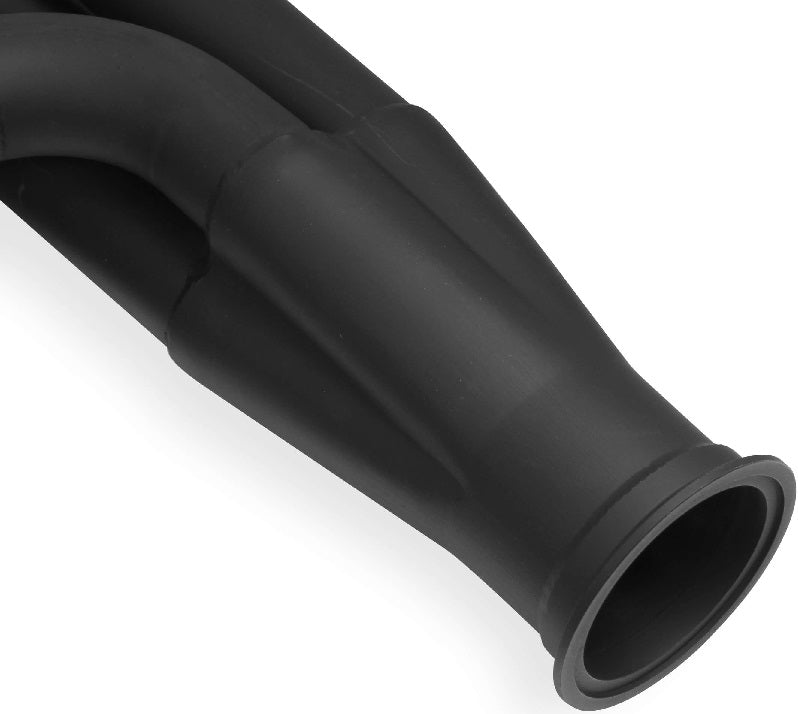

• 3" COLLECTOR FOR MAX STRENGTH & EXHAUST FLOW

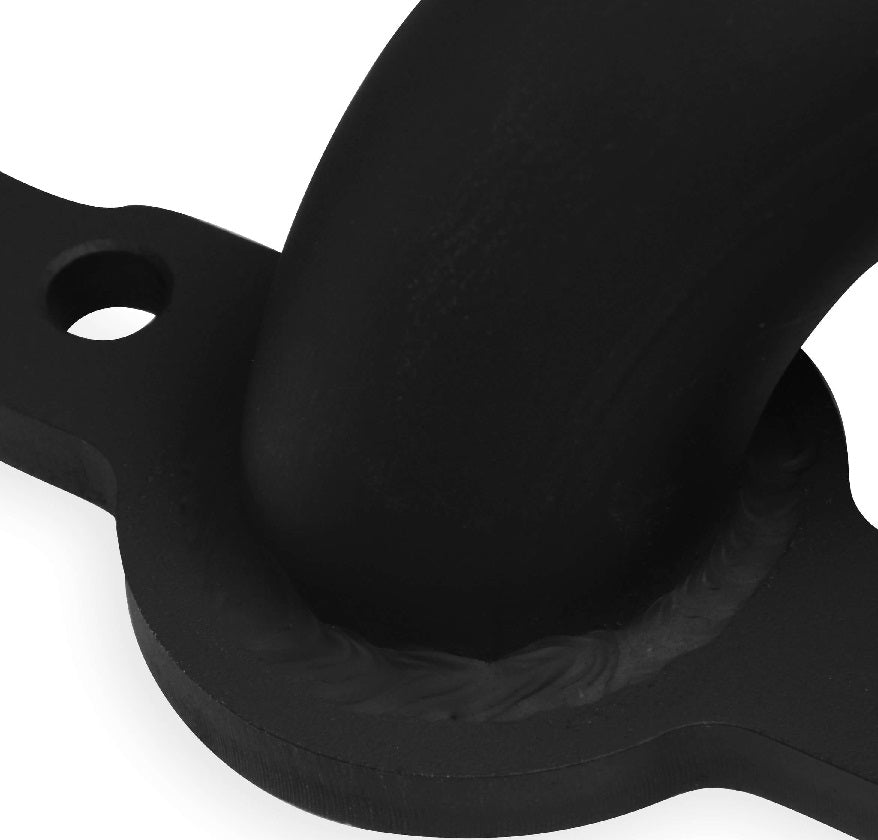

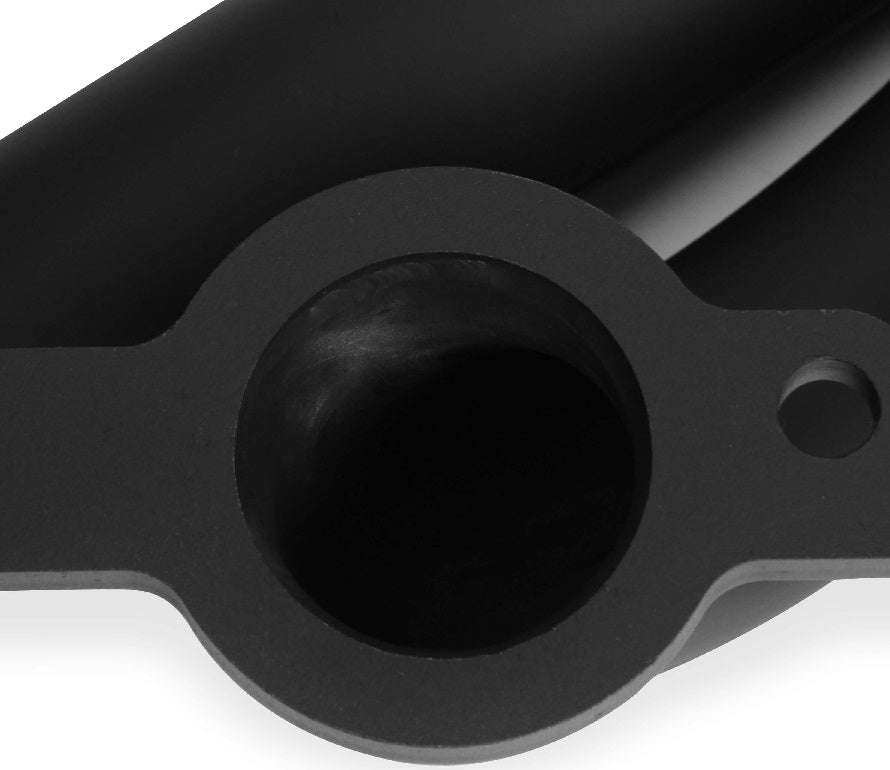

• 7/16" THICK HEADER FLANGE FOR A LEAK-FREE SEAL & MAXIMUM STRENGTH
• PREMIUM ALUMINUM HEADER GASKETS, 3" V-BAND FLANGES & CLAMPS ARE INCLUDED

SPECS:

• BOLT SIZE: M8 X 1.25 X 25MM
• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 3.00"
• ENGINE: GM SMALL BLOCK GEN III/IV (LS BASED)
• HEADER FINISH: BLACK PAINT
• HEADER STYLE: TURBO
• MATERIAL: 409 STAINLESS STEEL
• PRIMARY TUBE DIAMETER: 1-7/8"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: 409 STAINLESS STEEL
