CAT-BACK EXHAUST SYSTEM,OTL,19-24 RAM 1500 5.7L,DOR/S

CAT-BACK EXHAUST SYSTEM,OTL,19-24 RAM 1500 5.7L,DOR/S

FLM 817936

$1,149.95
$1,149.95
View full details

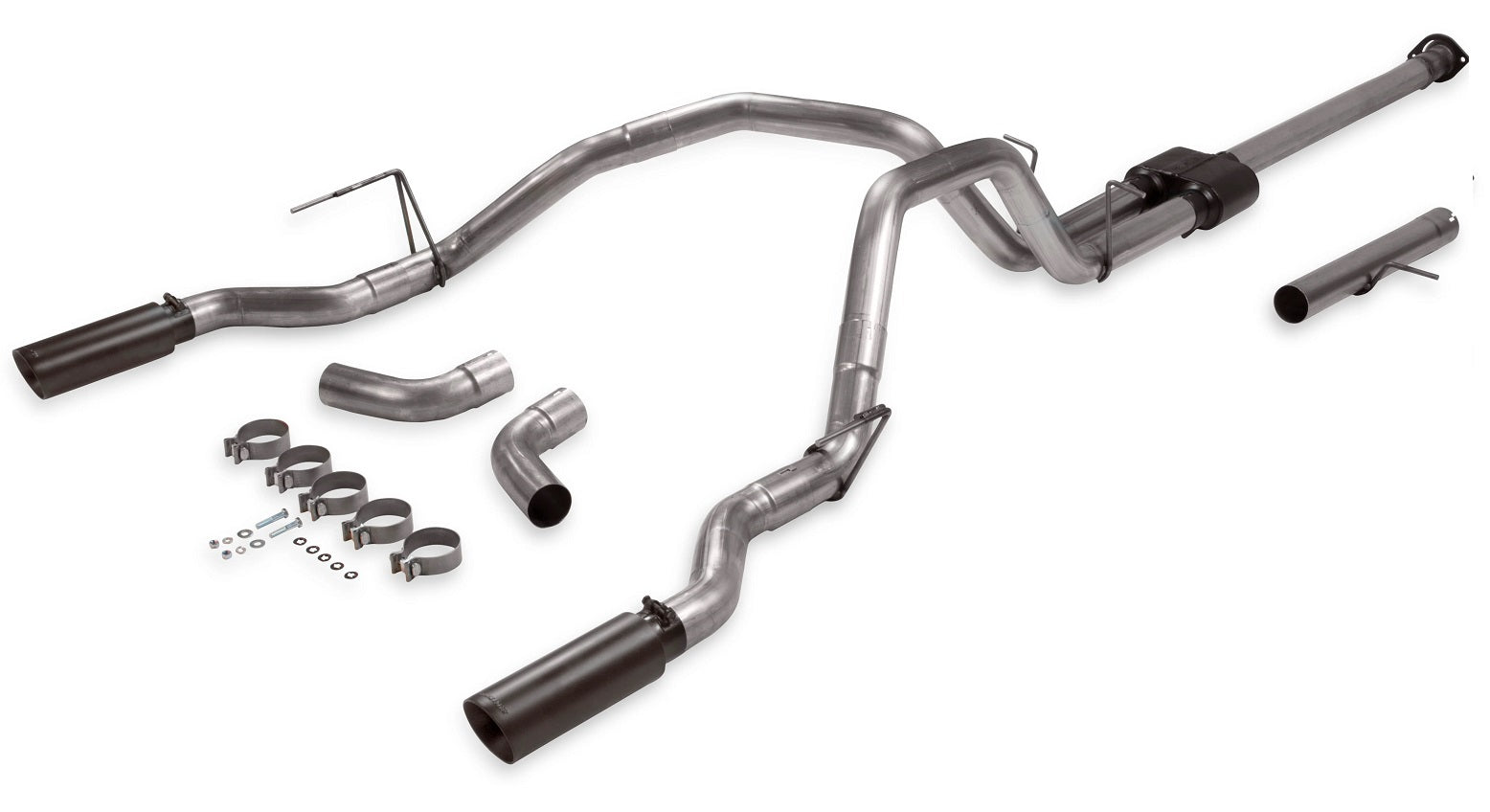

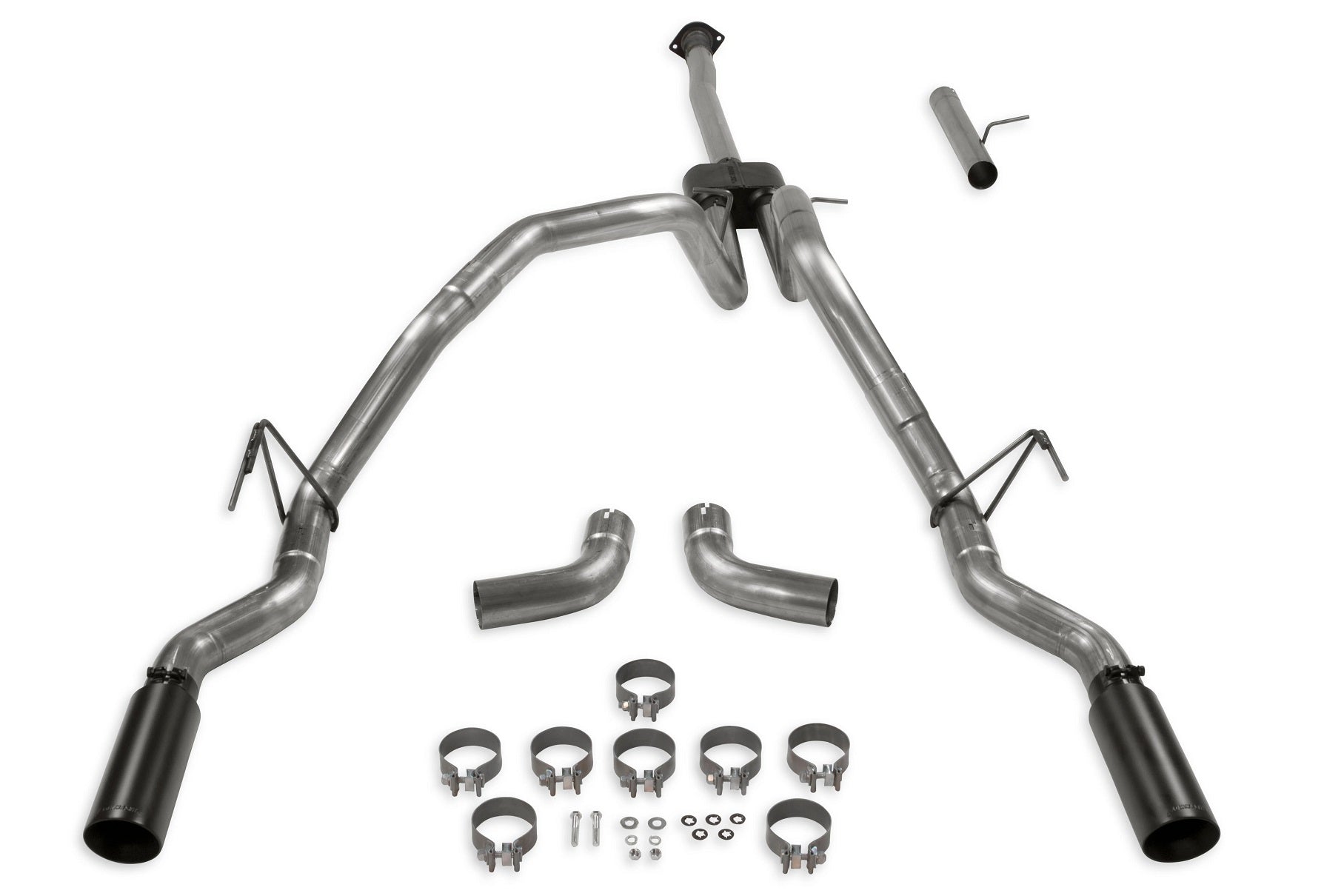

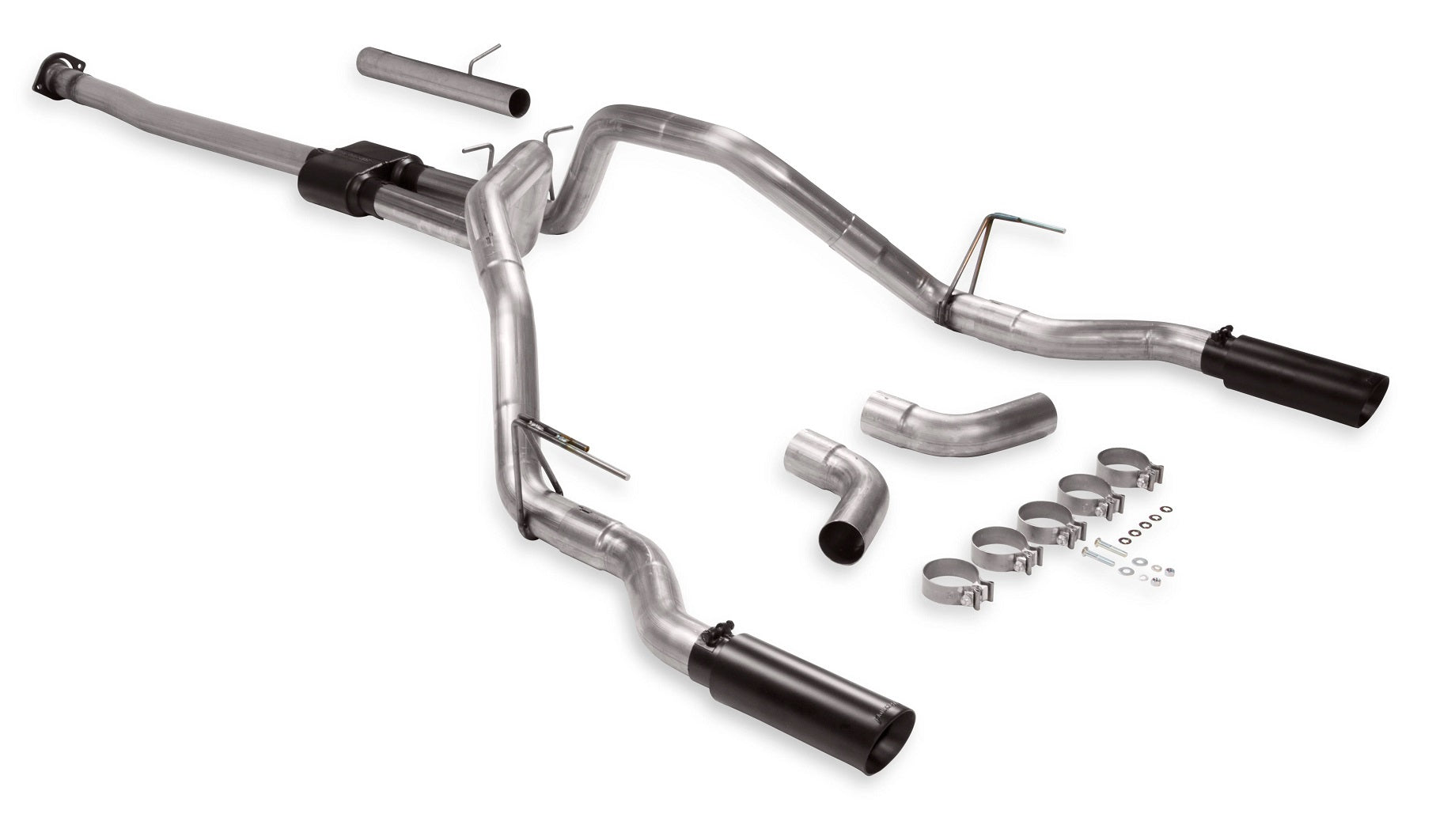

Brand New Flowmaster Outlaw Cat-Back Exhaust System, Dual Out Rear/Side (Part #817936)

This Flowmaster® Outlaw® cat-back exhaust system is for 2019*-2024, 2026 (*New body) RAM 1500 trucks is perfect for maximum sound levels both inside and outside of the truck, with all of the performance benefits that you would expect from Flowmaster. This bolt-on emissions-legal system fits RAM trucks with the 5.7L Hemi engine and features all mandrel-bent 409 stainless steel 3.00-inch tubing flowing into a Super 10™ Series muffler and exiting into large 3.00-inch dual mandrel-bent tailpipes for maximum sound and performance. The system comes with two sets of tailpipe exits for you to choose from, either straight out the back under the bumper, or exiting behind the rear wheels, which is ideal for towing applications. The tailpipes are finished off with a pair of large 4.00-inch black ceramic coated stainless steel tips and the exhaust system is covered by our Lifetime Limited Warranty. Designed for an easy fit, this system includes all necessary parts and hardware for installation.

Note: Fits 2/4 wheel drives with 140.5, 144.5 and 153.5-inch wheelbases.

Compatible with:

  • Ram:
    • 2019-2024 1500 5.7L
Features:

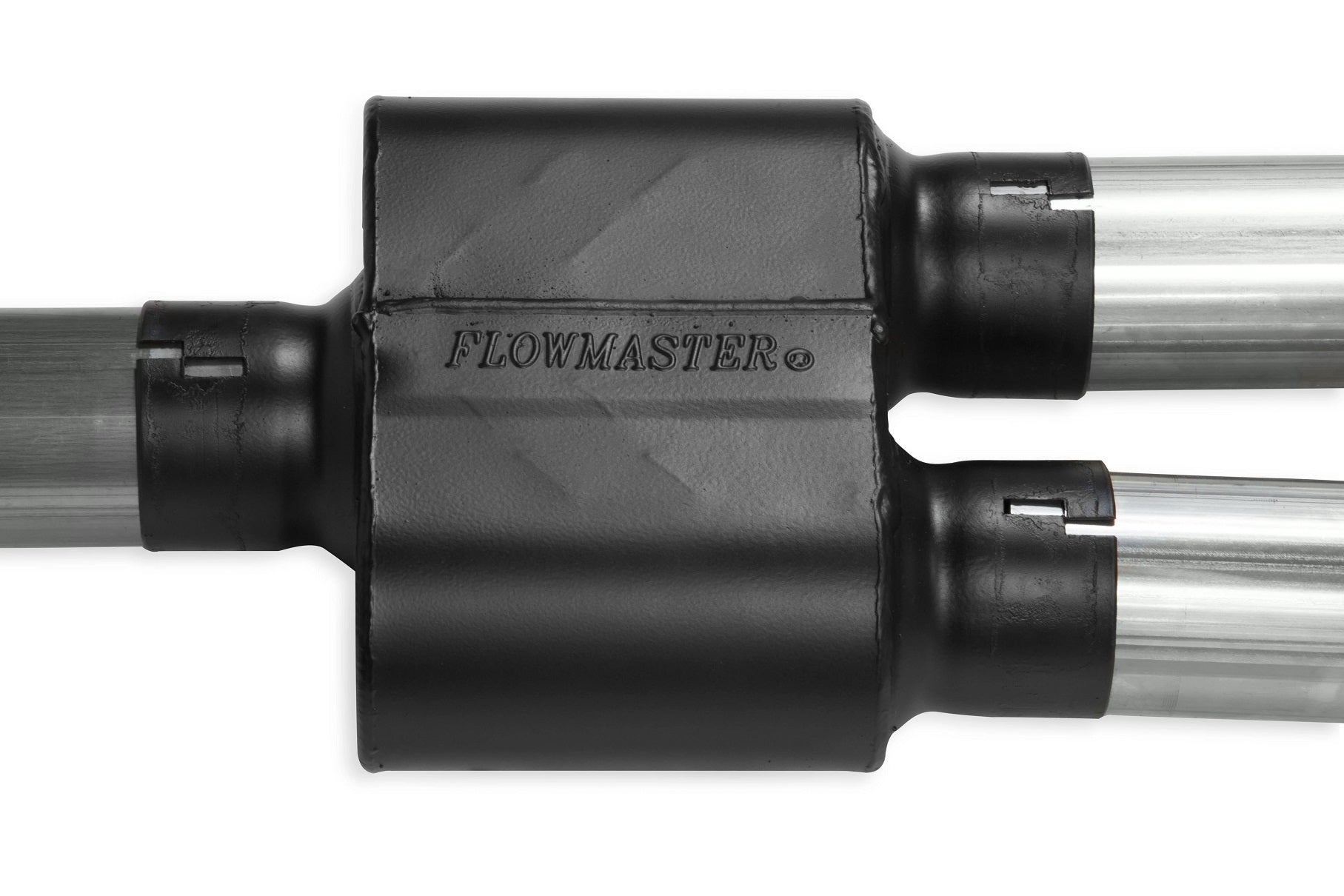

  • Super 10 Series Performance Muffler Gives You Maximum Sound

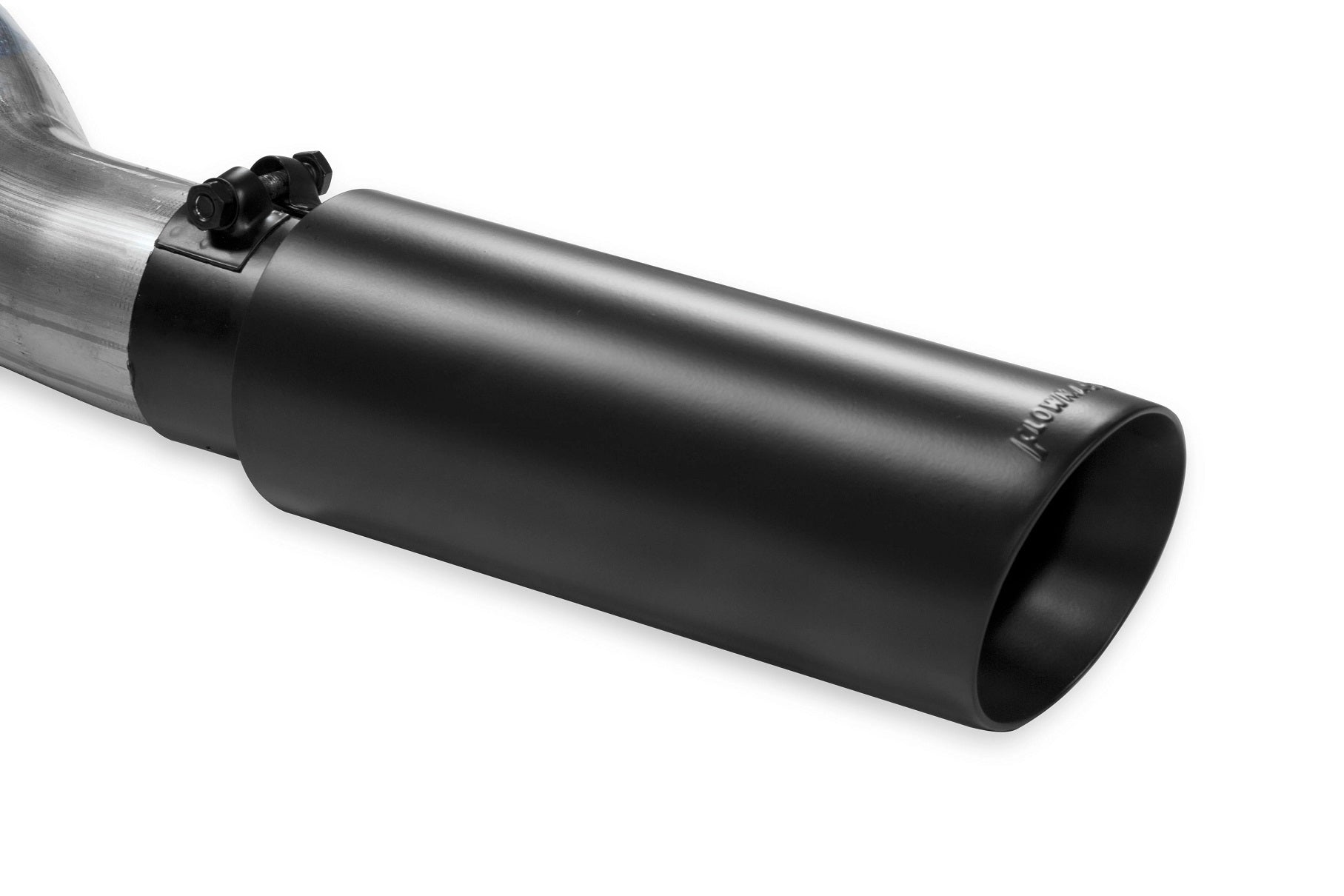

  • Black Ceramic Coated Stainless Steel Tips Provide Great Looks
  • Mandrel-bent Tubing Increases Exhaust Flow and Performance
  • Includes Two Tailpipe Exits So You Can Choose Your Style
  • All 409 Stainless Steel Construction Provides Long Life
  • Uses the Factory Hanger Locations to Ease Installation
  • Dual 3.00-inch Tailpipes for Maximum Flow and Style
  • Deep Powerful Aggressive Sound Will Turn Heads
  • Clears the Factory Spare Tire
Specs:
  • Brand: Flowmaster
  • Series: Outlaw
  • Type: Cat-Back
  • Sound Level: Aggressive
  • Exit Style: Dual Out Rear or Dual Out Side
  • Exhaust Tip Color: Black
  • Exhaust Tip Connection: Clamp-On
  • Exhaust Tip Cut: Angled
  • Exhaust Tip Diameter: 4.00 IN
  • Exhaust Tip Edge: Angle Cut
  • Exhaust Tip Finish: Black Ceramic Coating
  • Exhaust Tip Intercooled: No
  • Exhaust Tip Length: 13.00 IN
  • Exhaust Tip Material: 304 Stainless Steel
  • Exhaust Tip Quantity: 2
  • Exhaust Tip Resonated: No
  • Exhaust Tip Shape: Round
  • Exhaust Tip Wall: Double Wall
  • Hangers Included: Yes
  • Inlet Type: Flanged
  • Main Piping Diameter: 3.00 IN
  • Mount Type: Uses Factory Hangers
  • Mounting Bracket Included: No
  • Muffler Body Height: 4.00 IN
  • Muffler Body Length: 6.25 IN
  • Muffler Body Material: 409 Stainless Steel
  • Muffler Body Shape: Oval
  • Muffler Body Width: 9.50 IN
  • Muffler Finish: Black High-Temperature Paint Finish
  • Muffler Flanged Inlet: No
  • Muffler Flanged Outlet: No
  • Muffler Included: Yes
  • Muffler Inlet Connection: Slip-Fit
  • Muffler Inlet Inside Diameter: 3.00 IN
  • Muffler Inlet Location: Center
  • Muffler Inlet Outside Diameter: 3.13 IN
  • Muffler Outlet Connection: Slip-Fit
  • Muffler Outlet Diameter: 3.00 IN
  • Muffler Outlet Quantity: 2
  • Muffler Overall Length: 12.25 IN
  • Muffler Series: 10 Series
  • Muffler Type: Chambered
  • Pipe Material: 409 Stainless Steel
  • Spring Bolt Kit Included: No
  • Tail Pipe Outlet Outside Diameter: 3.00 IN
  • Tail Pipe Quantity: 2
  • Clamping Type: Flat Band
  • Clamps Included: Yes
You can view and download the complete assembly instruction booklet here.
