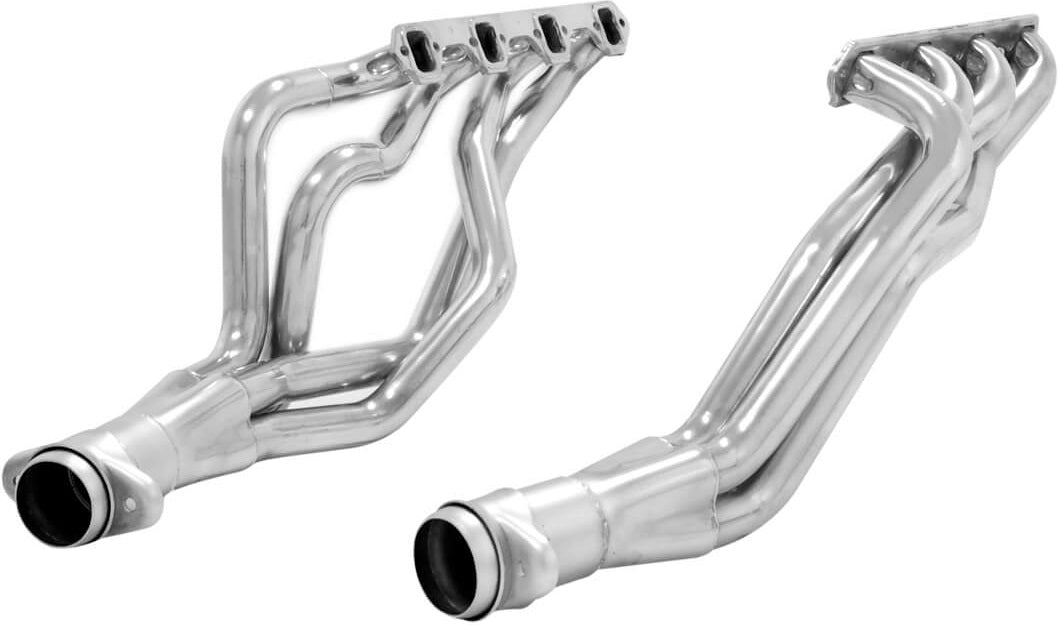

HEADER,SBF,1 3/4,64-73 MUSTANG,LONG,CERAMIC COATED

BRAND NEW FLOWMASTER SCAVENGER SERIES ELITE LONG TUBE HEADERS, SILVER CERAMIC, 1-5/8" TUBE DIAMETER, 3/8" BALL & SOCKET FLANGE, 289-302 SB V8 ENGINE, COMPATIBLE WITH 1964-1973 MUSTANG

FLOWMASTER SCAVENGER SERIES ELITE LONG TUBE HEADERS ARE DESIGNED TO REPLACE THE FACTORY CAST IRON MANIFOLDS. MANUFACTURED FROM STAINLESS STEEL & ARE CERAMIC COATED FOR MAX DURABILITY. FEATURES 1-3/4" PRIMARY TUBES, 3/8" THICK FLANGES & INCORPORATE FLOWMASTER POPULAR 3" BALL FLANGE COLLECTOR CONNECTIONS ENSURING A LEAK FREE INSTALL. BENEFITS INCLUDE IMPROVED THROTTLE RESPONSE, POWER & ENGINE EFFICIENCY. INCLUDES GASKETS & NECESSARY HARDWARE FOR EASY INSTALL.

NOTE: FITS MOST Z-BARS. SOME VEHICLES MAY REQUIRE Z-BAR MODIFICATION FOR PROPER FIT.

NOTE: FITS MANUAL STEERING. REQUIRES DROP DOWN BRACKET TO FIT WITH POWER STEERING.

NOTE: E-BRAKE PIVOT BRACKET MUST BE RELOCATED ON C6/AOD TRANSMISSION.

NOTE: LEGAL ONLY FOR OFF HIGHWAY USE (EXCEPT IN CALIFORNIA OR STATES THAT HAVE ADOPTED CALIFORNIA EMISSION STANDARDS), RACING USE OR FOR USE ON PRE-EMISSION CONTROLLED MOTOR VEHICLES/MOTOR VEHICLE ENGINES (PRE-1966 DOMESTIC VEHICLES CERTIFIED TO CALIFORNIA STANDARDS, PRE-1968 DOMESTIC VEHICLES CERTIFIED TO FEDERAL STANDARDS & ALL PRE-1968 FOREIGN VEHICLES) PER THE APPLICATION GUIDE.

COMPATIBLE WITH:

• FORD:
• 1964-1973 MUSTANG

FEATURES

• BALL & SOCKET COLLECTOR CONNECTIONS
• DYNO TUNED FOR MAXIMUM PERFORMANCE
• HIGH TEMPERATURE CERAMIC COATING
• STAINLESS STEEL CONSTRUCTION

SPECS:

• ATTACHMENT METHOD: STOCK FLANGE
• AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE PART
• BOLTS/STUDS INCLUDED: YES
• CARB (CALIFORNIA) COMPLIANT: YES
• CARB EO#: D-698-1
• COLLECTOR INCLUDED: YES
• COLOR/FINISH: SILVER CERAMIC
• ENGINE: GM LS
• HEADER FINISH: SILVER CERAMIC
• HEADER FLANGE THICKNESS: 3/8"
• HEADER SERIES: SCAVENGER SERIES ELITE
• HEADER STYLE: SHORTY
• INLET PORT SHAPE: ROUND
• MATERIAL: STAINLESS STEEL
• OUTLET DIAMETER: 2.5"
• PRIMARY TUBE DIAMETER: 1-5/8"
• PRODUCT TYPE: HEADERS
• REDUCERS INCLUDED: NO
• TUBE GAUGE: 16
• TUBE LENGTHS: UNEQUAL LENGTH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
