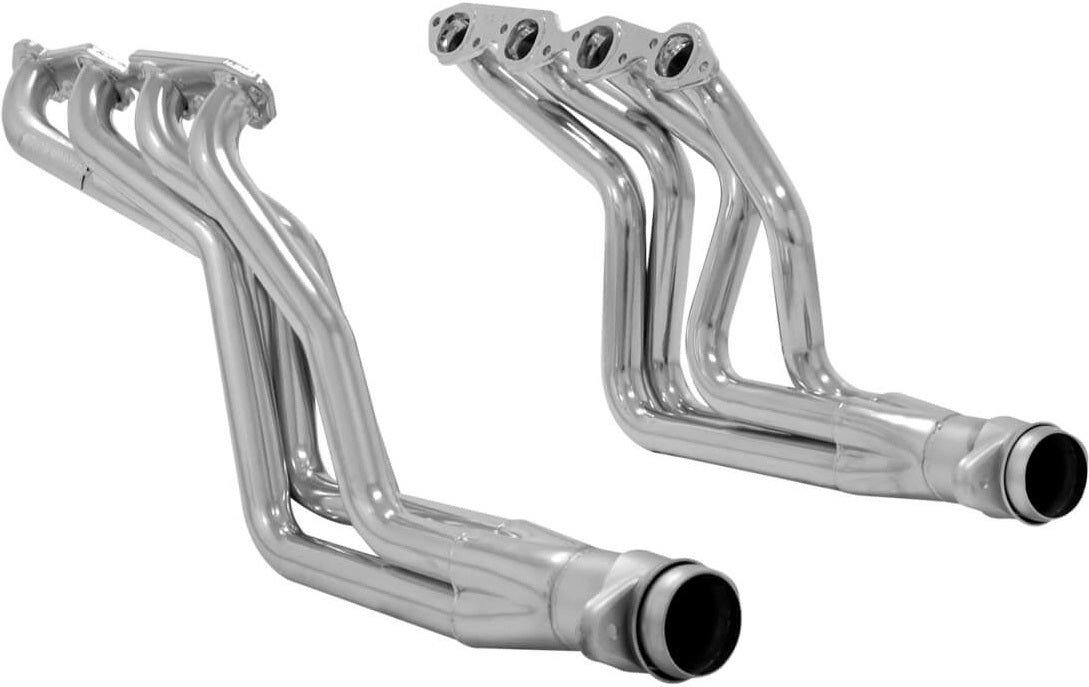

HEADER,BBC,1 3/4,64-74 CHEVY,LONG,CERAMIC COATED

HEADER,BBC,1 3/4,64-74 CHEVY,LONG,CERAMIC COATED

FLM 814111

$919.95
$919.95
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

BRAND NEW FLOWMASTER SCAVENGER SERIES ELITE HEADERS, SILVER CERAMIC, 1-3/4" TUBE DIAMETER, 3/8" BALL & SOCKET FLANGE, 396-502 BBC, COMPATIBLE WITH 1965-1972 CHEVELLE

FLOWMASTER SCAVENGER SERIES ELITE LONG TUBE HEADERS ARE DESIGNED TO REPLACE THE RESTRICTIVE FACTORY CAST IRON MANIFOLDS. MANUFACTURED FROM STAINLESS STEEL & ARE CERAMIC COATED FOR MAX DURABILITY. FEATURES 1-3/4" PRIMARY TUBES, 3/8" THICK FLANGES & INCORPORATE FLOWMASTER POPULAR 3" BALL FLANGE COLLECTOR CONNECTIONS, ENSURING A LEAK FREE INSTALLATION. OTHER BENEFITS INCLUDE IMPROVED THROTTLE RESPONSE, POWER & ENGINE EFFICIENCY. INCLUDES GASKETS & NECESSARY HARDWARE FOR EASY INSTALL.

NOTE: FITS 1967-1974 CAMARO, 1965-1972 CHEVELLE & EL CAMINO, 1968-1974 CHEVY II/NOVA, 1970-1974 MONTE CARLO WITH A 396-502CI DISPLACEMENT BBC ENGINE. 1 3/4-INCH PRIMARY TUBES WITH 3.00-INCH BALL-FLANGE COLLECTORS, 3/8-INCH THICK FLANGES WITH 16-GAUGE 409 STAINLESS STEEL SILVER CERAMIC COATED TUBING.

NOTE: WILL NOT FIT SAGINAW CLOSE RATIO WITH 825 POWER STEERING BOX. BIG BLOCK FRAME STANDS AND MOTOR MOUNTS MUST BE USED TO ENSURE PROPER ENGINE LOCATION AND HEADER FIT. WILL FIT DETROIT SPEED & ENGINEERING FRONT SUB FRAMES WITH RACK AND PINION STEERING. DOES NOT FIT WITH POWERGLIDE TRANSMISSION. DOES NOT FIT COLUMN SHIFT AUTOMATIC TRANSMISSION IN CAMARO. THIS PRODUCT IS LEGAL ONLY FOR OFF-HIGHWAY USE OR RACING USE IN CALIFORNIA AND/OR STATES THAT HAVE ADOPTED CALIFORNIA EMISSION STANDARDS, OR FOR USE ON PRE-EMISSION CONTROLLED MOTOR VEHICLES/MOTOR VEHICLE ENGINES (PRE-1966 DOMESTIC VEHICLES CERTIFIED TO CALIFORNIA STANDARDS, PRE-1968 DOMESTIC VEHICLES CERTIFIED TO FEDERAL STANDARDS AND ALL PRE-1968 FOREIGN VEHICLES, PER THE APPLICATION GUIDE.

COMPATIBLE WITH:

  • CHEVROLET:
    • 1967 CAMARO
    • 1969 CAMARO
    • 1971-72 CAMARO
    • 1965-1972 CHEVELLE
    • 1966-1972 EL CAMINO
    • 1970-1974 MONTE CARLO
    • 1969-1972 NOVA
    • 1968 CHEVY II
  • GMC:
    • 1971-1972 SPRINT

FEATURES

  • FLOWMASTER BALL & SOCKET COLLECTOR CONNECTIONS
  • DYNO-TUNED FOR MAXIMUM PERFORMANCE
  • 16-GAUGE STAINLESS STEEL CONSTRUCTION
  • HIGH TEMPERATURE CERAMIC COATING
  • COVERS MANY GM MODELS WITH BBC
  • HEAVY 3/8-INCH THICK FLANGES

SPECS:

  • ADDITIONAL CONTENTS: GASKETS & HARDWARE
  • ATTACHMENT METHOD: BALL & SOCKET FLANGE
  • AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE
  • BOLTS/STUDS INCLUDED: YES
  • BRAND: FLOWMASTER
  • CARB (CALIFORNIA) COMPLIANT: NO
  • COLLECTOR INCLUDED: YES
  • COLOR/FINISH: SILVER CERAMIC
  • ENGINE: BBC
  • HEADER FINISH: SILVER CERAMIC
  • HEADER FLANGE THICKNESS: 3/8"
  • HEADER SERIES: SCAVENGER SERIES ELITE
  • HEADER STYLE: LONG TUBE
  • INLET PORT SHAPE: ROUND
  • MATERIAL: STAINLESS STEEL
  • OUTLET DIAMETER: 3"
  • PRIMARY TUBE DIAMETER: 1-3/4"
  • PRIMARY TUBE DIAMETER: 1.75"
  • PRODUCT TYPE: HEADERS
  • REDUCERS INCLUDED: YES
  • TUBE GAUGE: 16
  • TUBE LENGTHS: UNEQUAL LENGTH
  • CALIFORNIA PROPOSITION 65 CHEMICAL NAME: CHROMIUM (HEXAVALENT COMPOUNDS) | NICKEL (METALLIC)
  • CALIFORNIA PROPOSITION 65 REQUIRED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
