CAT-BACK EXHAUST,94-02 DODGE RAM,DOS

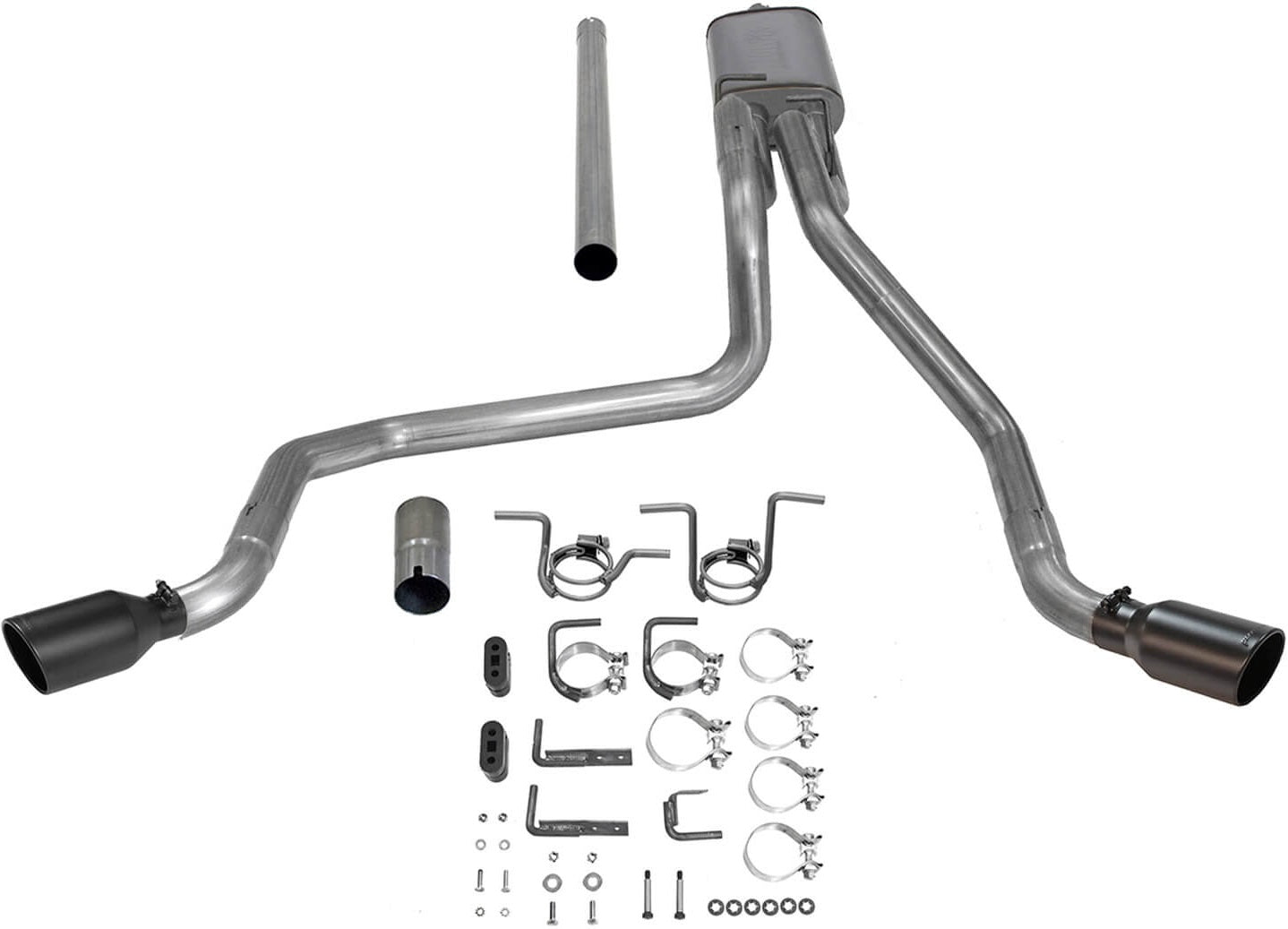

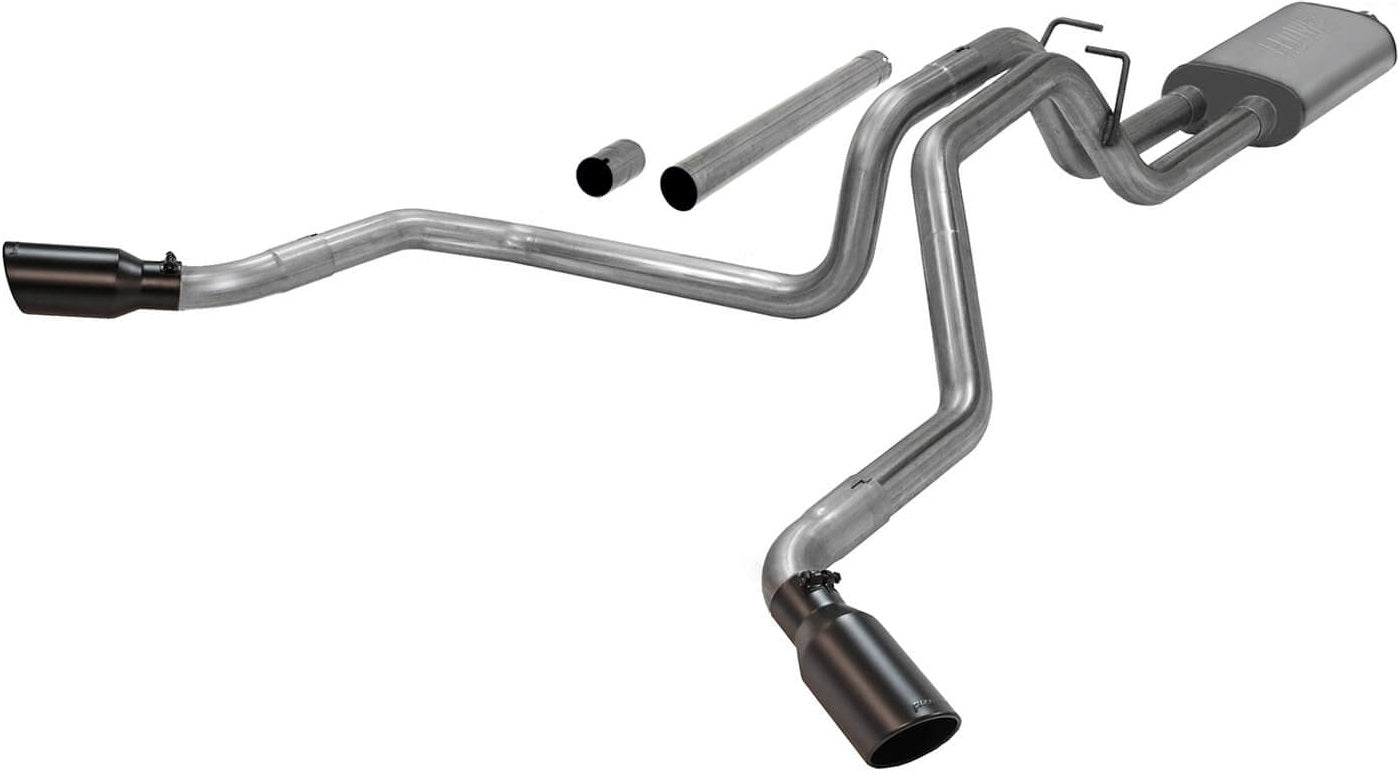

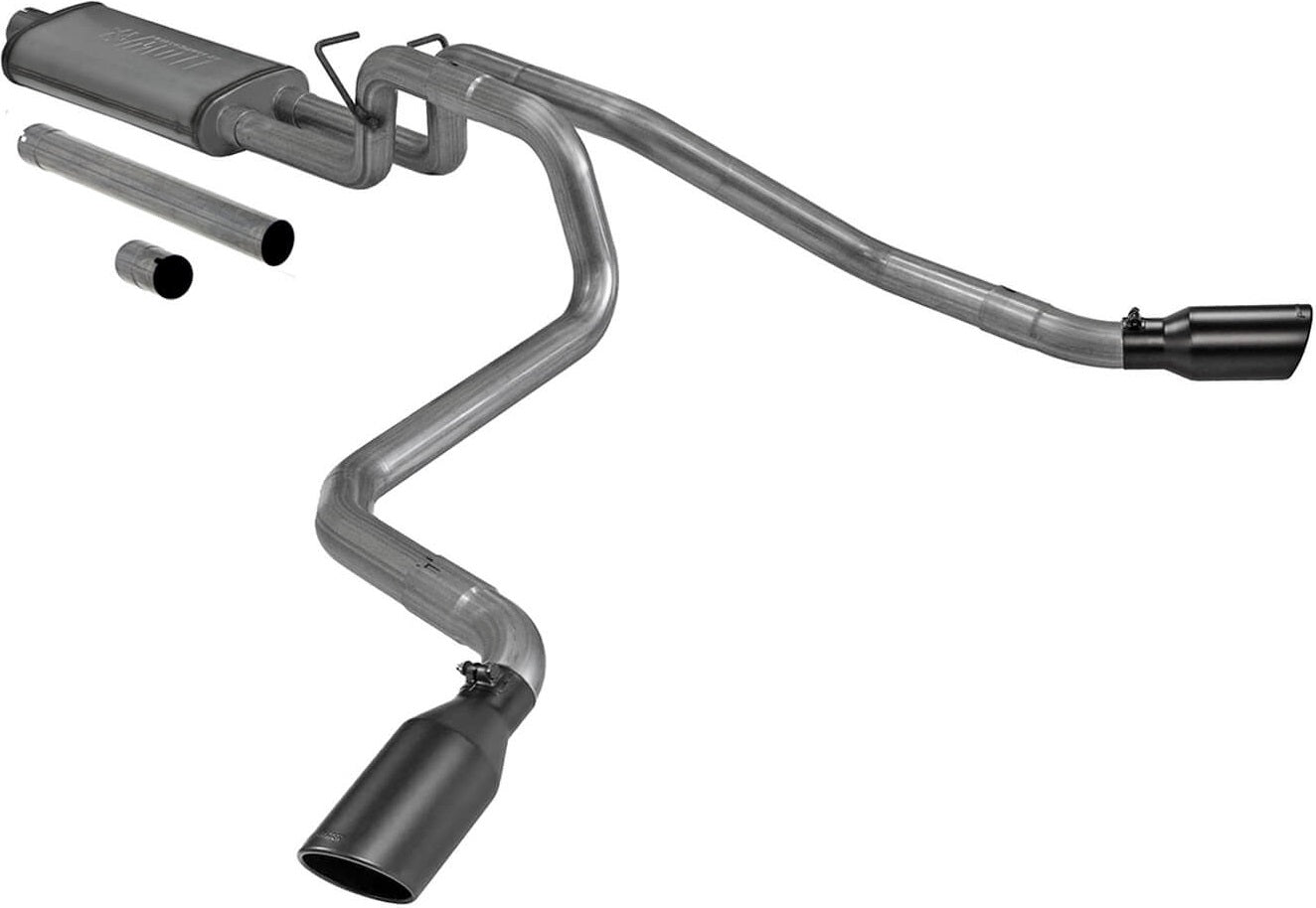

Flowmaster Flow FX Cat-Back Exhaust System (Part #717946).

This Flow FX cat-back exhaust system is designed for the 1994-2001 Dodge Ram 1500 and 1994-2002 2500/3500 models with the 3.9L, 5.2L or 5.9L engine. Features include 409 stainless steel construction for added durability and 16-gauge 2.5-inch mandrel-bent tubing for free unrestricted flow. The compact oval "straight-through" Flow FX performance muffler delivers a moderate yet deep and powerful sound while the interior sound is kept very mild. The system uses the factory hanger locations and is finished off with two 4.50-inch black ceramic-coated 304 stainless steel tips embossed with the Flowmaster name exiting on each side of the truck. The kit includes detailed instructions and all hardware necessary for a quick and easy installation you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.

Note: Fits both 2 and 4 wheel drive, all wheelbases. Fits models with 3.9L, 5.2L or 5.9L engines.

Compatible with:

• Dodge:
  • 1994-2001 Ram 1500
  • 1994-2002 Ram 2500
  • 1994-2002 Ram 3500

Features:

• This system produces a moderate rumble with minimal interior resonance

• Includes Two large 4.5-inch black ceramic coated tips exiting out each side of the truck for an aggressive look
• FlowFX “straight through” performance muffler delivers a deep performance tone and improves exhaust flow
• Increases of up to 7 HP and 7 FT/LB over the stock exhaust

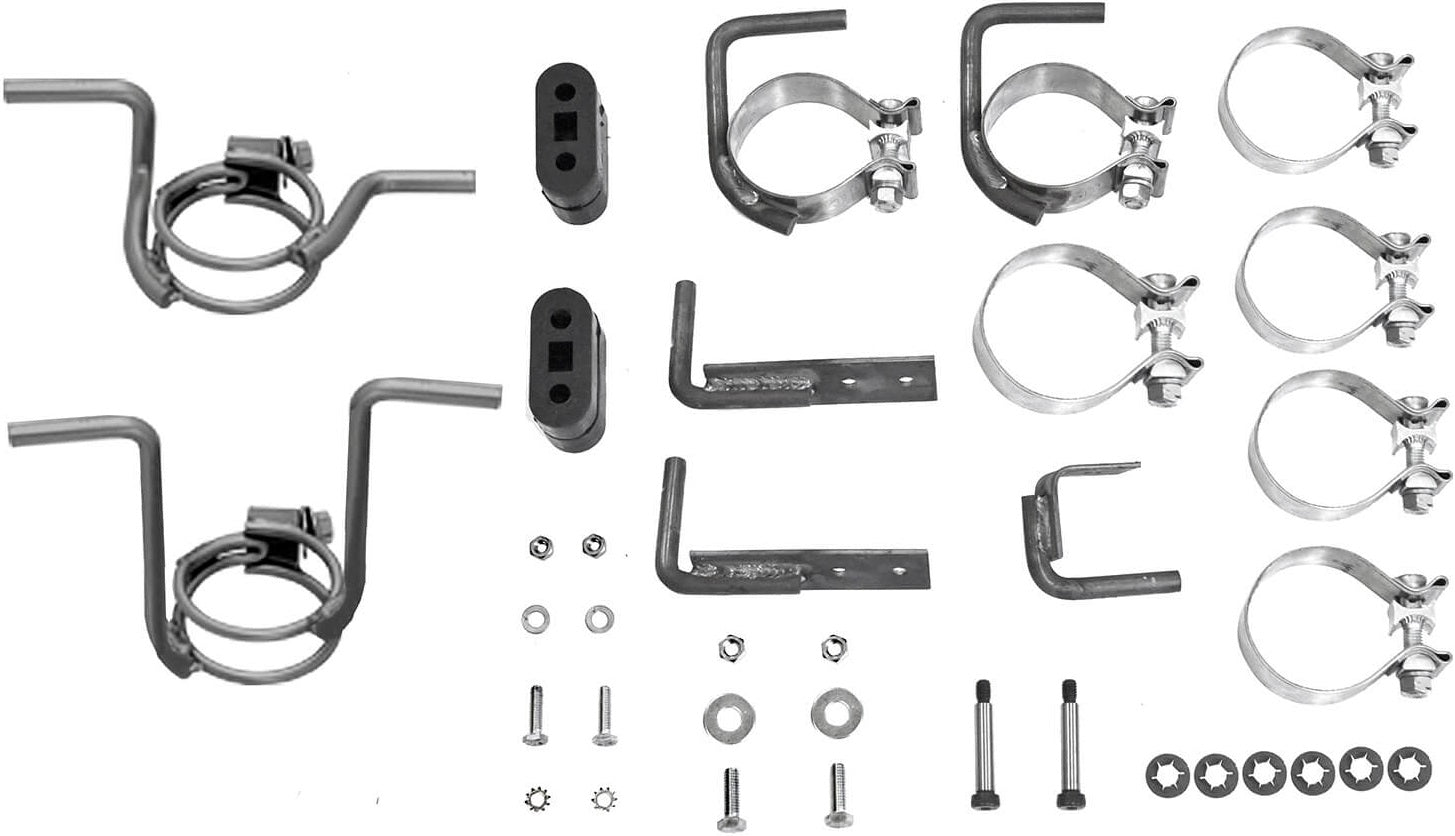

• Includes complete hardware and factory styled hangers in the stock locations for an easy installation
• 2.5-inch Mandrel bent 16 gauge 409 stainless steel tubing maximizes exhaust flow and improved durability

Specs:

• Brand: Flowmaster

• Exhaust Series: FlowFX
• Exit Position: Dual Out Side
• Material: 409 Stainless Steel
• Mount Type: Uses Factory Hangers
• Muffler Body Length (in): 18
• Muffler Color: Natural
• Muffler Finish: Brushed
• Muffler Inlet Diameter: 3
• Muffler Inlet Location: Centered
• Muffler Material: 409S Stainless Steel
• Muffler Outlet Diameter: 2.5
• Muffler Overall Length (in): 24
• Muffler Quantity: 1
• Muffler Series: FlowFX
• Muffler Shape: Oval
• Muffler Type: Absorption
• Single Dual: Dual
• Sound Level: Moderate
• System Type: Cat-back
• Tip Cut: Angle
• Tip Diameter: 4.5
• Tip Edge Style: Rolled
• Tip Finish: Black Ceramic
• Tip Length: 11
• Tip Logo: Embossed
• Tip Material: 304 Stainless
• Tip Quantity: 2
• Tip Shape: Round
• Tip Style: Single Wall
• Tubing Diameter (in): 2.5

You can view and download the complete assembly instruction booklet here.
