CAT-BACK EXHAUST,15-20 FORD F-150,DOS

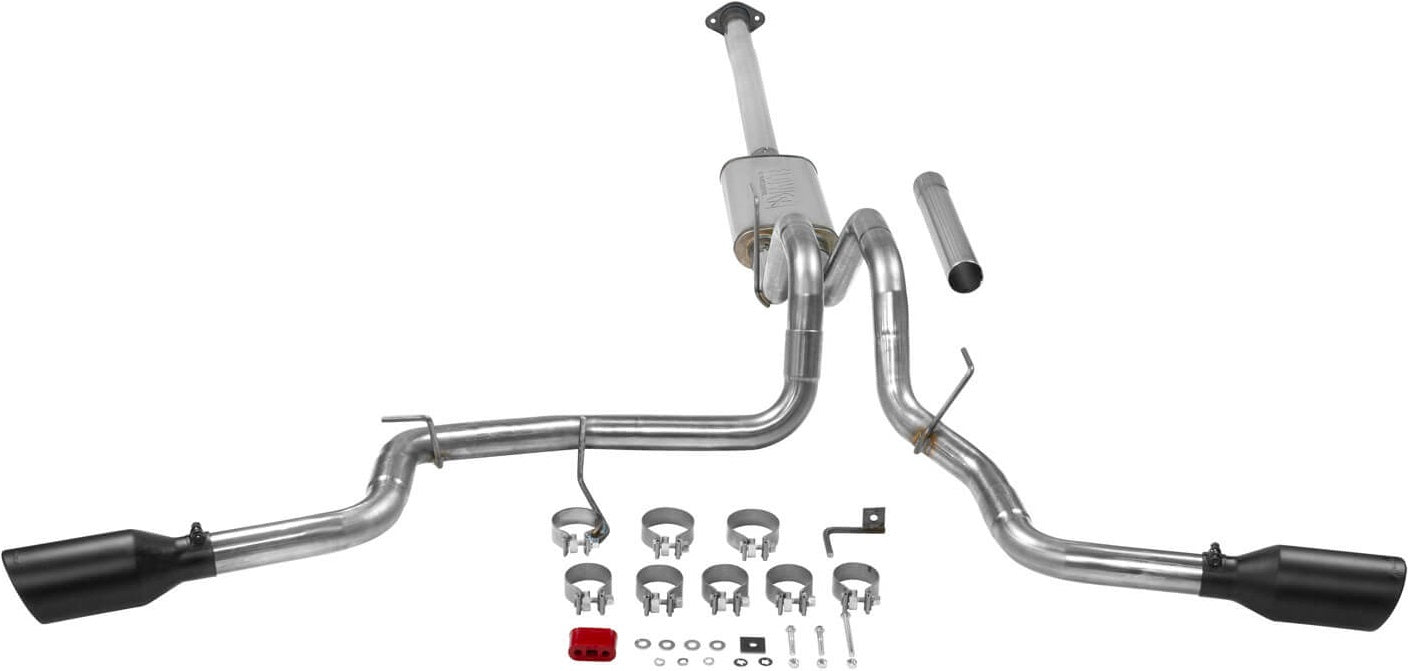

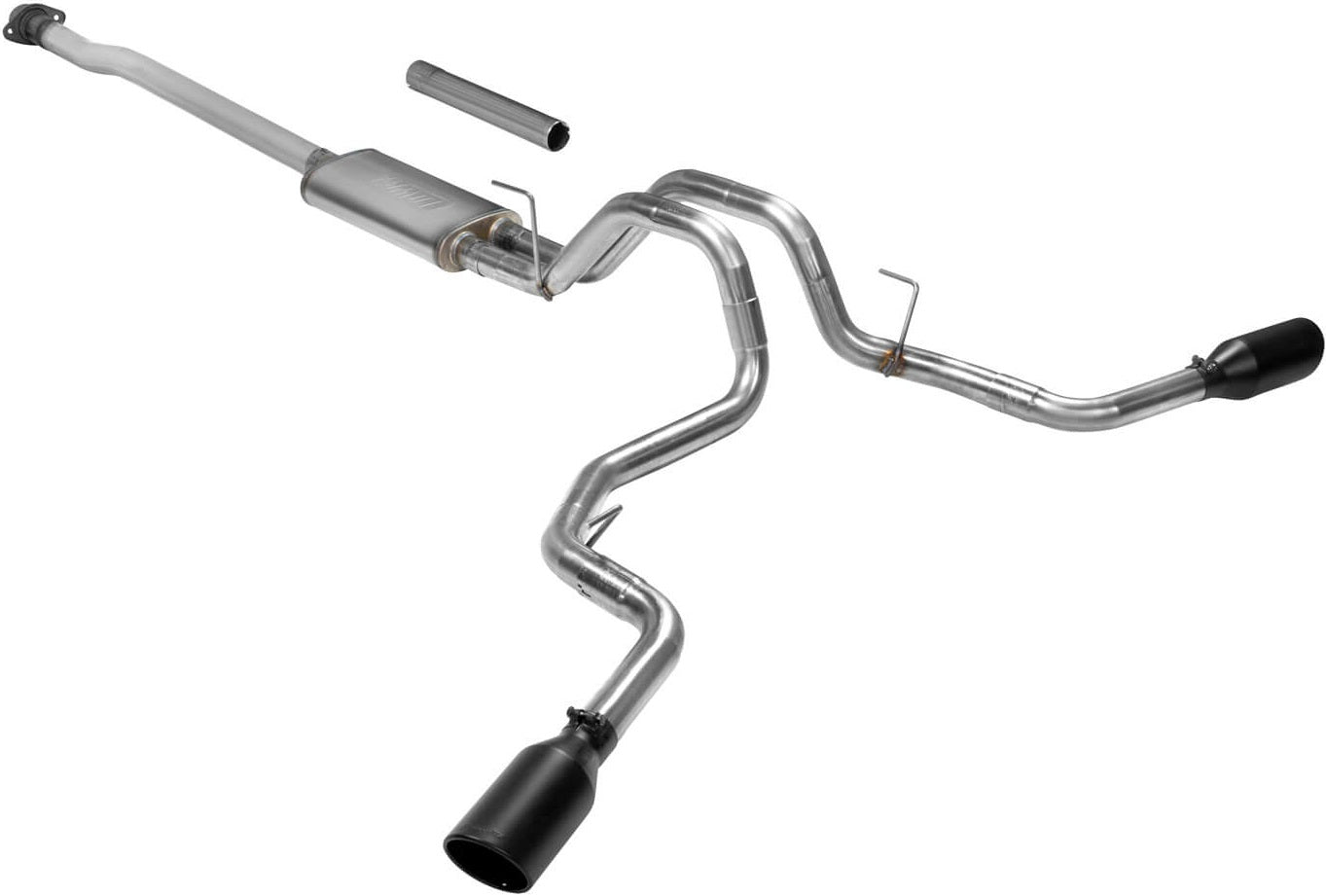

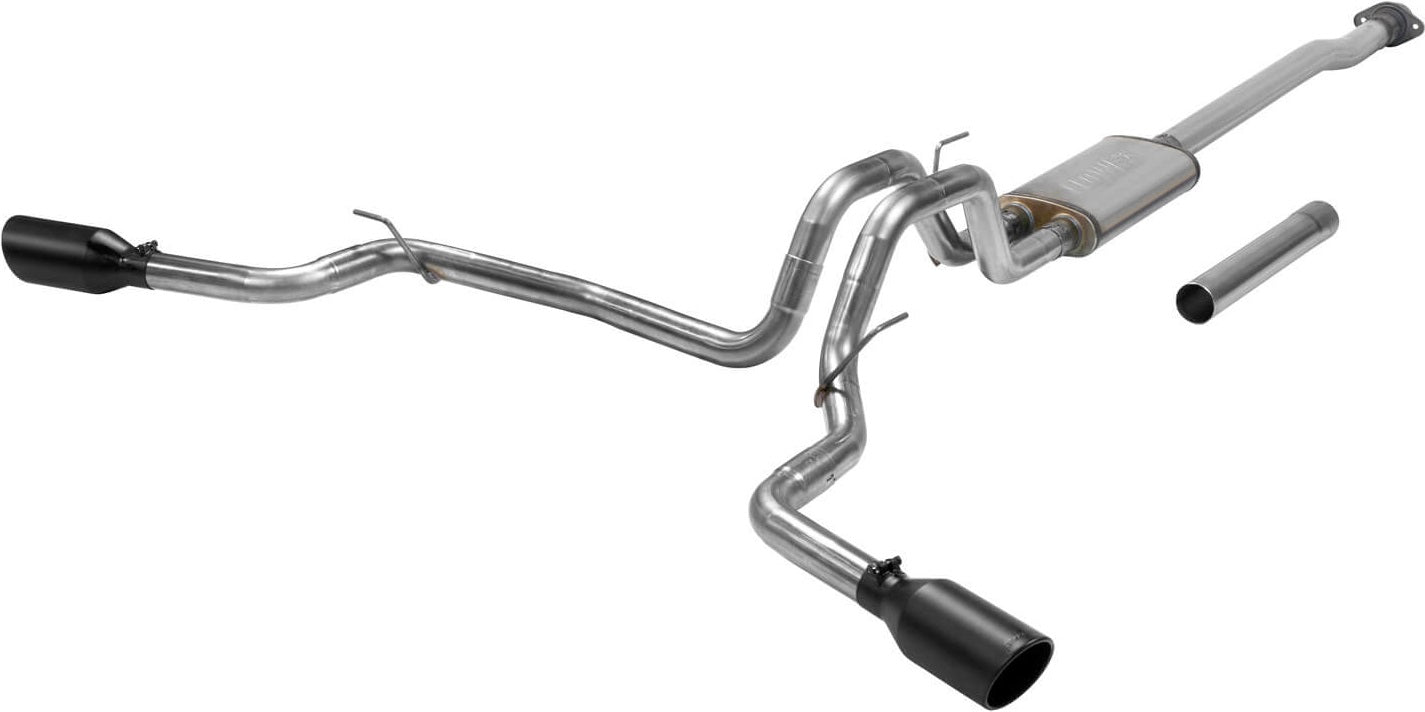

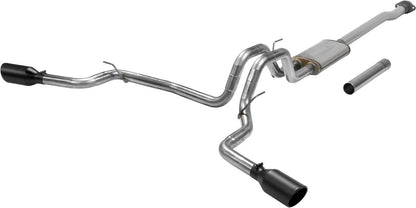

BRAND NEW FLOWMASTER FLOWFX CAT-BACK EXHAUST SYSTEM, 409S STAINLESS STEEL, DUAL SIDE EXIT, 4.5" BLACK CERAMIC TIPS, COMPATIBLE WITH 2015-2020 F-150 2.7L/3.5L ECOBOOST, 3.5L TIVCT OR 5.0L

OUR NEW FLOWFX CAT-BACK EXHAUST SYSTEM IS MANUFACTURED USING DURABLE 409S STAINLESS STEEL THROUGHOUT & FEATURES A 3" INLET PIPE LEADING TO A SINGLE INLET/DUAL OUTLET FLOWFX "STRAIGHT-THROUGH" MUFFLER FOR GREAT SOUND & MAX PERFORMANCE. DUAL 2.5" MANDREL BENT STAINLESS TAILPIPES EXIT OUT THE SIDES AT AN ANGLE BEHIND THE REAR WHEELS DIRECTING EXHAUST AWAY FROM YOUR BOAT OR TRAVEL TRAILER WHEN TOWING.

IT IS FINISHED OFF WITH A PAIR OF LARGE 4.5" DIAMETER BLACK CERAMIC COATED 304S STAINLESS STEEL TIPS, GIVING YOUR TRUCK A CUSTOM LOOK THAT GOES HAND IN HAND WITH THAT DEEP PERFORMANCE FLOWFX SOUND. USES ALL THE EXISTING FACTORY HANGER LOCATIONS & INCLUDES AN ADDITIONAL HANGER TO INSTALL THE NEW LEFT SIDE TAILPIPE. INCLUDES INSTALL INSTRUCTIONS & ALL NECESSARY HARDWARE.

NOTE: FITS 2/4 WD

NOTE: FITS ALL WHEELBASES EXCEPT STD CAB/SHORT BED. DOES NOT FIT RAPTOR.

COMPATIBLE WITH:

• FORD:
• 2015-2020 F-150

FEATURES

• LARGE 4.5-INCH BLACK CERAMIC COATED STAINLESS STEEL TIPS
• DEEP POWERFUL TONE INSIDE AND OUTSIDE THE VEHICLE
• FLOWFX "STRAIGHT-THROUGH" PERFORMANCE MUFFLER
• USES THE FACTORY HANGER LOCATIONS
• INCLUDES ALL NECESSARY HARDWARE
• FULL STAINLESS STEEL CONSTRUCTION
• CLEARS THE FACTORY SPARE TIRE
• EASY INSTALLATION

SPECS:

• CATALYTIC CONVERTER INCLUDED: NO
• EXHAUST SERIES: FLOWFX
• EXIT POSITION: DUAL SIDE EXIT
• HEAT SHIELD: NO
• MATERIAL: 409 STAINLESS STEEL
• MOUNT TYPE: USES FACTORY HANGERS
• MUFFLER BODY LENGTH: 18"
• MUFFLER COLOR: NATURAL
• MUFFLER FINISH: BRUSHED
• MUFFLER INLET DIAMETER: 3"
• MUFFLER INLET LOCATION: CENTERED
• MUFFLER MATERIAL: 409S STAINLESS STEEL
• MUFFLER OUTLET DIAMETER: 2.5"
• MUFFLER OUTLET LOCATION: DUAL OUTLET
• MUFFLER OVERALL LENGTH: 24"
• MUFFLER PART NUMBER: KIT ONLY
• MUFFLER QUANTITY: 1
• MUFFLER SERIES: FLOWFX
• MUFFLER SHAPE: OVAL
• MUFFLER TYPE: ABSORPTION
• PRODUCT TYPE: EXHAUST SYSTEM
• SINGLE DUAL: DUAL
• SOUND LEVEL: MODERATE / AGGRESSIVE
• SYSTEM TYPE: CAT-BACK
• TIP CUT: ANGLE
• TIP DIAMETER: 4.5"
• TIP EDGE STYLE: CUT
• TIP FINISH: BLACK CERAMIC
• TIP LENGTH: 11"
• TIP LOGO: EMBOSSED
• TIP MATERIAL: 304 STAINLESS
• TIP QUANTITY: 2
• TIP SHAPE: ROUND
• TUBING DIAMETER: 2.5"
• TUBING MATERIAL: 409S STAINLESS STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EXHAUST SYSTEM HERE.
