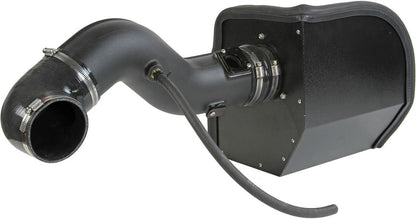

DELTA FORCE AIR INTAKE,09-15 GM 2500HD

BRAND NEW FLOWMASTER DELTA FORCE PERFORMANCE AIR INTAKE, RED ELEMENT, COMPATIBLE WITH 2009-2015 CHEVROLET SILVERADO 2500 HD 6.0L

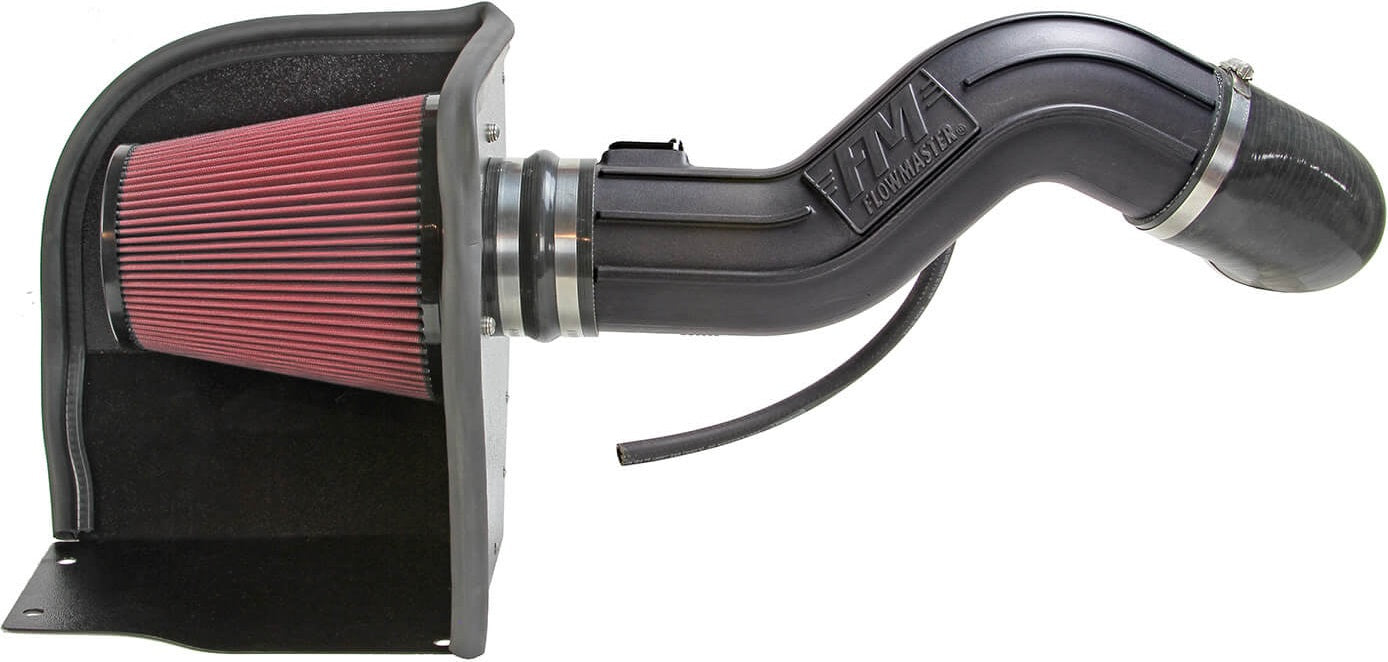

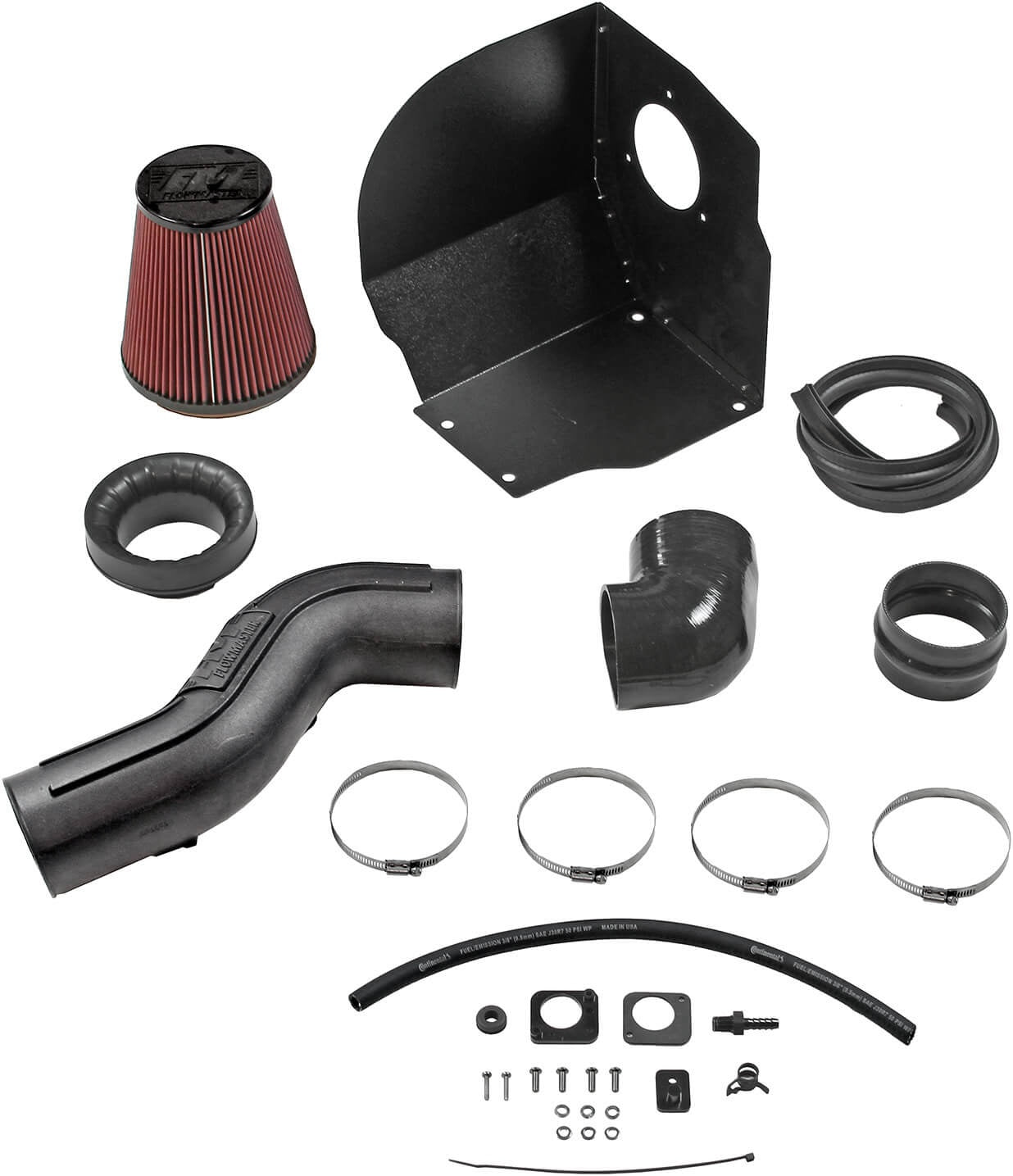

THE DELTA FORCE SYSTEM CONTAINS AN ULTRA-TRICK LOOKING, CUSTOM MOLDED BLACK CROSS-LINKED HIGH-FLOW INTAKE TUBE, BLACK ANODIZED ALUMINUM FITTINGS, HIGH QUALITY REINFORCED SILICONE COUPLERS AND ALL STAINLESS STEEL HARDWARE.

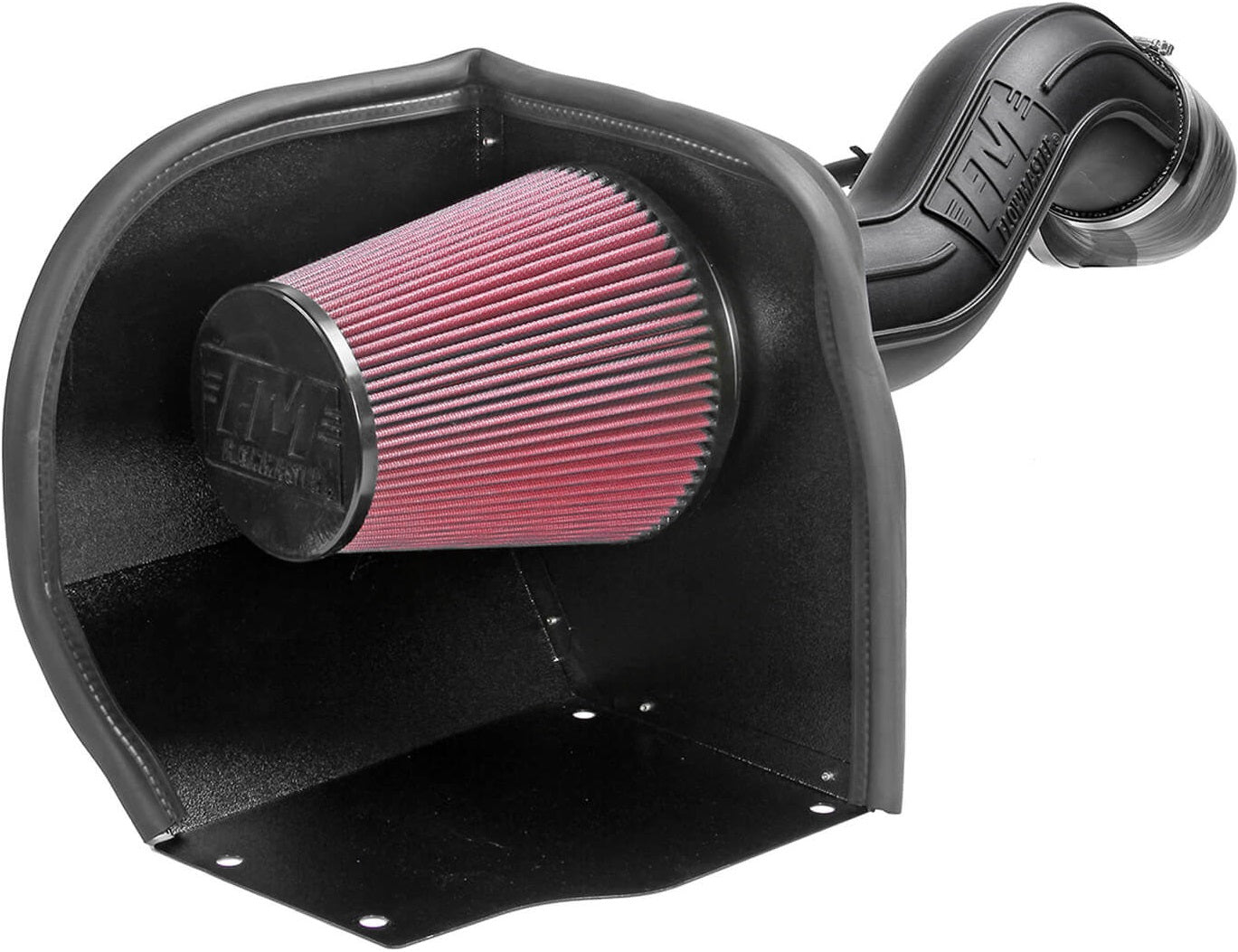

INCLUDES A LARGE DIAMETER HIGH-FLOW CONICAL SHAPED 8-LAYER COTTON GAUZE AIR FILTER, WHICH TRAPS MORE DIRT THAN TYPICAL 6-LAYER DESIGNS, A CUSTOM-FIT BLACK POWDER-COATED AIR DAM WITH ATTACHMENT BRACKETS TO SECURELY MOUNT THE SYSTEM IN PLACE ALONG WITH SOFT BUMPERS TO ELIMINATE ANY METAL TO METAL CONTACT UNDER THE HOOD. THIS SYSTEM IS A GREAT ADDITION TO AN APPLICATION THAT HAS A PERFORMANCE EXHAUST & TUNER.

NOTE: NOT INTENDED TO FIT VEHICLES WITH A BODY LIFT.

COMPATIBLE WITH:

• CHEVROLET:
• 2009-2015 SILVERADO 2500 HD
• 2009-2015 SILVERADO 3500 HD
• GMC:
• 2009-2015 SIERRA 2500 HD
• 2009-2015 SIERRA 3500 HD

FEATURES:

• MAX POWER GAINS OF UP TO 27 HP AND 33 LBS. FT. OF TQ OVER STOCK
• SERVICEABLE LIFETIME HIGH-FLOW 8 PANEL COTTON GAUZE FILTER FOR PERFORMANCE AND LONG LIFE
• CROSS-LINKED POLYETHYLENE (XLPE) HIGH-FLOW INTAKE TUBE OFFERS MAXIMUM PERFORMANCE
• HIGH QUALITY COMPONENTS WITH CUSTOM LOOK
• NO CUTTING OR DRILLING FOR EASY INSTALLATION
• INCLUDES STAINLESS STEEL HARDWARE FOR LONG LIFE
• BLACK ANODIZED ALUMINUM FITTINGS USED FOR GOOD LOOKS AND CORROSION RESISTANCE
• NO SPECIAL TUNING REQUIRED FOR EASY INSTALLATION
• FLOWMASTER QUALITY

SPECS:

• AIR BOX INCLUDED: NO
• AIR FILTER ELEMENT COLOR: RED
• AIR FILTER END CAP COLOR/FINISH: BLACK
• AIR FILTER HEAT SHIELD COLOR/FINISH: BLACK/POWDER COATED
• AIR FILTER INSIDE DIAMETER: 6"
• AIR FILTER LARGE END DIAMETER: 7.5"
• AIR FILTER OIL INCLUDED: PRE-OILED
• AIR FILTER OUTLET LENGTH: 1"
• AIR FILTER OUTLET SHAPE: CIRCULAR
• AIR FILTER OUTLET WIDTH: 6"
• AIR FILTER OUTSIDE DIAMETER: 7.5"
• AIR FILTER OVERALL HEIGHT: 7.5"
• AIR FILTER OVERALL LENGTH: 8.63"
• AIR FILTER OVERALL WIDTH: 7.5"
• AIR FILTER SMALL END DIAMETER: 5"
• CLAMP QUANTITY INCLUDED: 6
• CLAMP TYPE: WORM GEAR
• COUPLER QUANTITY INCLUDED: 2
• FILTER SHAPE: CONE
• FITMENT: DIRECT FIT
• FUEL TYPE: GASOLINE
• INTAKE PIPE COLOR/FINISH: BLACK
• INTAKE PIPE INLET LENGTH: 1"
• INTAKE PIPE INLET WIDTH: 3.6"
• INTAKE PIPE OUTLET LENGTH: 1"
• INTAKE PIPE OUTLET WIDTH: 3.6"
• INTAKE PIPE PORTS: INTAKE AIR TEMP SENSOR
• INTAKE PIPE INLET SHAPE: ROUND
• MAF SENSOR ADAPTER INCLUDED: YES
• MASS AIR FLOW SENSOR INCLUDED: NO
• MOUNTING HARDWARE INCLUDED: YES
• PRODUCT TYPE: PERFORMANCE AIR INTAKE
• VACUUM TUBING COLOR/FINISH: BLACK RUBBER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS AIR INTAKE HERE.
