HEADER-BACK EXHAUST,67-69 FBODY,V8,3"

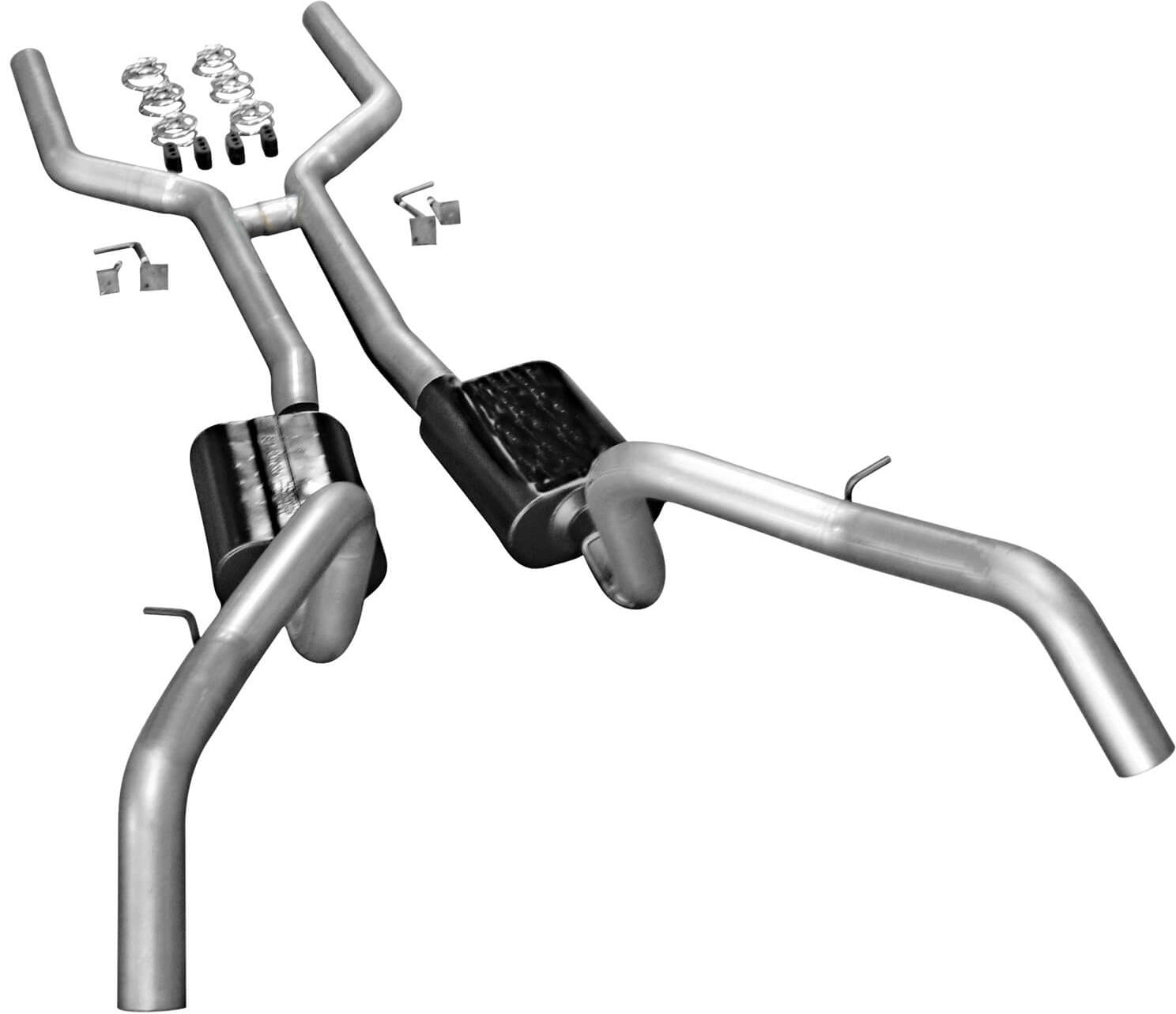

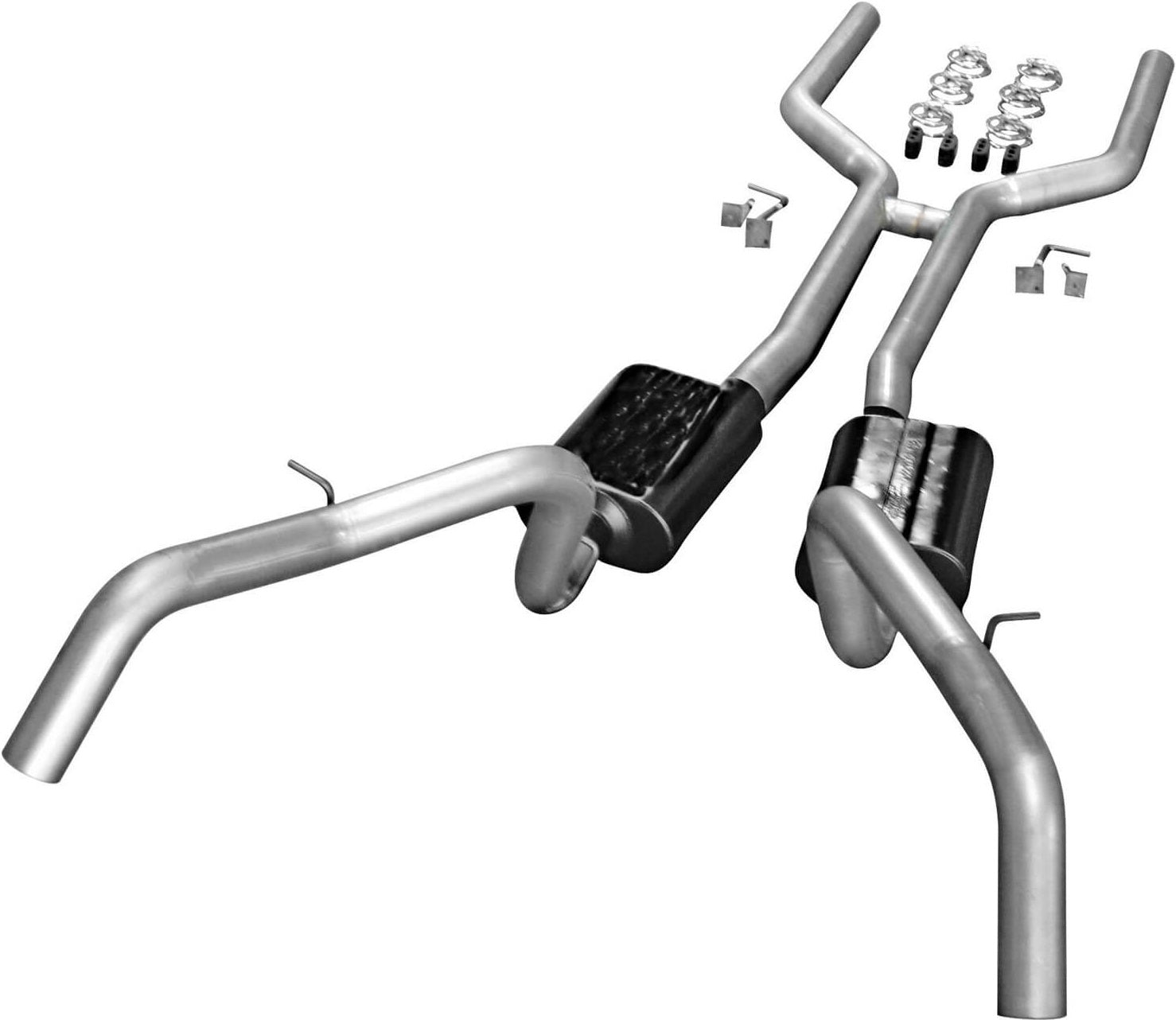

BRAND NEW FLOWMASTER AMERICAN THUNDER HEADER-BACK EXHAUST SYSTEM, ALUMINIZED STEEL, 3" TUBES, DUAL OUT REAR, COMPATIBLE WITH 1967-1969 CAMARO V8

A TRUE-DUAL EXHAUST SYSTEM FEATURING ALL MANDREL-BENT 3" ALUMINIZED STEEL TUBING WITH A BUILT-IN H-PIPE CROSSOVER ASSEMBLY FLOWING INTO A PAIR OF LARGE CASED SUPER 40 SERIES PERFORMANCE MUFFLERS FOR MAX POWER & DEEP POWERFUL AGGRESSIVE EXHAUST NOTE. 3" MANDREL-BENT TAILPIPES ARE CUSTOM BENT TO TUCK UP HIGH ABOVE THE REAR END & EXIT WITH A SLIGHT TURN DOWN AT THE QUARTER PANELS BEHIND THE REAR WHEELS. CONSTRUCTED FROM ALUMINIZED STEEL & INCLUDES ALL NECESSARY HARDWARE & HANGERS FOR INSTALL.

NOTE: SYSTEMS DO NOT INCLUDE HEADER REDUCER CONES

NOTE: DOES NOT FIT CONVERTIBLES WITHOUT AN X-BRACE MODIFICATION. THE BRACE WILL NEED TO BE SHIMMED DOWN ENOUGH TO CLEAR THE NEW EXHAUST PIPES.

COMPATIBLE WITH:

• CHEVROLET:
• 1967-1969 CAMARO
• PONTIAC:
• 1967-1969 FIREBIRD

FEATURES

• H-PIPE CROSSOVER FOR MAX POWER & DEEP TONE
• SUPER 40 SERIES MUFFLERS FOR DEEP POWERFUL SOUND
• MANDREL-BENT 16-GAUGE ALUMINIZED STEEL TUBING
• INCLUDES HANGERS & HARDWARE FOR INSTALL
• MODERATE TO AGGRESSIVE EXTERIOR EXHAUST TONE
• HEADER-BACK TRUE DUAL EXHAUST SYSTEM
• DOES NOT INCLUDE HEADER REDUCERS
• LARGE DUAL 3" TUBING

SPECS:

• 2WD/4WD: 2WD
• EXHAUST SERIES: AMERICAN THUNDER
• EXIT POSITION: DUAL OUT REAR
• HEAT SHIELD: NO
• INLET/OUTLET DIAMETER: 3"
• MATERIAL: ALUMINIZED STEEL
• MUFFLER PART #: 953046
• MUFFLER QUANTITY: 2
• MUFFLER SERIES: SUPER 40 SERIES
• PRODUCT TYPE: EXHAUST SYSTEM
• SINGLE DUAL: DUAL
• SOUND LEVEL: AGGRESSIVE
• SYSTEM TYPE: HEADER-BACK
• TIP QUANTITY: NOT INCLUDED
• TUBING DIAMETER: 3"
• TYPE OF EXHAUST: HEADER-BACK
• CALIFORNIA PROPOSITION 65 REQUIRED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EXHAUST SYSTEM HERE.
