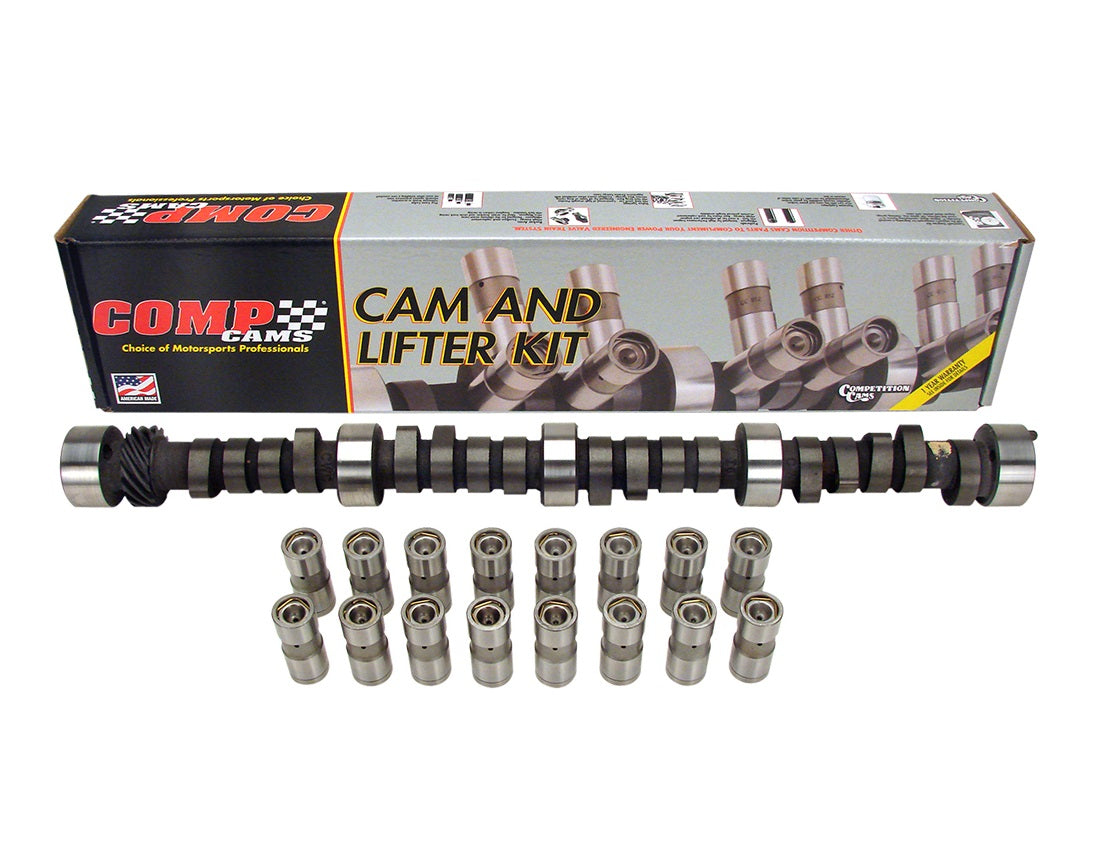

CAM & LIFTER KIT, CB XE268H-10

Brand New COMP Cams Xtreme Energy 224/230 Hydraulic Flat Cam and Lifter Kit Chevrolet Big Block 396-454 (Part #CL11-242-3).

Xtreme Energy™ 224/230 Hydraulic Flat Tappet Cam and Lifter Kit for Chevy Big Block 396-454. Good for street machines. A stock converter will work, but best with a 1800+ stall. Slightly rough idle.

Notes: BBC - 1965-66 396 c.i. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models.

Specs:

• Manufacturer: COMP Cams
• Engine: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• RPM Operating Range: 1,600-5,800

• Cam Type: Hydraulic Flat Tappet

• Camshaft Series: Xtreme Energy

• Camshaft Gear Attachment: 3-Bolt

• Usage: Street/Performance
• Advertised Intake Duration: 268

• Advertised Exhaust Duration: 280

• Intake Duration at .050 Inch Lift: 224

• Exhaust Duration .050 Inch Lift: 230

• Intake Valve Lift: 0.515

• Exhaust Valve Lift: 0.52

• Lobe Separation: 110

• Lifter Style: Hydraulic Flat Tappet
