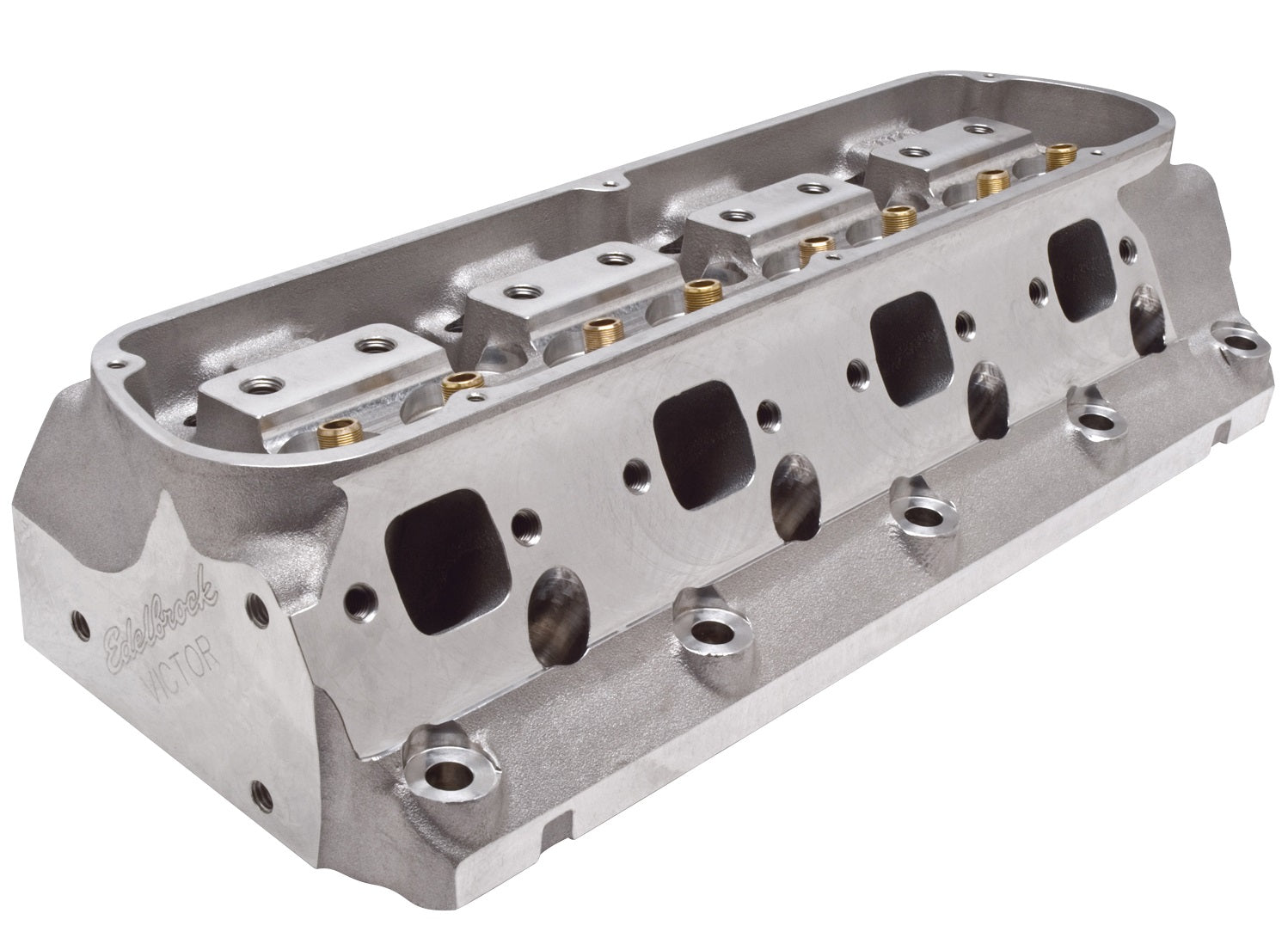

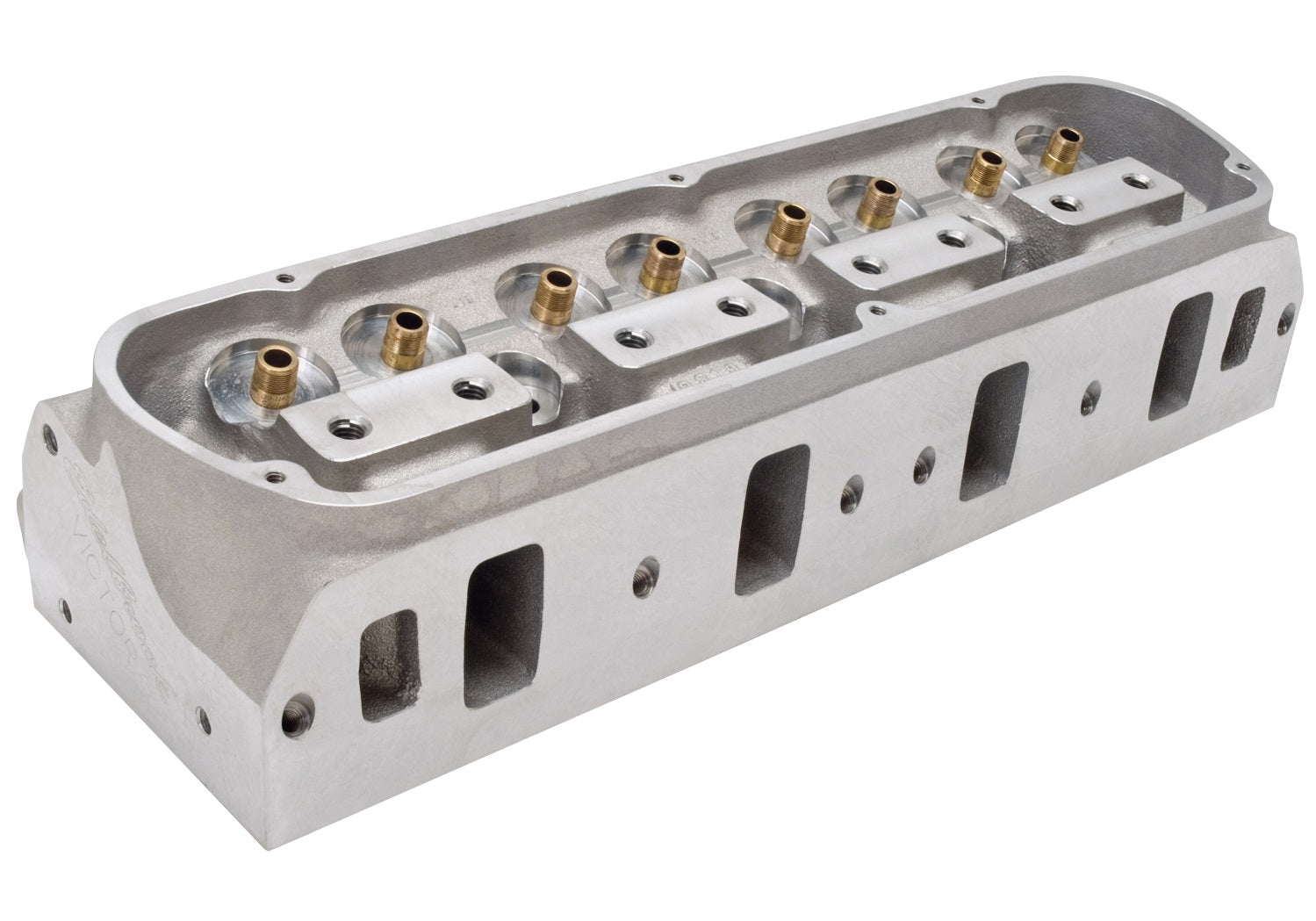

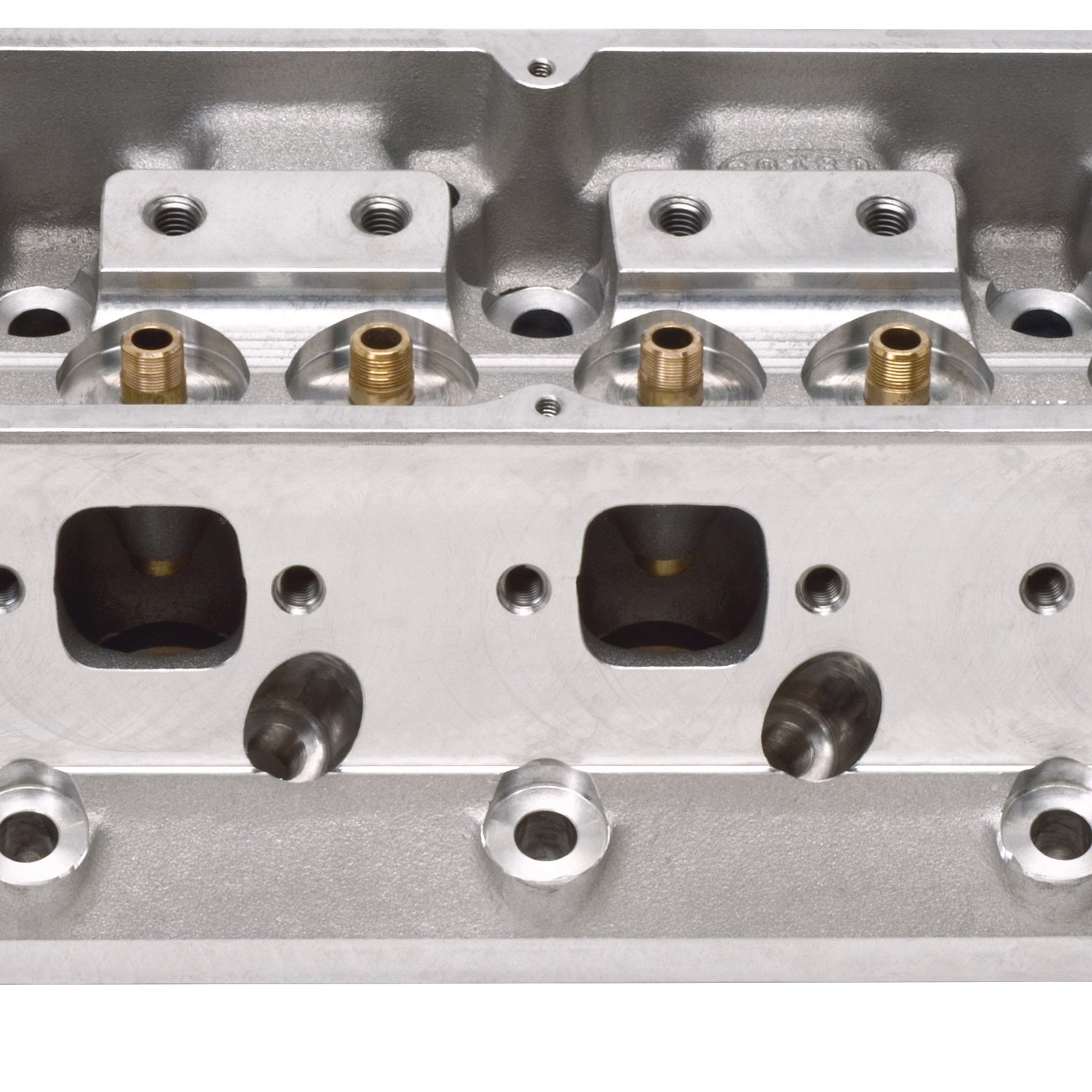

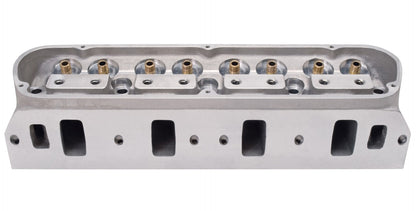

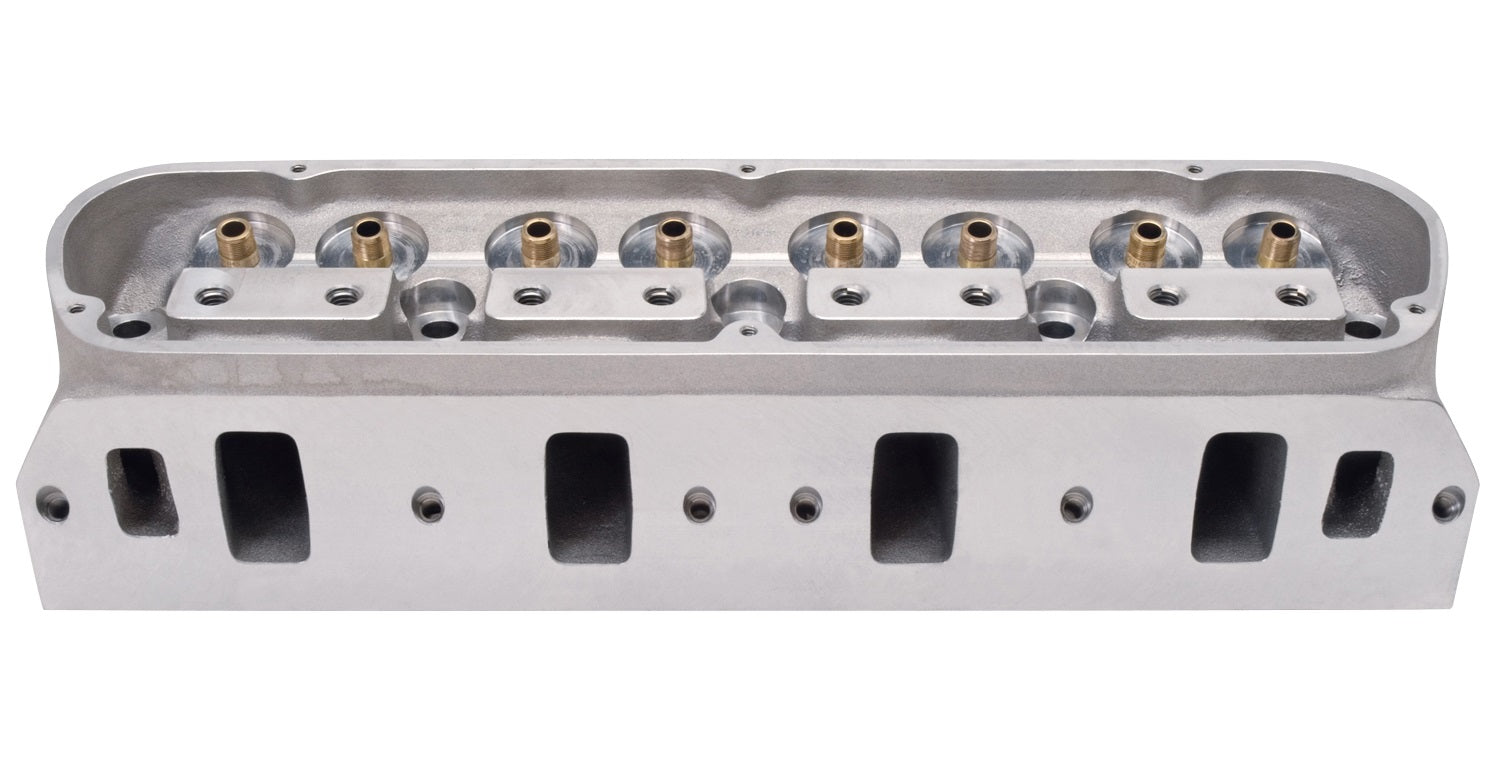

VICTOR JR SMALL-BLOCK FORD CYLINDER HEAD BARE

Brand New Edelbrock Victor Jr 15 Degree Bare Cylinder Head for 289-351W Small Block Ford Engines (Part #77219).

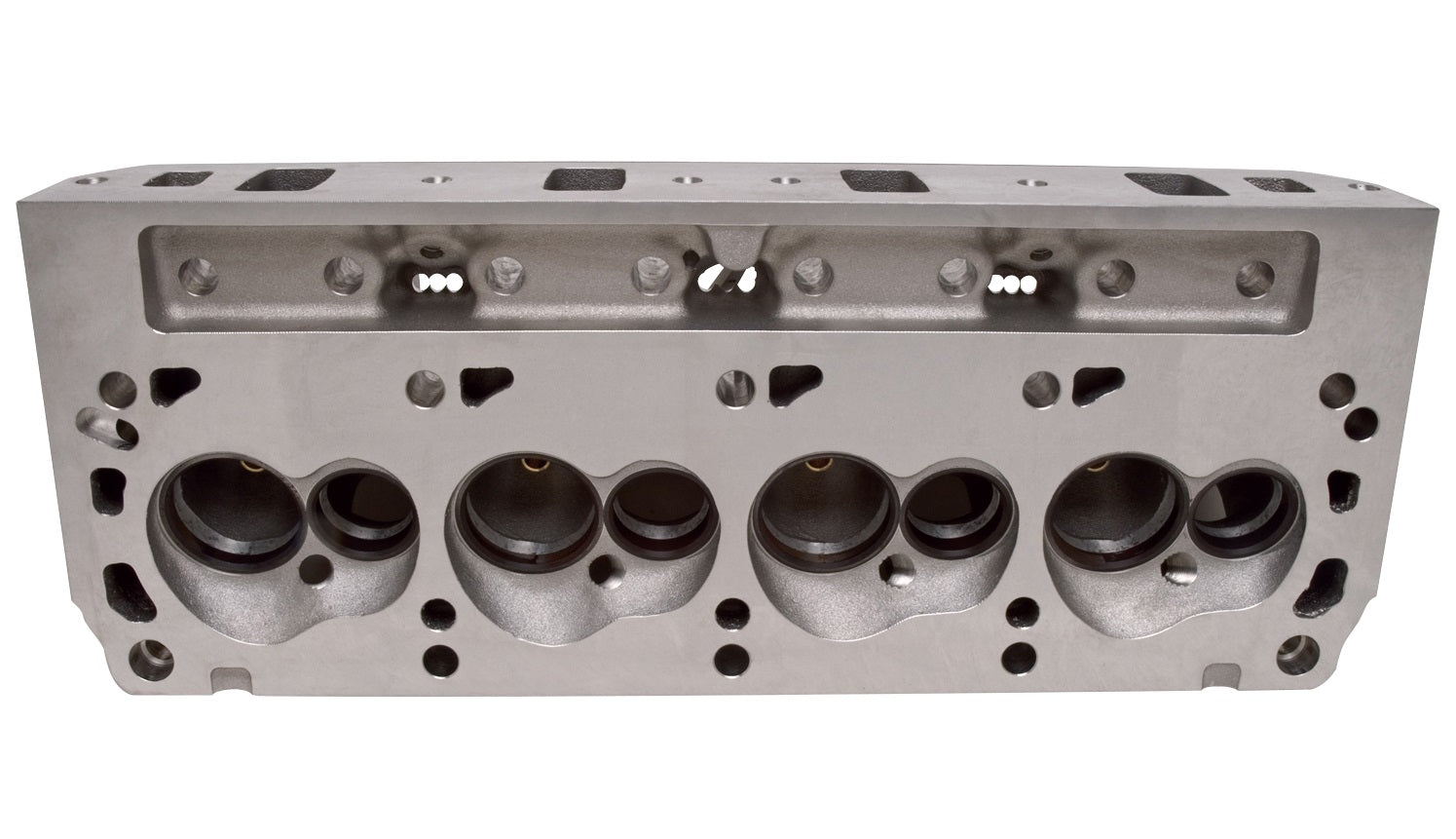

Edelbrock part #77219 Victor Semi-Finished 15 Degree is a bare cylinder head designed for S/B Ford 289-351W engines. The inline valve configuration features a 15 degree valve angle and a modern combustion chamber. The Edelbrock Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 deg. valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"; however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation.

Installation Note:

• Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length.
