MANIFOLD, 1988-98 HOLDEN V8, RPM AIR-GAP

MANIFOLD, 1988-98 HOLDEN V8, RPM AIR-GAP

EDL 7594

$638.95
$638.95
View full details

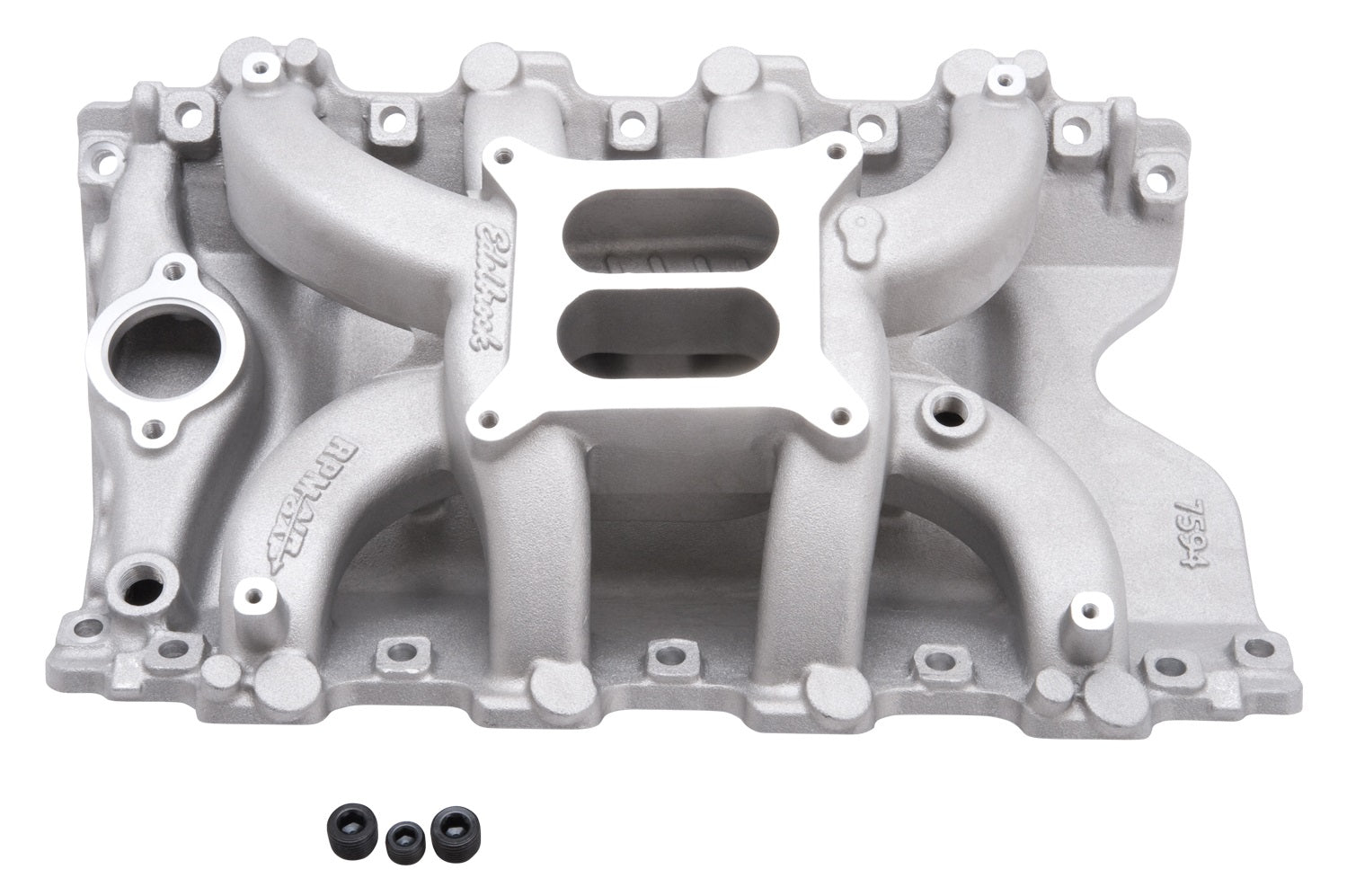

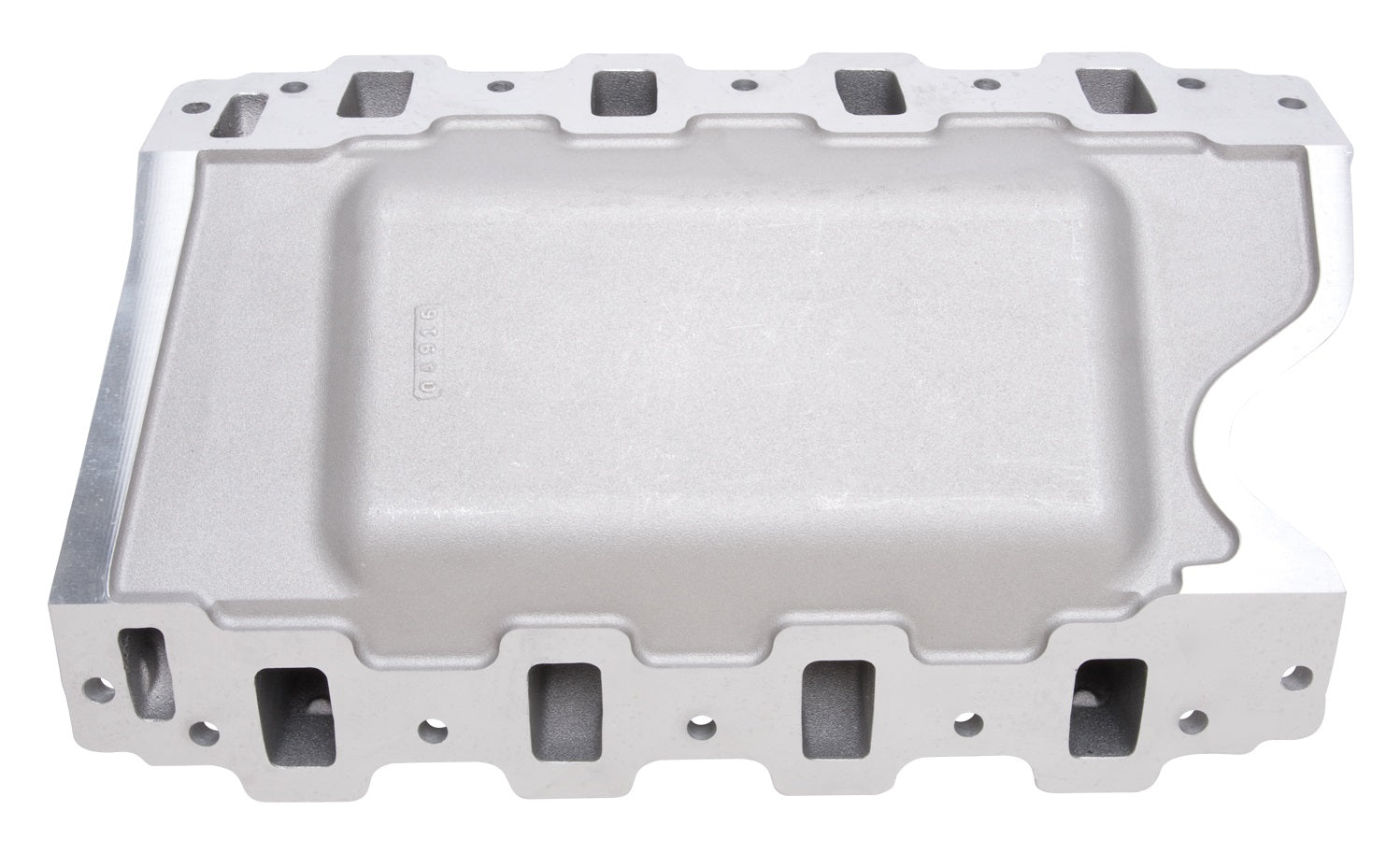

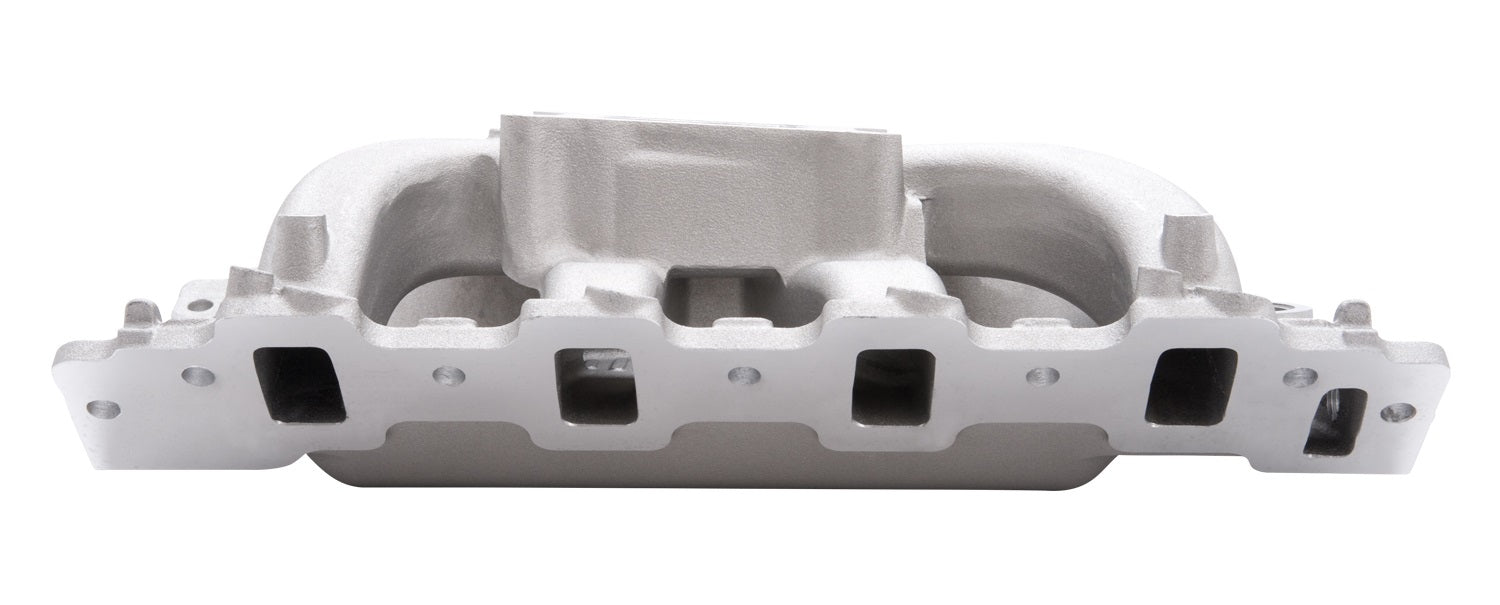

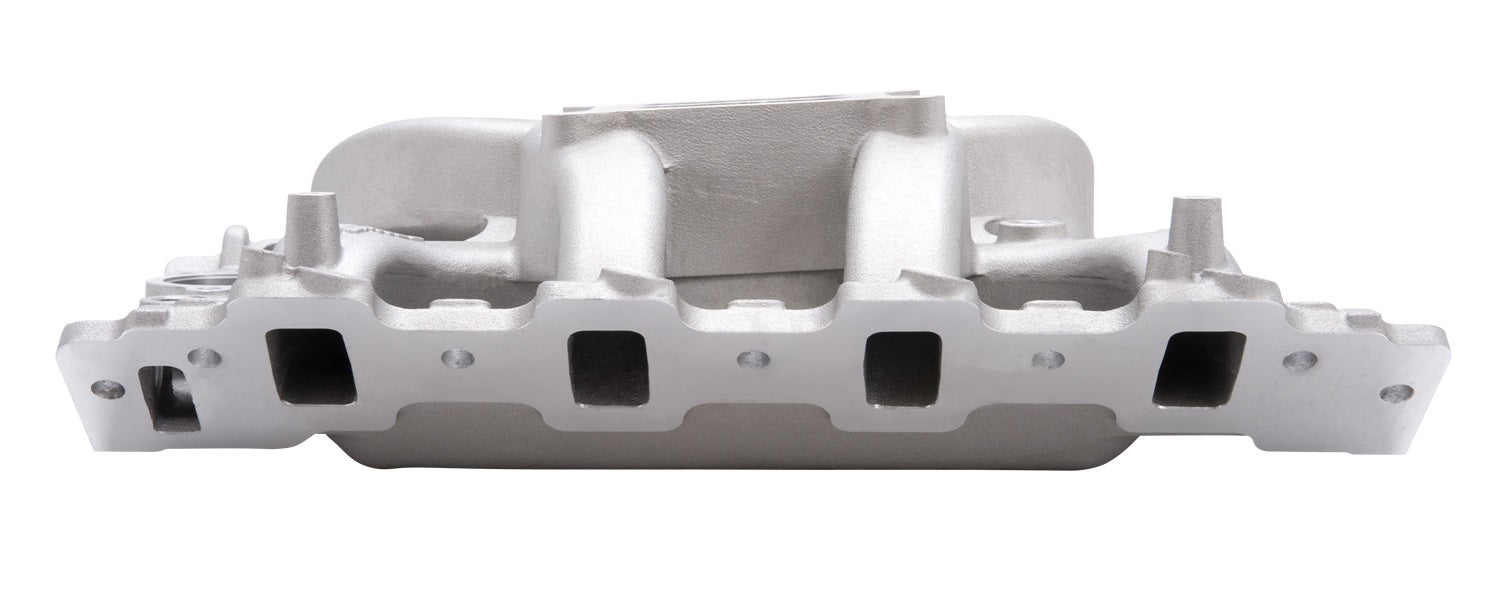

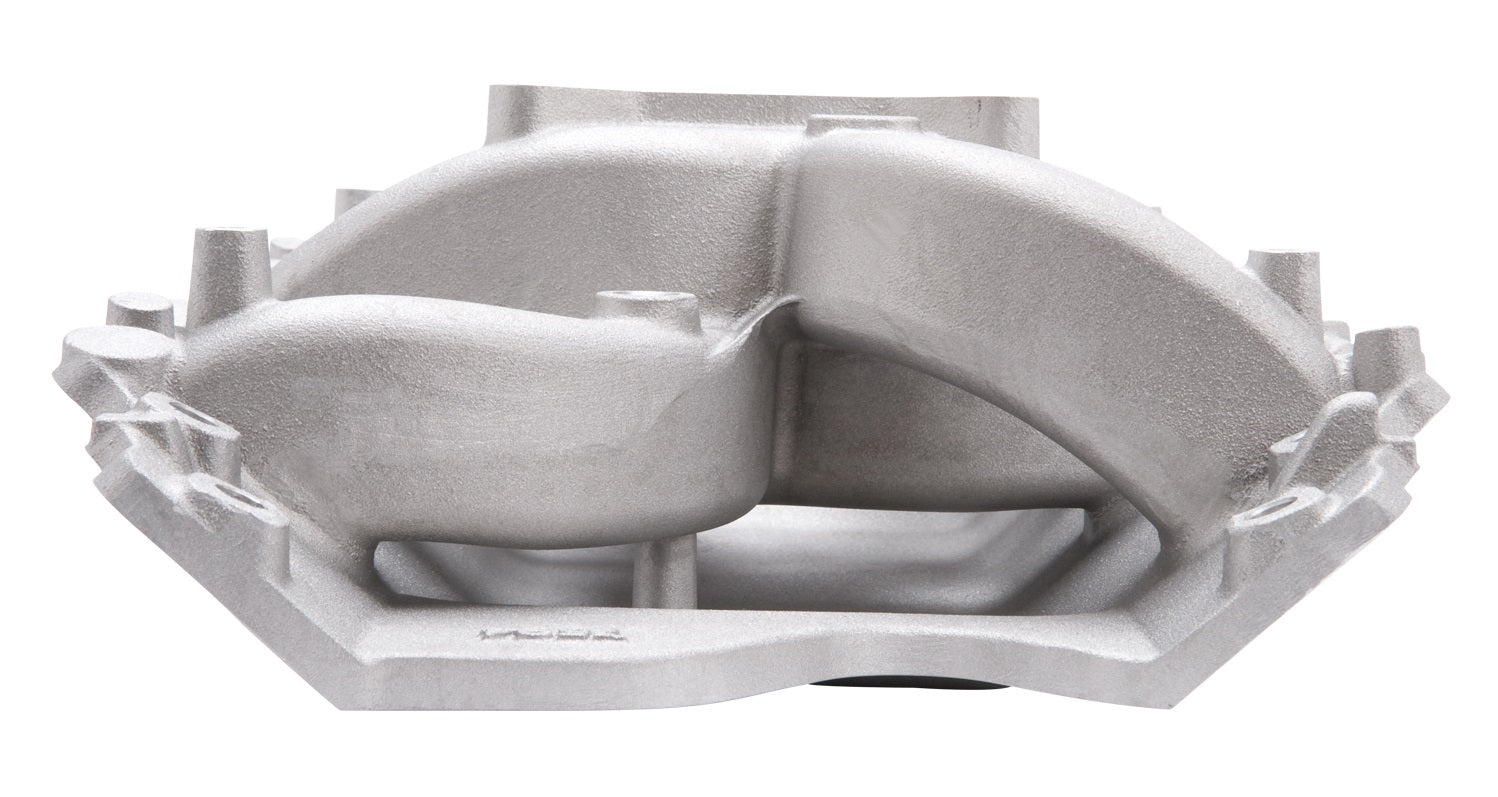

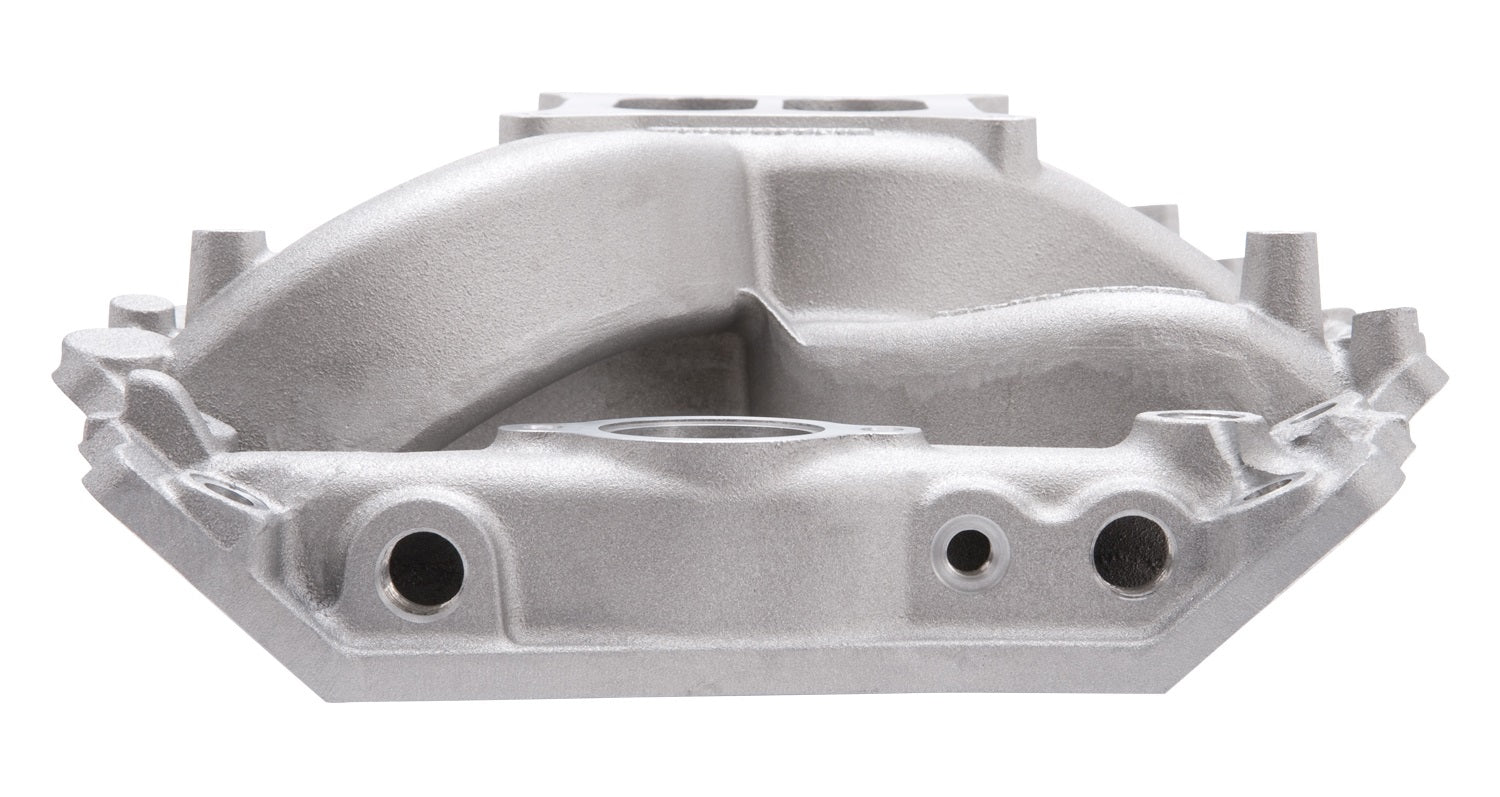

Brand New Edelbrock RPM Air-Gap Intake Manifold for 1988-1998 Holden 253-304-308 (Part #7594).

Edelbrock part #7594 RPM Air-Gap intake manifold is designed for street and high performance 308-383 C.I.D. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm. This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.

Installation Notes:
  • Recommended intake gasket: HA424
  • Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions, internal leakage of both vacuum and oil may occur
  • Manifold height: A-4.80", B-5.82"
  • Carb pad height: 5.31"
  • Carb recommendations: Edelbrock AVS2 or Performer Series 600-750 cfm
  • Port exit dimensions: 1.16" x 2.00"
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEAL GASKETS
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum

Specs:

  • Material: Aluminum
  • Finish: Satin
  • Gasket Or Seal Included: No
  • RPM Range: 1500-6500 RPM
  • Rear Maximum Height: 5.820 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
