MANIFOLD, 1970-74 FORD 351C 2V, RPM AIR-GAP

MANIFOLD, 1970-74 FORD 351C 2V, RPM AIR-GAP

EDL 7564

$539.95
$539.95
View full details

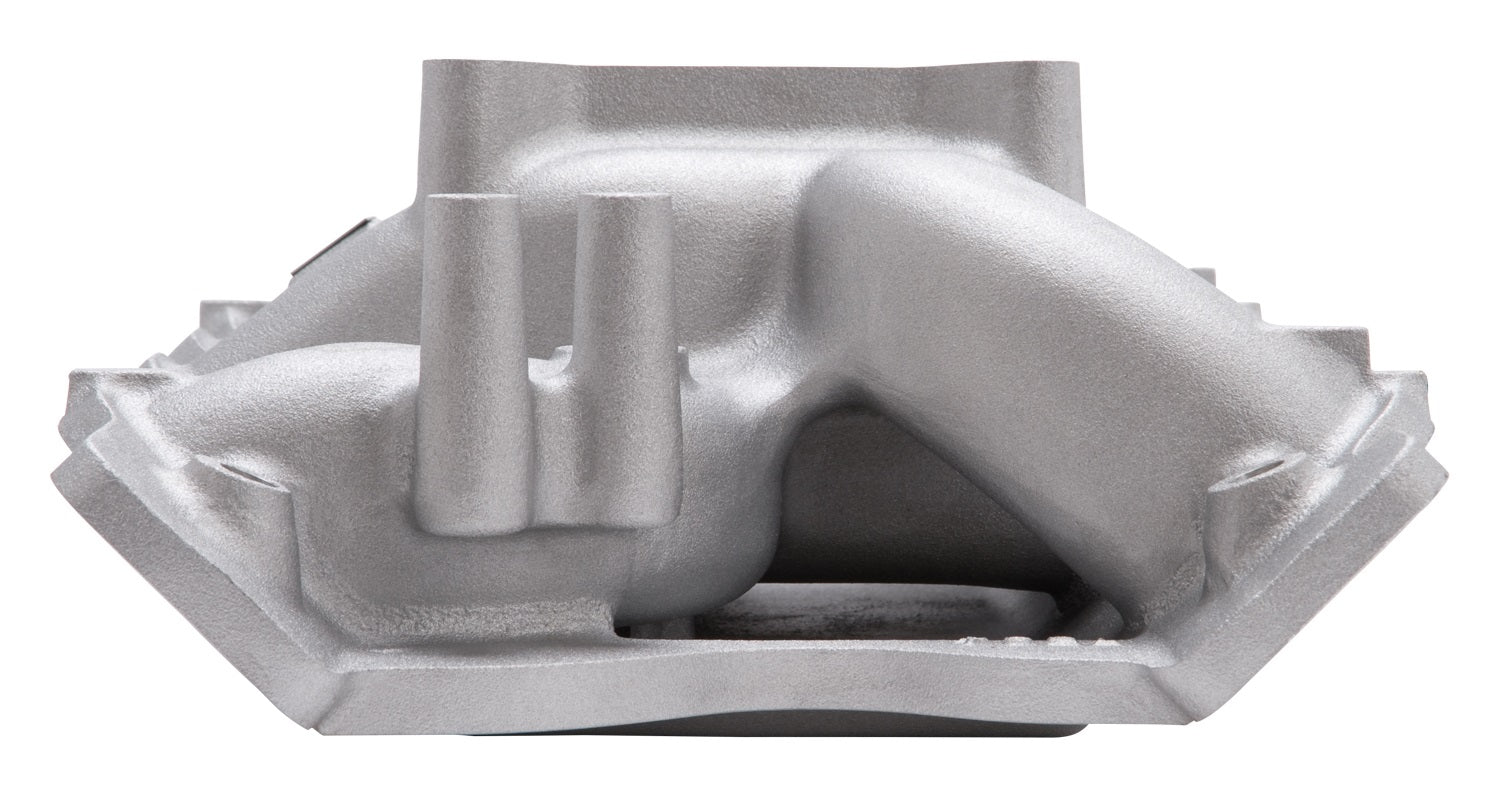

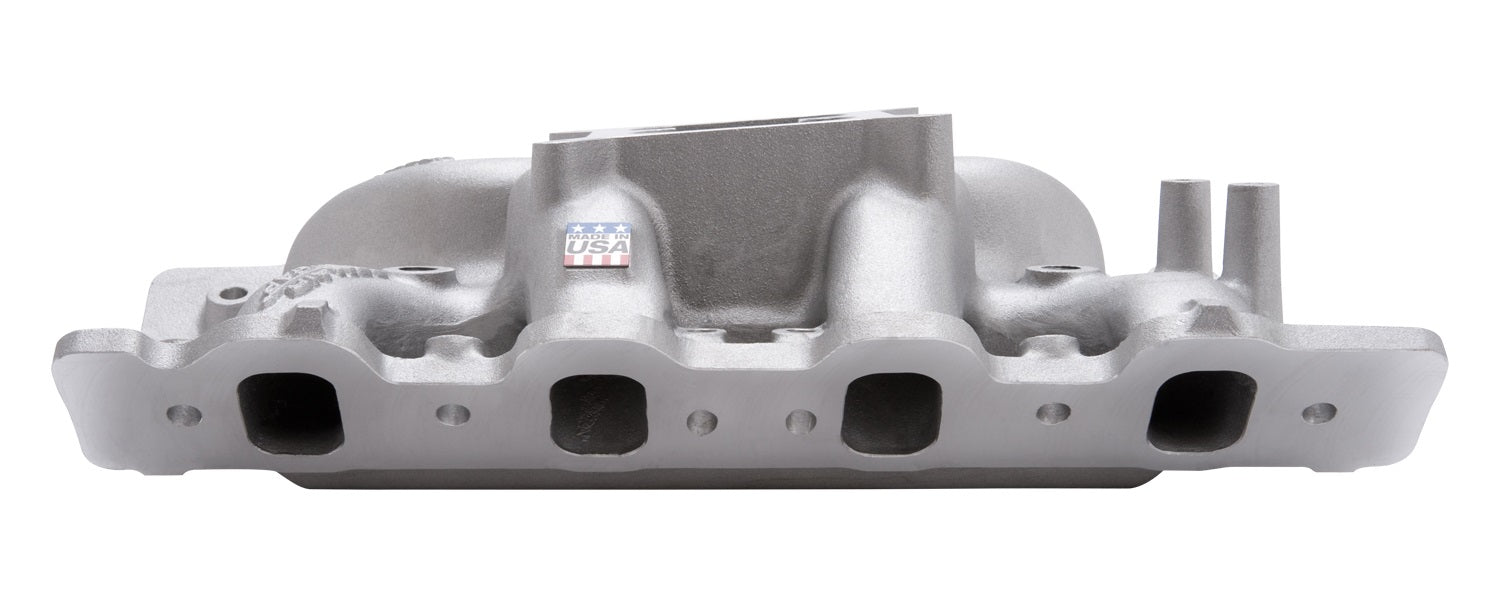

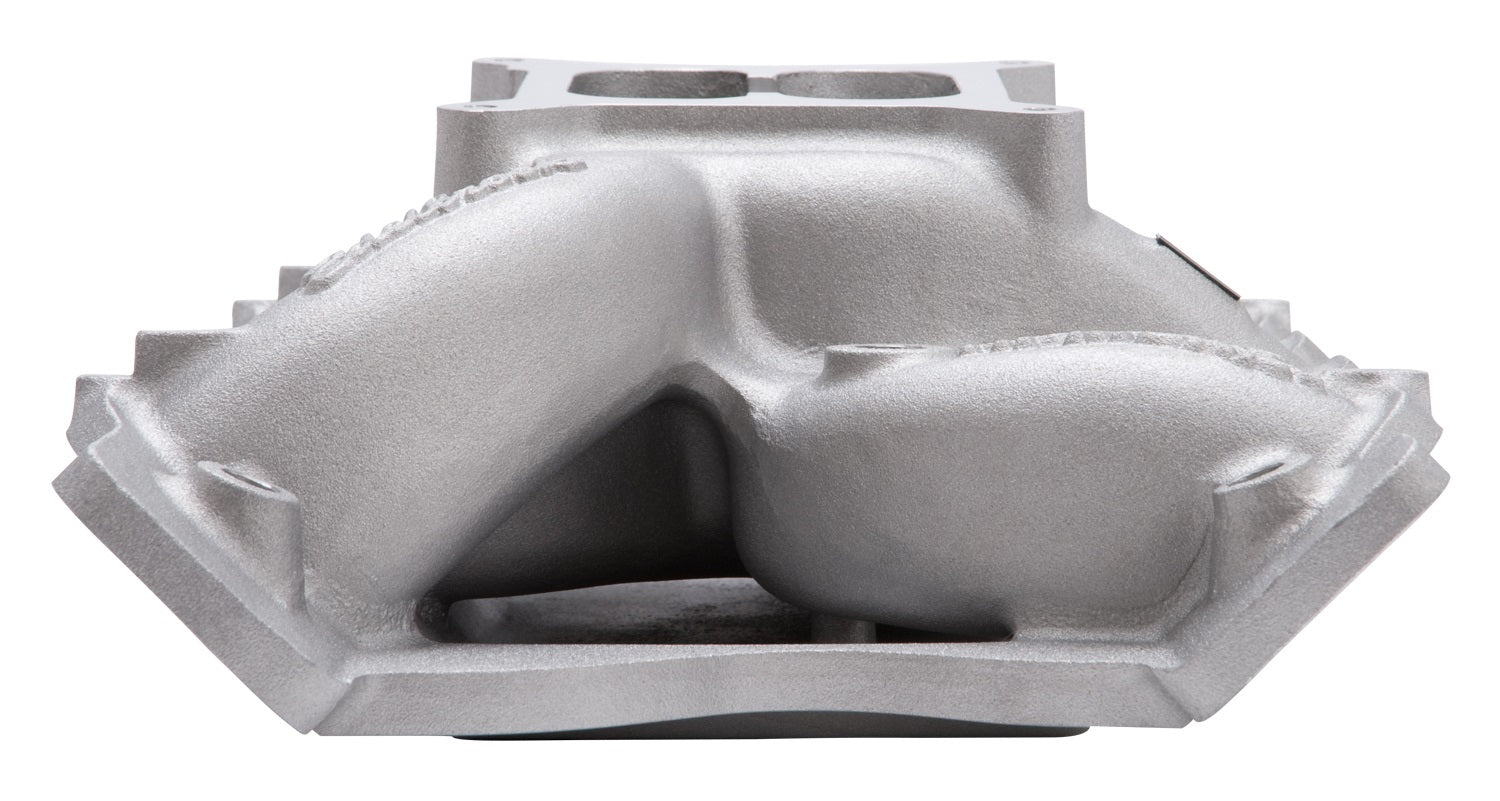

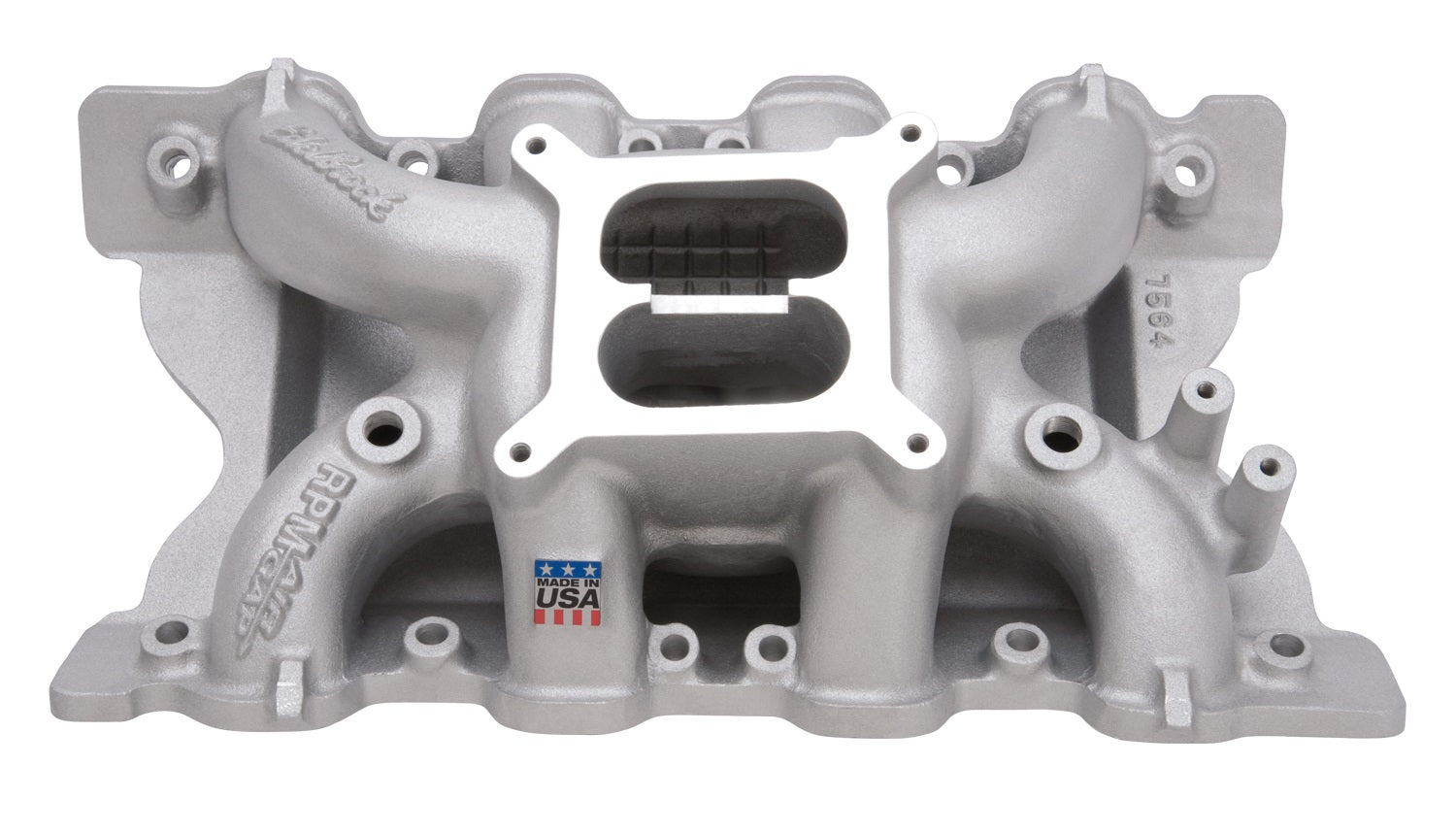

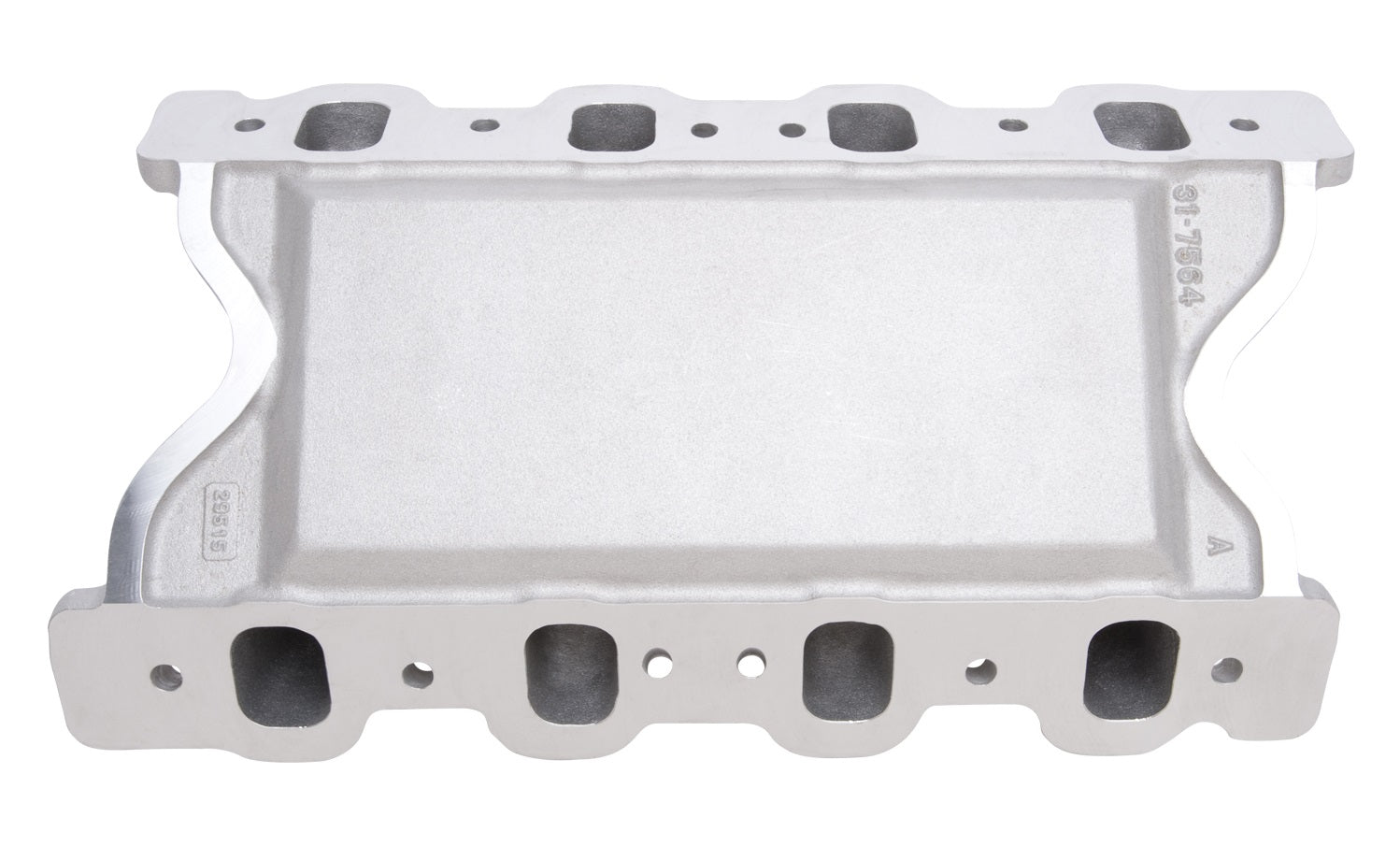

Brand New Edelbrock RPM Air-Gap 351C Intake Manifold for 1970-1974 Ford Cleveland Small-Block V8 (Part #7564).

Edelbrock part #7564 RPM Air-Gap 351C intake manifold design utilizes the same race-winning technology that's been used on Edelbrock's Victor Series competition intakes for many decades. Designed to improve performance on the street or racetrack, this manifold features an open space that separates the runners from the hot engine oil resulting in a cooler, denser charge. The RPM Air-Gap manifold for 351 Cleveland engines is designed to complement Edelbrock's 351C Performer RPM cylinder heads #61609, #61629, #61625 and also works well with 4V and 2V cast iron Cleveland heads.

Installation Notes:
  • Requires Edelbrock #8565 bolt kit
  • Recommended intake gasket: Edelbrock #7265
  • Manifold height: A-4.48", B-5.56"
  • Carb pad height: 5.02"
  • Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. For automatic transmissions use #1483 and #1493 or #1844
  • Port exit dimensions: 1.42" x 2.04"
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum

Specs:

  • Material: Aluminum
  • Finish: Satin
  • Gasket Or Seal Included: No
  • RPM Range: 1500-6500 RPM
  • Rear Maximum Height: 5.560 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
