EDELBROCK INTAKE MANIFOLD,1966-00 BB CHEVY 396-454,OVAL PORT,RPM AIR-GAP

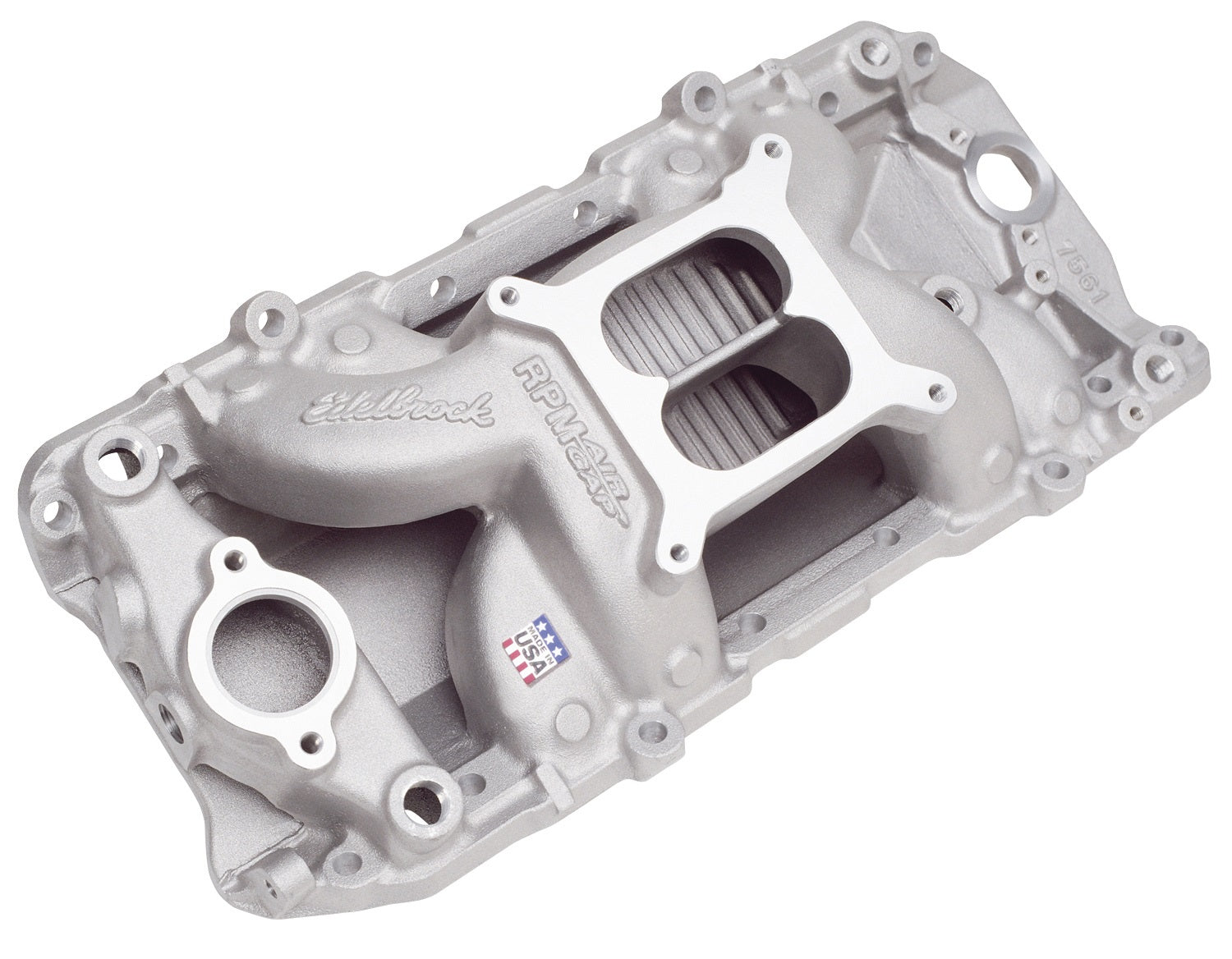

Brand New Edelbrock RPM Air-Gap Big Block Chevy 2-O Intake Manifold (Part #7561).

Edelbrock part #7561 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. This RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power.

Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover.

Note: Recommended intake gasket: Edelbrock #7203 | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78.

Specs:

• Series: RPM Air-Gap

• Material: Aluminum

• Grade Type: Performance

• Gasket Or Seal Included: No
• RPM Range: 1500-6500 RPM
• Finish: Satin

• Rear Maximum Height: 6.000 in

• Single Or Dual Plane Type: Dual
• Manifold height: A-4.45", B-6.0"
• Carb pad height: 5.22"
• Port exit dimensions: 1.60" x 1.94"

You can view and download the complete assembly instruction booklet here.
