EDELBROCK INTAKE MANIFOLD,PERFORMER RPM,58-78 CHRYSLER 361-400,BIG BLOCK MOPAR

EDELBROCK INTAKE MANIFOLD,PERFORMER RPM,58-78 CHRYSLER 361-400,BIG BLOCK MOPAR

EDL 7186

$409.95
$409.95
View full details

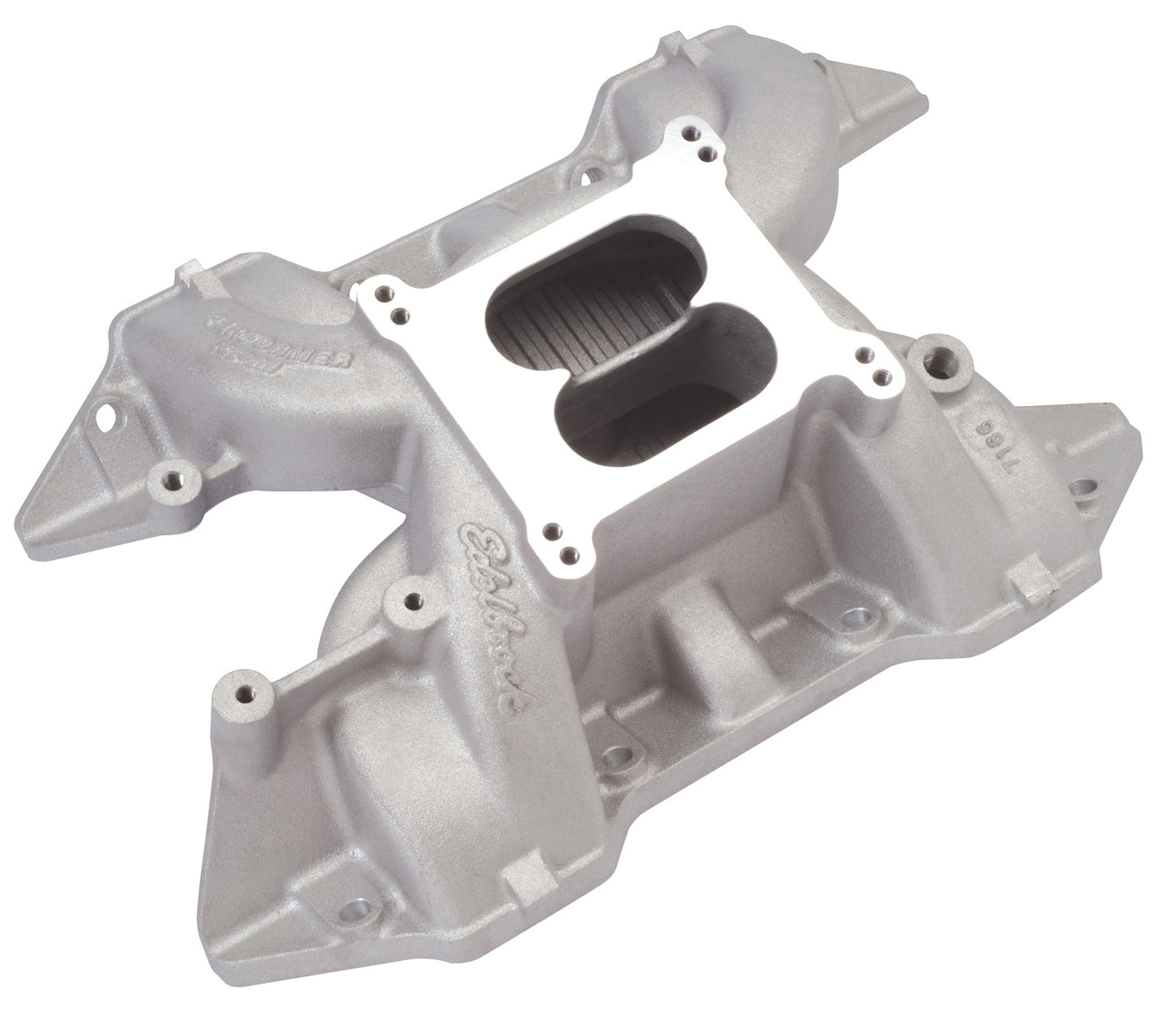

Brand New Edelbrock Performer RPM Big Block Chrysler B Intake Manifold (Part #7186).

Edelbrock part #7186 Performer RPM 383 intake manifold is designed for 361-383-400 c.i.d. Chryslers. The dual-plane design results in excellent low-end torque and high rpm power. High flow runner design will handle the popular stroker combinations. For high-performance street/strip applications. Will not fit 1962-64 Max Wedge heads.

Features:

  • Designed for 361-383-400 c.i.d. Chryslers
  • Dual-plane design
  • Will not fit 1962-64 Max Wedge heads.

Specs:

  • Finish: Satin
  • Material: Aluminum
  • Rear Maximum Height: 5.800 in
  • Single Or Dual Plane Type: Dual
  • RPM Range: 1500-6500 RPM
  • Manifold height: A-4.90", B-5.80"
  • Carb pad height: 5.35"
  • Port exit dimensions: 1.13" x 2.13"
Installation Notes:
  • Recommended intake gasket: Edelbrock #7225
  • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
You can view and download the complete assembly instruction booklet here.
