MANIFOLD, 1969-97 FORD 351W, PERFORMER RPM

MANIFOLD, 1969-97 FORD 351W, PERFORMER RPM

EDL 7181

$416.95
$416.95
View full details

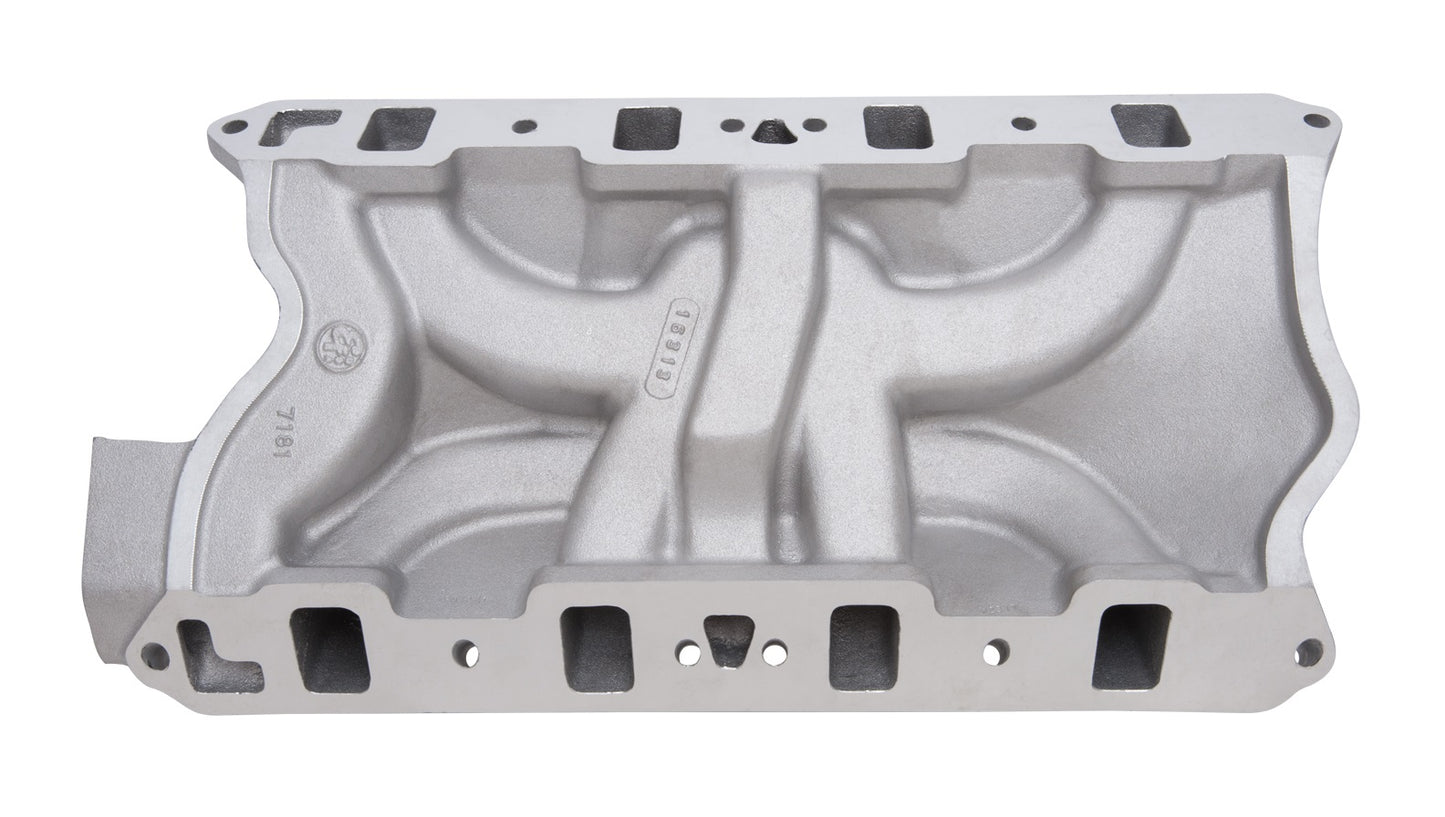

Brand New Edelbrock Performer RPM Intake Manifold for 351 Ford Small Block Windsor engines (Part #7181).

Edelbrock Performer RPM 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock Performer RPM cylinder heads, modified OEM cylinder heads or equivalent. The dual-plane design offers good throttle response with excellent top-end power for the street. Includes bosses for rear water crossover. Will fit 1964-1/2 to 1970 Mustangs. Will not fit under stock hood of 1974-78 or 1979-95 Mustangs. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000.

Installation Notes:
  • Will fit early 16-bolt head with Ford 16-bolt intake gasket set.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Recommended Intake Gasket: Use 12-bolt intake gasket set Edelbrock #7220 recommended. For van installations use OEM Ford "van" intake gasket set
  • Carb Recommendations: Edelbrock Thunder AVS or Performer Series 650-800 CFM. For automatic transmissions use #1483 and #1491 or #1844.

Specs:

  • Material: Aluminum
  • Grade Type: Performance
  • Gasket Or Seal Included: No
  • Manifold Height: A-4.30", B-5.30"
  • Carb Pad Height: 4.80"
  • Port Exit Dimensions: 1.12" x 1.86".
  • RPM Range: 1500-6500 RPM
  • Finish: Satin
  • Rear Maximum Height: 5.300 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
