MANIFOLD, 1968-82 FORD 429-460, NON-EGR, PERFORMER RPM

MANIFOLD, 1968-82 FORD 429-460, NON-EGR, PERFORMER RPM

EDL 7166

$476.95
$476.95
View full details

Brand New Edelbrock Performer RPM Intake Manifold for Ford 429 & 460 Big-Block V8 (Part #7166).

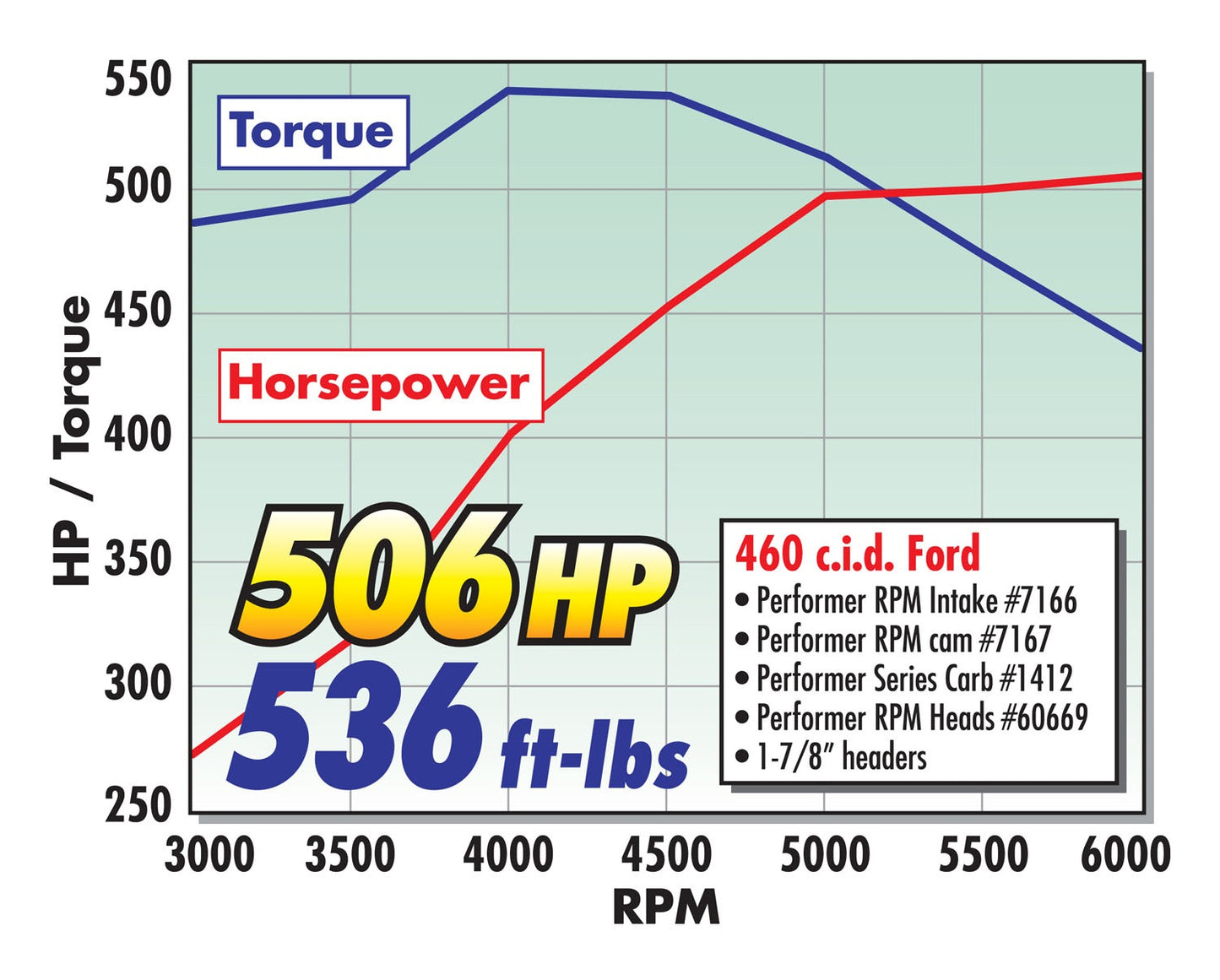

Edelbrock part #7166 Performer RPM 460 intake manifold is designed for high-performance's street 429/460 Ford V8's with standard or Cobra-Jet cylinder heads. Latest technology in dual-plane design results in excellent low- and mid-range torque and outstanding horsepower on appropriately equipped engines. Will accept square-bore or spread-bore carburetors. Will not fit 1988 and later models. Note: Early Cobra-Jets came with Quadrajets.

Installation Notes:
  • Recommended intake gasket: Edelbrock #7223 or Fel-Pro #1230/#1231
  • Manifold height: A-4.81", B-6.15"
  • Carb pad height: 5.48"
  • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. For automatic transmission use #1483 and #1495 or #1844
  • Port exit dimensions: 1.76" x 2.06"
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Material: Aluminum
  • Gasket Or Seal Included: No
  • RPM Range: 1500-6500 RPM
  • Rear Maximum Height: 6.150 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
