MANIFOLD, 1966-00 BB CHEVY, RECT PORT, PERFORMER RPM

MANIFOLD, 1966-00 BB CHEVY, RECT PORT, PERFORMER RPM

EDL 7163

$411.95
$411.95
View full details

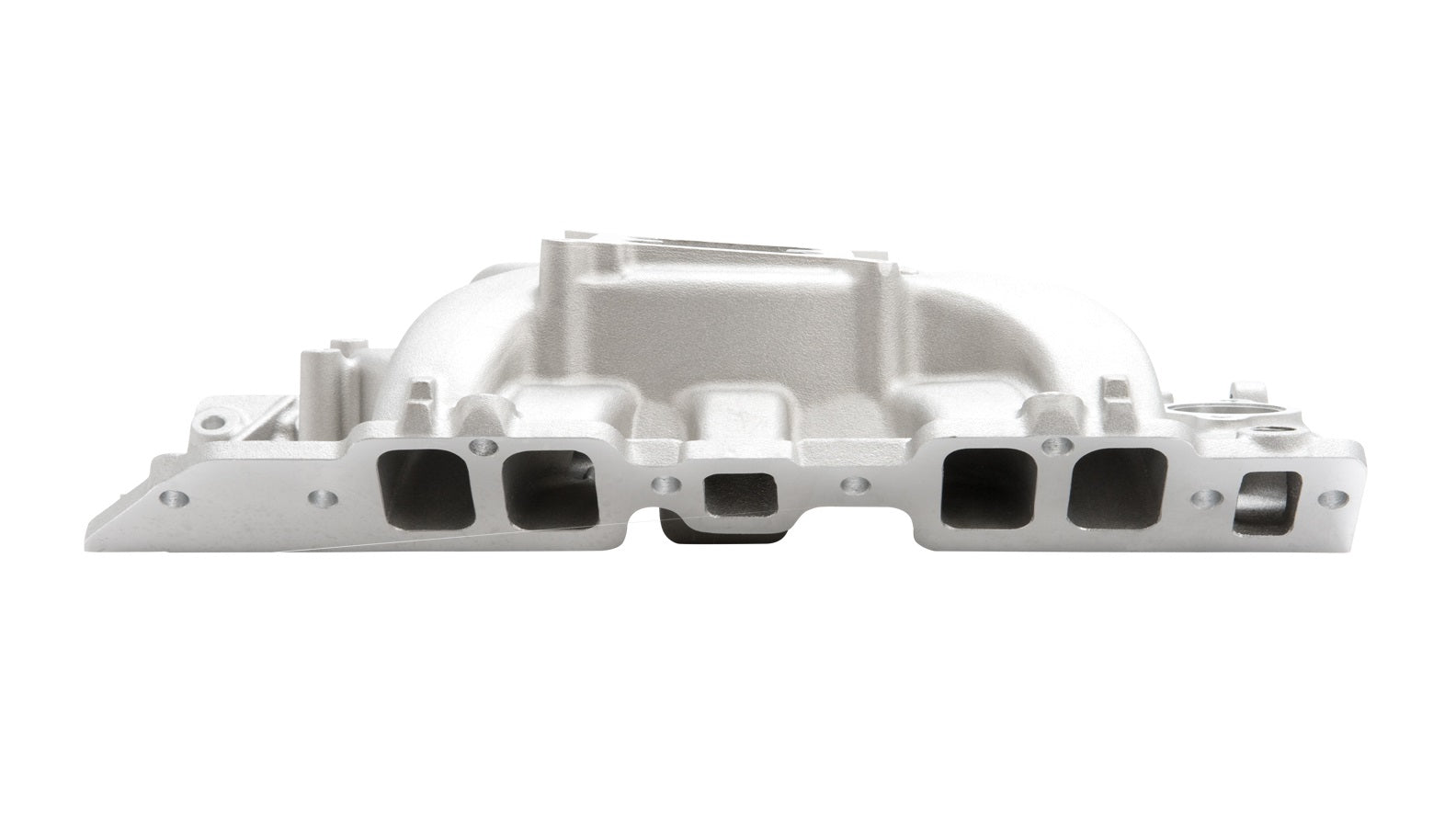

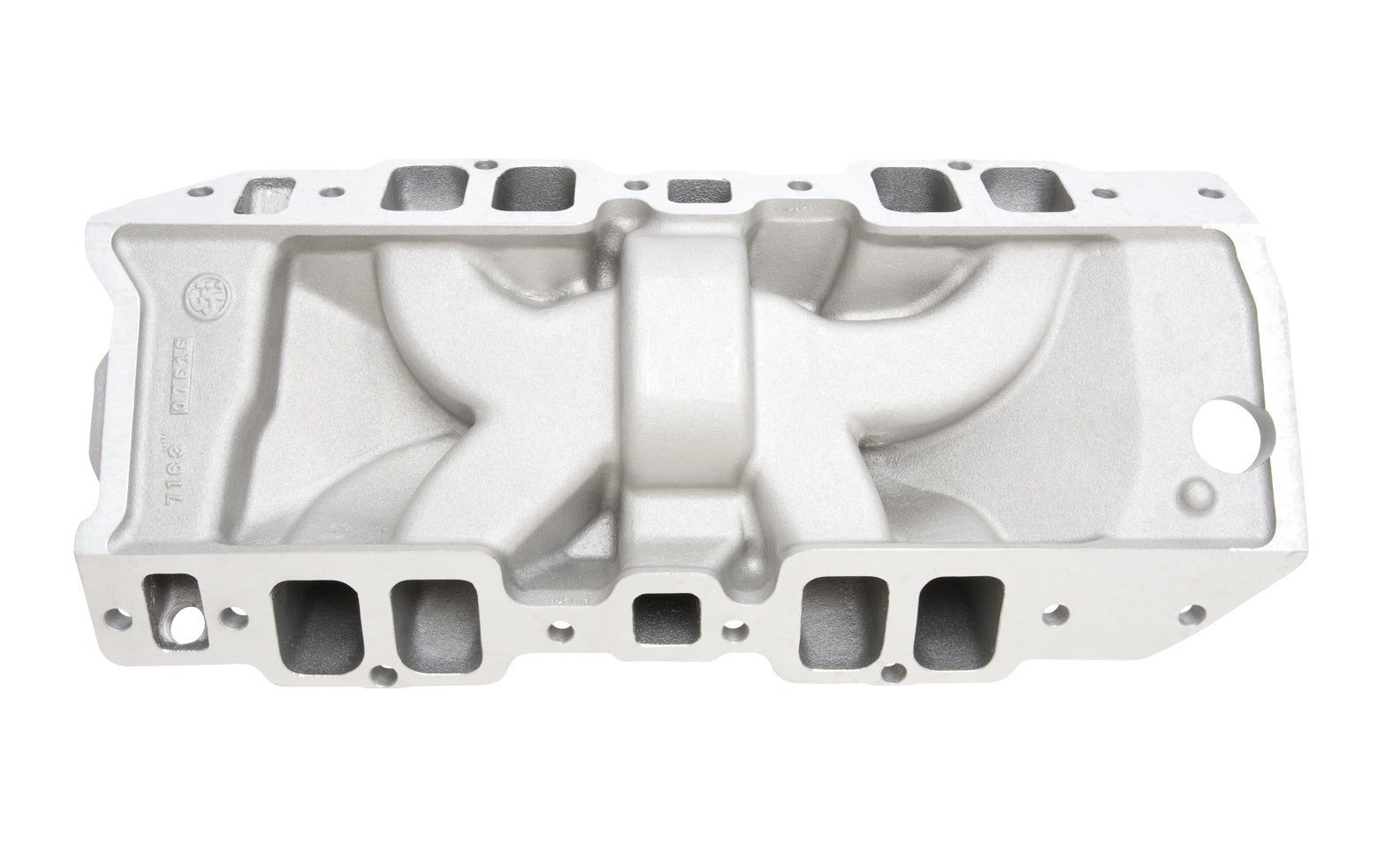

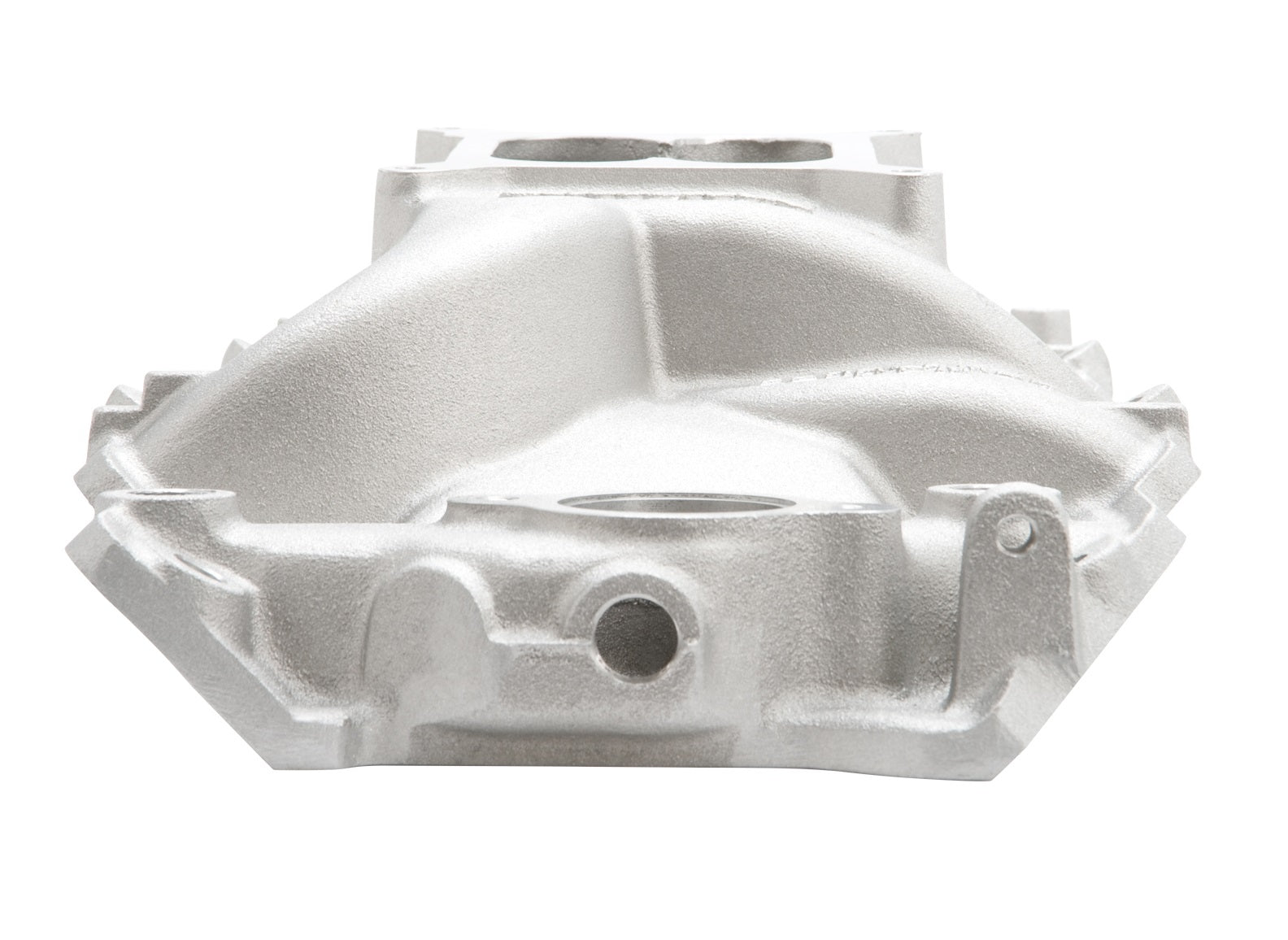

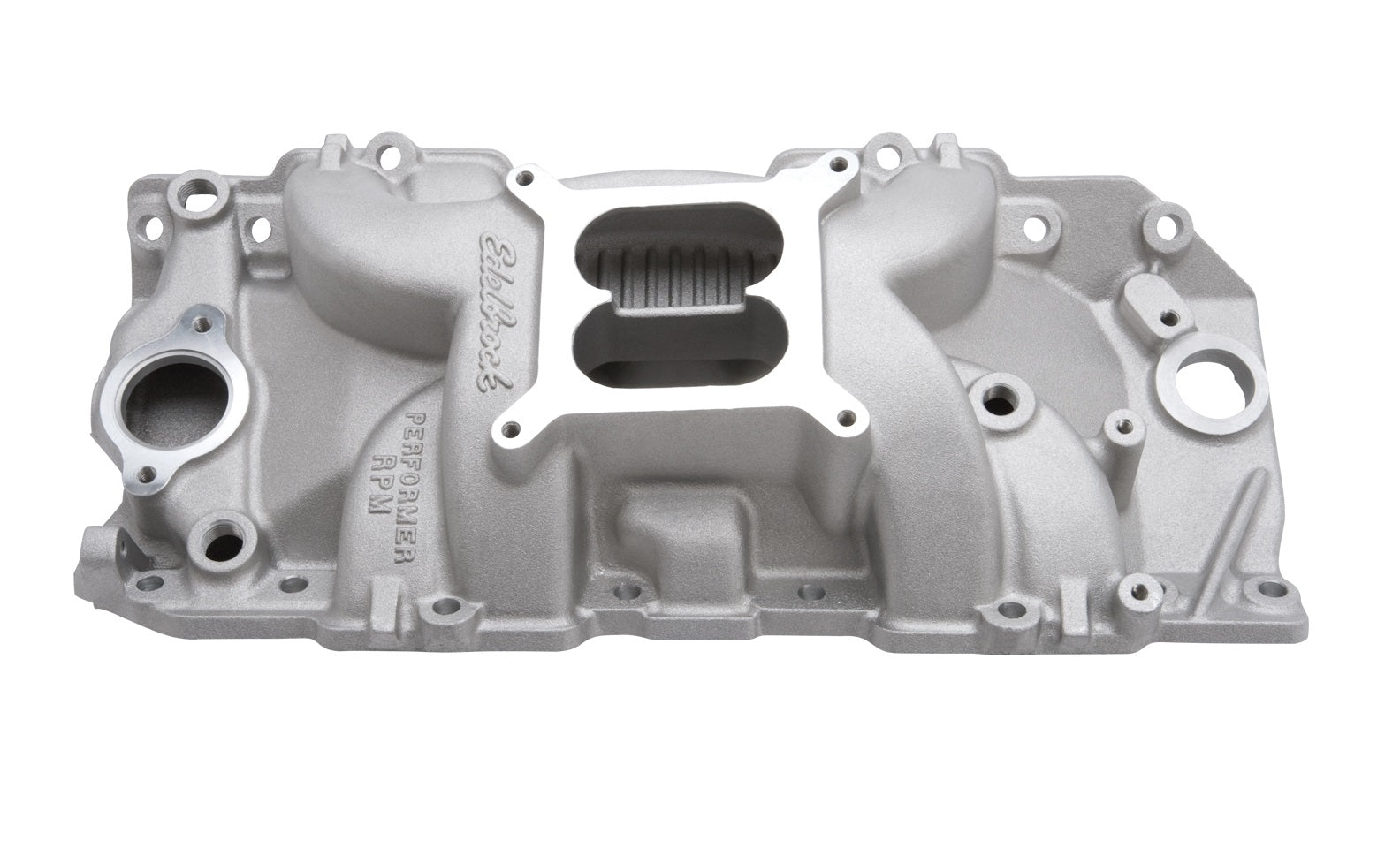

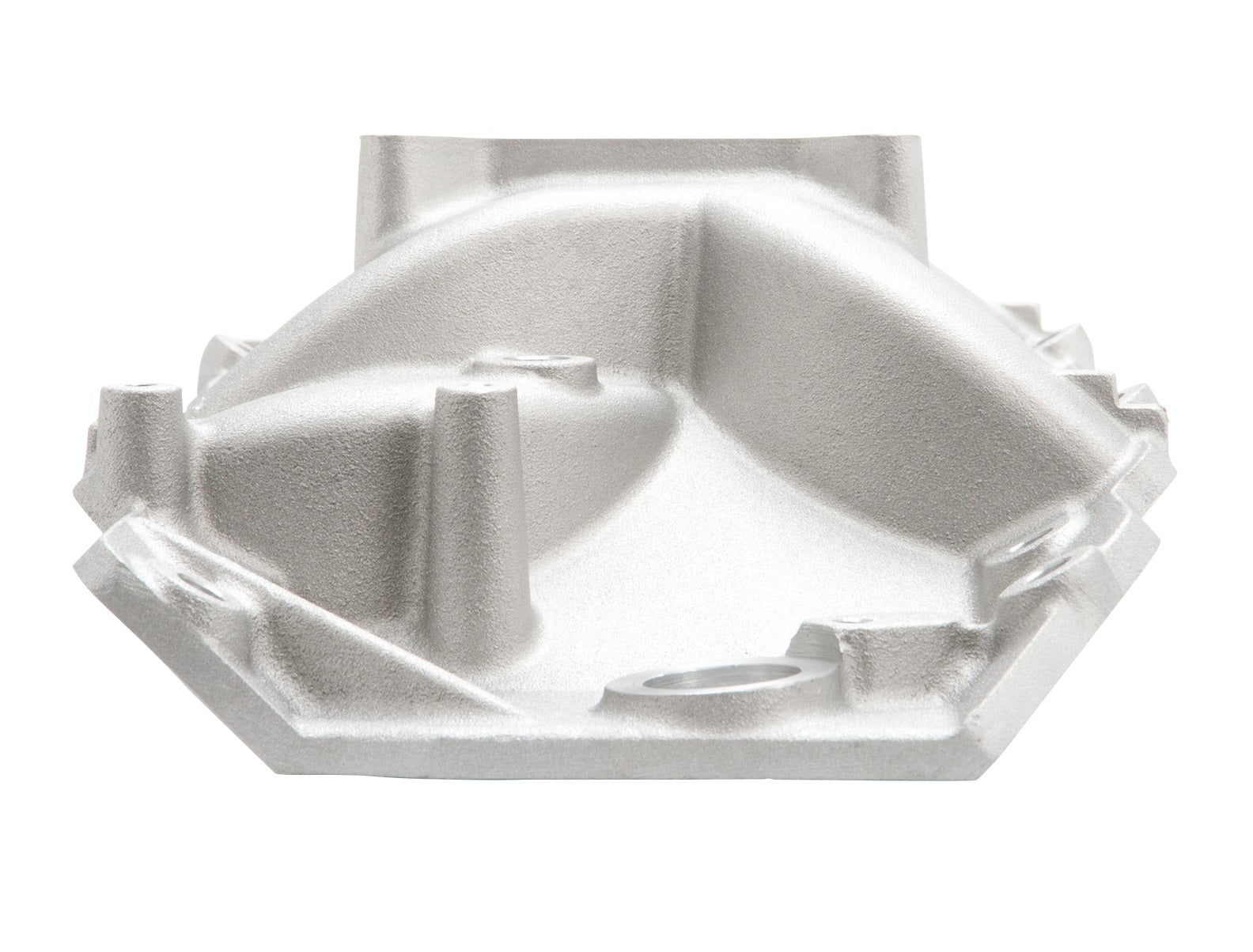

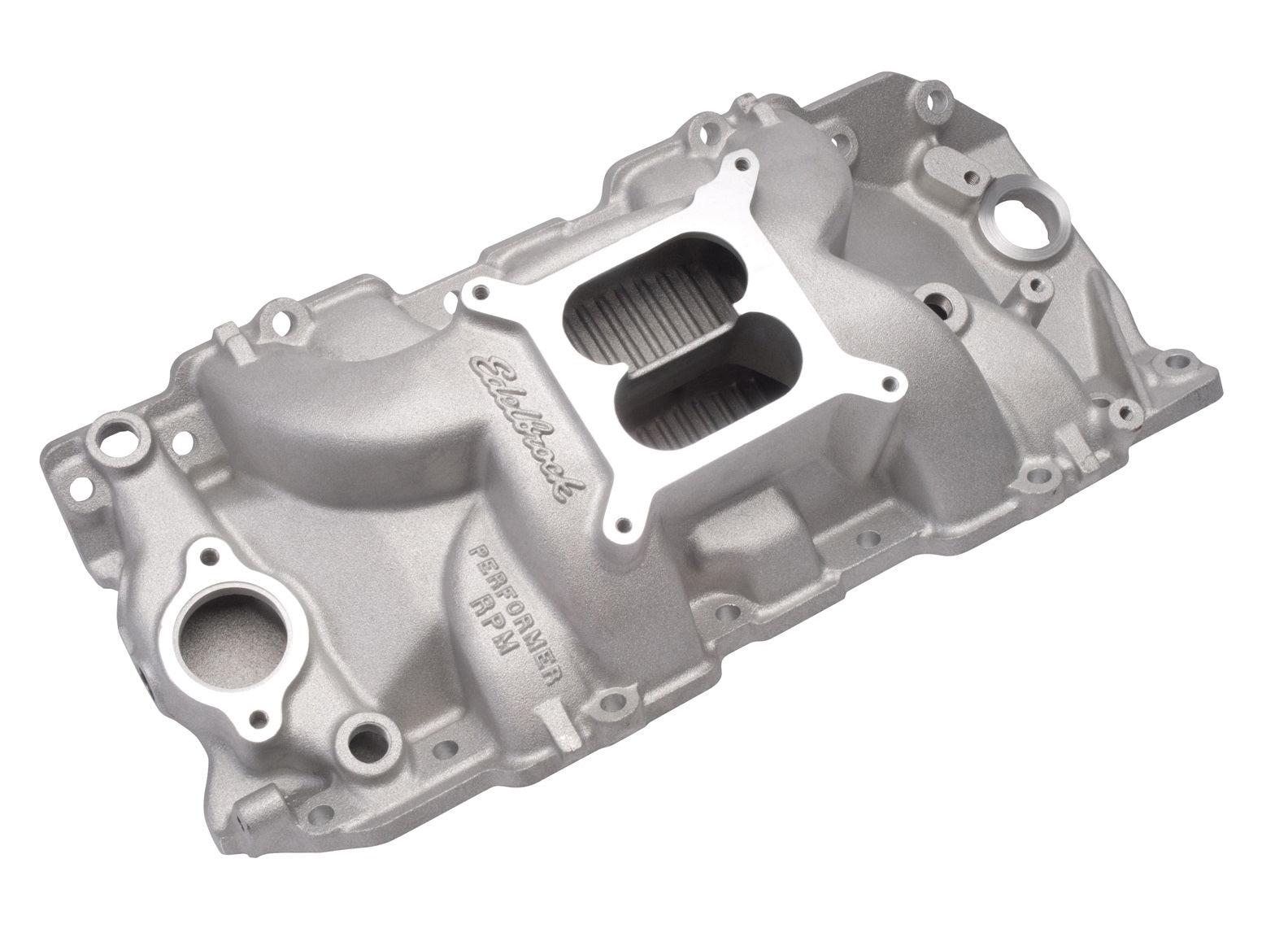

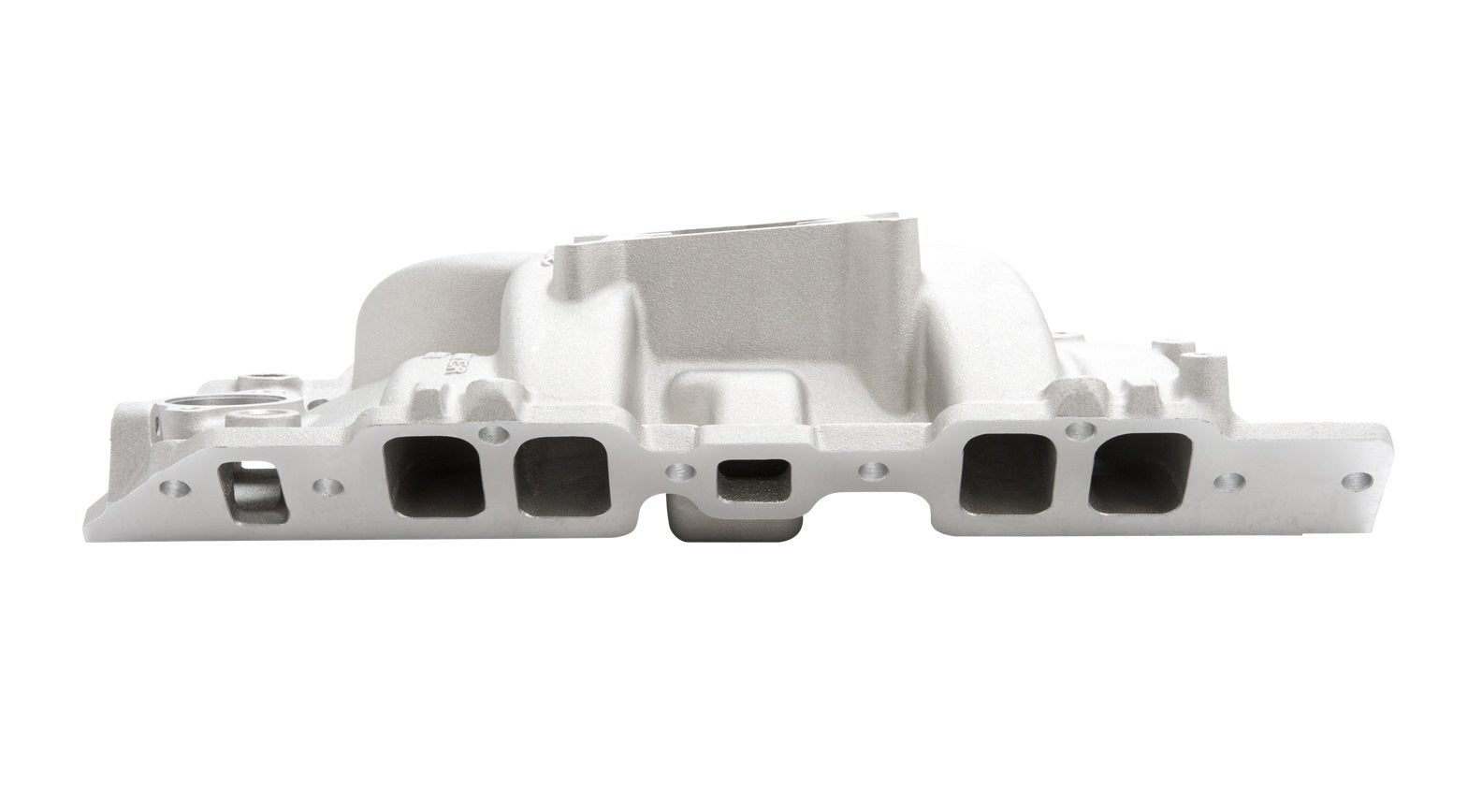

Brand New Edelbrock Performer RPM 2-R Intake Manifold for Chevrolet 396-502 Big-Block V8 (Part #7163).

Edelbrock part #7163 Performer RPM 2-R intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port cylinder heads. This dual-plane high-rise manifold offers maximum horsepower with a broad torque curve. No provisions for exhaust heated chokes. Accepts late-model waterneck, air-conditioning, alternator and HEI equipment.

Installation Notes:
  • Recommended intake gasket: Edelbrock #7202
  • Manifold height: A-4.45", B-6.0" (.25" taller than stock high-rise aluminum manifold)
  • Carb pad height: 5.22"
  • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78.
  • Port exit dimensions: 1.56"w x 2.24"t
  • Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Performer RPM
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Vehicle Model: Chevrolet
  • RPM Range: 1500-6500 RPM
  • Finish: Satin
  • Rear Maximum Height: 6.000 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
