EDELBROCK INTAKE MANIFOLD,QFT CARBURETOR,MSD CONTROLLER,CHEVY LS1,CATHEDRAL PORT

Brand New Edelbrock Intake Manifold & Quick Fuel Carburetor Kit with Ignition Controller, Carburetor Studs, and Intake Gaskets, Compatible with Cathedral Port GM LS1/LS6 Engines (Part #71187-QFT).

Kit Includes:

• Edelbrock Performer RPM LS1 Intake Manifold:
• Edelbrock Performer RPM LS1 intake manifold is designed for the popular Chevrolet LS1 (5.7L) small-block V8 originally used in 1997 and later Corvettes and 1998-02 Camaros and Firebirds
• Also fits the Corvette LS6 engine and any other Gen III engine including the LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L)
• Allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve from 1500 to 6500 rpm
• A special throttle and trans bracket that works with 700R-4, 200R-4 and Turbo 350 transmissions is included, making the LS1 engine an easy retro-fit into any muscle car, street rod or marine application.
• Dual plane type

• Quick Fuel Slayer Series 750 CFM Aluminum Carburetor:
• Vacuum Secondaries
• Electric Choke
• Single Metering Block
• Secondary Metering Plate
• Cast Aluminum Throttle Body
• Single Sight Glass Windows
• Changeable Air Bleeds
• Adjustable Needles & Seats
• Notched Secondary Floats w/Jet Extensions
• Booster: Down Leg
• Model: 4160
• Circuit: 2
• High Speed Air Bleed: 31
• Idle Air Bleed Size: 70;39
• Primary Main Jet: 72
• Primary Power Valve: 65
• Primary Pump Nozzle Size: 33
• Secondary Main Jet: 82
• Throttle Bore: 1-11/16 inch

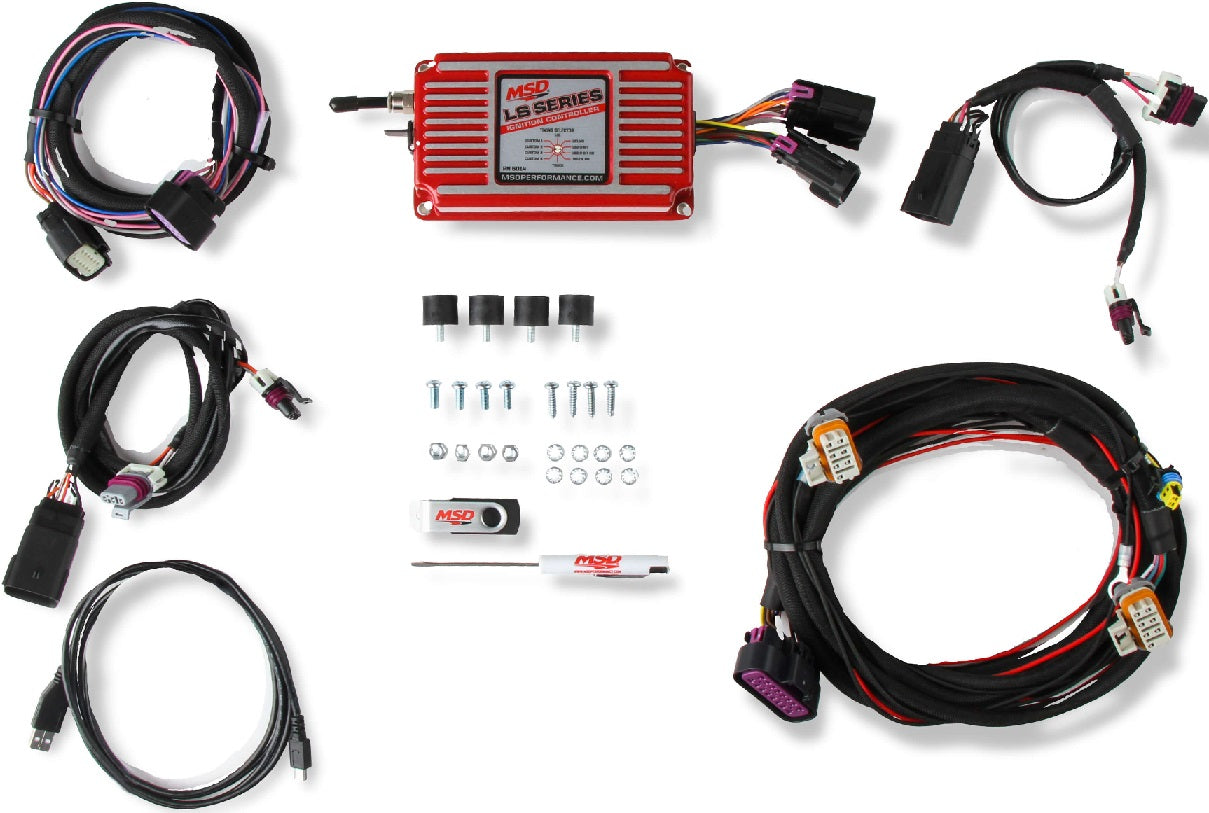

• MSD LS Ignition Control - Red:
• Compatible with 24x/1x and 58x/4x Crank/Cam LS Configurations
• No PC required for basic functionality

• 6 pre-programmed timing tables for easy set-up
• Rotary selector switch allows timing changes on the fly
• Nitrous & boost compatible
• High speed data acquisition
• Fully Sealed direct plugin connectors
• Programmable step retard
• Launch & max rev limiters
• Optional coolant temperature sensor input
• Launch retard
• Idle timing control
• Individual cylinder timing
• Compatible with all MSD, Accel & GM LS coils
• Includes Harnesses
