MANIFOLD, 1964-85 OLDS 307-403, PERFORMER

MANIFOLD, 1964-85 OLDS 307-403, PERFORMER

EDL 7111

$481.95
$481.95
View full details

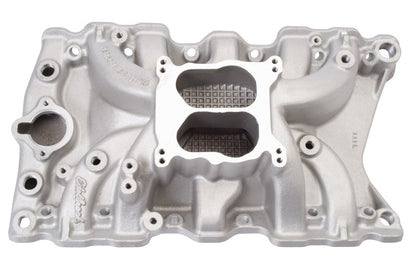

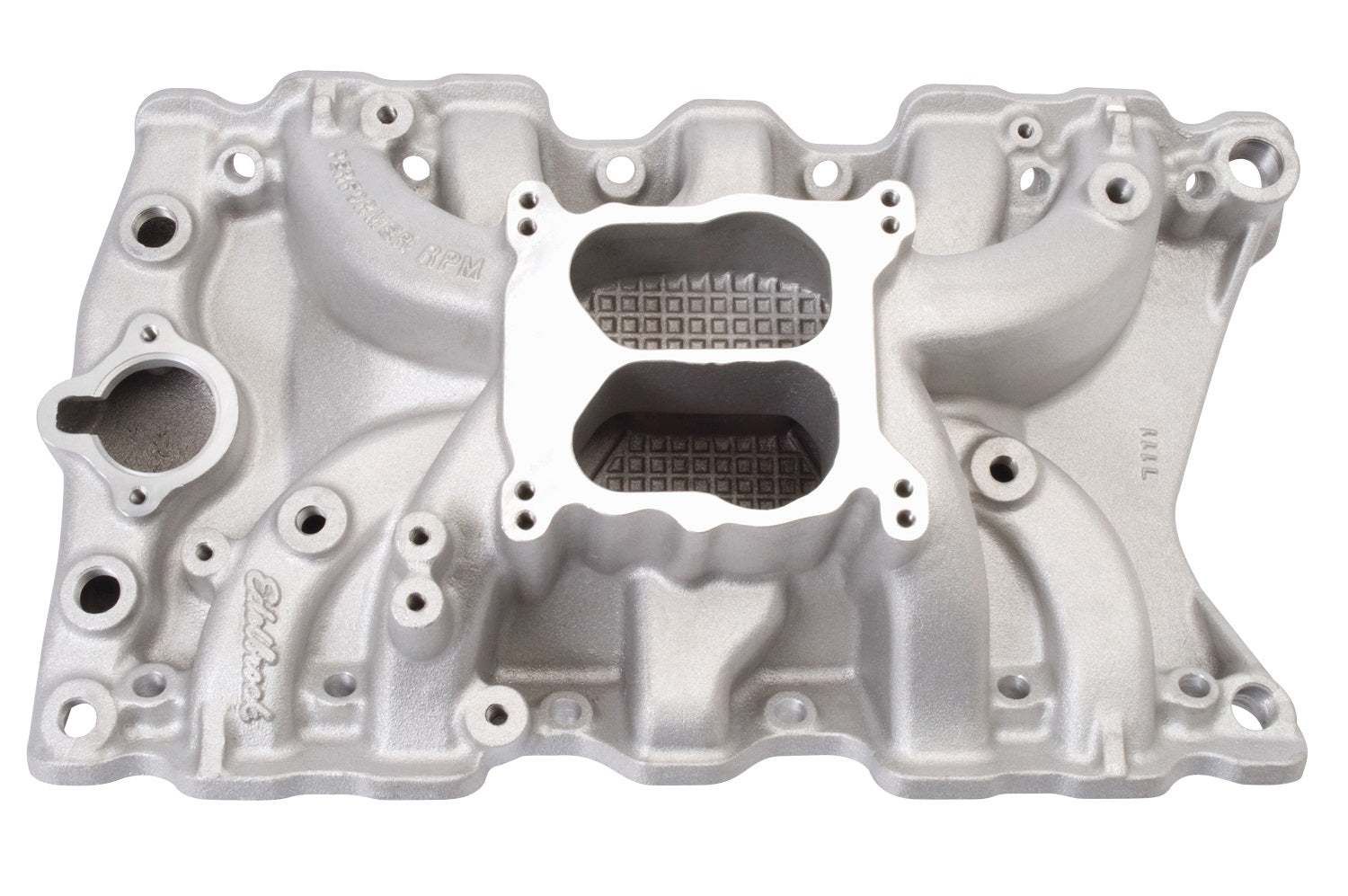

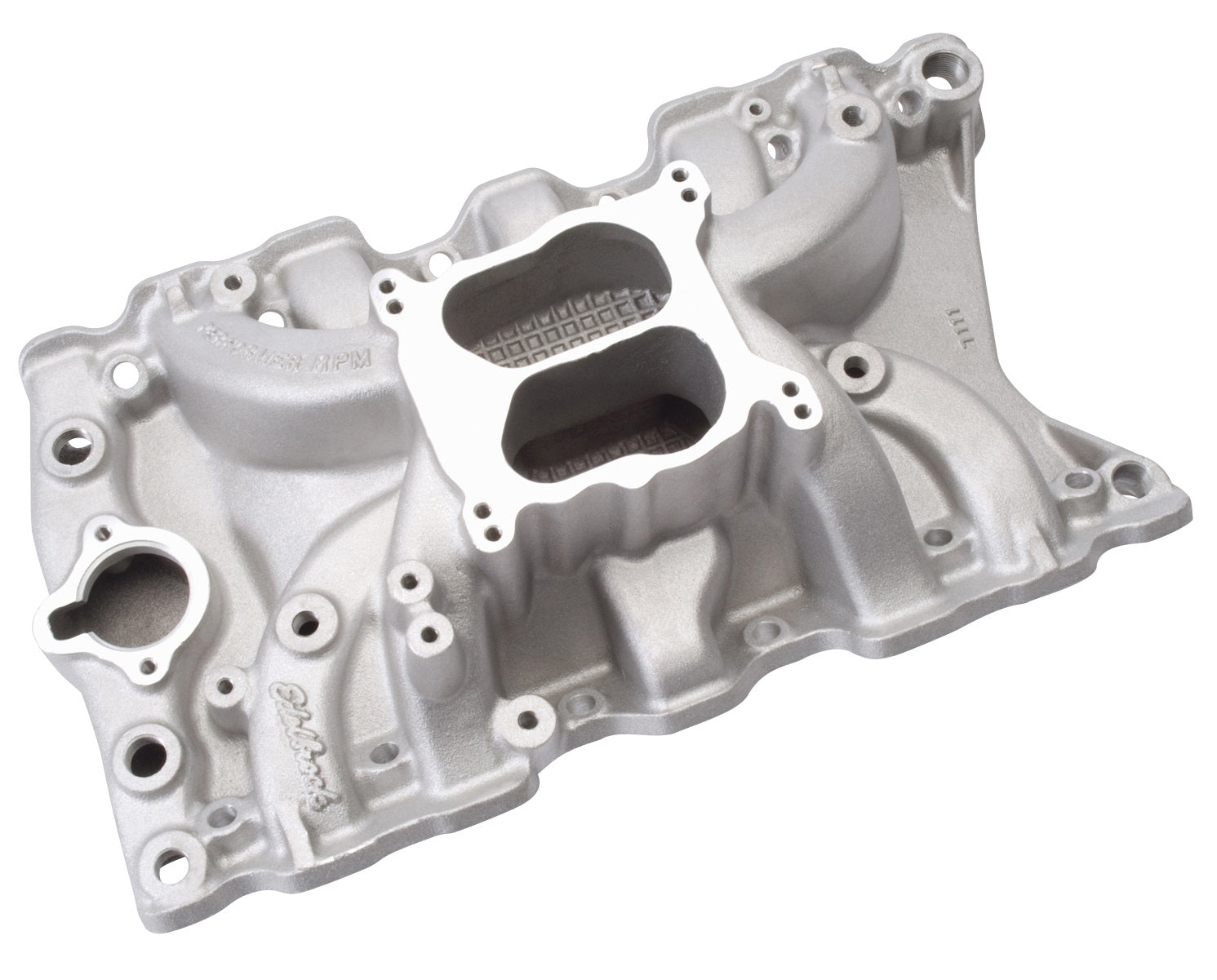

Brand New Edelbrock Performer RPM Intake Manifold for Oldsmobile Small Block 307-350 V8 Engines (Part #7111).

Edelbrock part #7111 Performer RPM Oldsmobile 350 intake manifold is designed for 330-350 C.I.D. Oldsmobile's and 1980-1/2 to 1985 307 C.I.D. engines with 5A heads (casting #3317). This Oldsmobile manifold is a high-rise, dual-plane design with 180-degree firing order engineered for maximum top-end horsepower while maintaining throttle response. Port flange has extra material above the runner for use with cast iron 455 heads and Edelbrock Performer RPM heads #60519. Has clearance for HEI distributor. Carb pad accepts square-bore carbs without adapters.

Installation Notes:
  • Recommended intake gasket: Fel-Pro #MS96027
  • No provision for OEM choke
  • Will not clear hood on 403 Olds, Firebird/TA.
  • OEM carb requires conversion to electric/manual choke
  • Manifold height: 2" taller than stock A-4.80", B-5.80
  • Carb pad height: 5.30"
  • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm
  • Port exit dimensions: 1.22" x 1.86"
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Material: Aluminum
  • Grade Type: Performance
  • Gasket Or Seal Included: No
  • RPM Range: 1500-6500 RPM
  • Finish: Satin
  • Rear Maximum Height: 5.8 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
