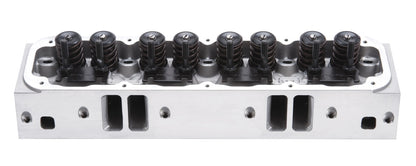

RPM SMALL-BLOCK CHRYSLER MAGNUM CYLINDER HEAD HYDRAULIC ROLLER CAM

RPM SMALL-BLOCK CHRYSLER MAGNUM CYLINDER HEAD HYDRAULIC ROLLER CAM

EDL 61775

$1,251.50
$1,251.50
View full details

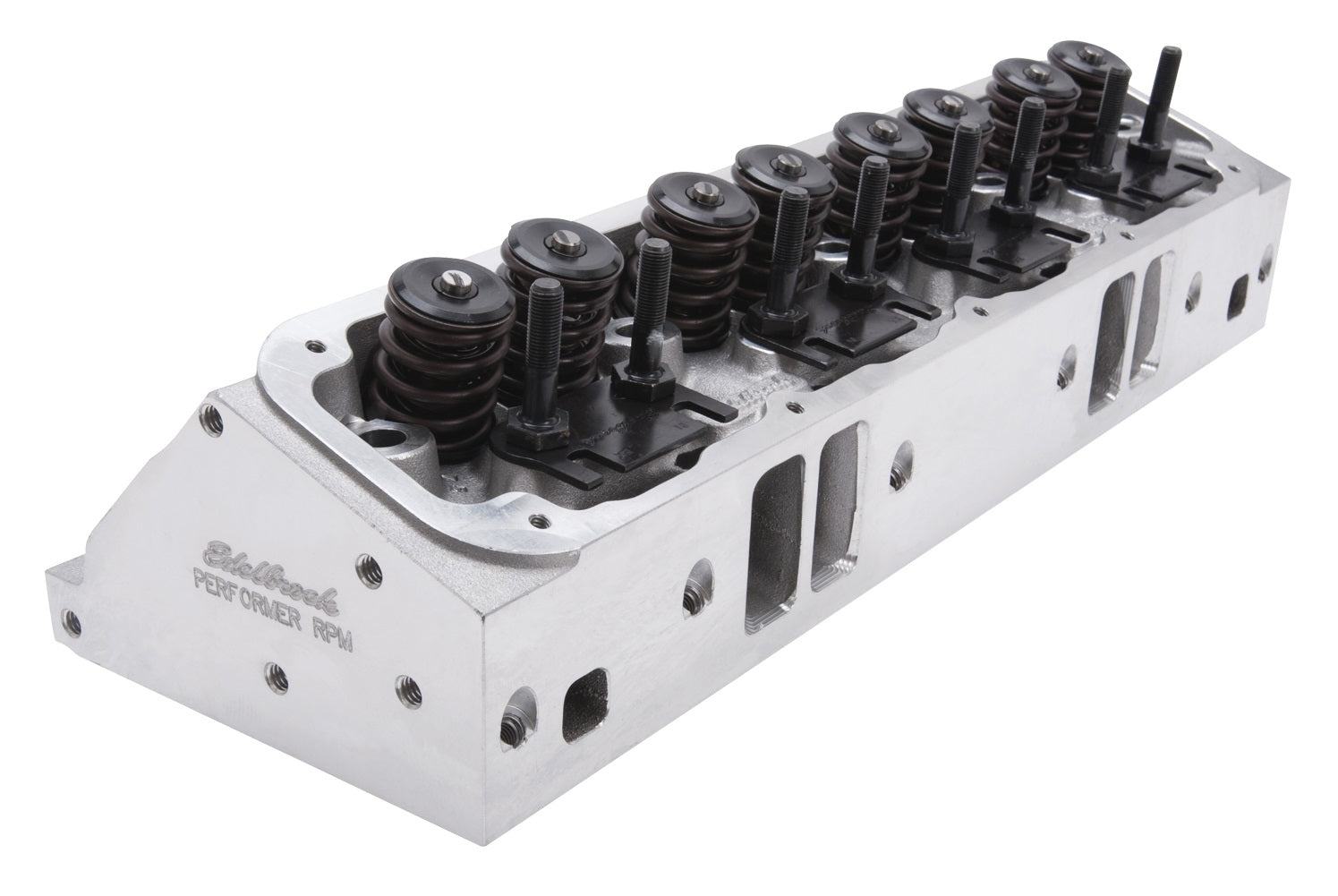

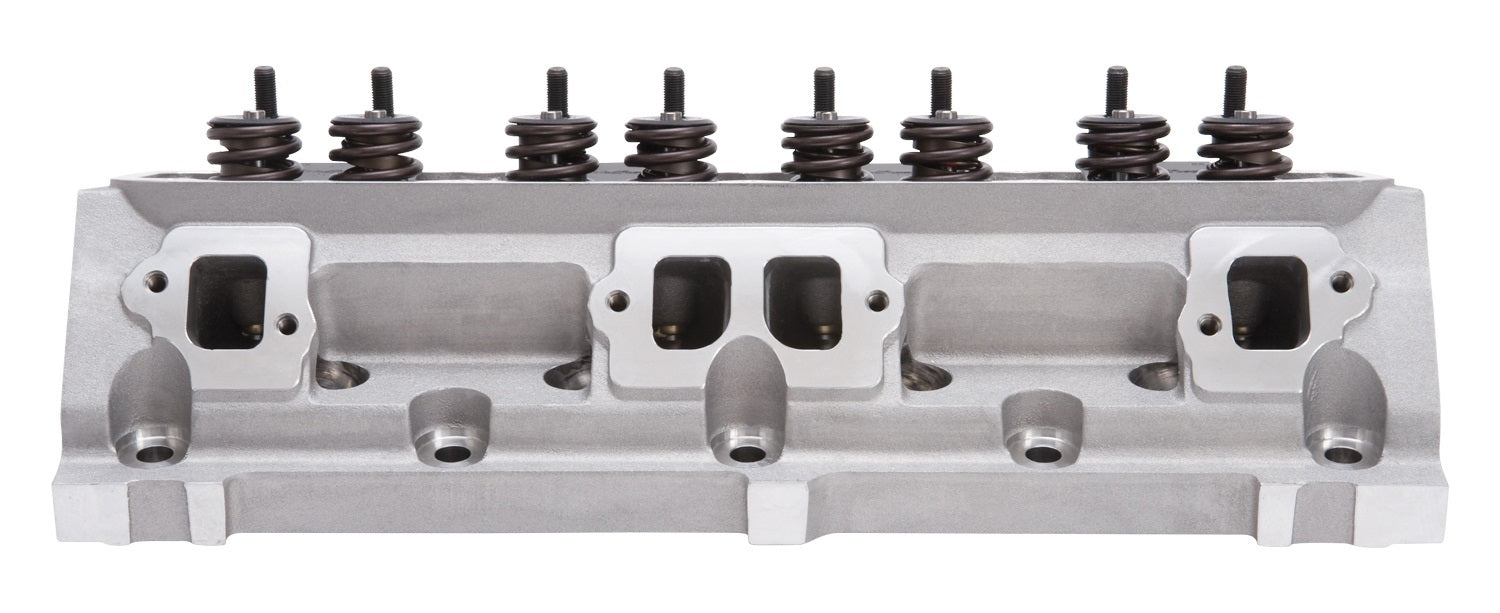

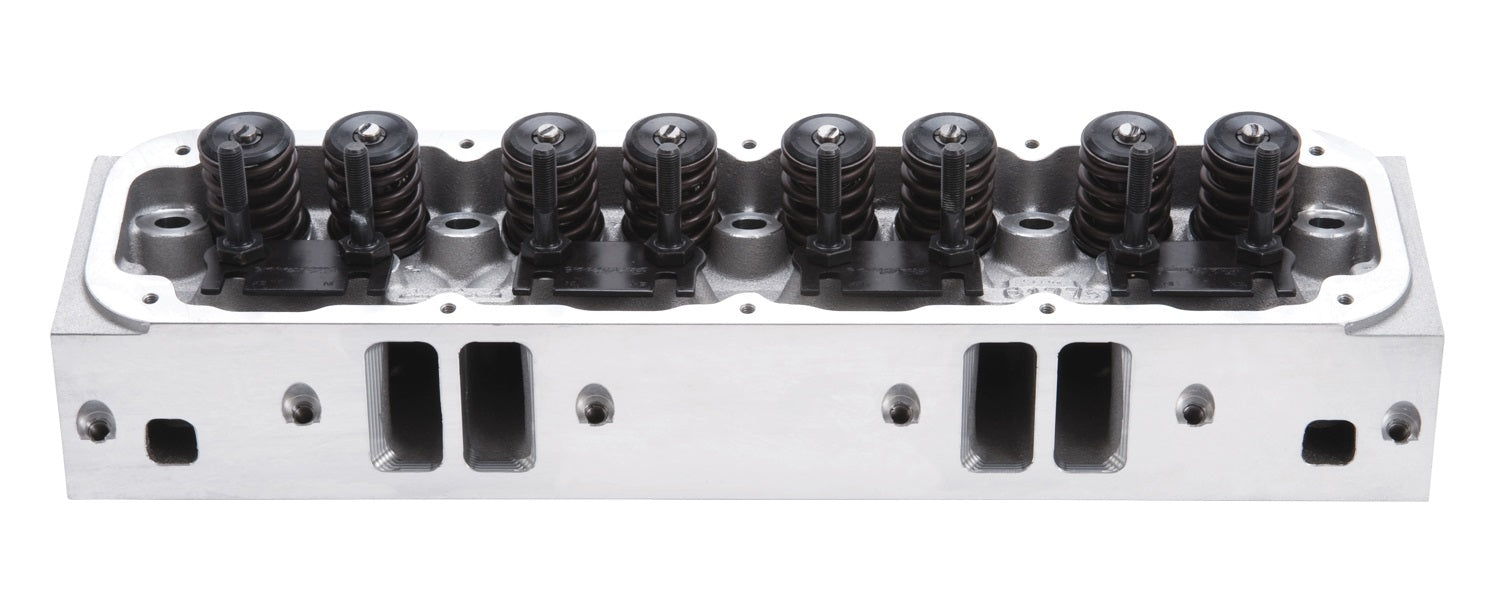

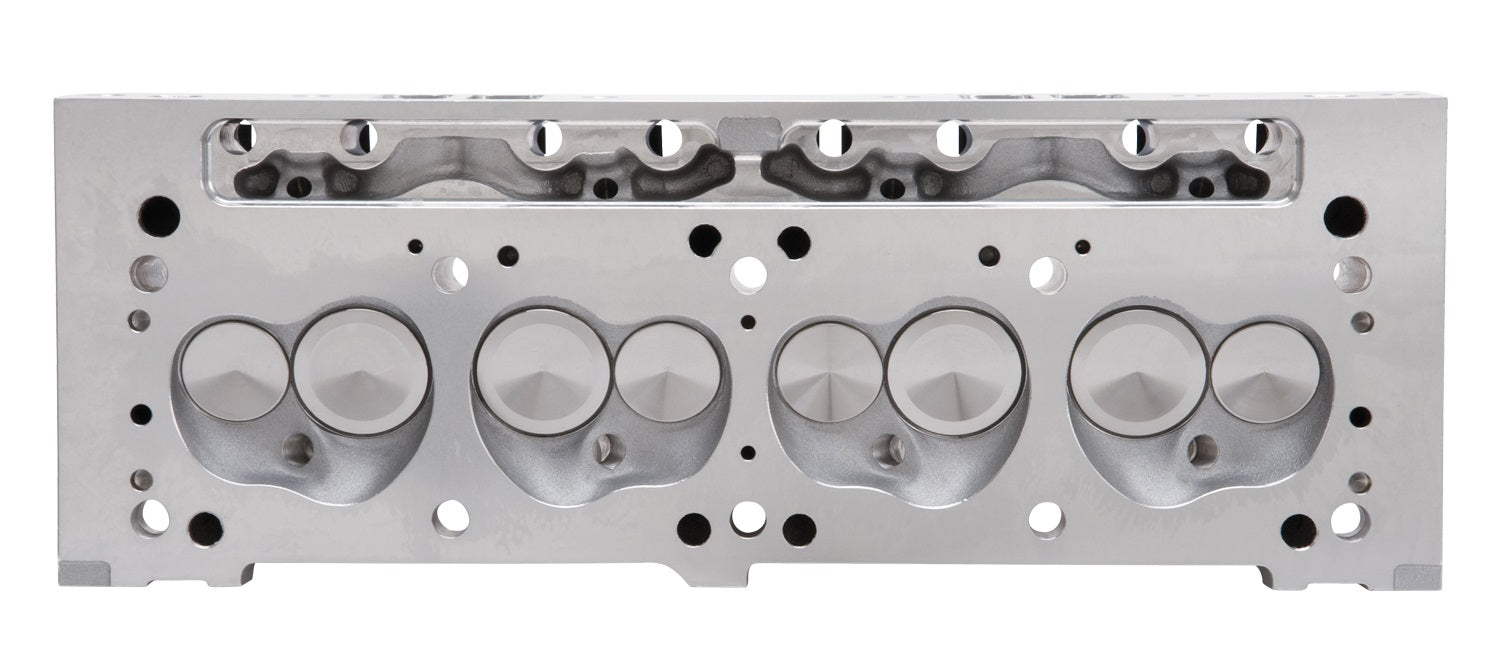

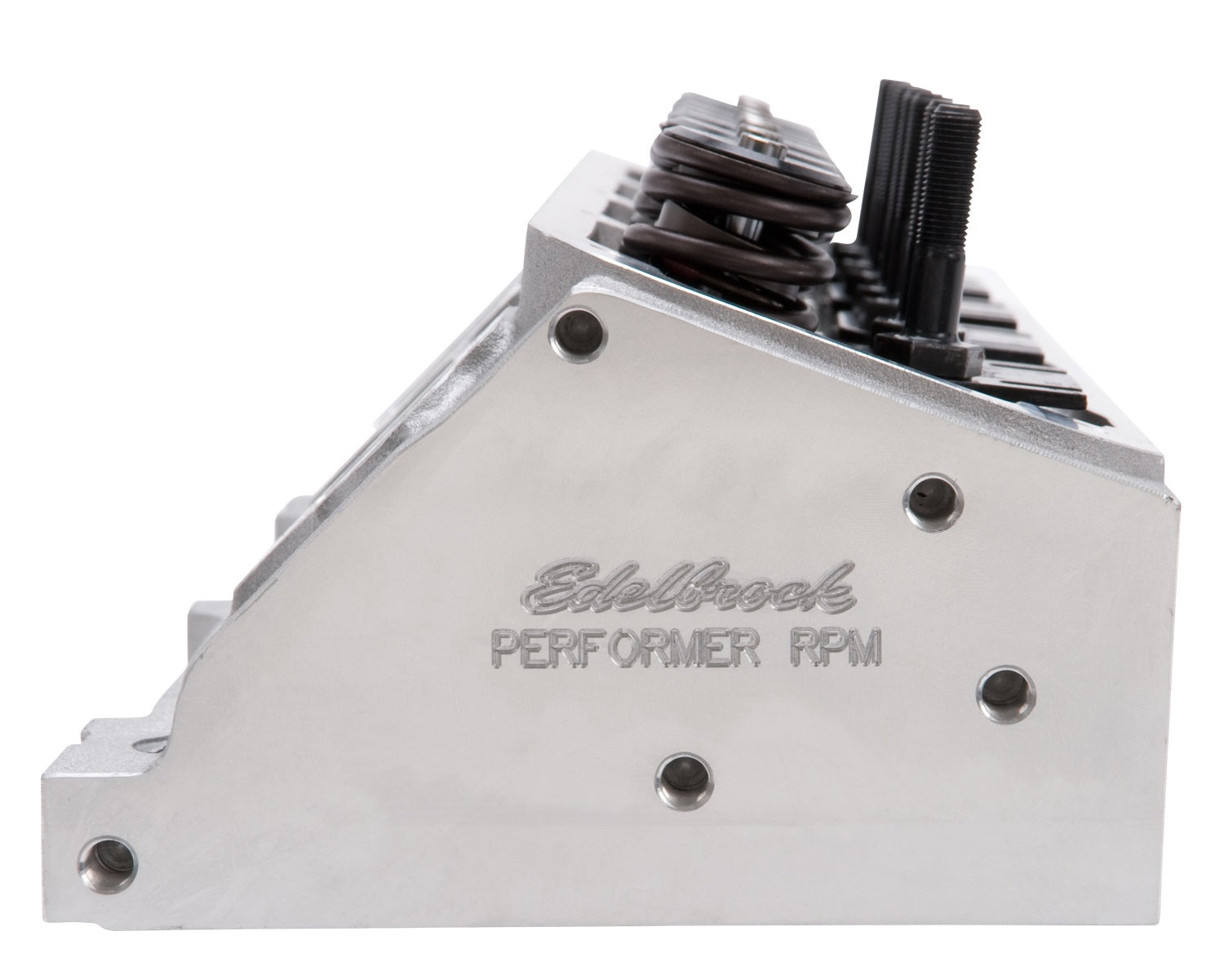

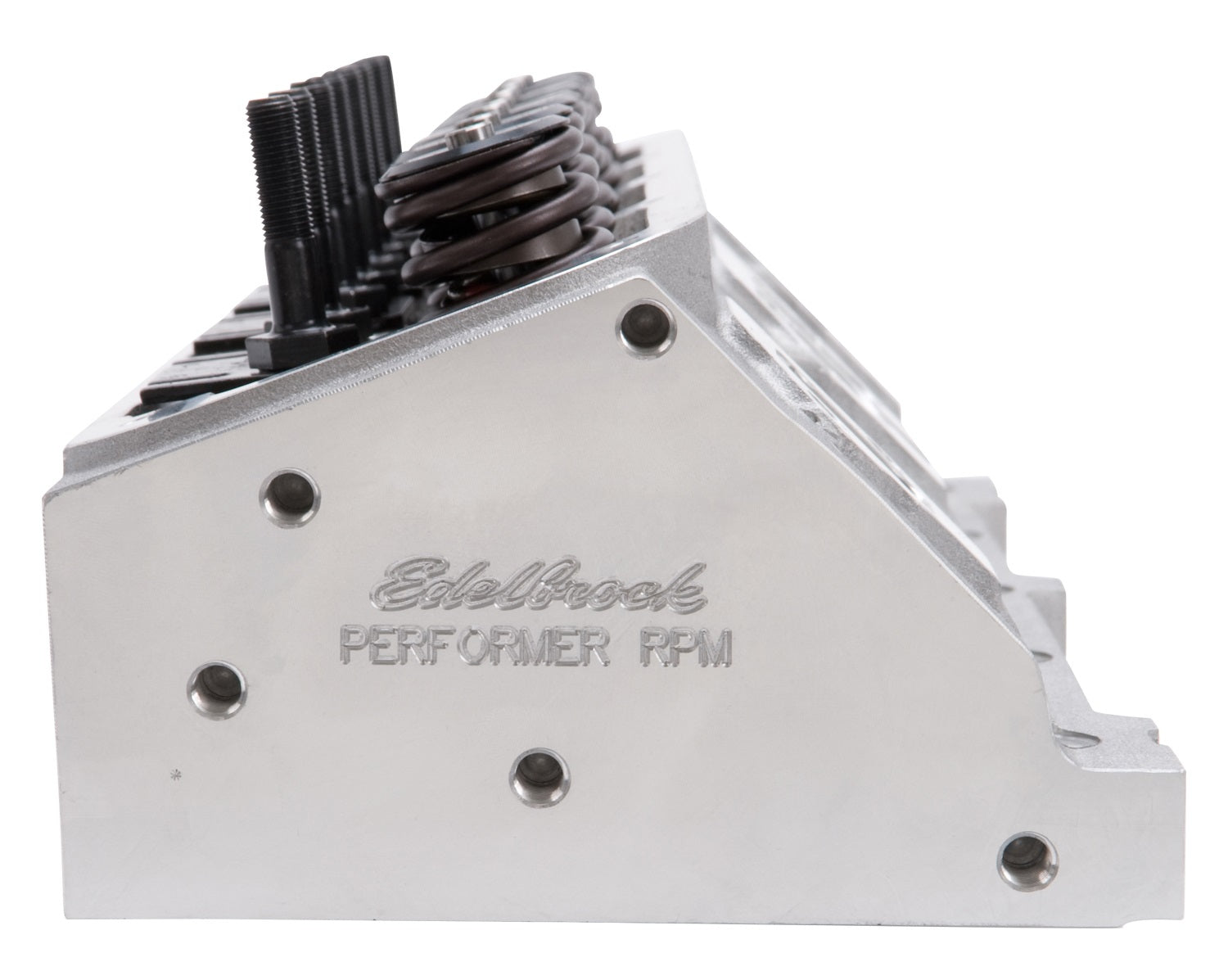

Brand New Edelbrock Performer RPM Cylinder Head for 1992+ 5.2L & 1993+ 5.9L Chrysler Magnum V8 Engines with Hydraulic Roller Cam (Part #61775).

The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 C.I.D.) and 1993 & later 5.9L (360 C.I.D.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs.

Installation Notes:
  • Equipped with springs for use in hydraulic roller camshaft applications
  • Match with the Edelbrock RPM Air-Gap Magnum manifold #7577
  • Cylinder heads exhaust flanges in stock location to allow use of stock exhaust if desired
  • Accepts small-block Chevy adjustable 1.6 ratio rockers and classic valve covers #4177 and #41773
  • Requires hardened pushrods, #9638.
  • Match with Edelbrock head gasket sets
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat

Specs:

  • Material: Aluminum
  • Horsepower: 350-500 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Valve Diameter: 2.02 in
  • Intake Runner Volume: 176 cc
  • Push Rod Diameter: 0.312 in
  • Rocker Stud Diameter: 0.375 in
  • Valve Angle: 18 deg
  • Valve Spring Diameter: 1.46 in
  • Valve Spring Maximum Lift: 0.580 in
  • Valve Stem Diameter: 0.3438 in
  • Deck Thickness: 5/8"
You can view and download the complete assembly instruction booklet here.
