RPM SMALL-BLOCK FORD 351 CLEVELAND CYLINDER HEAD HYDRAULIC ROLLER CAM

RPM SMALL-BLOCK FORD 351 CLEVELAND CYLINDER HEAD HYDRAULIC ROLLER CAM

EDL 61625

$1,340.50
$1,340.50
View full details

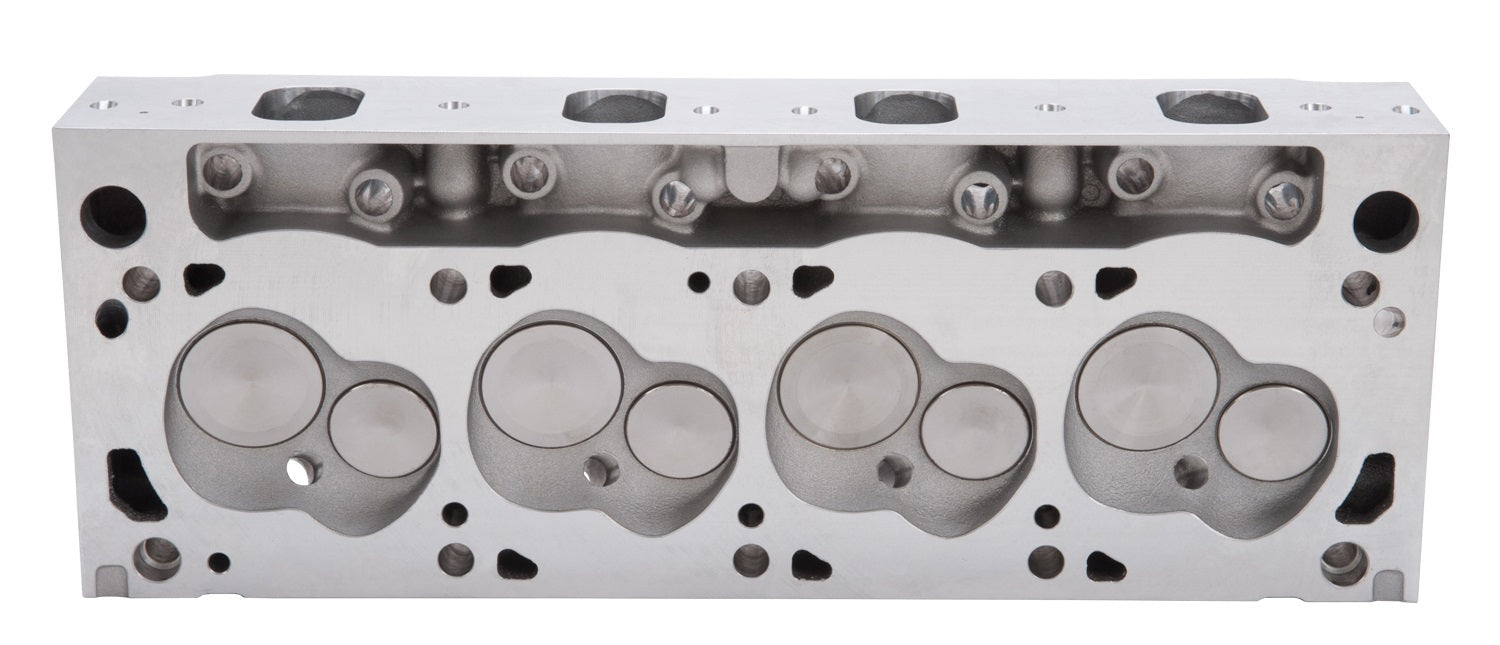

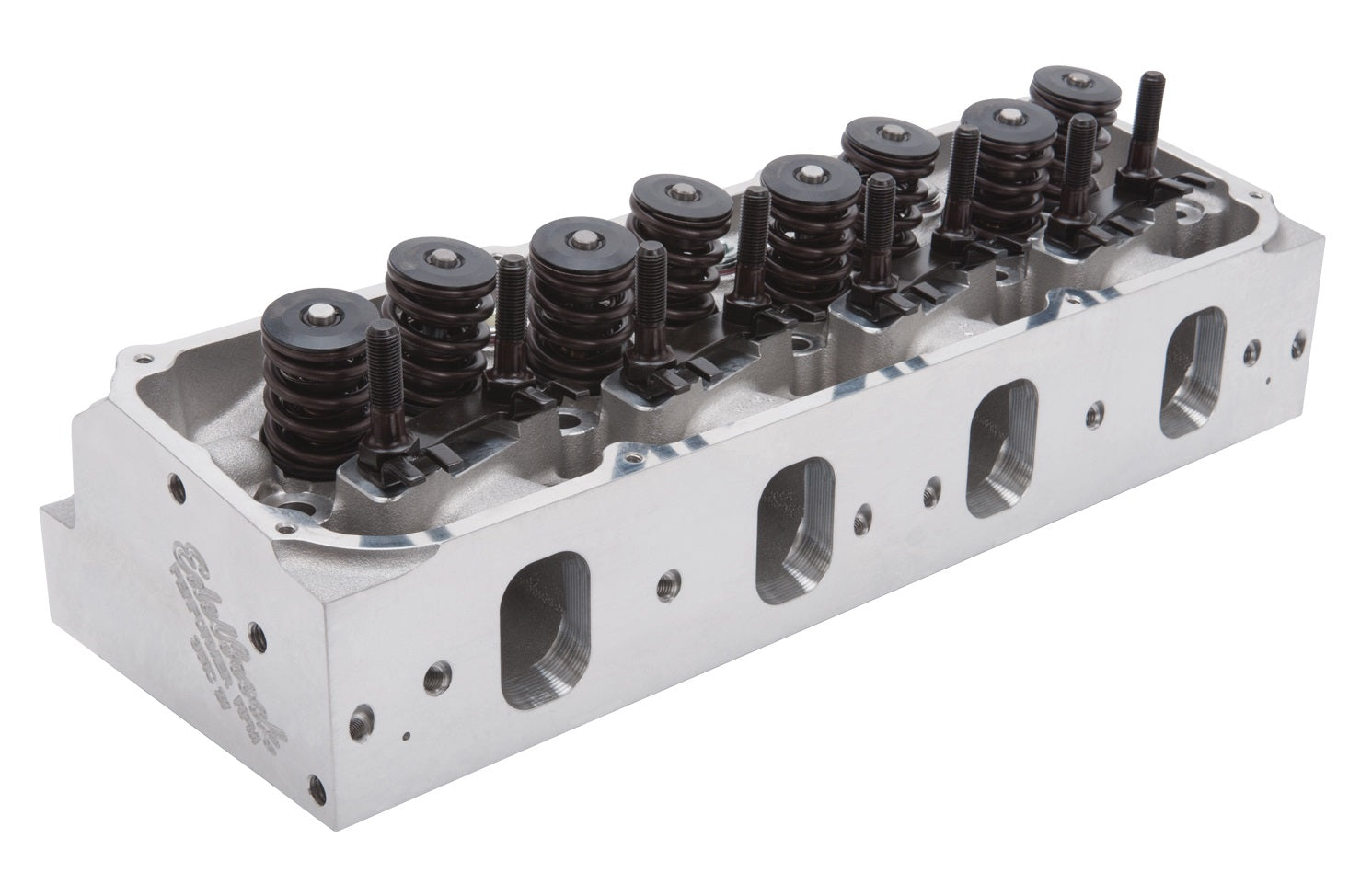

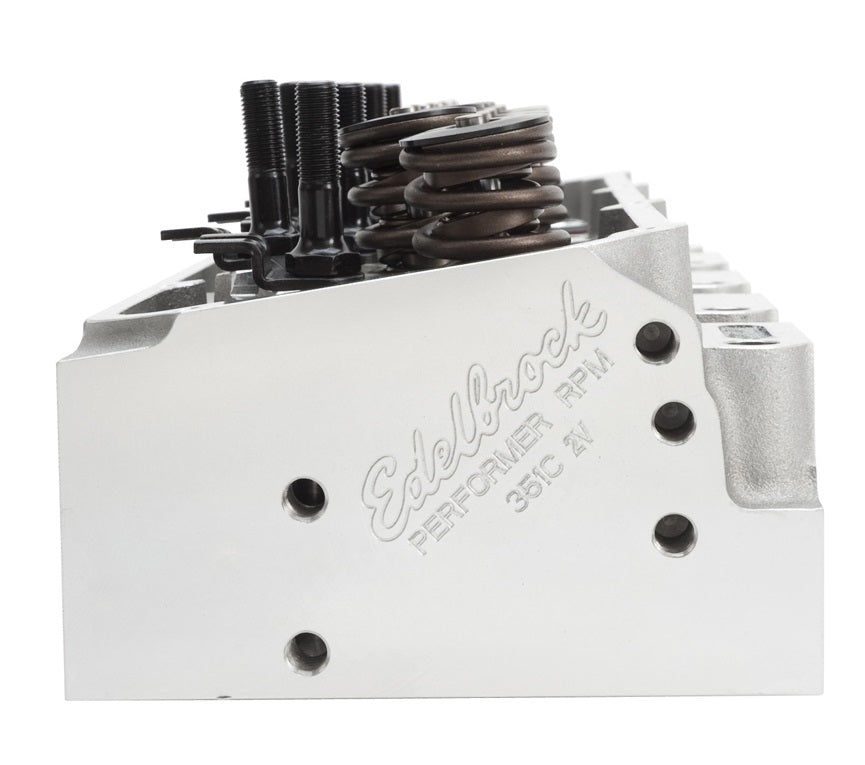

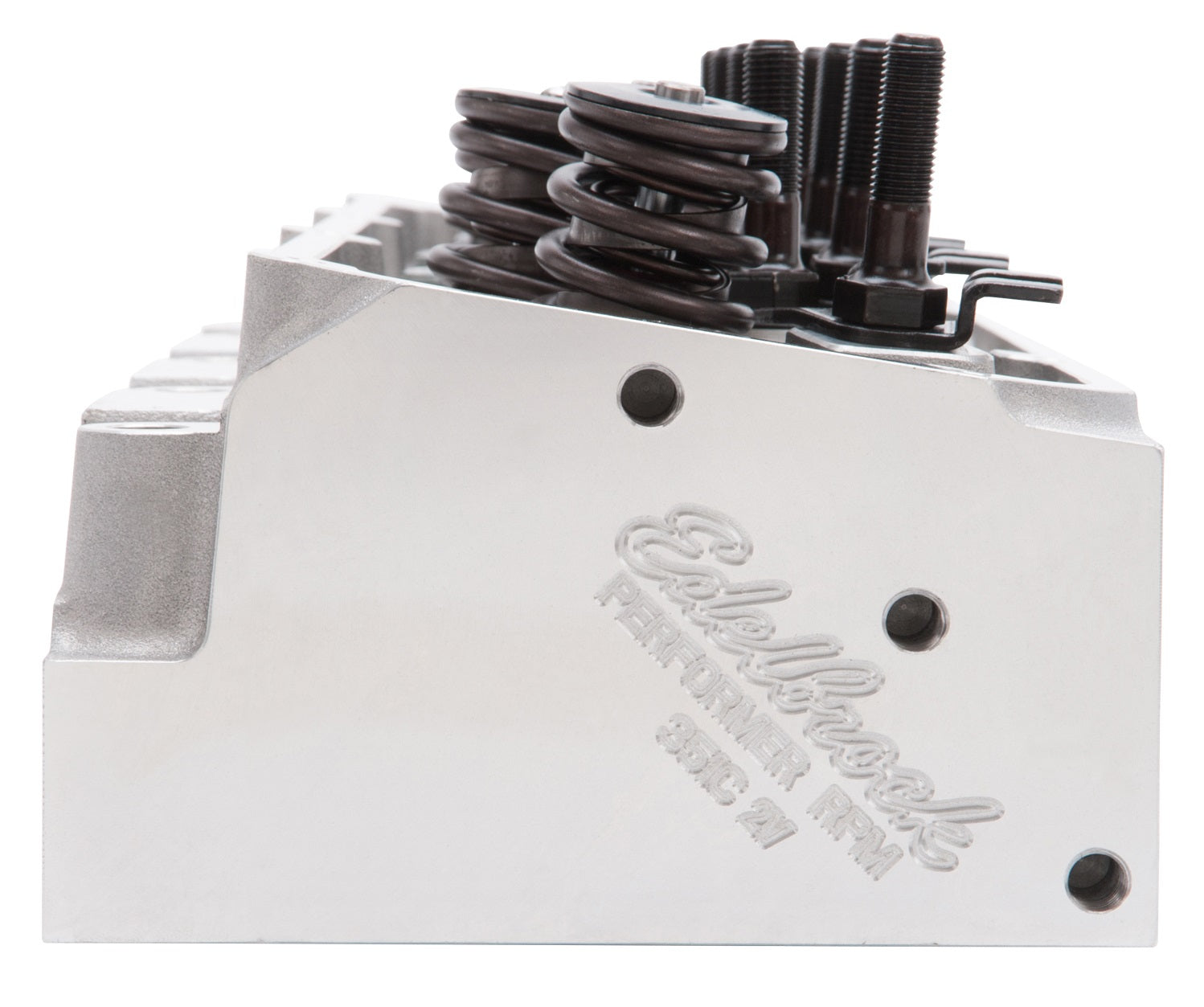

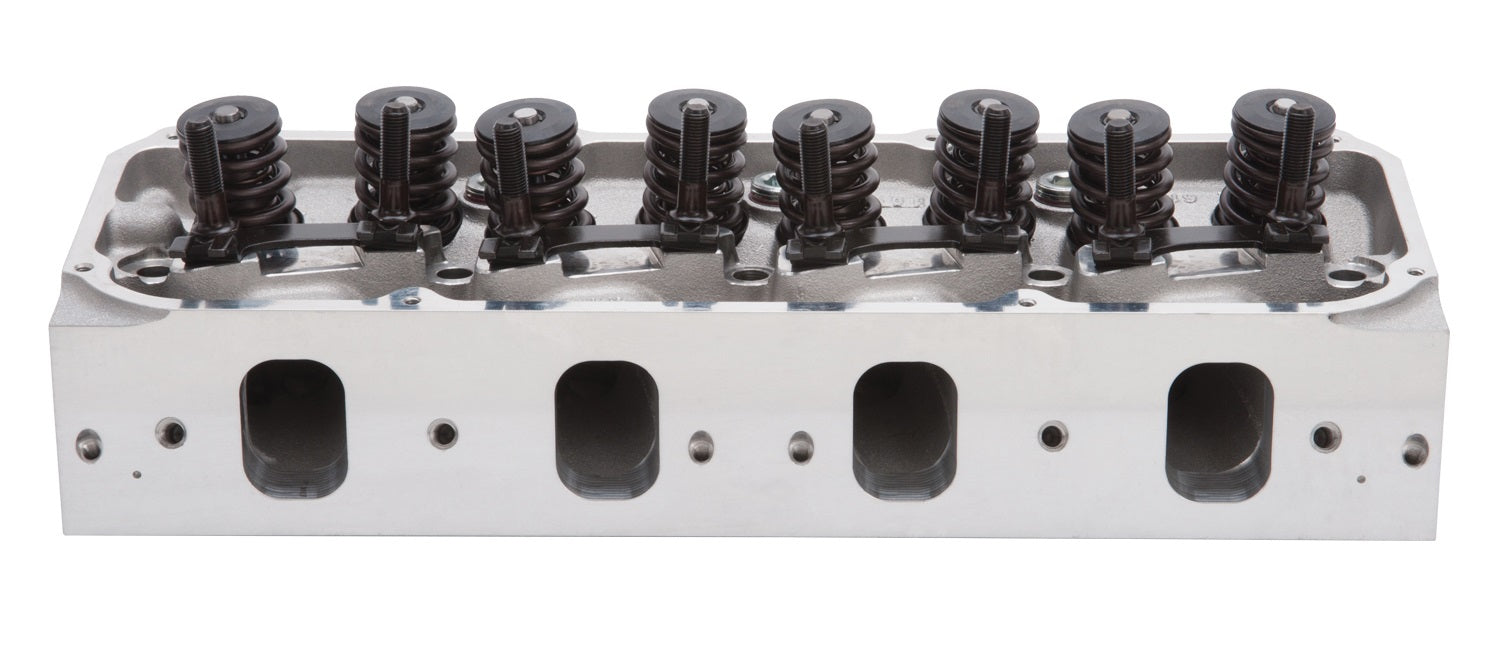

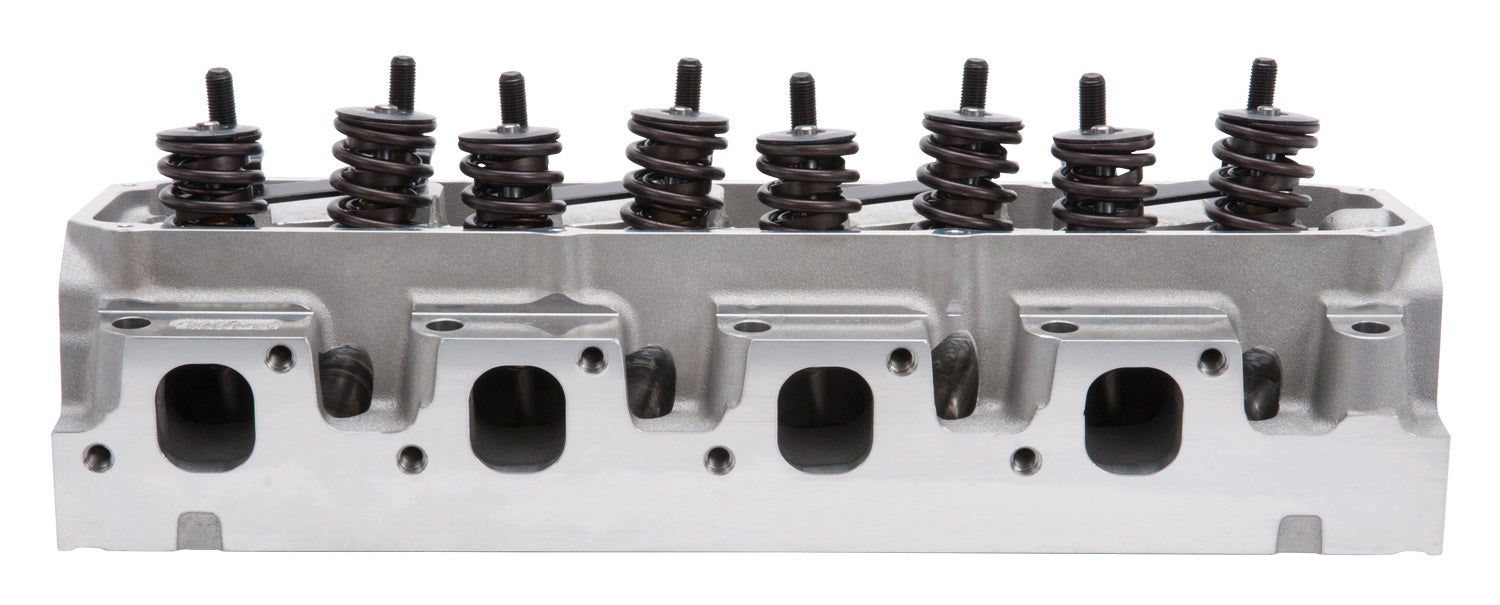

Brand New Edelbrock Performer RPM Cylinder Head for 351C, 351M & 400M Ford Engines with Hydraulic Roller Cam (Part #61625).

The Edelbrock #61625 Performer RPM cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61625 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs.

Installation Notes:
  • Equipped with springs for use in hydraulic roller camshaft applications
  • Match with Edelbrock head gasket sets
  • Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC)
  • 2.05" intake and 1.60" exhaust valves
  • "Compact charge" kidney shape combustion chamber design
  • Intake and exhaust ports based on 2V design
  • Optimized spark plug location provides improved header clearance
  • Match with Edelbrock RPM Air-Gap manifold #7564

Specs:

  • Material: Aluminum
  • Horsepower: 350-500 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Valve Diameter: 2.05 in
  • Intake Runner Volume: 190 cc
  • Push Rod Diameter: 0.3125 in
  • Rocker Stud Diameter: 0.4375 in
  • Valve Angle: 9.5 deg
  • Valve Spring Diameter: 1.55 in
  • Valve Spring Maximum Lift: 0.580 in
  • Valve Stem Diameter: 0.3438 in
  • Deck Thickness: 5/8"
You can view and download the complete assembly instruction booklet here.
