RPM CNC PONTIAC D-PORT CYLINDER HEAD 87CC BARE

RPM CNC PONTIAC D-PORT CYLINDER HEAD 87CC BARE

EDL 61569

$1,106.50
$1,106.50
View full details

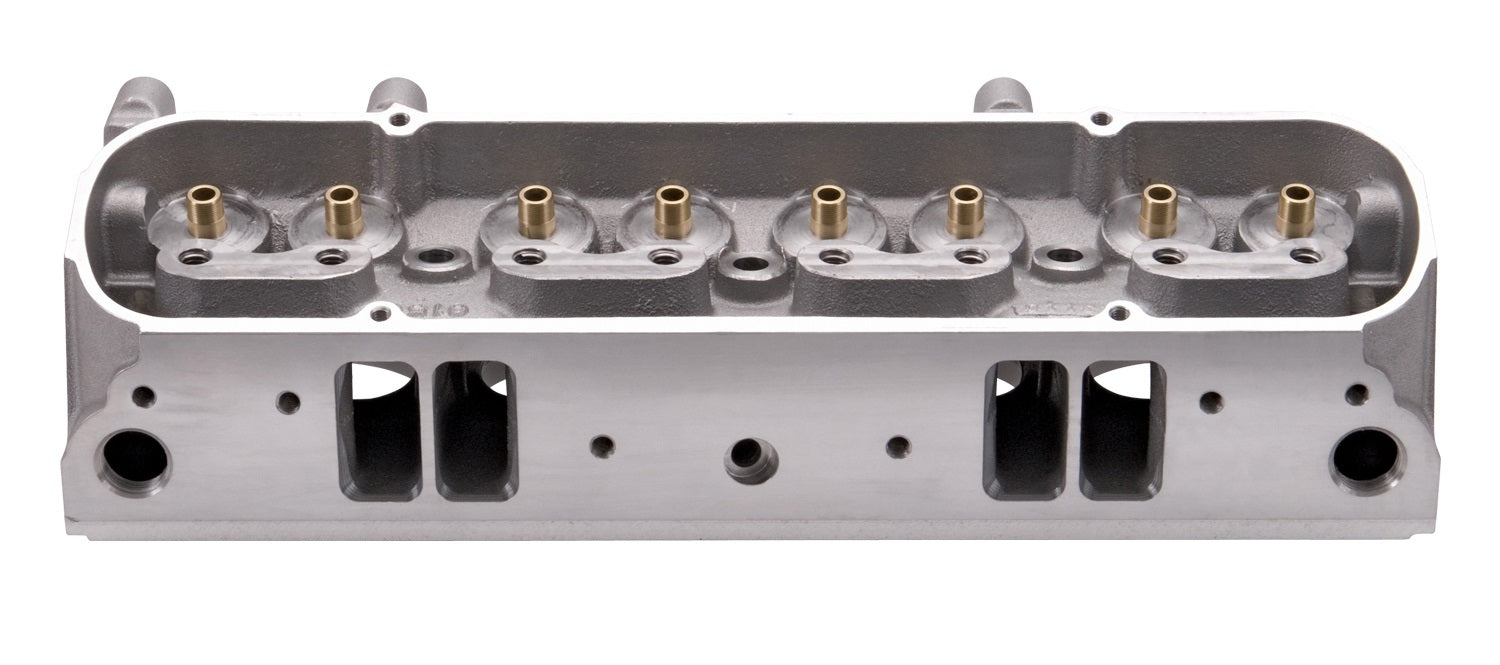

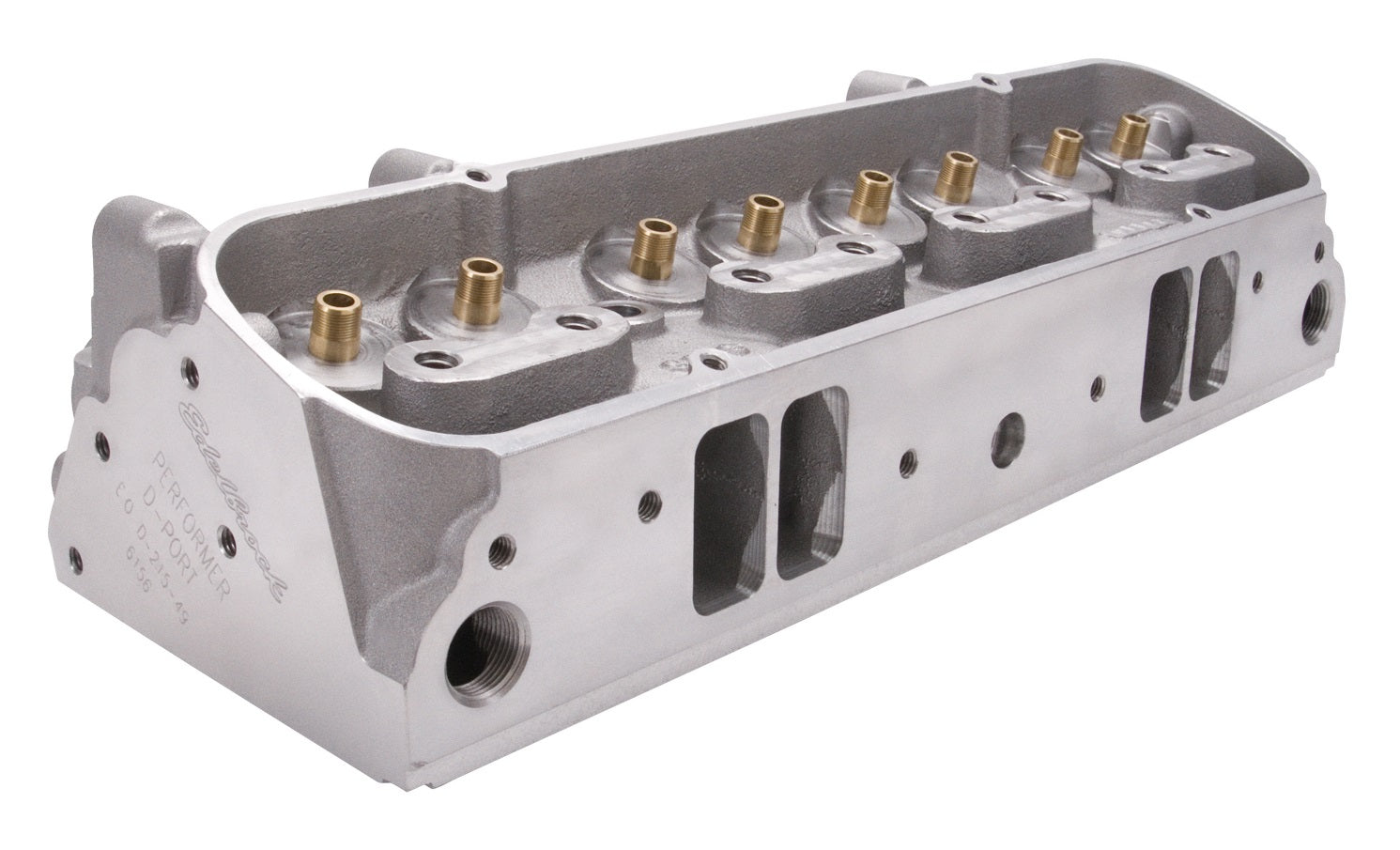

Brand New Edelbrock Performer RPM CNC 87cc Bare Cylinder Head for 1962-1979 389, 400, 421, 428 & 455 V8 Pontiac D-Port Engines with 4.060" or Larger Bore (Part #61569).

The Edelbrock #61569 Performer Pontiac Bare Cylinder Head utilizes a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 C.I.D. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application.

Installation Notes:
  • Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using.

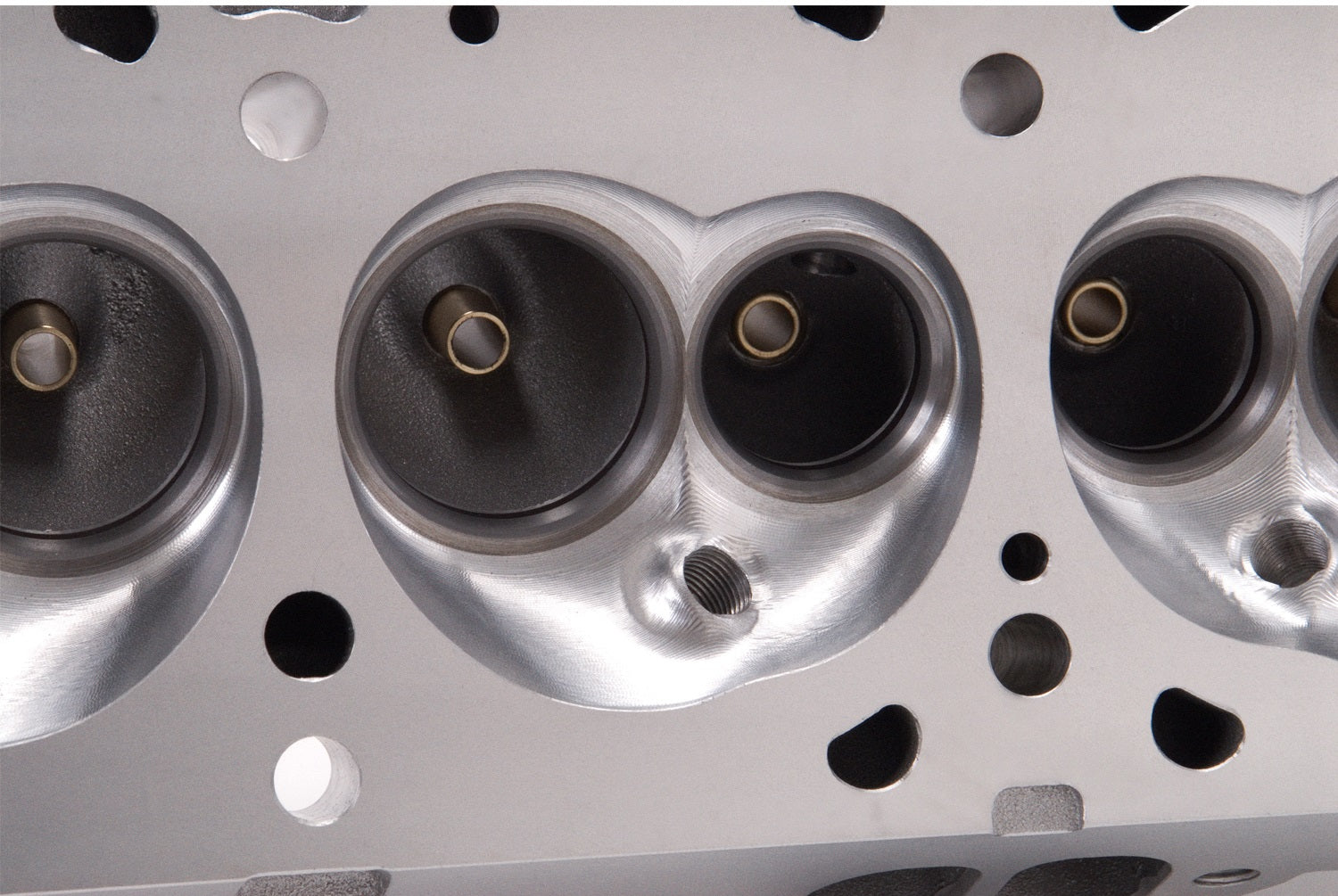

  • Combustion Chamber: 87cc
  • 350 C.I.D. engines may require notching the block for valve clearance
  • Three head bolt bosses are raised higher than the standard D-port heights and will require head bolt kit #8561 to install these heads.

Specs:

  • Material: Aluminum
  • Horsepower: 400-500 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Runner Volume: 204 cc
  • Push Rod Diameter: 0.312 in
  • Valve Angle: 14 deg
  • Deck Thickness: 5/8"
You can view and download the complete assembly instruction booklet here.
