E-TEC-200 SMALL-BLOCK CHEVY CYLINDER HEAD HYDRAULIC ROLLER CAM

E-TEC-200 SMALL-BLOCK CHEVY CYLINDER HEAD HYDRAULIC ROLLER CAM

SKU:EDL 60985

Regular price $975.50
Regular price Sale price $975.50
View full details

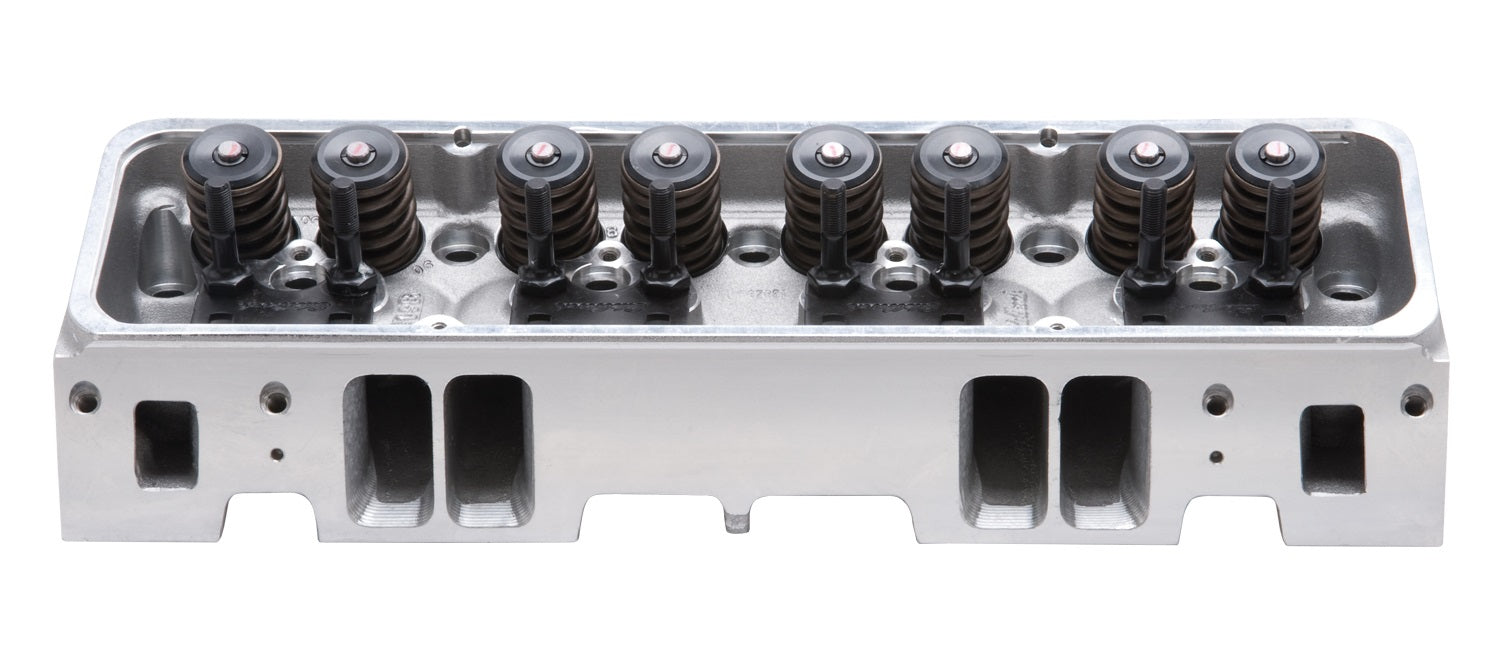

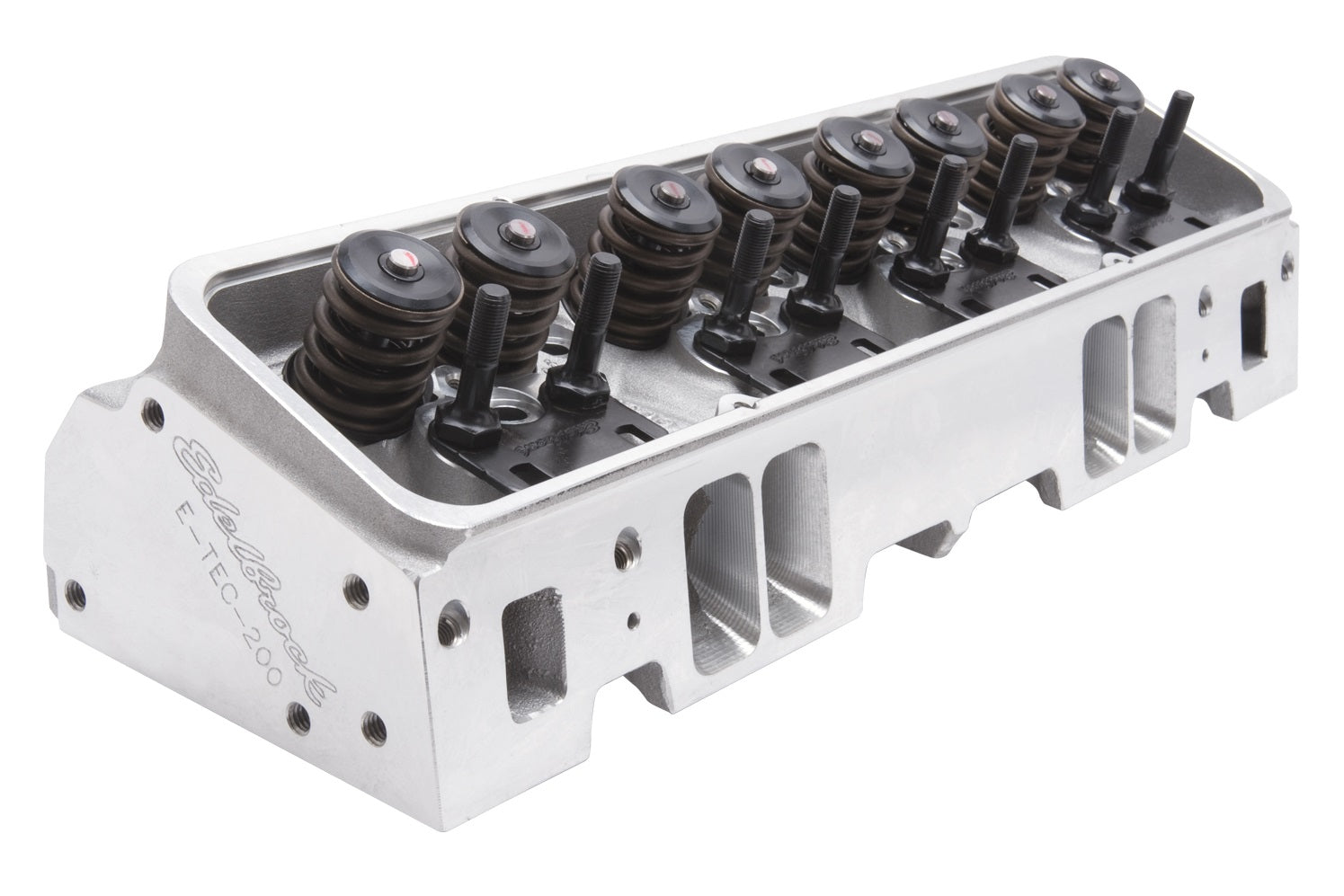

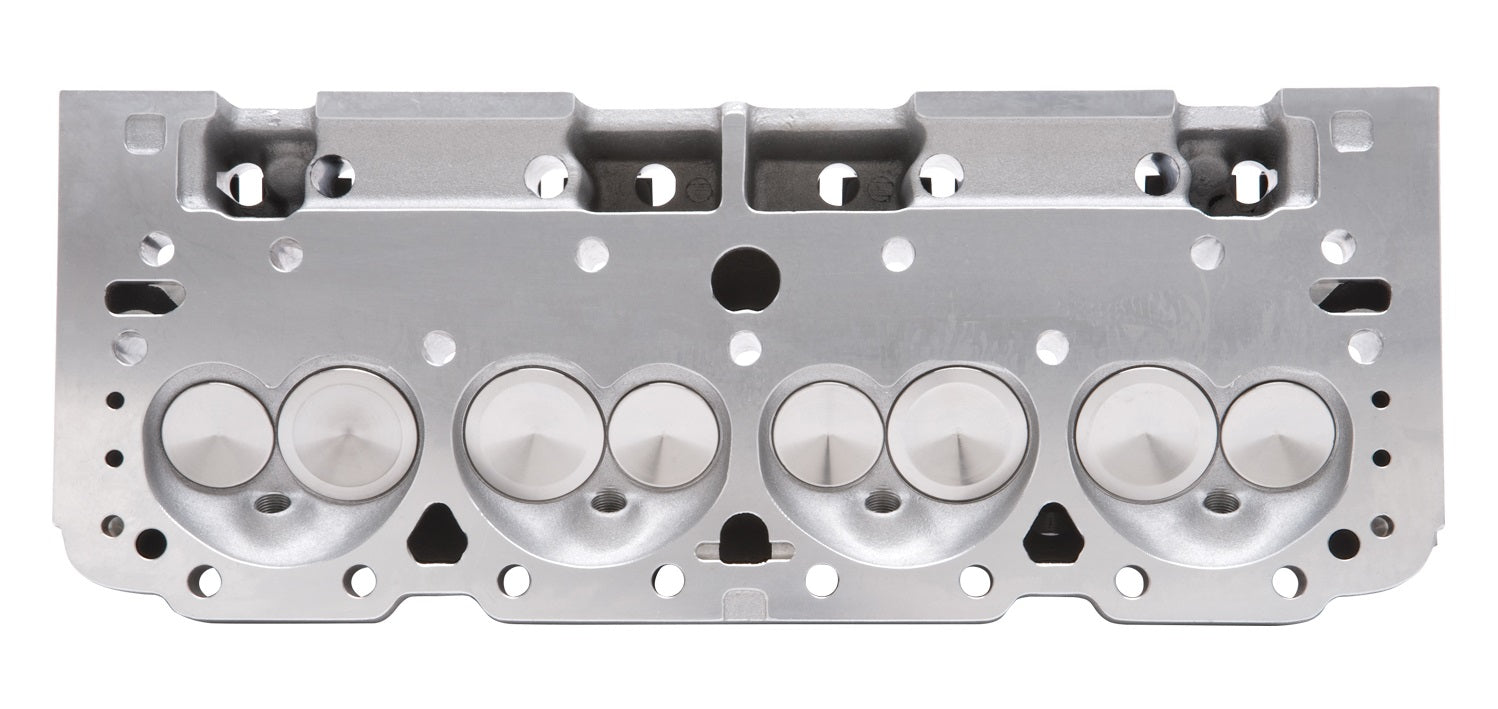

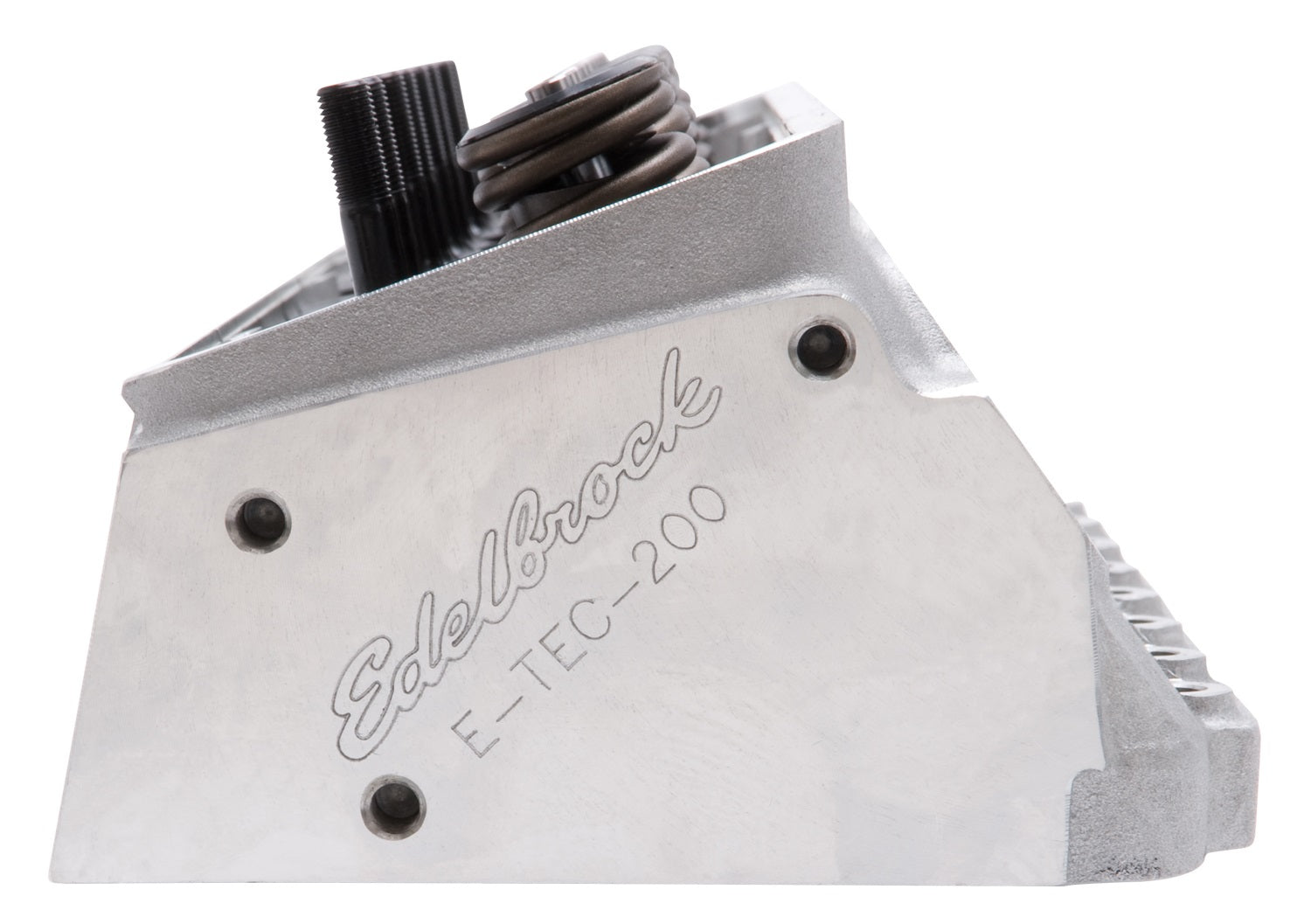

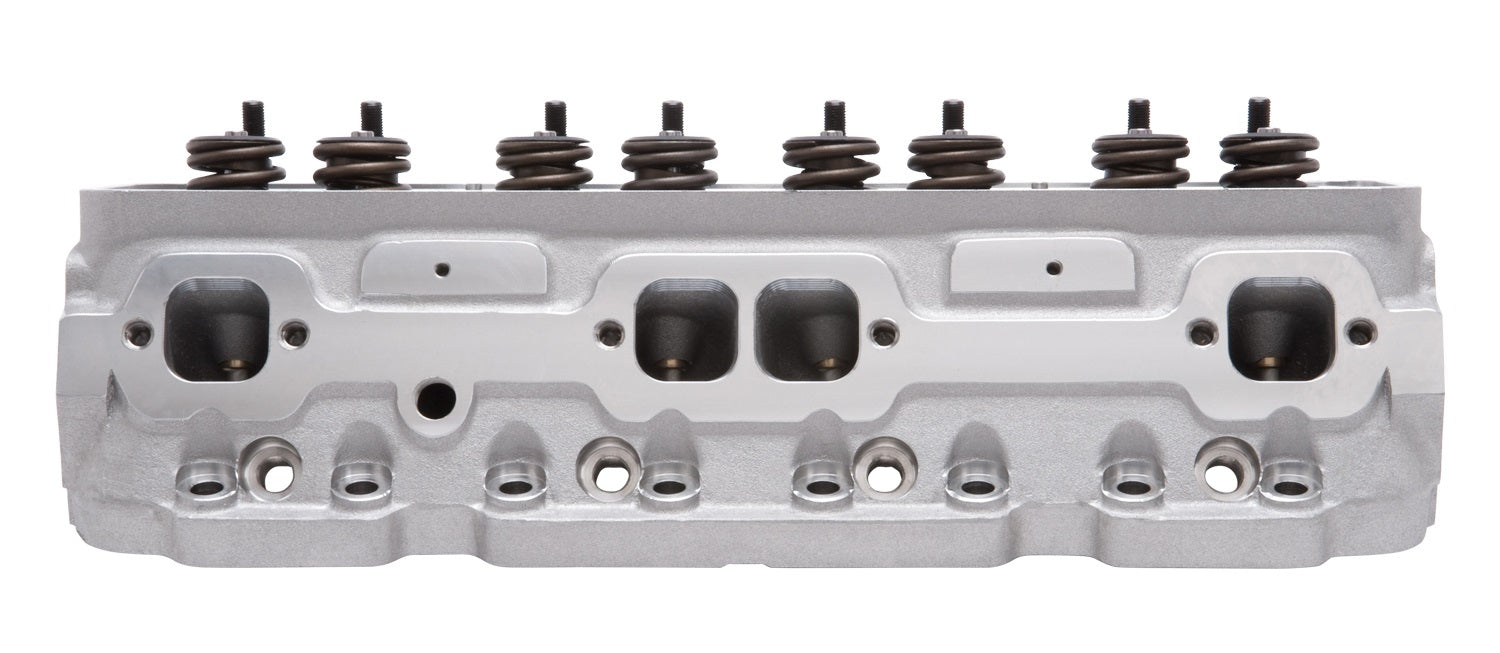

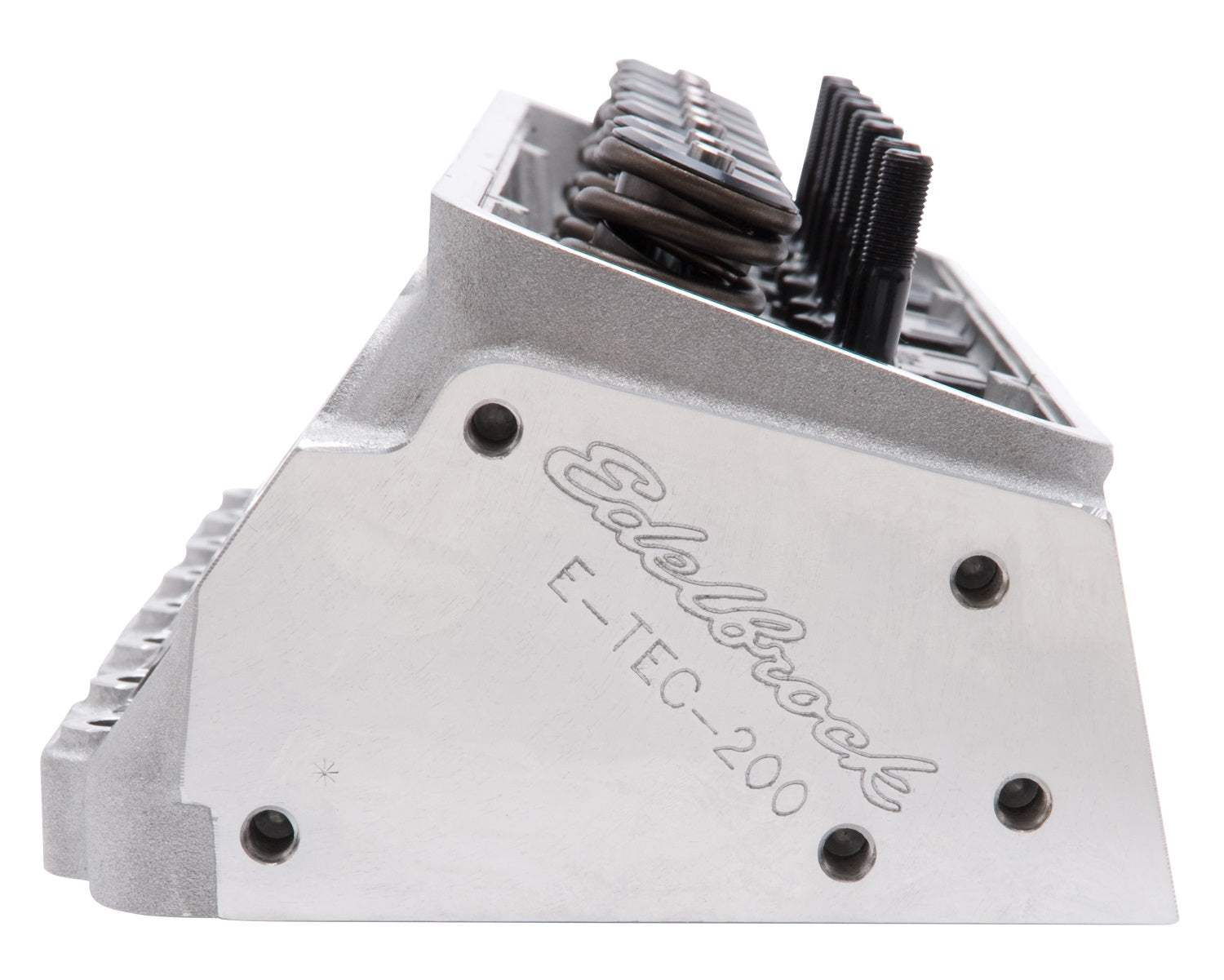

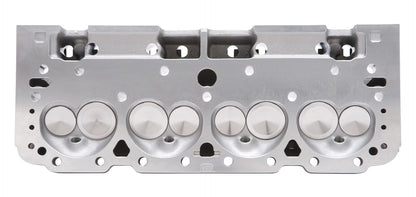

Brand New Edelbrock E-Tec-200 Cylinder Head for 302, 327, 350 & 400 Chevy Small Block Engines with Vortec-Style Manifolds & Hydraulic Roller Cam (Part #60985).

The Edelbrock #60985 E-Tec cylinder head is replacements for 302, 327, 350 & 400 C.I.D. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.

Installation Notes:
  • Equipped with springs for use in mechanical flat tappet and hydraulic roller camshaft applications
  • Match with Edelbrock head gasket sets.
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
  • To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required.
  • Edelbrock pushrods #9629 are recommended.
  • Use Head Bolt Kits for easy installation. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 C.I.D.) except with cams having less than .450" valve lift.

Specs:

  • Series: E-Tec
  • Material: Aluminum
  • Horsepower: 350-500 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Valve Diameter: 2.02 in
  • Intake Runner Volume: 200 cc
  • Push Rod Diameter: 0.625 in
  • Rocker Stud Diameter: 0.375 in
  • Valve Angle: 23 deg
  • Valve Spring Diameter: 1.46 in
  • Valve Spring Maximum Lift: 0.575 in
  • Valve Stem Diameter: 0.3438 in
You can view and download the complete assembly instruction booklet here.
