RPM BIG-BLOCK CHRYSLER CYLINDER HEAD HYDRAULIC ROLLER CAMSHAFT

RPM BIG-BLOCK CHRYSLER CYLINDER HEAD HYDRAULIC ROLLER CAMSHAFT

EDL 60925

$1,015.50
$1,015.50
View full details

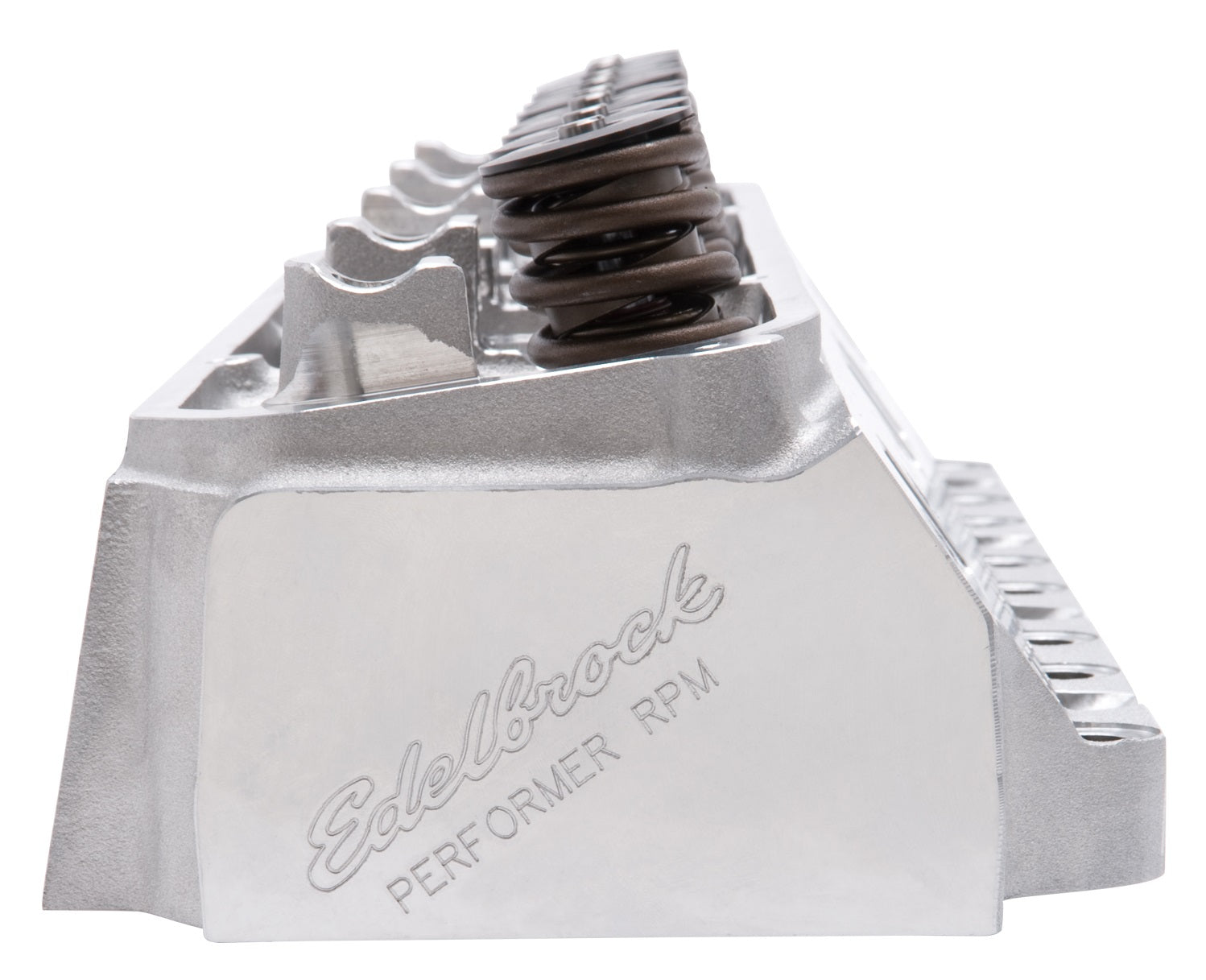

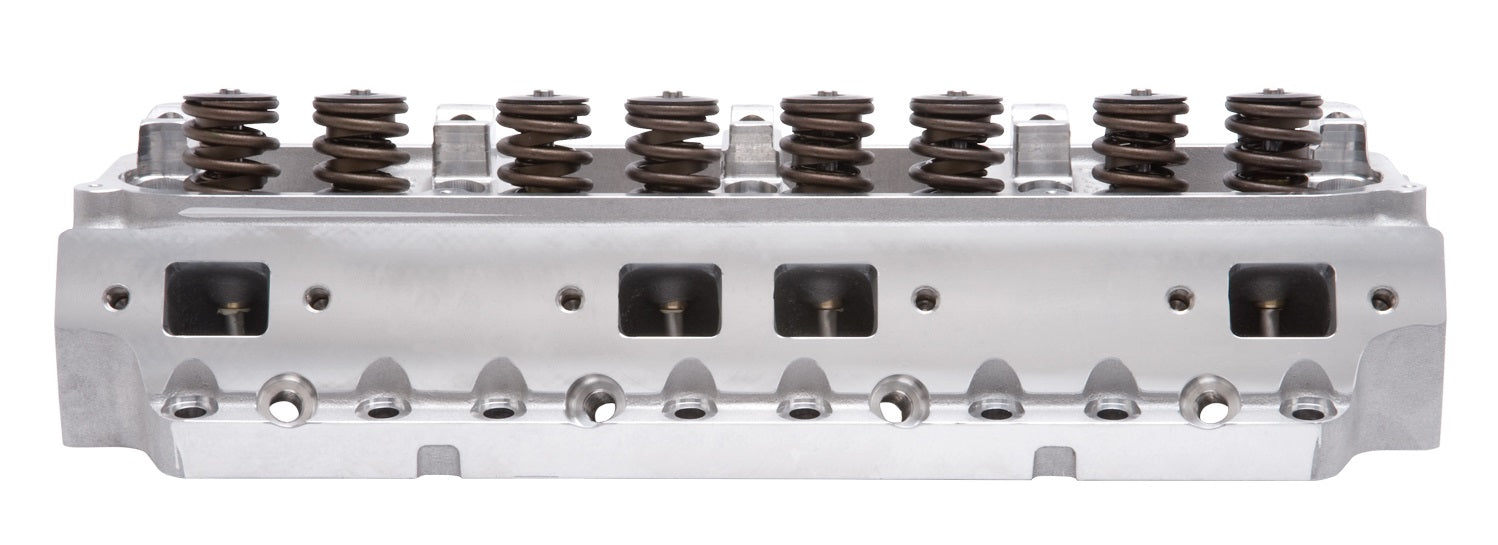

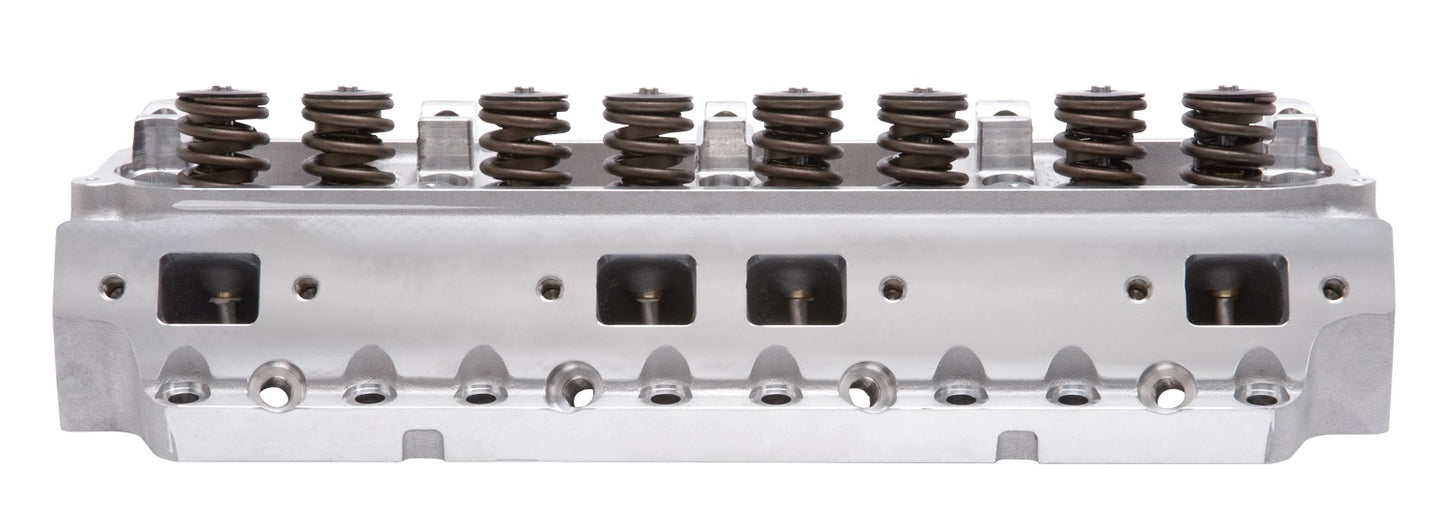

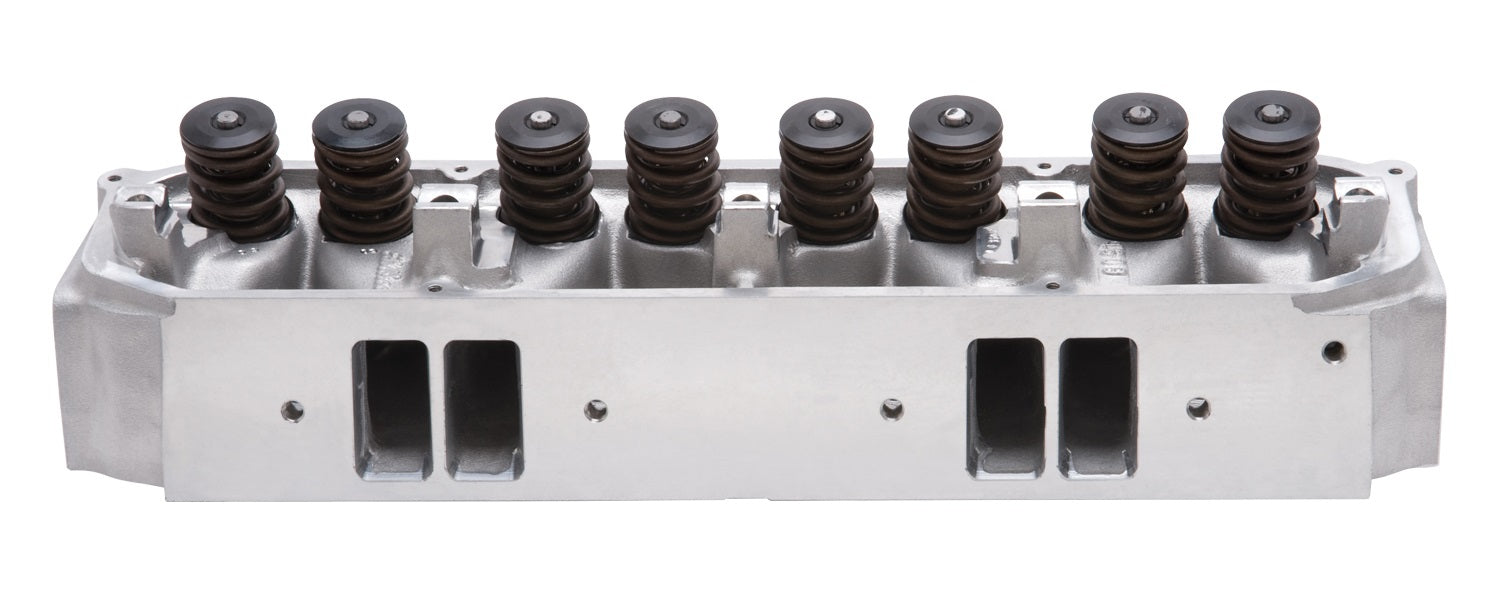

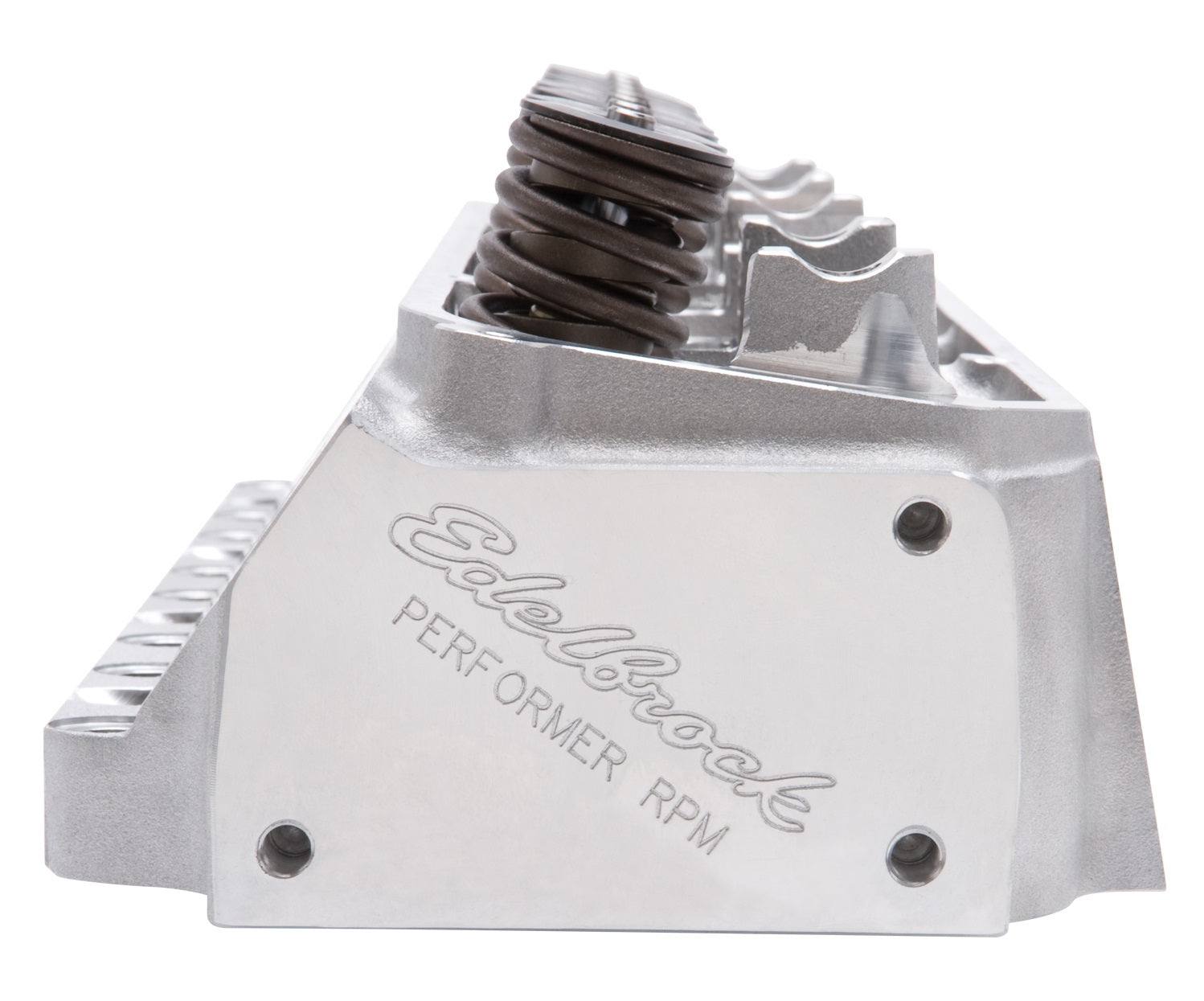

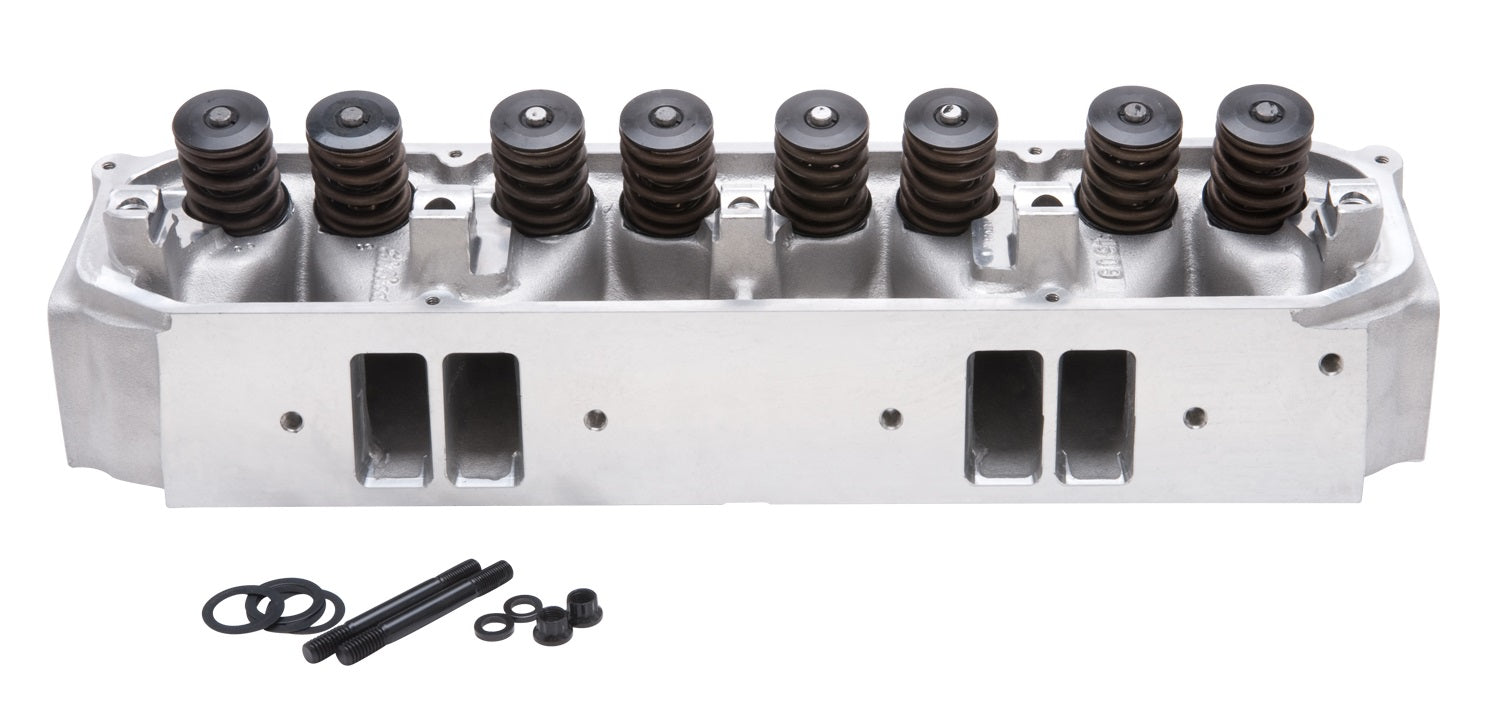

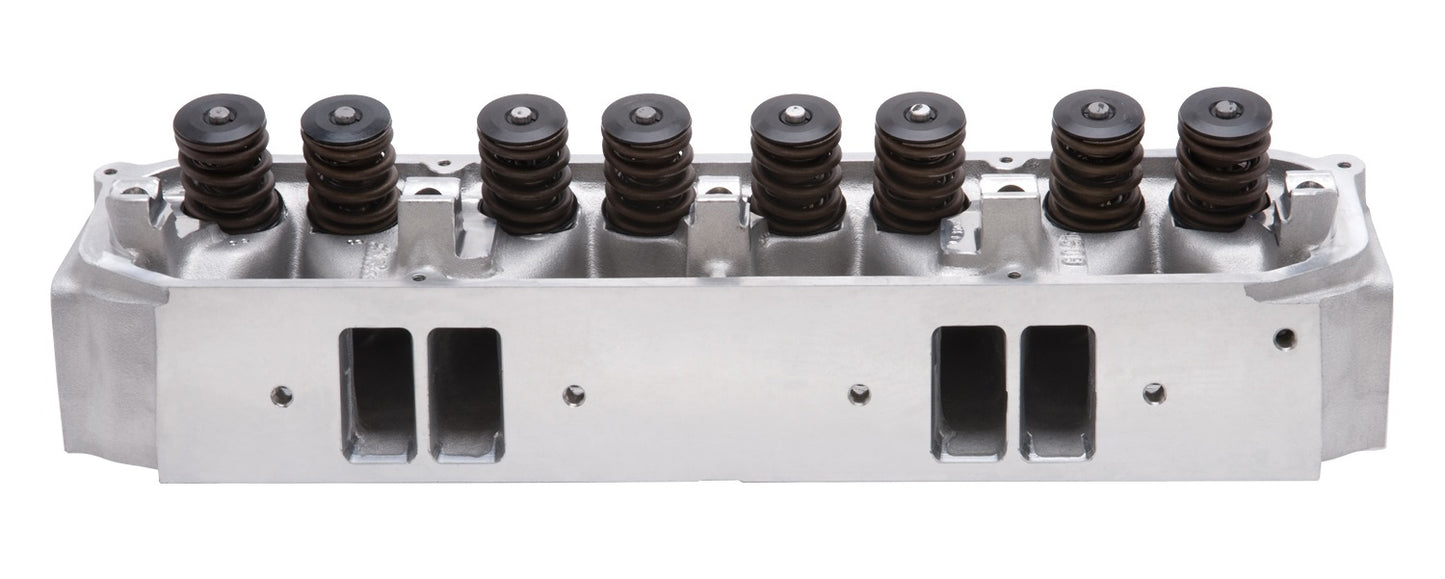

Brand New Edelbrock RPM Cylinder Head for 1961-1979 Chrysler 361-440 Wedge Engines with Hydraulic Roller Cam (Part #60925).

The Edelbrock #60925 Performer RPM cylinder head is designed for 1961-79 Chrysler 361-440 C.I.D. Wedge engine applications. The Edelbrock #60925 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs.

Installation Notes:
  • Equipped with springs for use in hydraulic roller camshaft applications
  • Cylinder heads flow 291 CFM on the intake and 217 CFM on the exhaust at .600" lift
  • Angled spark plugs for superior combustion

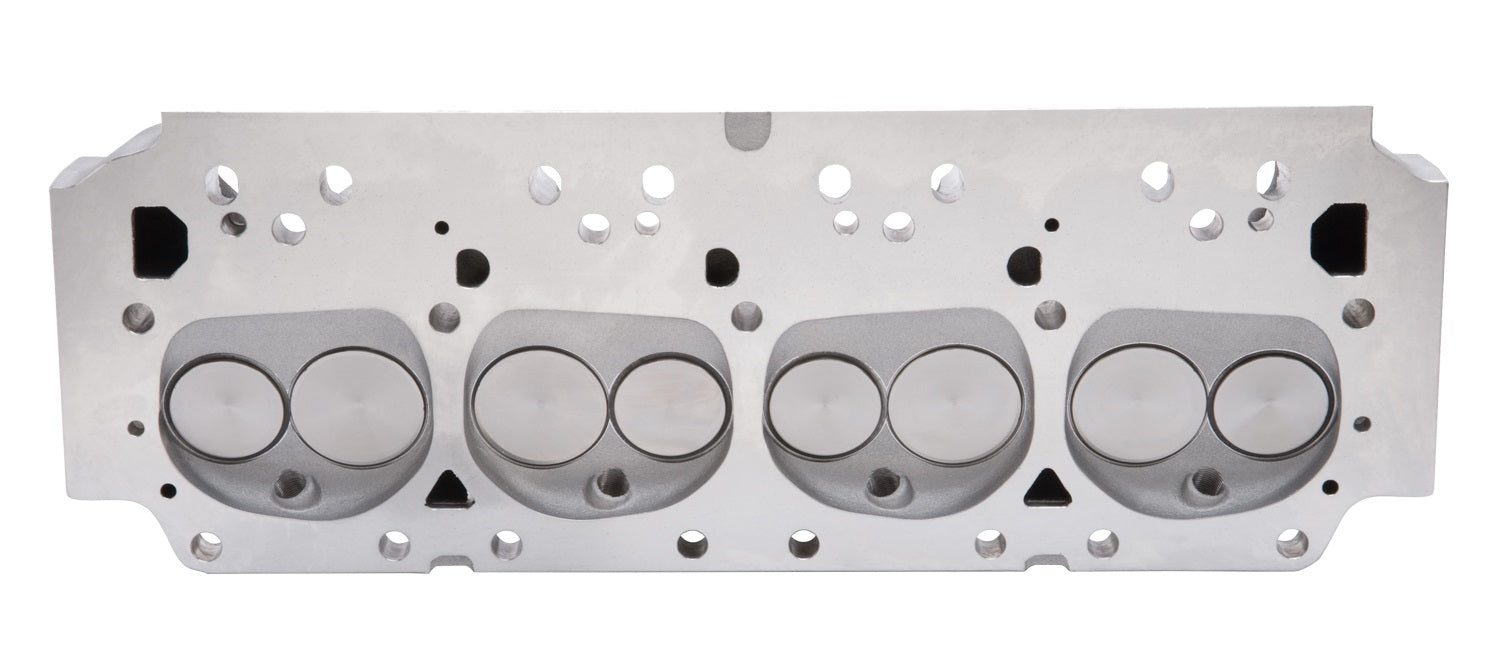

  • 88cc chambers are machined .100" for clearance with quench dome style pistons
  • Vacuum advance distributor may not clear cylinder head.

Specs:

  • Series: Performer RPM
  • Material: Aluminum
  • Horsepower: 450-575 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Valve Diameter: 2.14 in
  • Intake Runner Volume: 210 cc
  • Push Rod Diameter: 0.375 in
  • Valve Angle: 15 deg
  • Valve Spring Diameter: 1.55 in
  • Valve Spring Maximum Lift: 0.600 in
  • Valve Stem Diameter: 0.3438 in
  • Deck Thickness: 5/8"
You can view and download the complete assembly instruction booklet here.
