RPM SMALL-BLOCK CHEVY CYLINDER HEAD 64CC HYDRAULIC FLAT TAPPET CAM

RPM SMALL-BLOCK CHEVY CYLINDER HEAD 64CC HYDRAULIC FLAT TAPPET CAM

EDL 60899

$1,252.50
$1,252.50
View full details

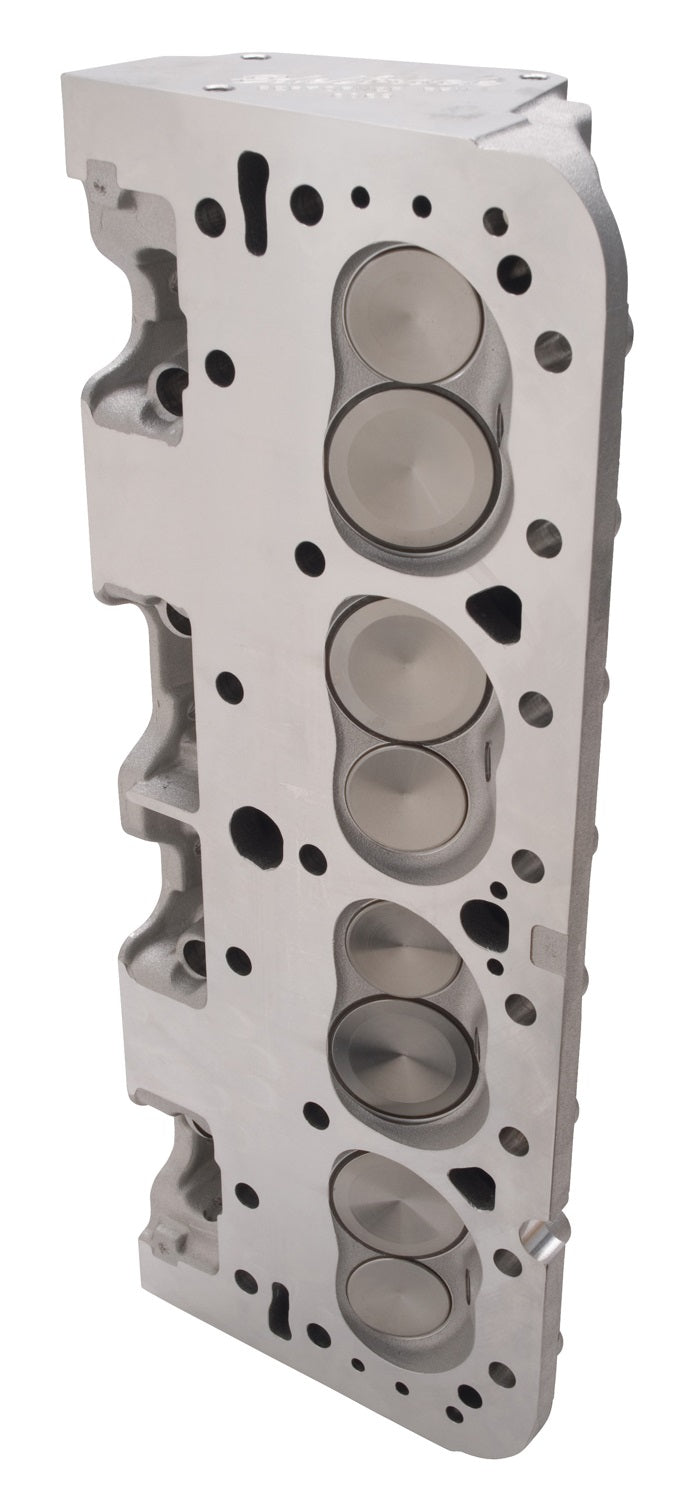

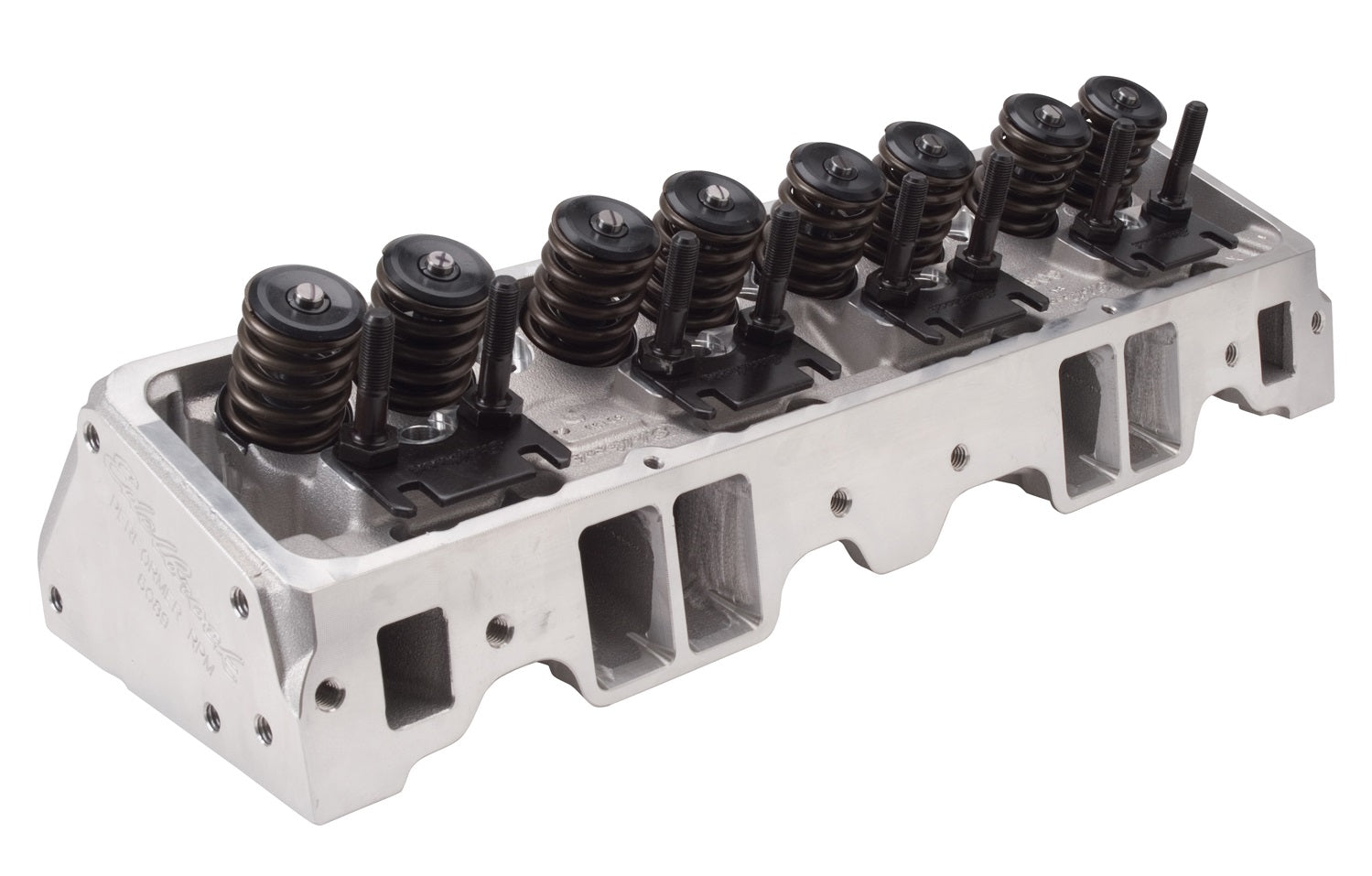

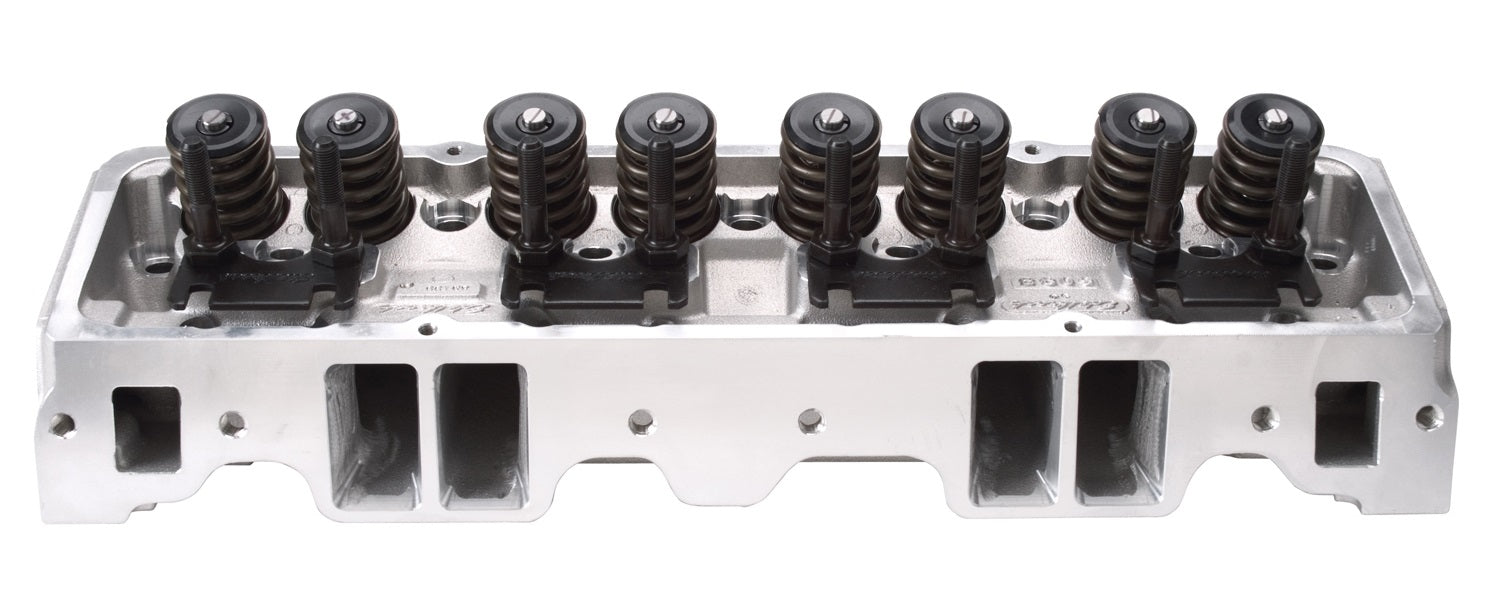

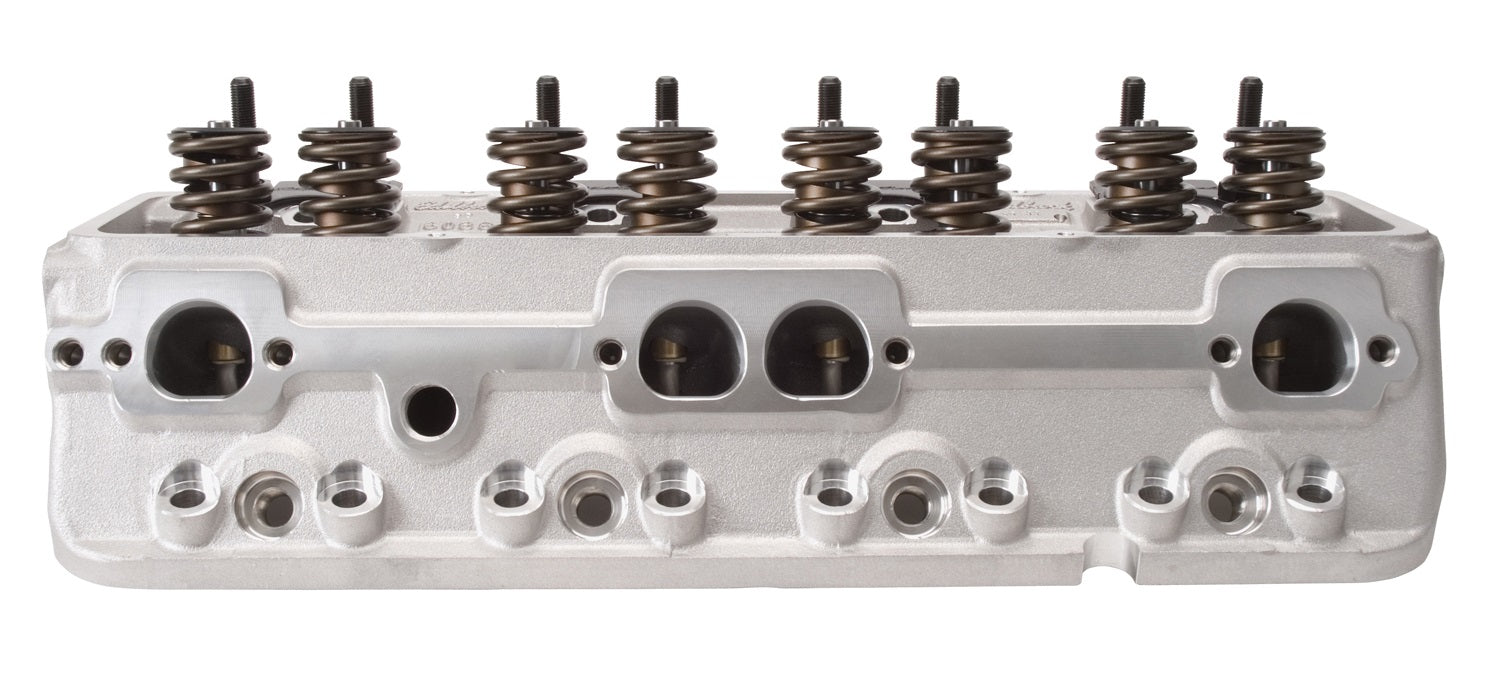

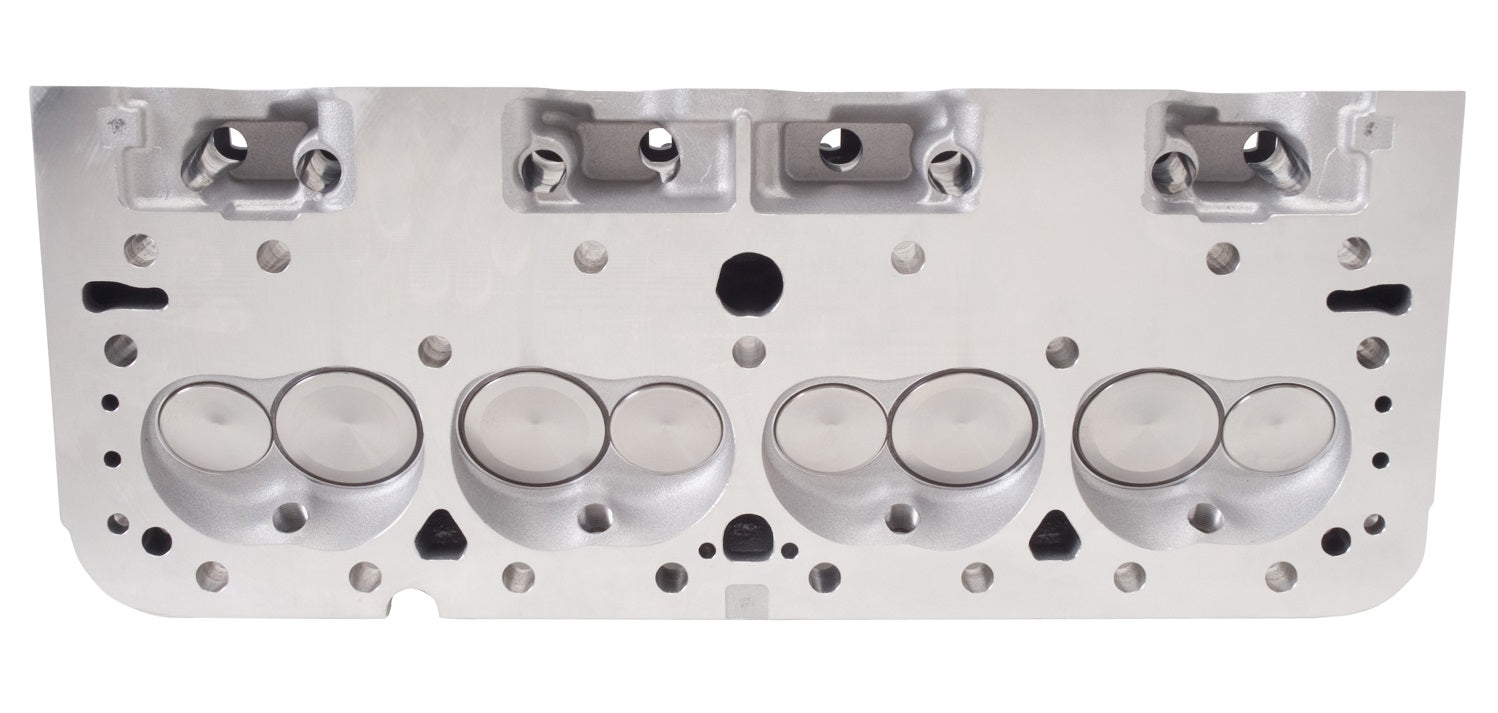

Brand New Edelbrock RPM 64cc Cylinder Head for 1955-1986 Chevy Small Block Engines with Hydraulic Flat Tappet Cam (Part #60899).

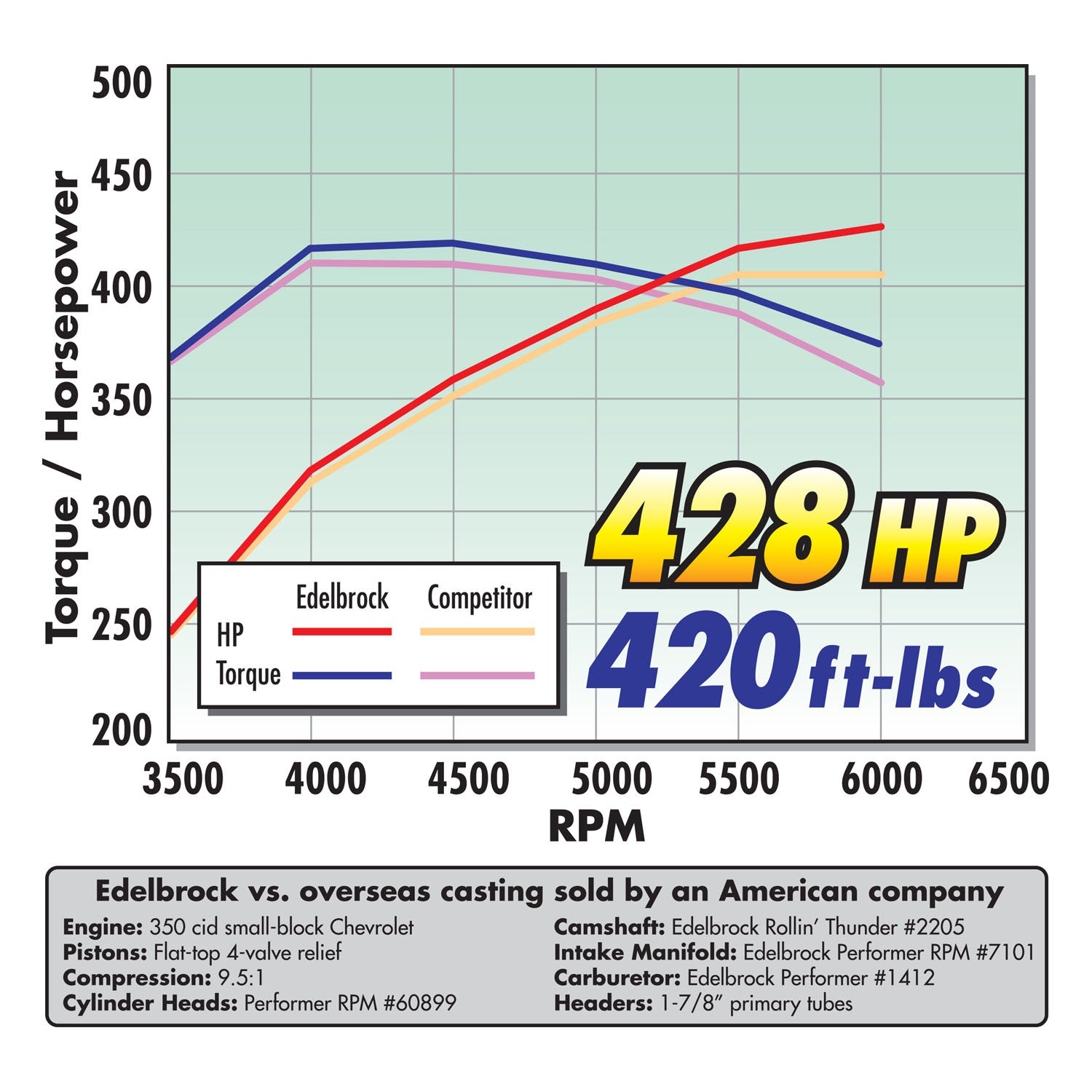

The Edelbrock #60899 Performer RPM cylinder head is designed for 1955-86 Small-Block Chevy applications. The Edelbrock #60899 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs.

Installation Notes:
  • Equipped with springs for use in hydraulic flat tappet camshaft applications
  • Match with Edelbrock head gasket sets
  • To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required.
  • Edelbrock pushrods #9629 are recommended
  • Use Head Bolt Kits for easy installation.
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat
  • S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 C.I.D.) except with cams having less than .450" valve lift.

Specs:

  • Series: Performer RPM
  • Material: Aluminum
  • Camshaft Type: Hydraulic Flat Tappet
  • Horsepower: 350-450 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Valve Diameter: 2.02 in
  • Intake Runner Volume: 195 cc
  • Push Rod Diameter: 0.3125 in
  • Valve Angle: 23 deg
  • Valve Spring Diameter: 1.46 in
  • Valve Spring Maximum Lift: 0.575 in
  • Valve Stem Diameter: 0.3438 in
You can view and download the complete assembly instruction booklet here.
