RPM SMALL-BLOCK CHRYSLER LA CYLINDER HEAD HYDRAULIC ROLLER CAM

RPM SMALL-BLOCK CHRYSLER LA CYLINDER HEAD HYDRAULIC ROLLER CAM

EDL 60775

$1,041.50
$1,041.50
View full details

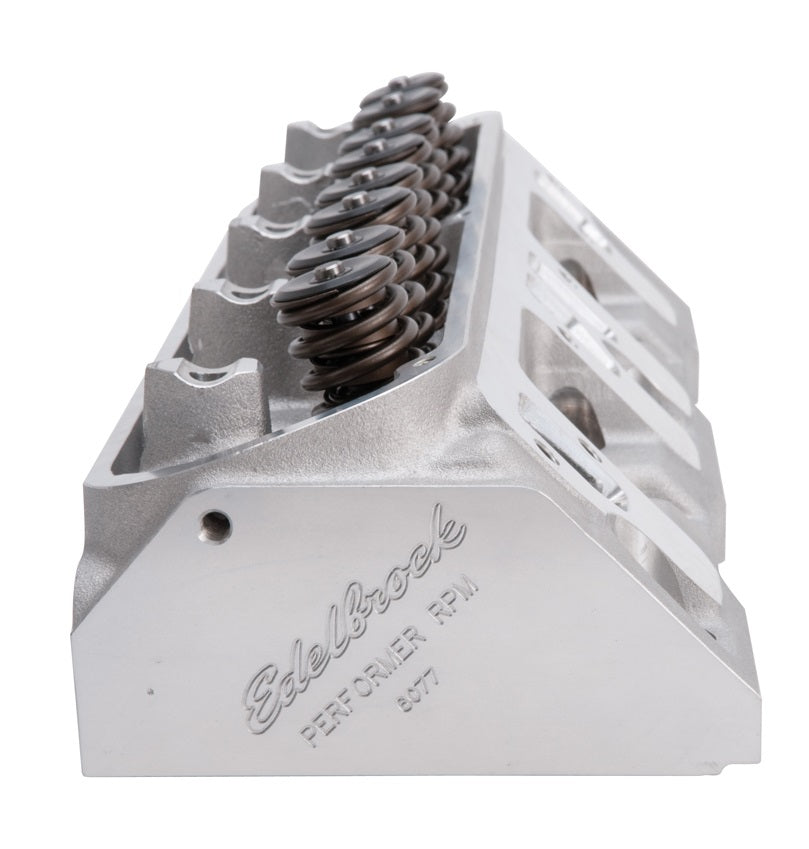

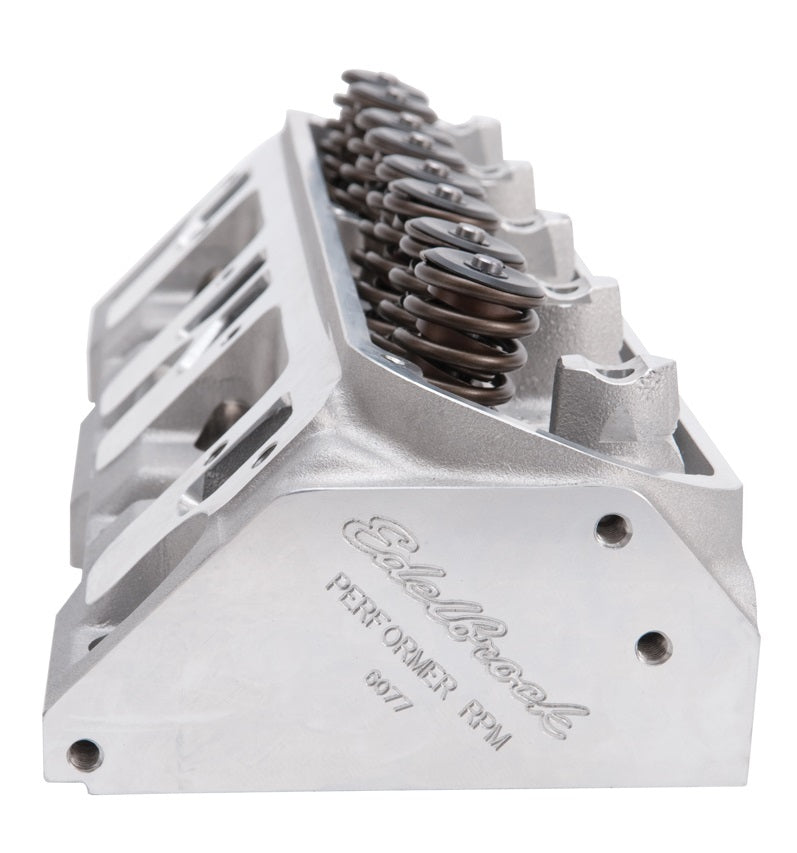

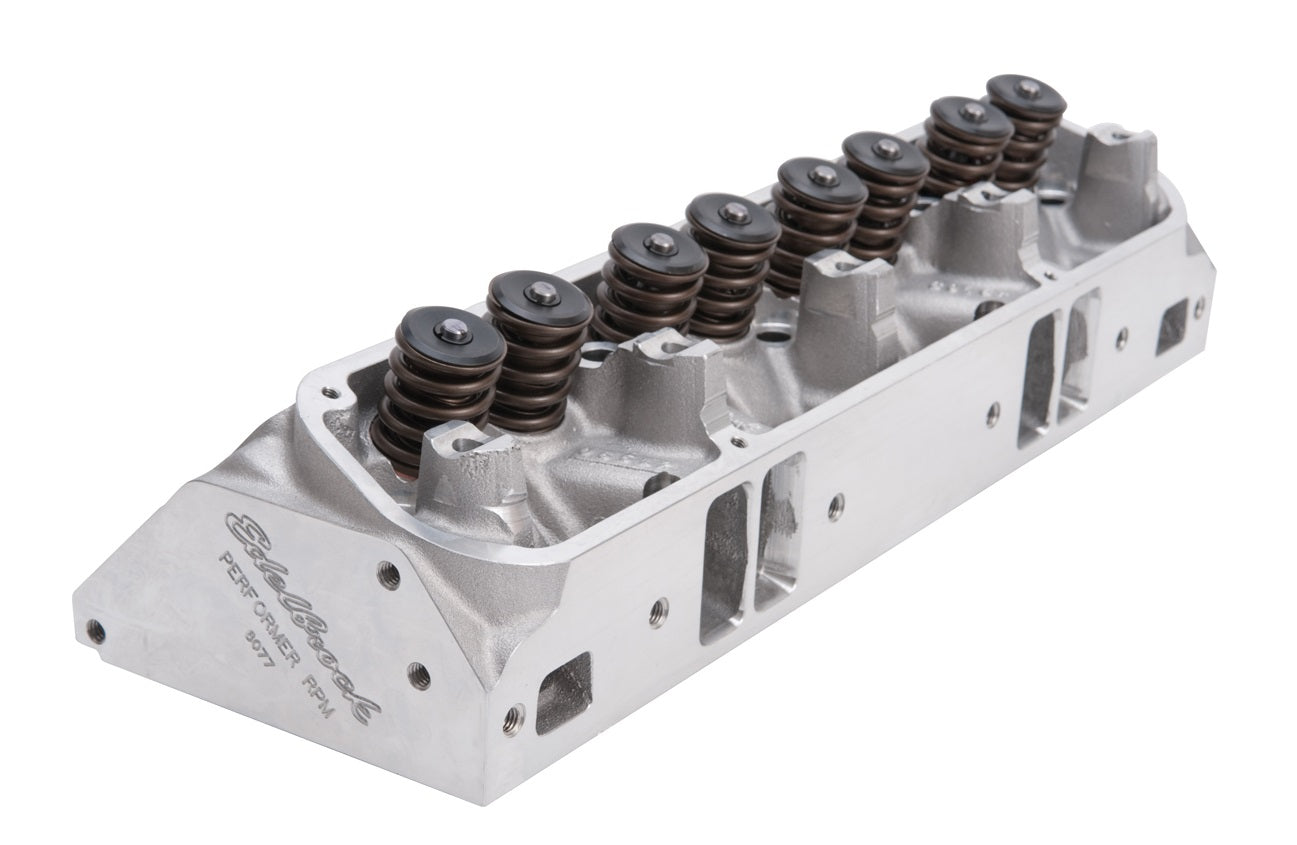

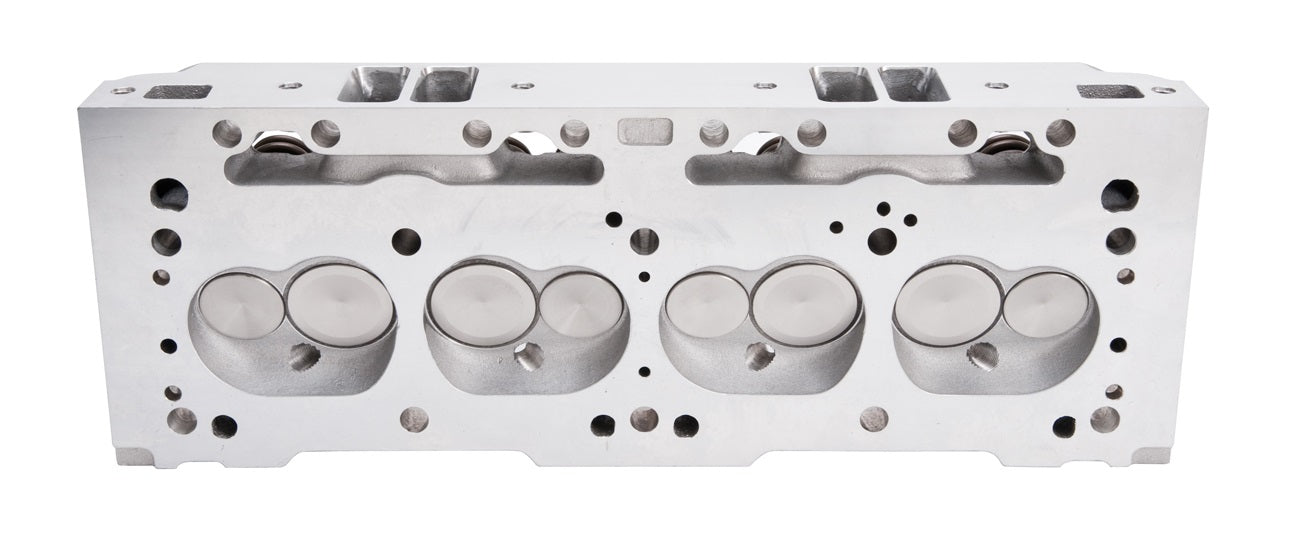

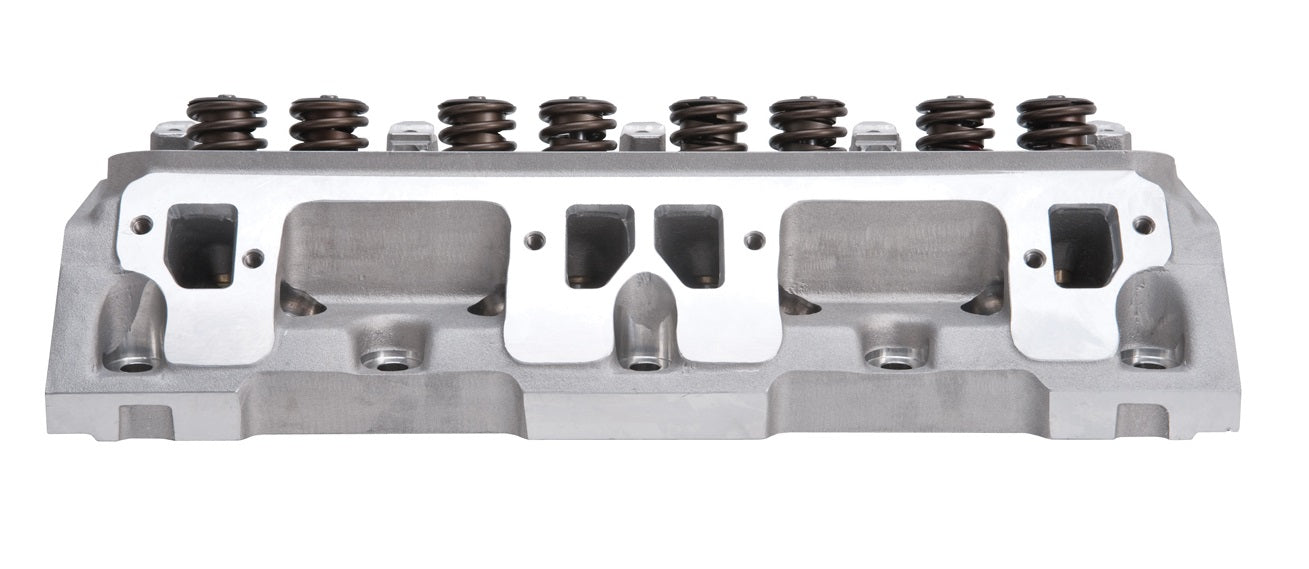

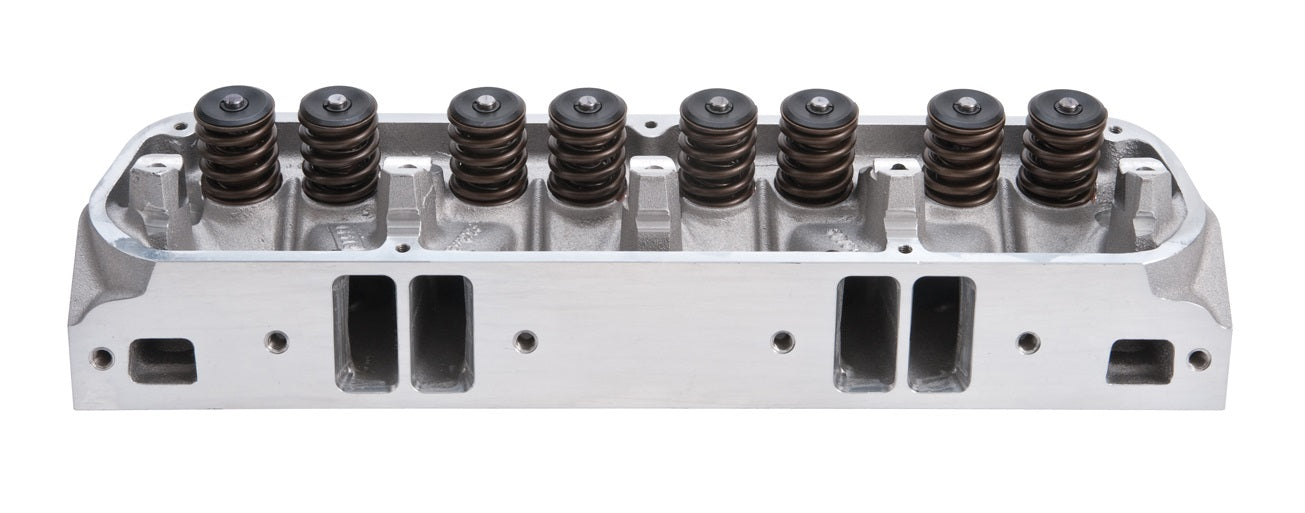

Brand New Edelbrock RPM Cylinder Head for 1968-1991 Chrysler 318-340-360 Engines with Hydraulic Roller Cam (Part #60775).

The Edelbrock #60775 Performer RPM head is designed for use with non-emission 1968-91 Chrysler 318-340-360 C.I.D. engine applications. The Edelbrock #60775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Installation Notes:
  • Equipped with springs for use in hydraulic roller camshaft applications
  • Delivers outstanding performance in non-emission 1967-91 Chrysler 318-340-360 C.I.D. engines
  • Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft
  • The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets.
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.

Specs:

  • Series: Performer RPM
  • Material: Aluminum
  • Camshaft Type: Flat Tappet
  • Horsepower: 350-450 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Valve Diameter: 2.02 in
  • Intake Runner Volume: 171 cc
  • Push Rod Diameter: 0.312 in
  • Valve Angle: 18 deg
  • Valve Spring Diameter: 1.46 in
  • Valve Spring Maximum Lift: 0.575 in
  • Valve Stem Diameter: 0.3438 in
  • Deck Thickness: 5/8"
You can view and download the complete assembly instruction booklet here.
