CYLINDER HEAD,SB MOPAR LA,PERFORMER RPM,BARE,EACH

CYLINDER HEAD,SB MOPAR LA,PERFORMER RPM,BARE,EACH

EDL 60769

$780.50
$780.50

Yes, we have this item in stock and ready to ship immediately!
View full details

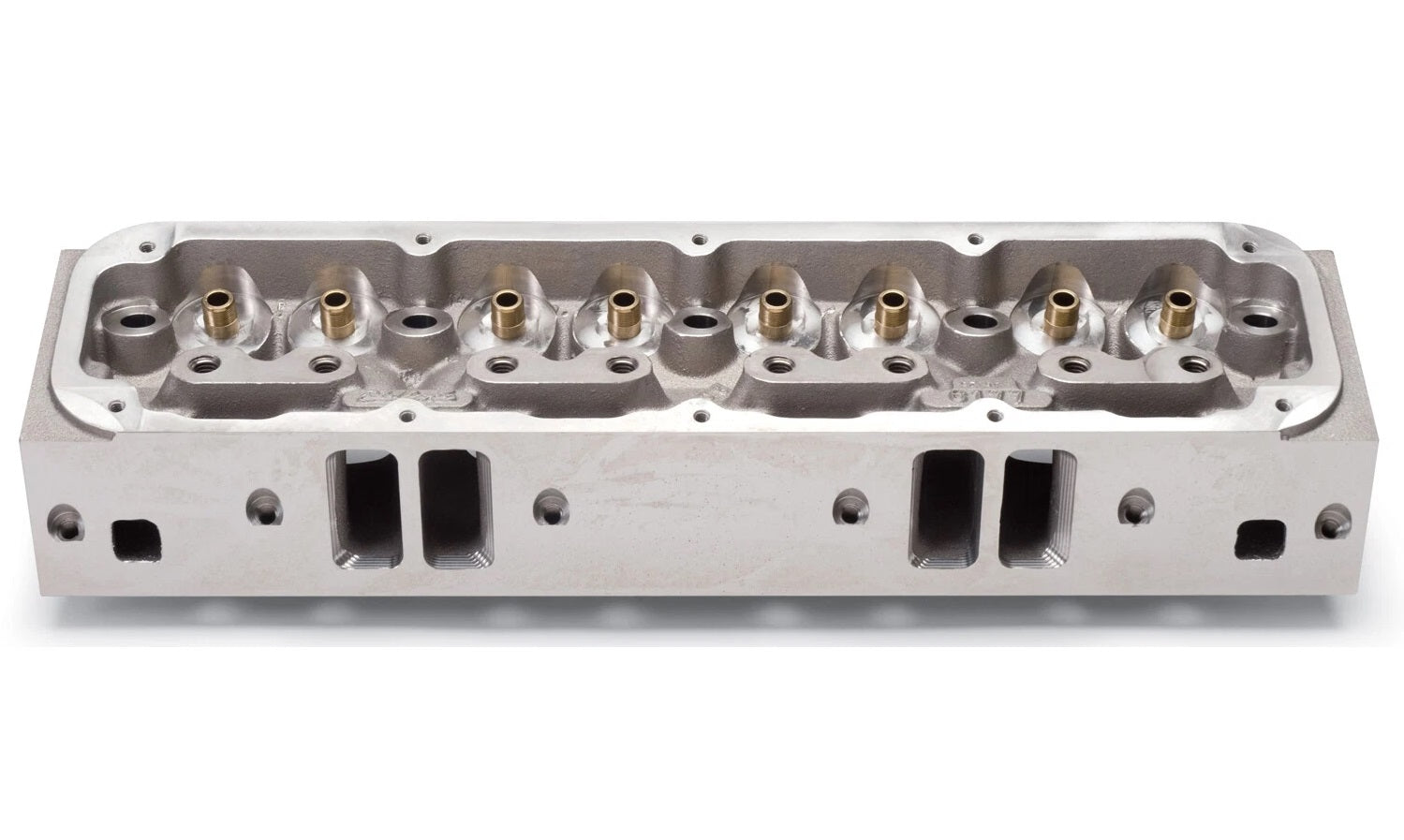

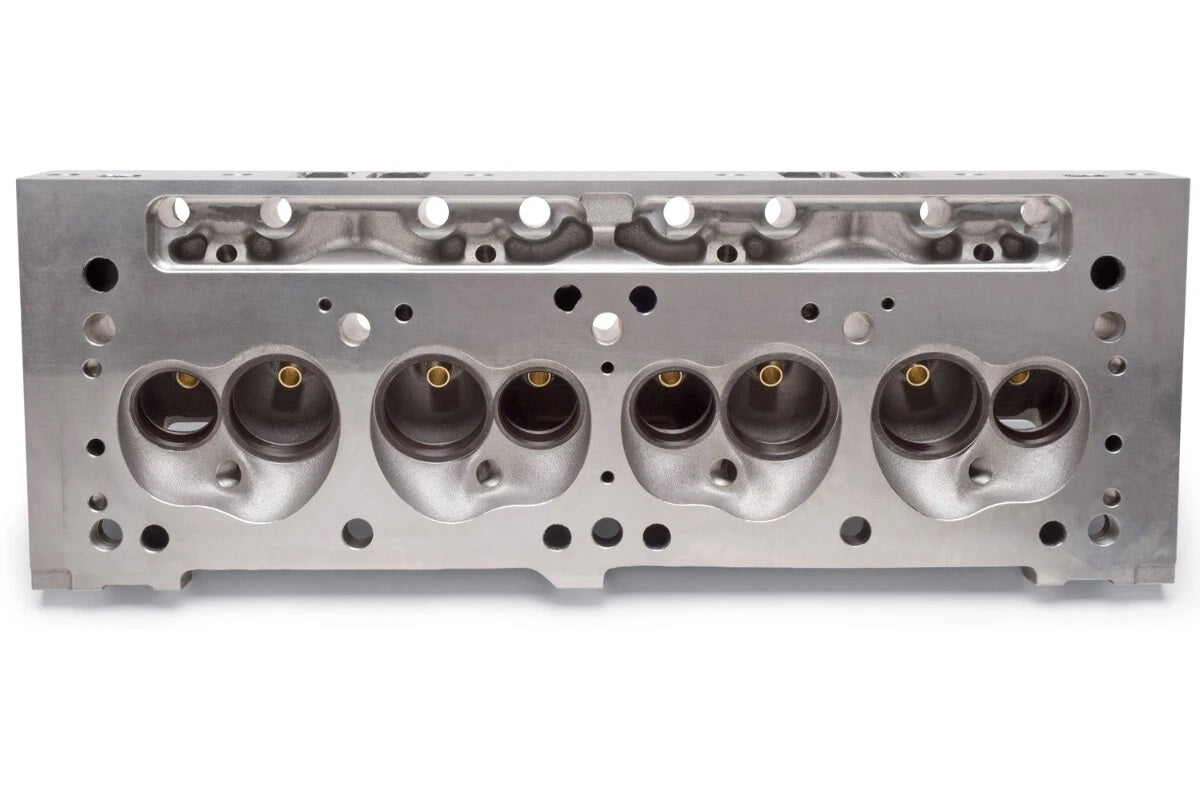

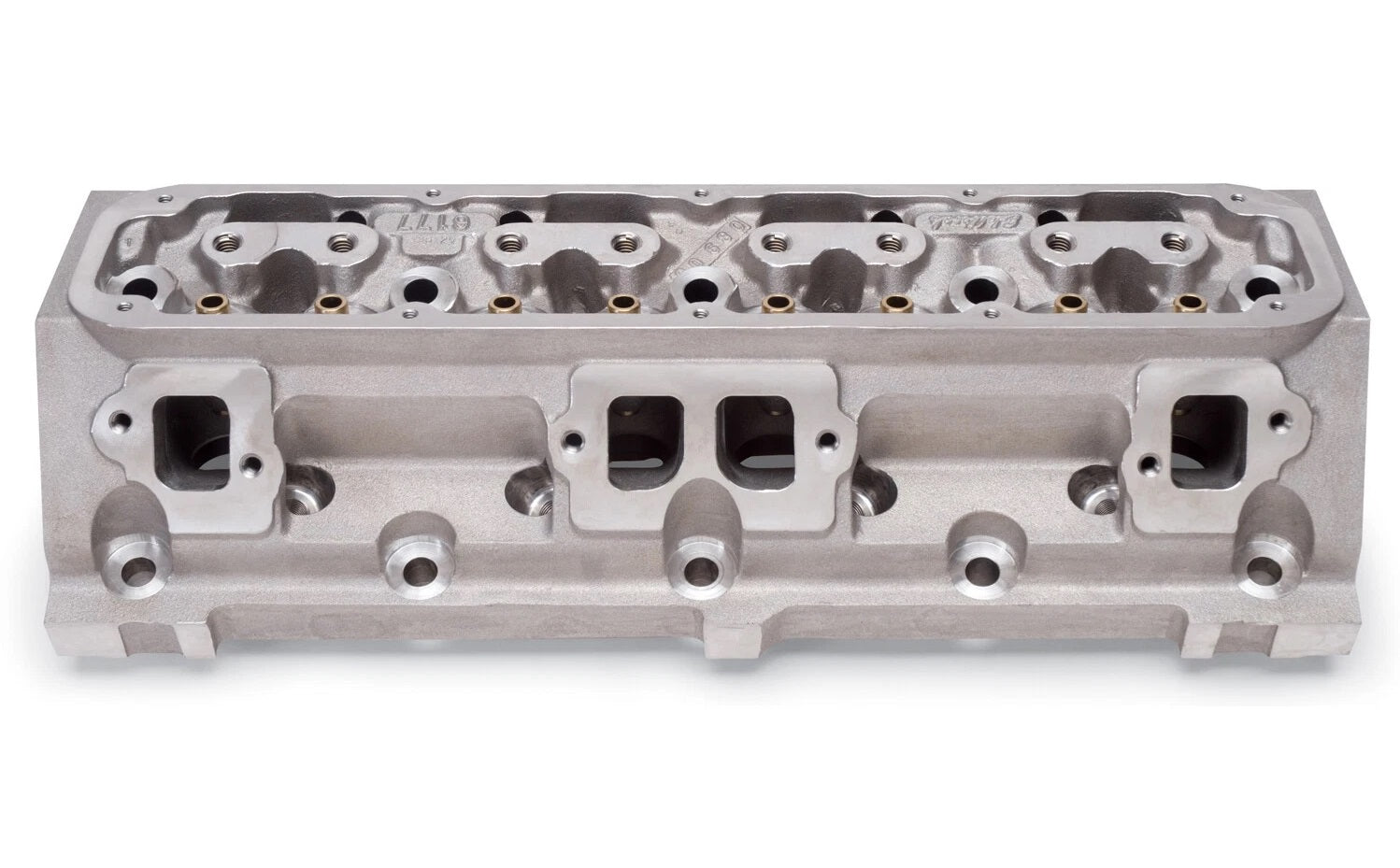

Brand New Edelbrock RPM Bare Cylinder Head for 1968-1991 Chrysler 318-340-360 Engines (Part #60769).

The Edelbrock #60769 Performer RPM Bare cylinder head is designed for use with non-emission 1968-91 Chrysler 318-340-360 C.I.D. engine applications. The Edelbrock #60769 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm.

Installation Notes:
  • Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.;
  • Delivers outstanding performance in non-emission 1967-91 Chrysler 318-340-360 C.I.D. engines
  • Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft
  • The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets.
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
  • Deck thickness: 5/8"

Specs:

  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Runner Volume: 171 cc
  • Material: Aluminum
  • Push Rod Diameter: 0.312 in
  • Valve Angle: 18 Degrees
You can view and download the complete assembly instruction booklet here.
