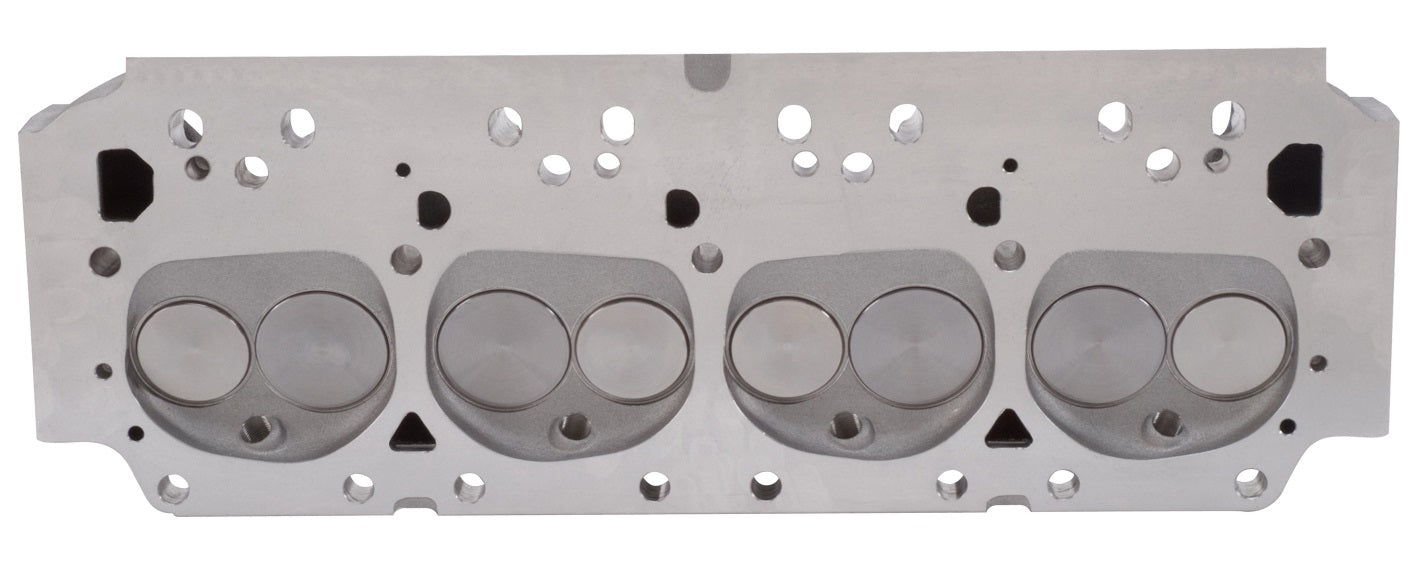

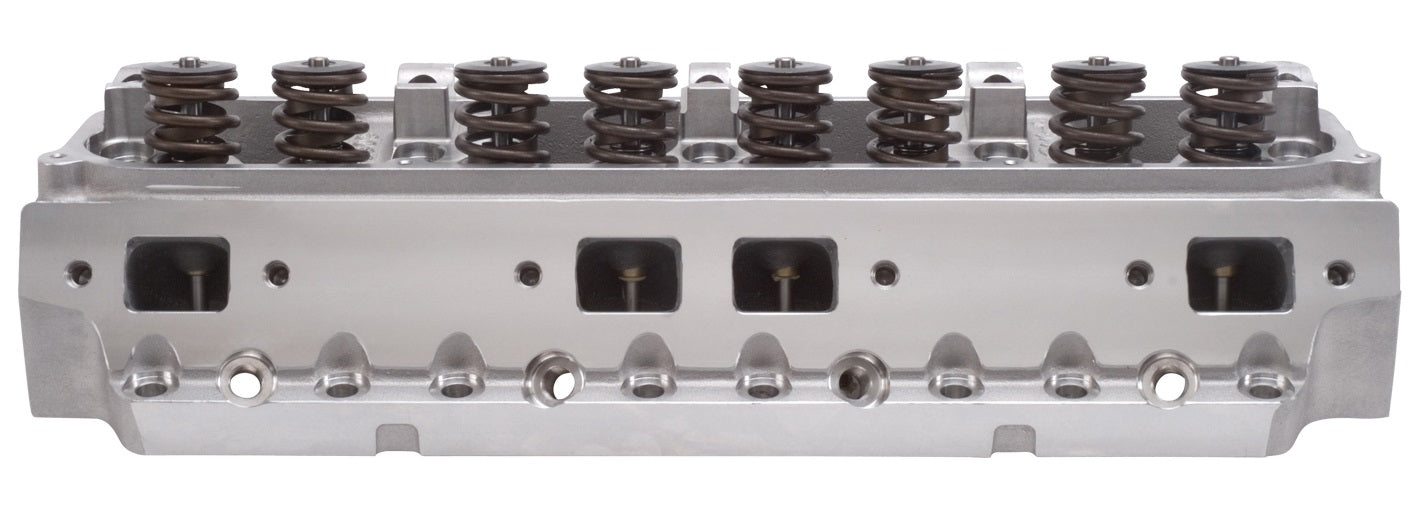

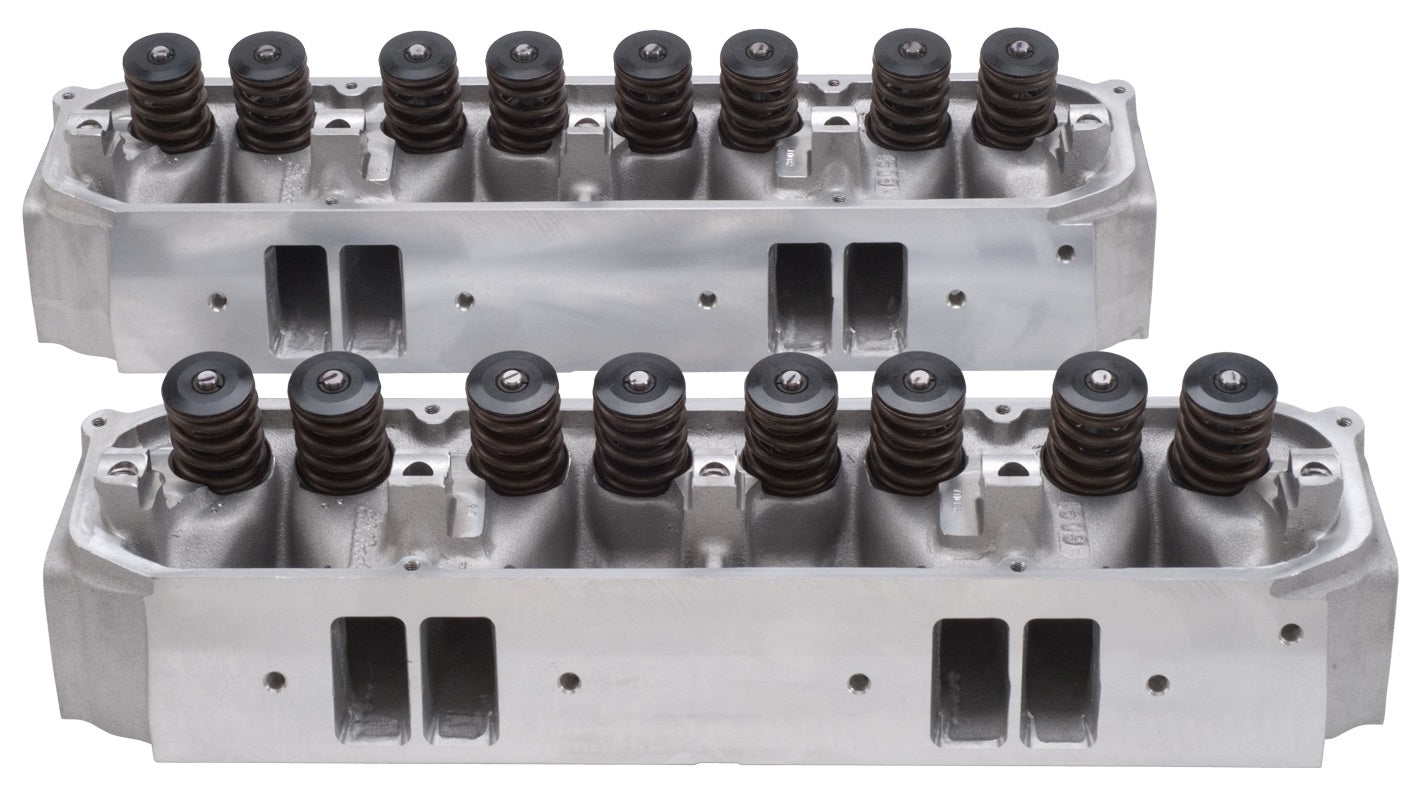

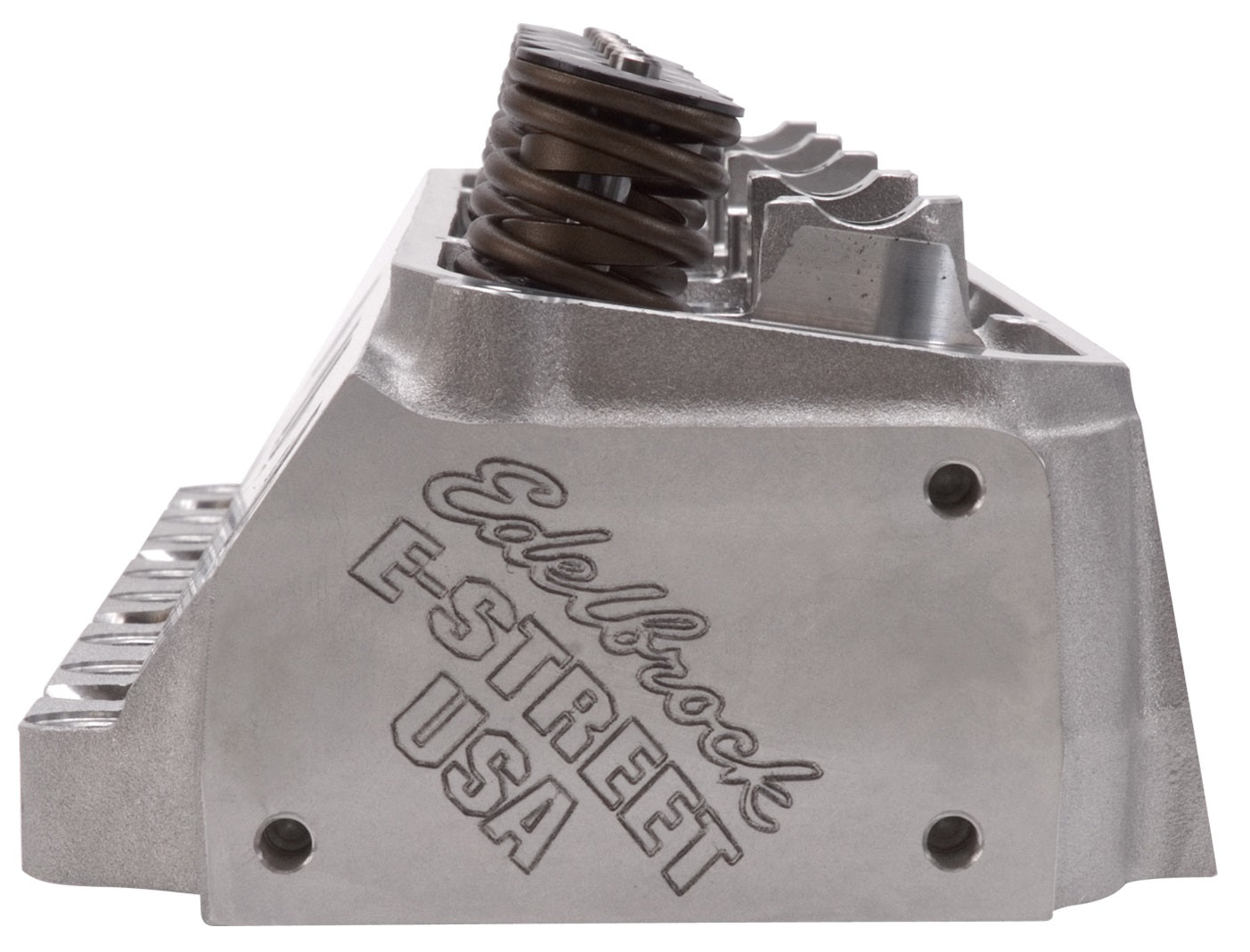

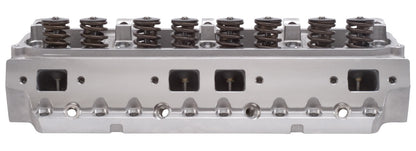

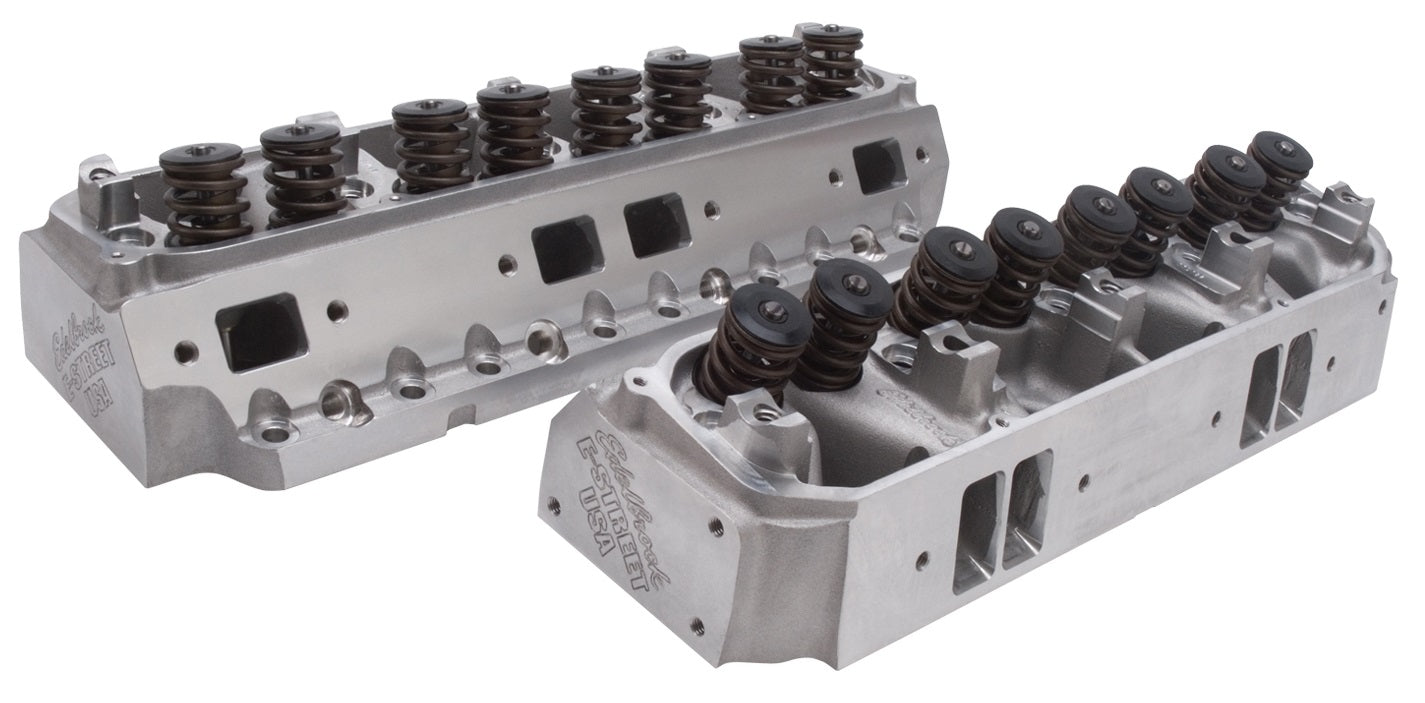

1 PR. BIG-BLOCK CHRYSLER E-STREET CYLINDER HEADS 84CC

Brand New Edelbrock E-Street Cylinder Heads 84cc Fits Big-Block Chrysler (Part #5093).

The Edelbrock E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 C.I.D. Wedge engine applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

Installation Notes:

• Equipped with springs for use in hydraulic flat tappet camshaft applications;
• Deck thickness: 5/8"

• Vacuum advance distributor may not clear cylinder head.
•  The 75cc combustion chamber allows this cylinder head to be used with stock pistons, retaining the 9.5:1 compression

• These cylinder heads are sold in pairs

Specs:

• Series: E-Street

• Material: Aluminum

• Horsepower: 400-550 HP

• Seat Angle: Exhaust 45 deg/Intake 45 deg
• Intake Valve Diameter: 2.14 in

• Intake Runner Volume: 210 cc

• Push Rod Diameter: 0.375 in

• Valve Angle: 15 Degree

• Valve Spring Diameter: 1.55 in

• Valve Spring Maximum Lift: 0.600 in

• Valve Stem Diameter: 0.3438 in


You can view and download the complete assembly instruction booklet here.
