EDELBROCK CYLINDER HEADS,E-STREET,SB FORD E-205,HYD. ROLLER CAMSHAFT,PAIR

EDELBROCK CYLINDER HEADS,E-STREET,SB FORD E-205,HYD. ROLLER CAMSHAFT,PAIR

SKU:EDL 5027

Regular price $1,750.95
Regular price Sale price $1,750.95
View full details

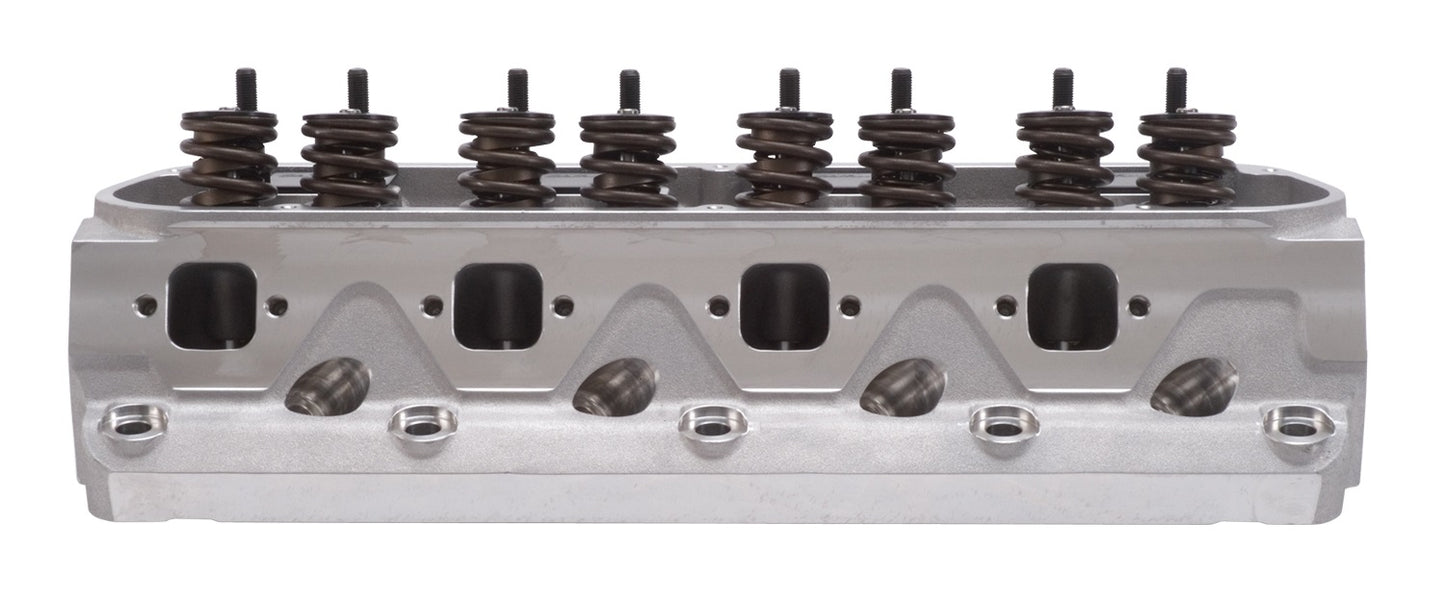

Brand New Edelbrock E-Series Small-Block Ford E-205 Cylinder Heads w/ Hydraulic Roller Camshaft (Part #5027).

The Edelbrock #5027 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. Race-level performance while maintaining full compatibility with OEM equipment. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines.

The Edelbrock #5027 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware. The exhaust port flange is in the stock location to allow for the use of off-the-shelf headers and hardware while the enlarged valves and ports support the power needed to compete at engine speeds of up to 6500 rpm. Capable of supporting more than 500 naturally aspirated horsepower and even more in forced induction applications.

Note: Equipped with springs for use in mechanical flat tappet and hydraulic roller camshaft | Hardened pushrods required, use Edelbrock #9632 (flat tappet only) for 302 applications. Will not accept rail rockers. | 289-302 V8s require Head Bolt Bushings #9680 and either Head Bolt Kit #8552 (7/16") or stock head bolts. | Match with Edelbrock head gasket sets. | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.

Specs:

  • Series: E-Series
  • Material: Aluminum
  • Grade Type: Performance
  • Quantity: Set of 2
  • Guide Plate Material: Hardened Steel
  • Camshaft Type: Hydraulic Roller
  • Horsepower: 400-525 HP
  • Seat Angle: Exhaust 45 deg/Intake 45 deg
  • Intake Valve Diameter: 2.08 in
  • Intake Runner Volume: 205 cc
  • Push Rod Diameter: (Suggested) 0.3125 in
  • Rocker Stud Diameter: 0.375 in
  • Valve Angle: 20 deg
  • Valve Spring Diameter: 1.55 in
  • Valve Spring Maximum Lift: 0.650 in
  • Valve Stem Diameter: 0.3438 in

You can view and download the complete assembly instruction booklet here.
