CYL HEAD, JEEP PERFORMER 91-06 I6 4.0L COMPLETE W/SPRINGS FOR FLAT TAPPET CAM

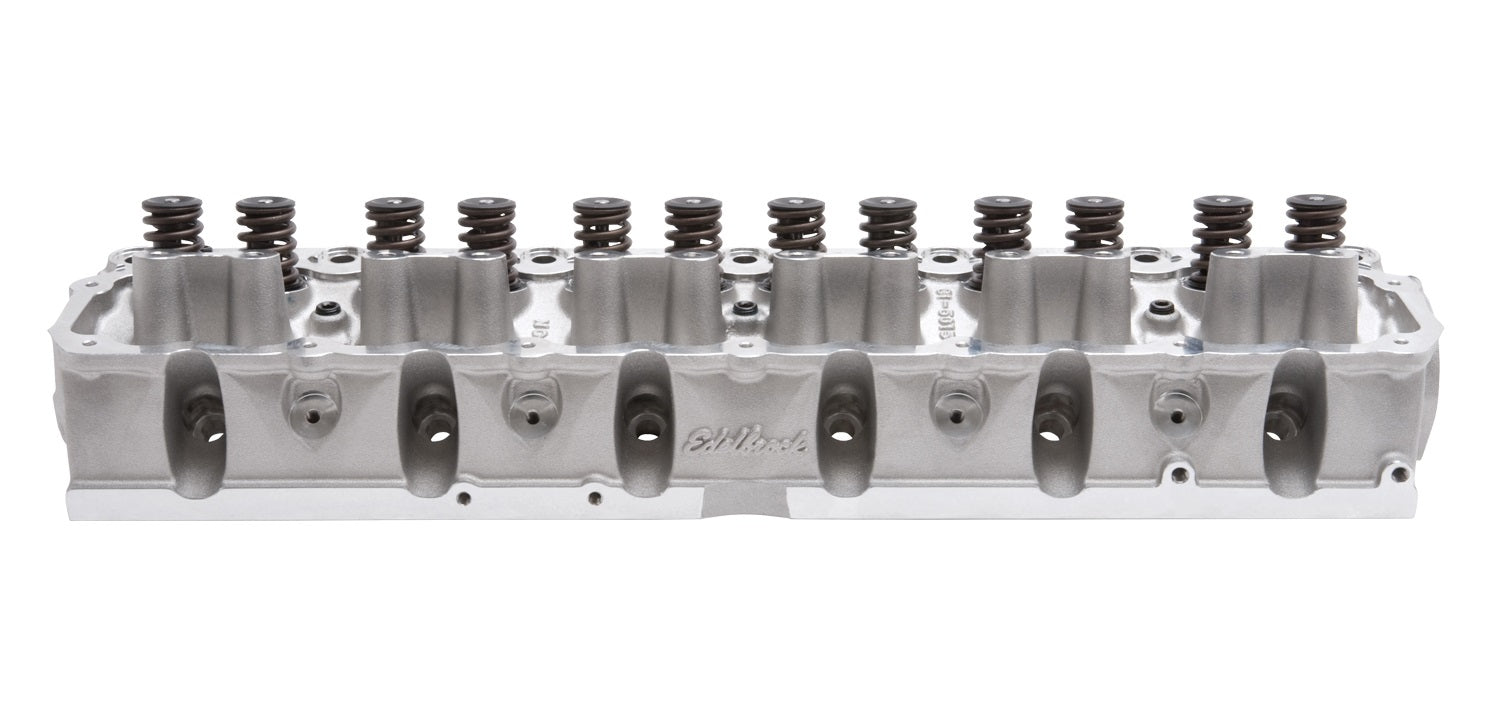

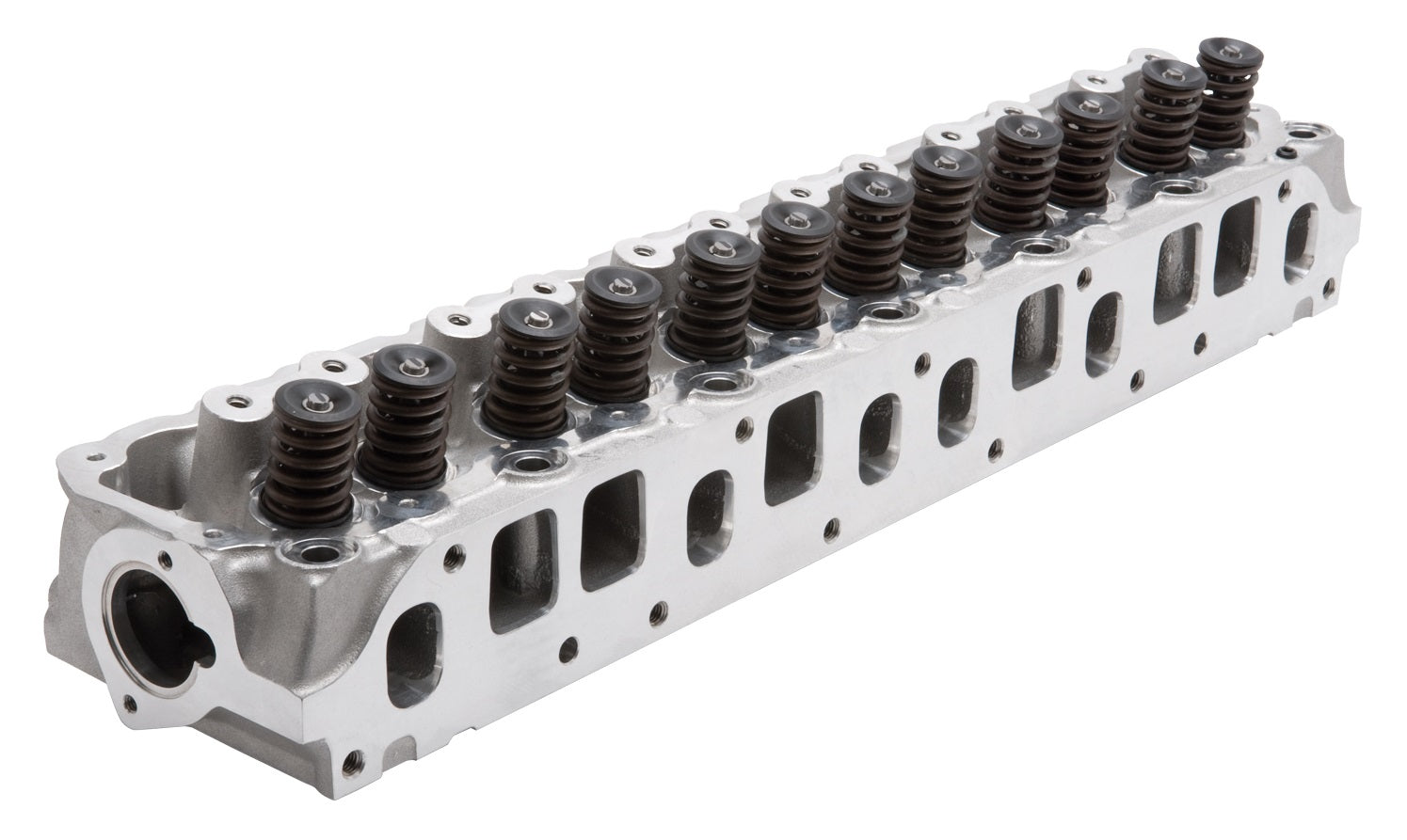

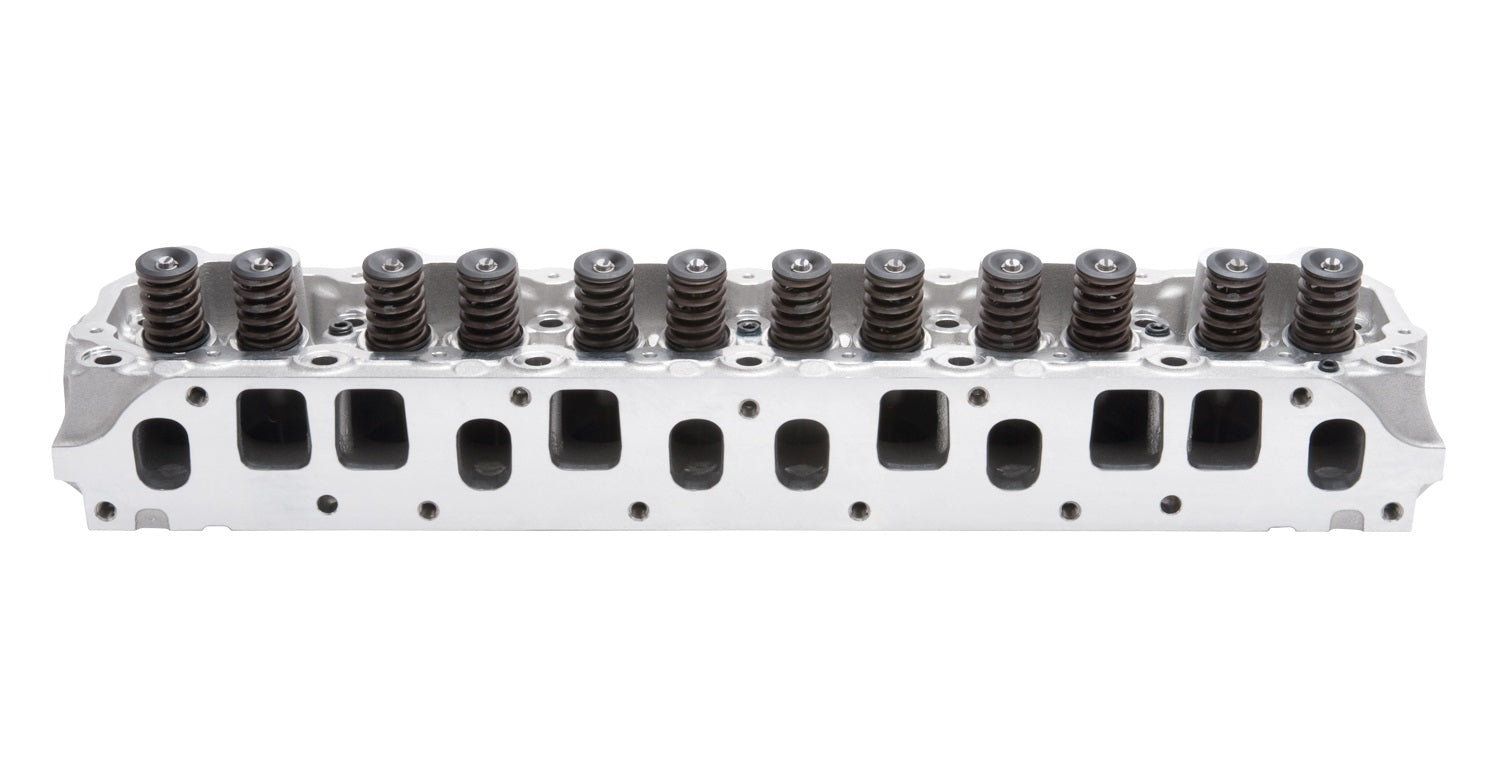

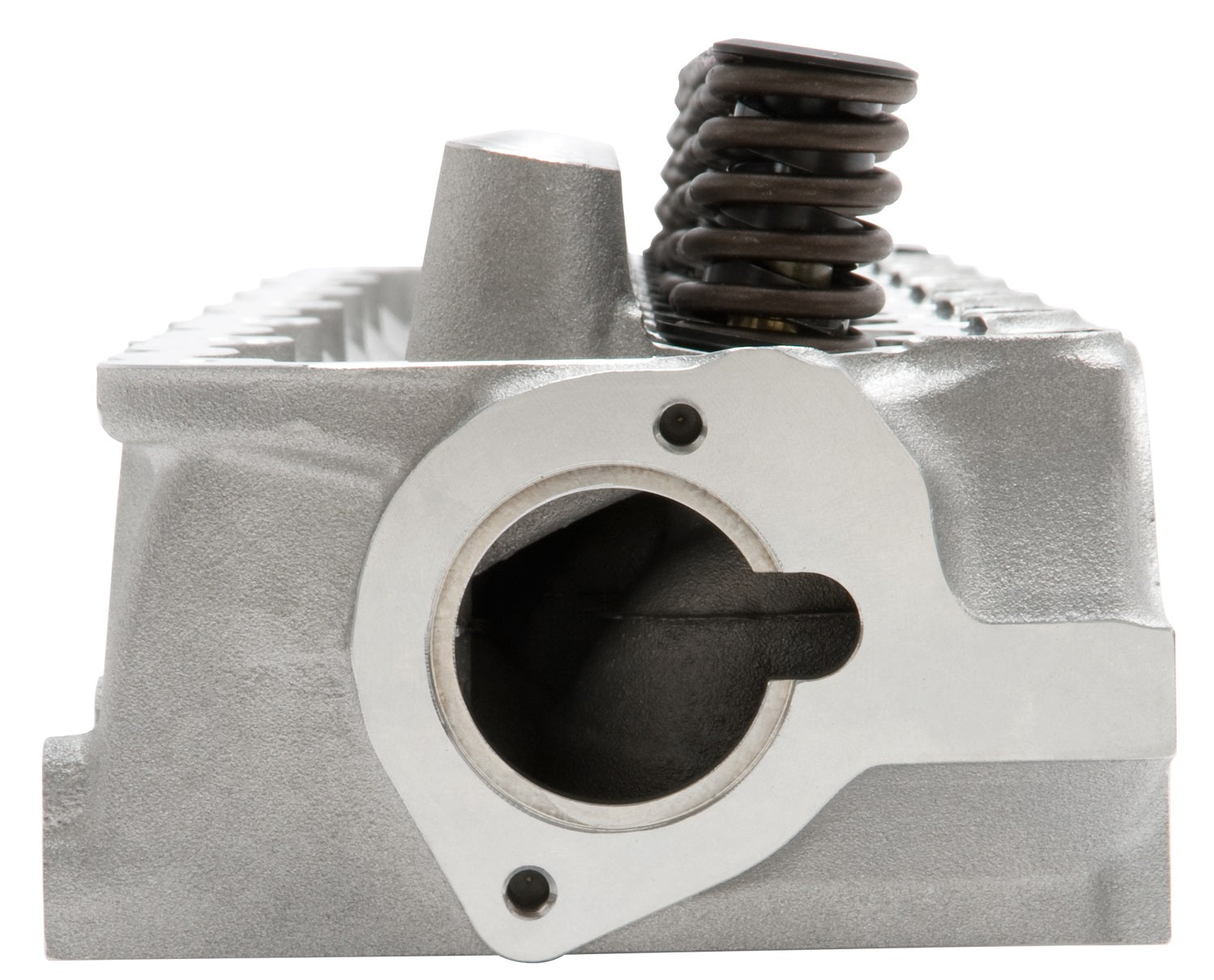

Brand New Edelbrock Performer Jeep 4.0L Cylinder Head (Part #50169).

The Edelbrock Performer Cylinder Head is designed as a bolt-on performance upgrade for 1987-2006 Jeep's with a 4.0L inline six engine. They feature better flowing intake/exhaust ports along with a modern combustion chamber design and back cut and swirl polished valves for improved flow. Retains the stock valve angle, pushrod length and valve cover bolt pattern for use with factory components and off the shelf accessories. Larger reinforced rocker bosses for improved strength at high RPM and Heli-Coil threaded inserts in the intake manifold bolt holes for added strength as well as a 3/4" deck throughout the head also promotes stiffness and durability. This cylinder head is machined to accept both distributor or coil pack ignition. To optimize airflow, this cylinder head is designed with a 1991-2006 4.0L intake port location and 1991-98 4.0L exhaust port size. As a result, this cylinder head must be used with a 1991-2006 intake manifold and a 1991-1998 exhaust manifold. Aftermarket exhaust headers can also be used in place of 1991-1998 exhaust manifolds and MUST be used in place of 1999-2006 exhaust manifolds. Most aftermarket exhaust headers are compatible, but please check with the exhaust header manufacture to verify.

Installation Notes:

• This head is NOT compatible with 1999-2006 OEM exhaust manifolds.
• This cylinder head is 50-state emission legal for 4.0L engines when used with factory Fuel Injection calibration and components (E.O. Number D-215-94).
• Pending 50-state emission legal for 4.2L engines when used with a Mopar Fuel Injection Conversion Kit (E.O. Number D-265-21).

Specs:

• Series: Performer

• Material: Aluminum

• Horsepower: 200-300 HP

• Seat Angle: Exhaust 45 deg/Intake 45 deg

• Recommended spark plugs: Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.

• Recommended gasket for 4.0L: Edelbrock #7348 or Fel-Pro #26211PT.
• Deck thickness: 3/4".

• Intake Valve Diameter: 1.91 in

• Intake Runner Volume: 144 cc

• Push Rod Diameter: 0.312 in

• Valve Angle: 10 Degree

• Valve Spring Diameter: 1.26 in

• Valve Spring Maximum Lift: 0.540 in

• Valve Stem Diameter: 0.3125 in


You can view and download the complete assembly instruction booklet here.
