TORKER-PLUS CAMSHAFT KIT FOR 1957-1986 BIG-BLOCK CHEVY 283-400 V8

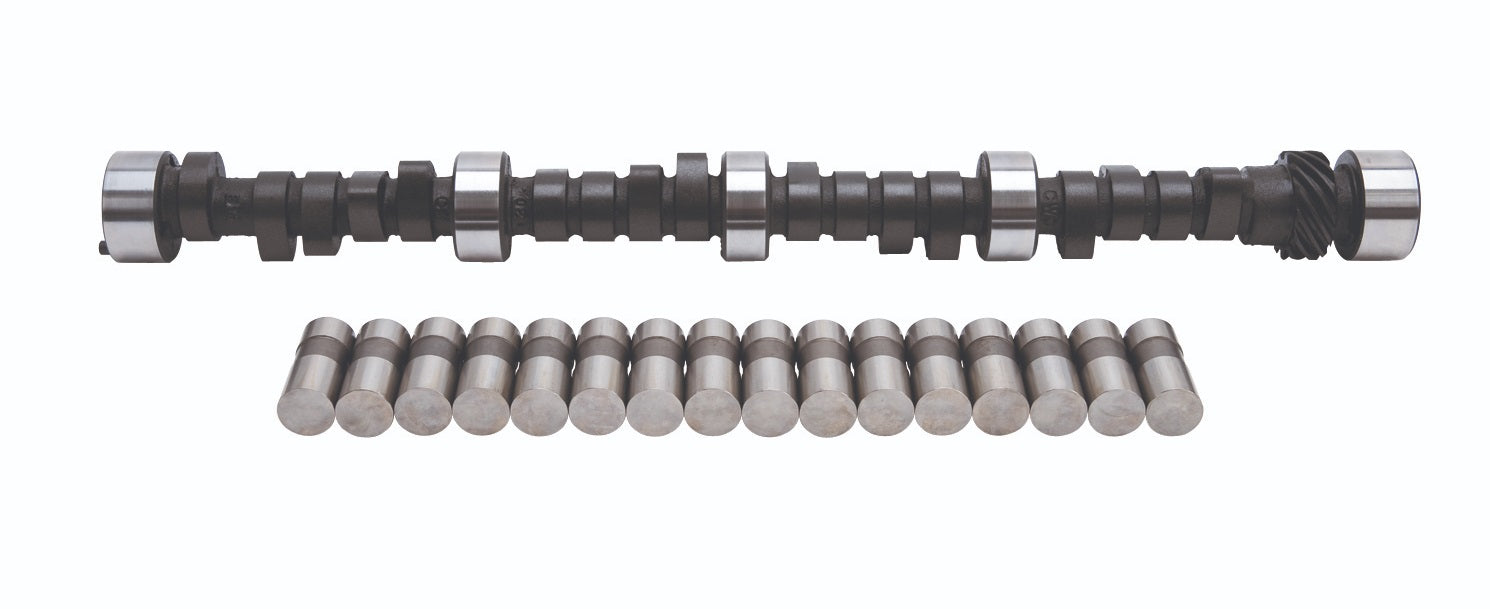

Brand New Edelbrock Torker-Plus Camshaft Kit for 1957-1986 Small-Block Chevy 283-400 V8 (Part #5002).

Edelbrock Torker-Plus Camshaft is designed for small-block Chevy 283-350 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft.

Installation Notes:

• Recommended Valve Springs for OEM heads: Edelbrock part #5703.
• Adjustable valvetrain required.
• In order for this Performer RPM cam and lifter kit to be covered under ANY WARRANTY you MUST use the correct Edelbrock Sure Seat Valve Springs or equivalent.
• Do not use rotator type valve springs or retainers for this application.
• Oil/additive must contain Zinc designed for use with flat tappet camshafts.
• Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up.
• Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Specs:

• Series: Torker-Plus

• Grade Type: Performance

• Lifter Materials: Hardened Steel

• Computer Controlled Compatible: No
• Lifter Type: Hydraulic Flat Tappet
• Duration @ .050 Intake: 232 degrees
• Duration @ .050 Exhaust: 234 degrees
• Lift @ Valve Intake: .488"
• Lift @ Valve Exhaust: .488"
• Lobe Separation: 108 Degrees
• Intake Centerline: 106 Degrees

You can view and download the complete assembly instruction booklet here.
