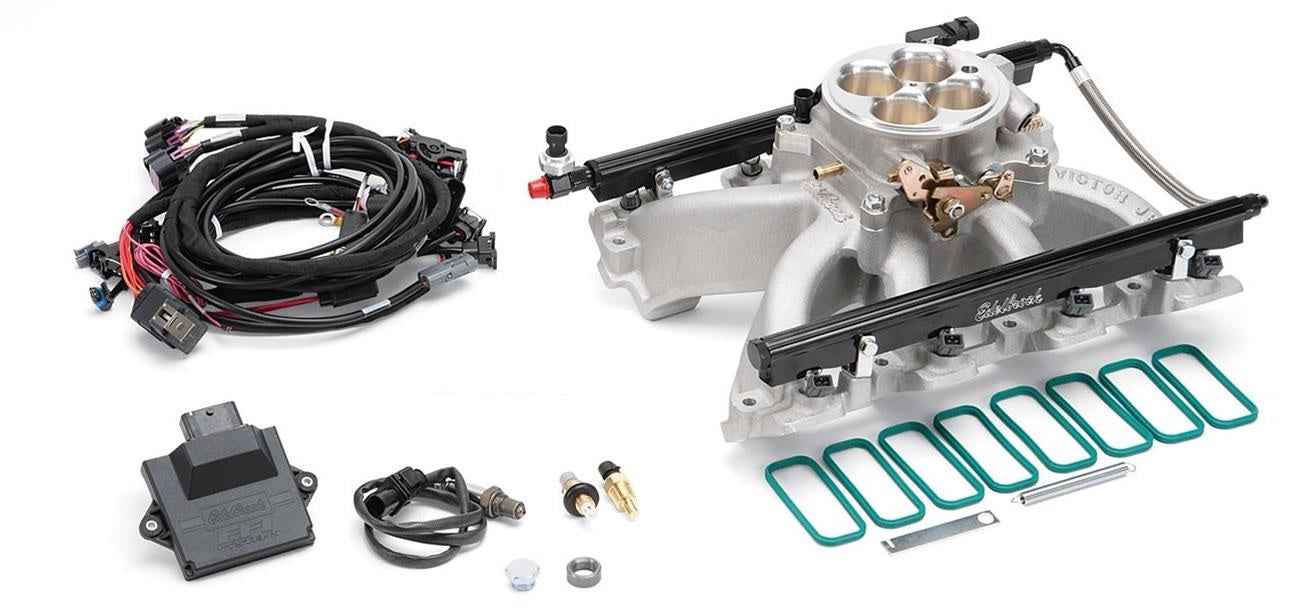

PRO FLO 4 FUEL INJECT KIT,SEQ PORT,LS GEN IV SV,LS7 RECT PORT,675HP,42LBHR

Brand New Edelbrock Pro-Flo 4 Traditional 4150-Style Kit For 1998 & Later Chevy LS7 Gen IV (Part #36170).

The Edelbrock Pro-Flo 4 EFI Kit for the Chevy Gen IV LS7 engine is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Super Victor LS7 manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. The manifold is also 0.75 inch taller than the standard LS3 version to promote smoother airflow into the rectangular-port heads. This kit uses 42 Lb/Hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure.

Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.

Installation Notes:

• This kit will require a high-pressure EFI fuel delivery system.
• Fuel delivery systems are available and sold separately.

Specs:

• Bore Diameter: 1.75
• System Type: Traditional 4150-Style Kit
• Fuel Injector Type: 42 lb/hr

• Maximum Horsepower: 675
• Fuel Pressure Port: 1/8-27 NPT

You can view and download the complete assembly instruction booklet here.
