PRO-FLO 4 EFI SYSTEM FOR 1986 & EARLIER SMALL-BLOCK CHEVY ENGINES

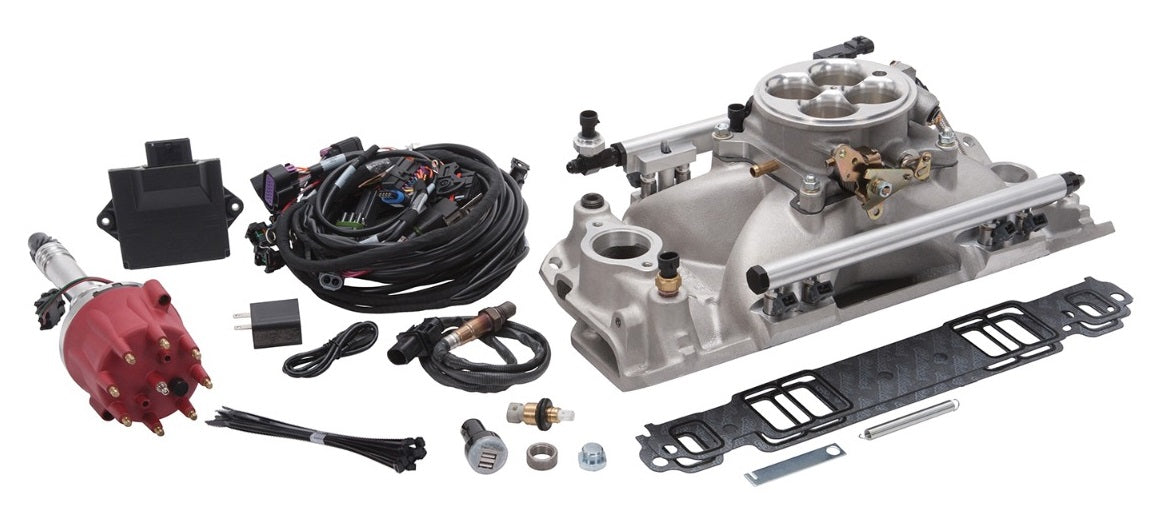

Brand New Edelbrock Pro-Flo 4 EFI Traditional 4150-Style Kit For 1986 & Earlier Chevy Small-Block (Part #35690).

The Edelbrock Pro-Flo 4 EFI Kit for 1986-earlier small-block Chevy engines is a fully sequential multi-port injection system designed with a fuel injector positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Super Victor SBC manifold is designed with a larger cross-sectional area in the plenum and large runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 lb/hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure. The exclusive Edelbrock E-Tuner 4 app is free and available for Android and IOS based smart phone or tablet.

Specs:

• Bore Diameter: 1.75 in
• System Type: Traditional 4150-Style Kit
• Fuel Injector Type: 42 lb/hr

• Maximum Horsepower: 675
• Fuel Pressure Port: 1/8-27 NPT

You can view and download the complete assembly instruction booklet here.
