ENGINE CONTROL SYSTEM, XFI SPORTSMAN

Brand New FAST XFI Sportsman‚ EFI Multi-Port Engine Control System (Part #303000).

Designed for muscle car, late model street and sportsman drag racing engines, along with boosted and individual runner throttle body applications, the FAST XFI Sportsman Engine Control System is a bank-to-bank, fully software-tunable EFI setup. It requires a laptop for tuning and uses proven FAST C-Com software, which comes packaged along with the necessary USB connectivity cable. The system offers both load-indexed Speed Density or Alpha-N fuel strategies; most users will use Speed Density but the Alpha-N option is specifically added to serve Sportsman drag racers looking for absolute consistency.

The FAST XFI Sportsman System features full tables to monitor fueling, acceleration fuel, timing and air/fuel targets. A user-configurable auxiliary input channel and full-function data logging are also included. It supports both naturally aspirated and boosted applications up to 5 bar, is compatible with wet nitrous and has nitrous timing retard control. Built-in CAN network support for the EZ-TCU, EZ-LS, XIM and eDash means users can easily plug-and-play those components with the included CAN network wire. The FAST XFI Sportsman Engine Control System also features a Bosch wide-band 02 sensor, utilizes built-in diagnostic LEDs, a water-resistant ECU enclosure and includes a premium, mesh-type wire loom multi-port harness.

Compatible with return-style and returnless fuel systems, XFI Sportsman is designed for use with high-impedance injectors, and works with a variety of multi-port systems or either generation of the FAST EZ-EFI throttle body. XFI Sportsman is conveniently configurable for electronic timing control with FAST distributors and crank triggers, EZ-LS and XIM, or timing can be set with a standard carb-type distributor and the included tach adapter. The RPM/tach signal from an aftermarket CD ignition box is also a timing control option.

Features:

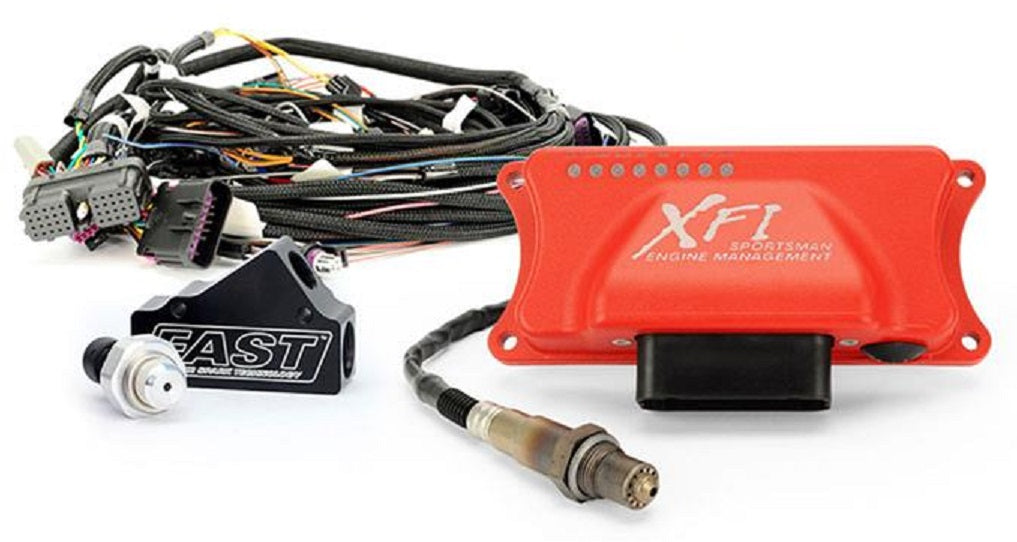

• Includes ECU, Wiring Harness, Wide-Band O2 Sensor & Electronic Fuel Pressure Kit
• Works with high-impedance injectors & also with EZ-EFI or EZ-EFI 2.0 throttle body
• Utilizes Speed Density & Alpha-N fuel strategies; Alpha-N included just for Sportsman drag racers
• Utilizes FAST C-COM software – Comes packaged along with necessary USB connectivity cable
• For muscle car, late model, boosted, individual runner throttle body & Sportsman drag racing engines
• Supports N/A & boosted applications up to 5 bar, works with nitrous & features timing retard control
• CAN network support for EZ-TCU, EZ-LS, XIM & eDash with included plug & play CAN wire
• Works with high-impedance injectors & also with EZ-EFI or EZ-EFI 2.0 throttle body
• Includes self tuning strategy that EZ-EFI offers but can be user disabled/enabled

You can view and download the complete assembly instruction booklet here.
