MANIFOLD, 1955-86 SB CHEVY, TALL, VICTOR JR

MANIFOLD, 1955-86 SB CHEVY, TALL, VICTOR JR

EDL 2999

$487.95
$487.95
View full details

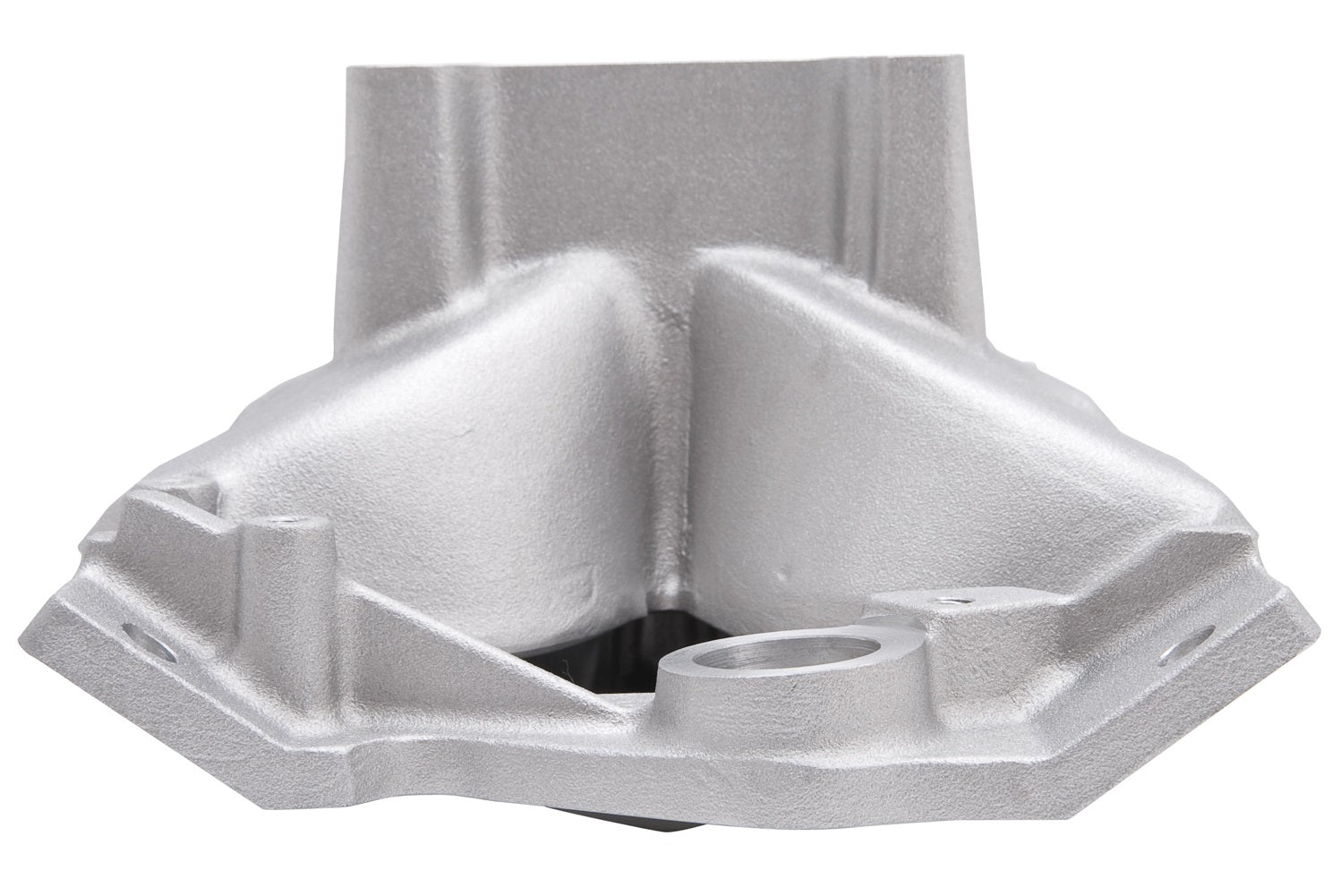

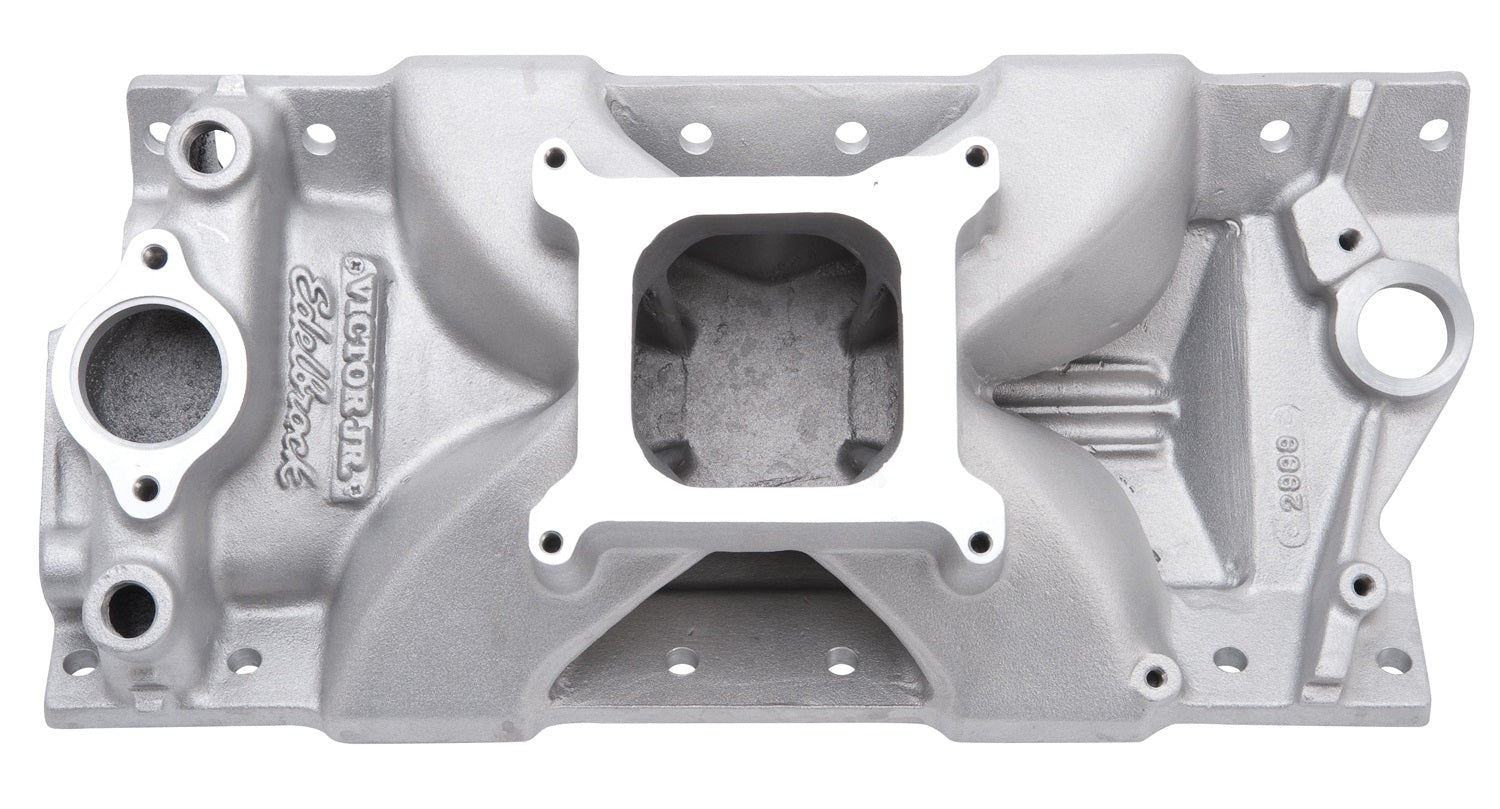

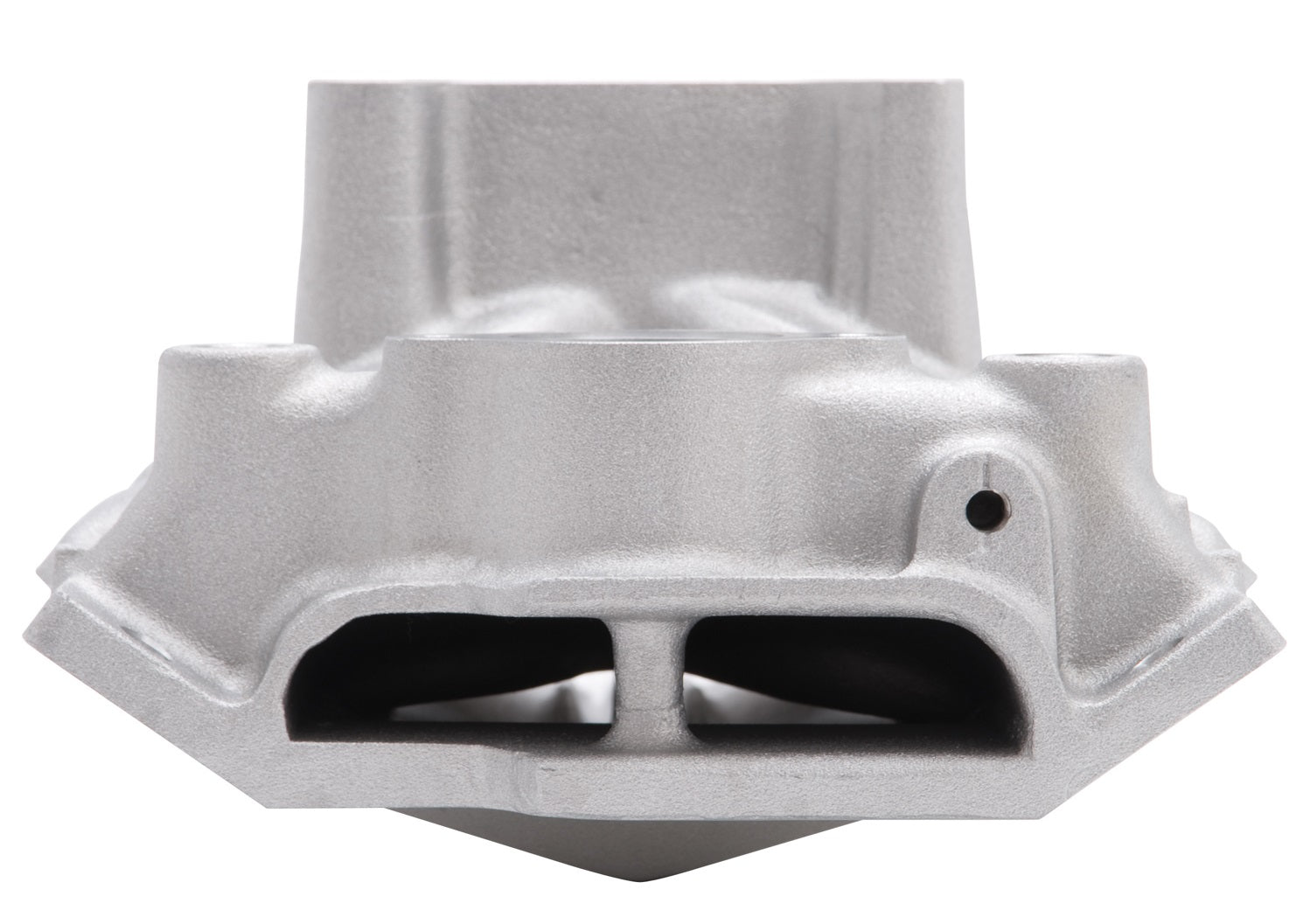

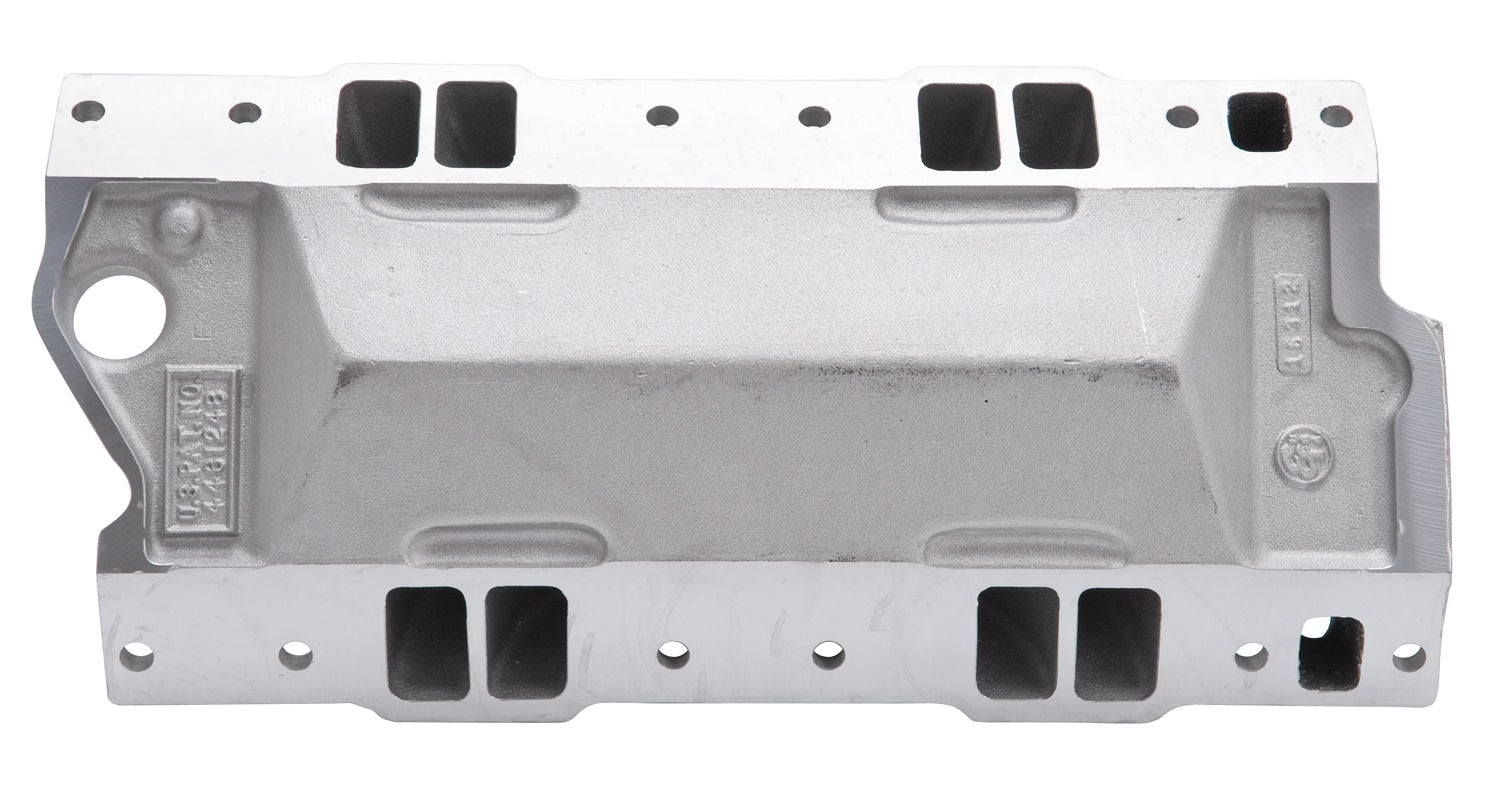

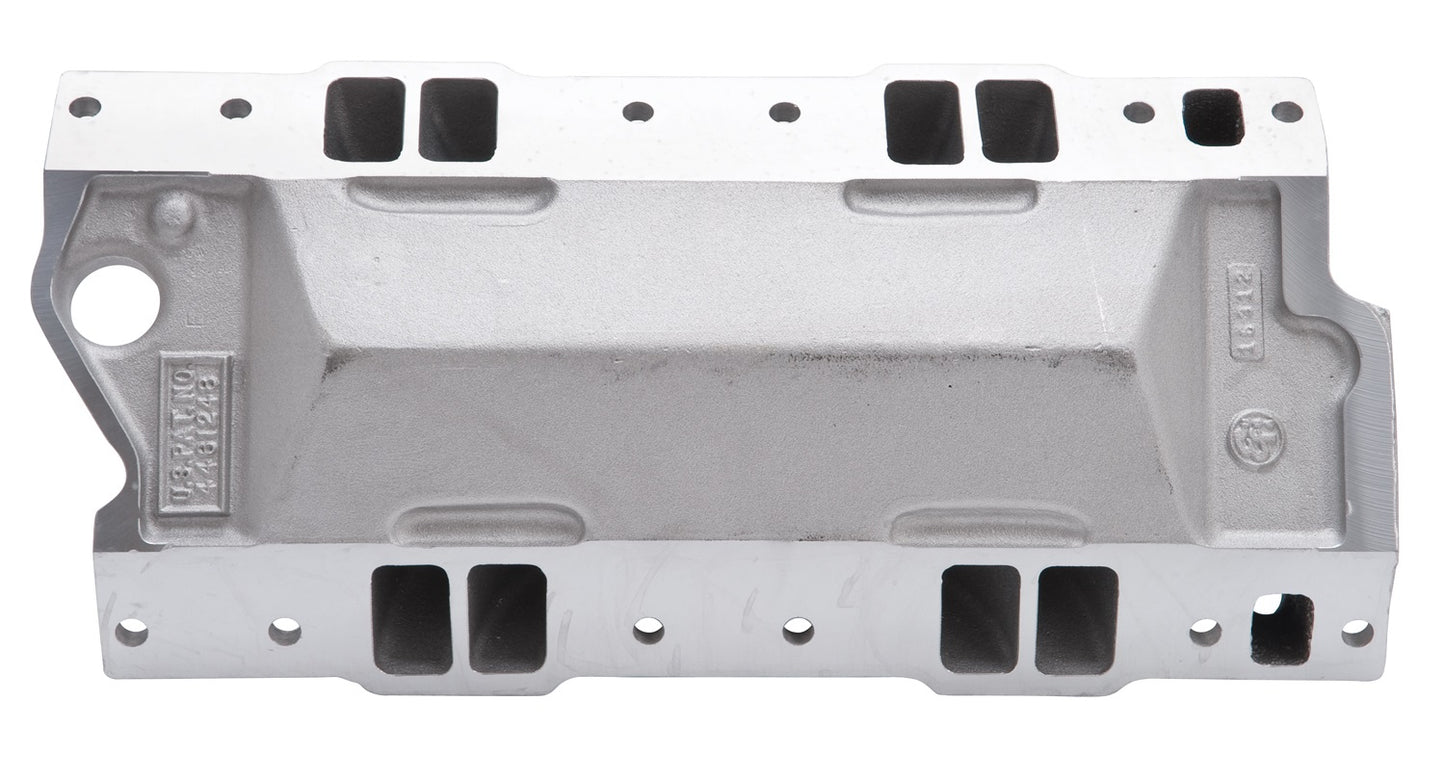

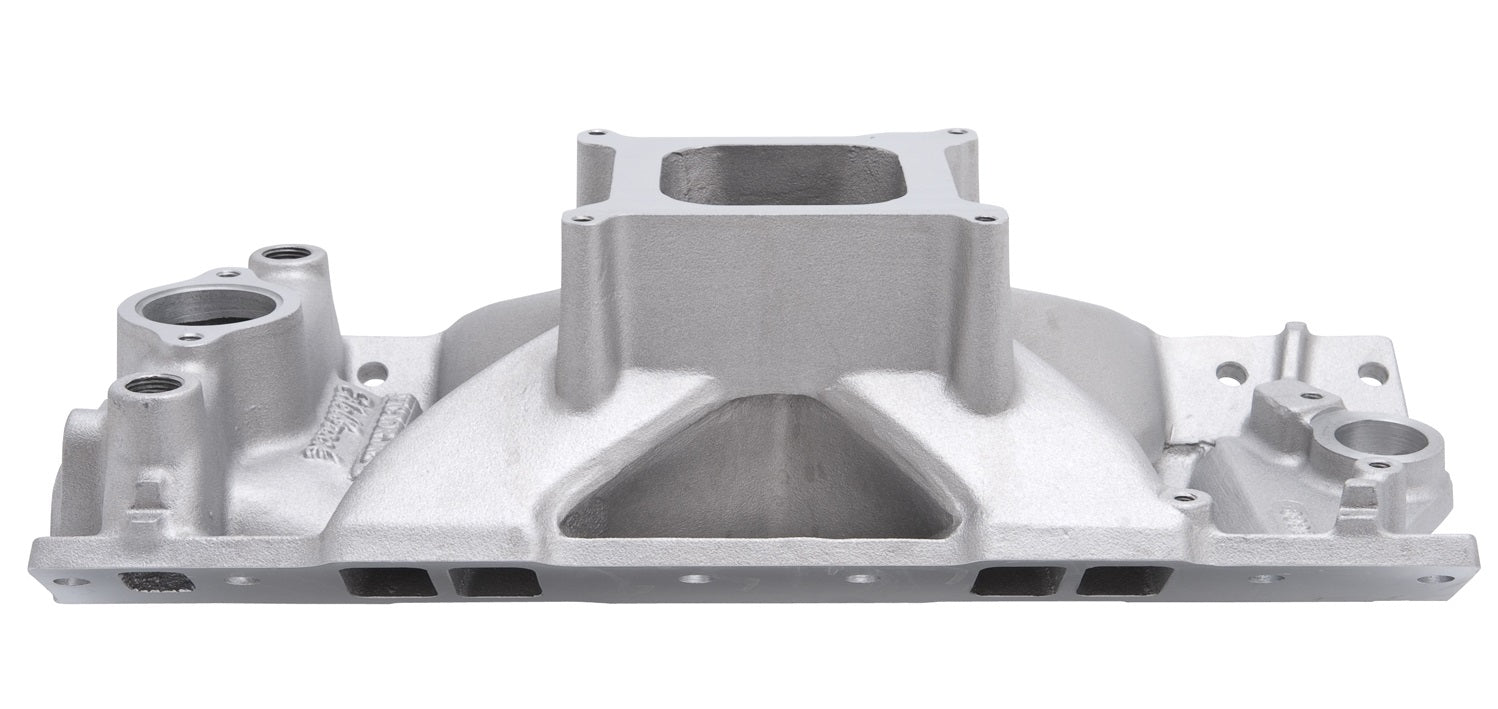

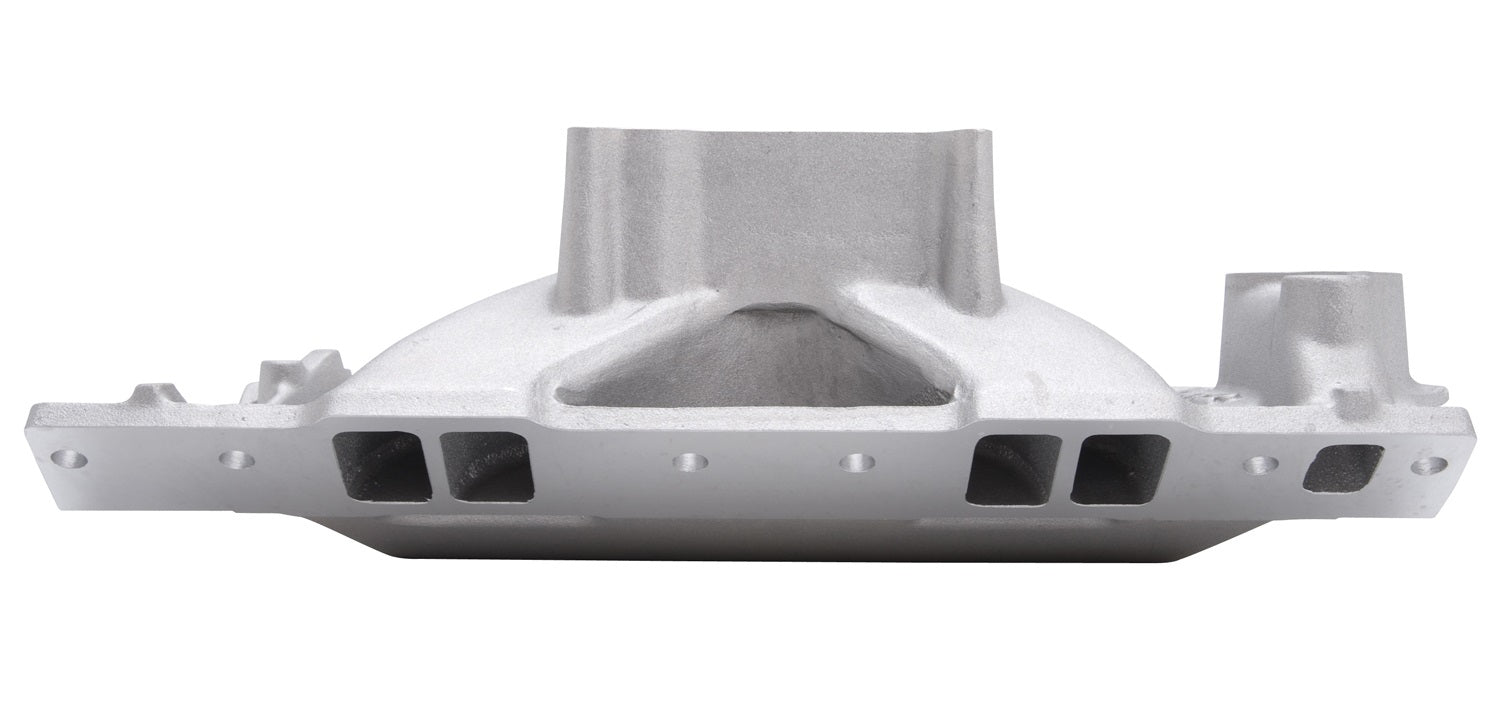

Brand New Edelbrock Victor Jr. 23 Degree Tall Intake Manifold For Chevrolet 262-400 Small-Block V8 (Part #2999).

Edelbrock Victor Jr. 23 degree Tall intake manifold provides maximum performance for engines with standard port location, iron and aluminum cylinder heads. This versatile manifold is excellent for many applications from high-performance's street to drag/circle track racing. This Victor Jr. 23 degree tall intake manifold features a 1" taller carb pad than the Victor Jr. #2975.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7201 or Fel-Pro #1206
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-8000 RPM
  • Rear Maximum Height: 5.580 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
