MANIFOLD, 1969-97 FORD 351W, VICTOR JR
MANIFOLD, 1969-97 FORD 351W, VICTOR JR
SKU:EDL 2981
Couldn't load pickup availability

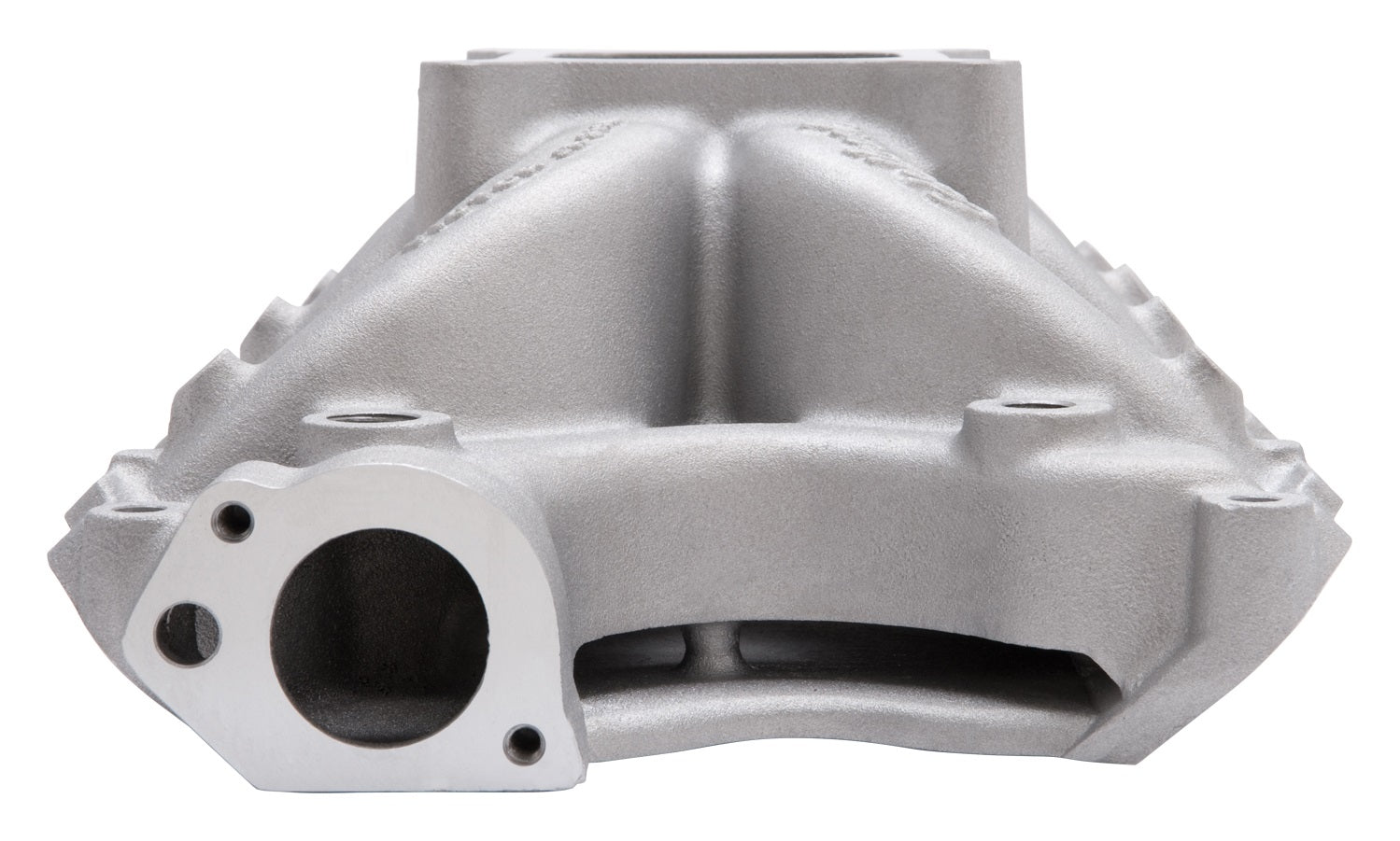

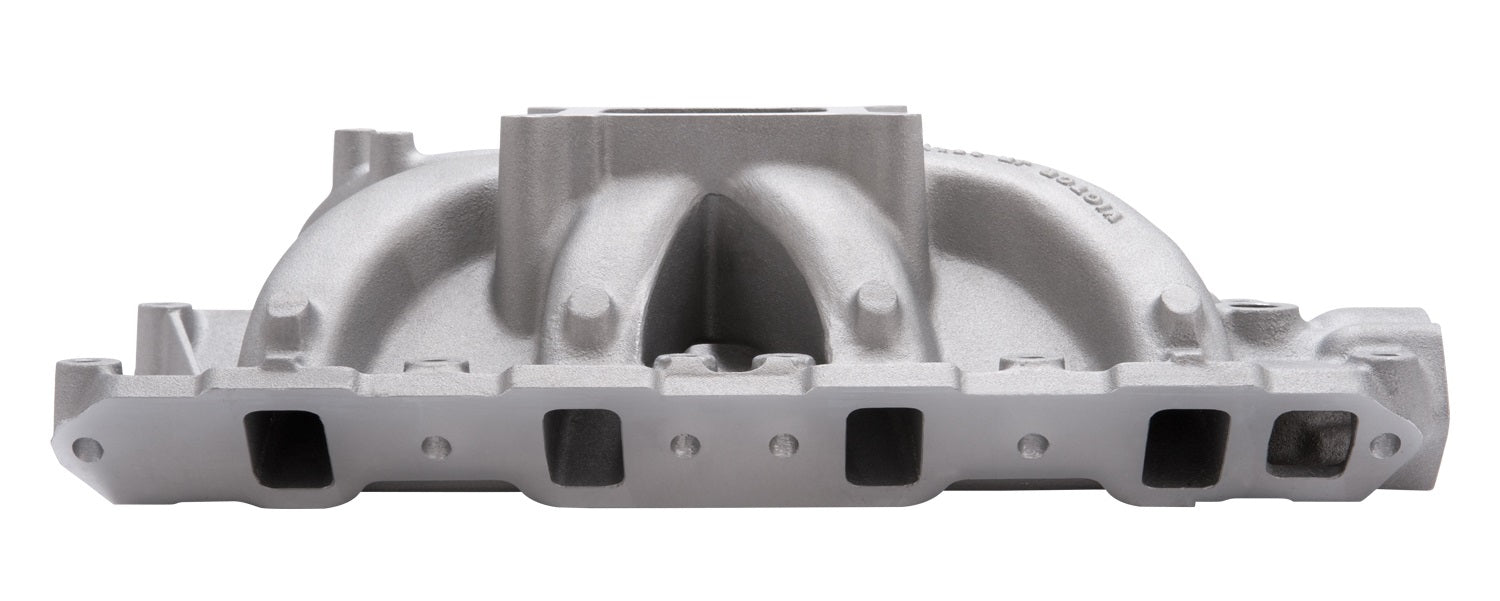

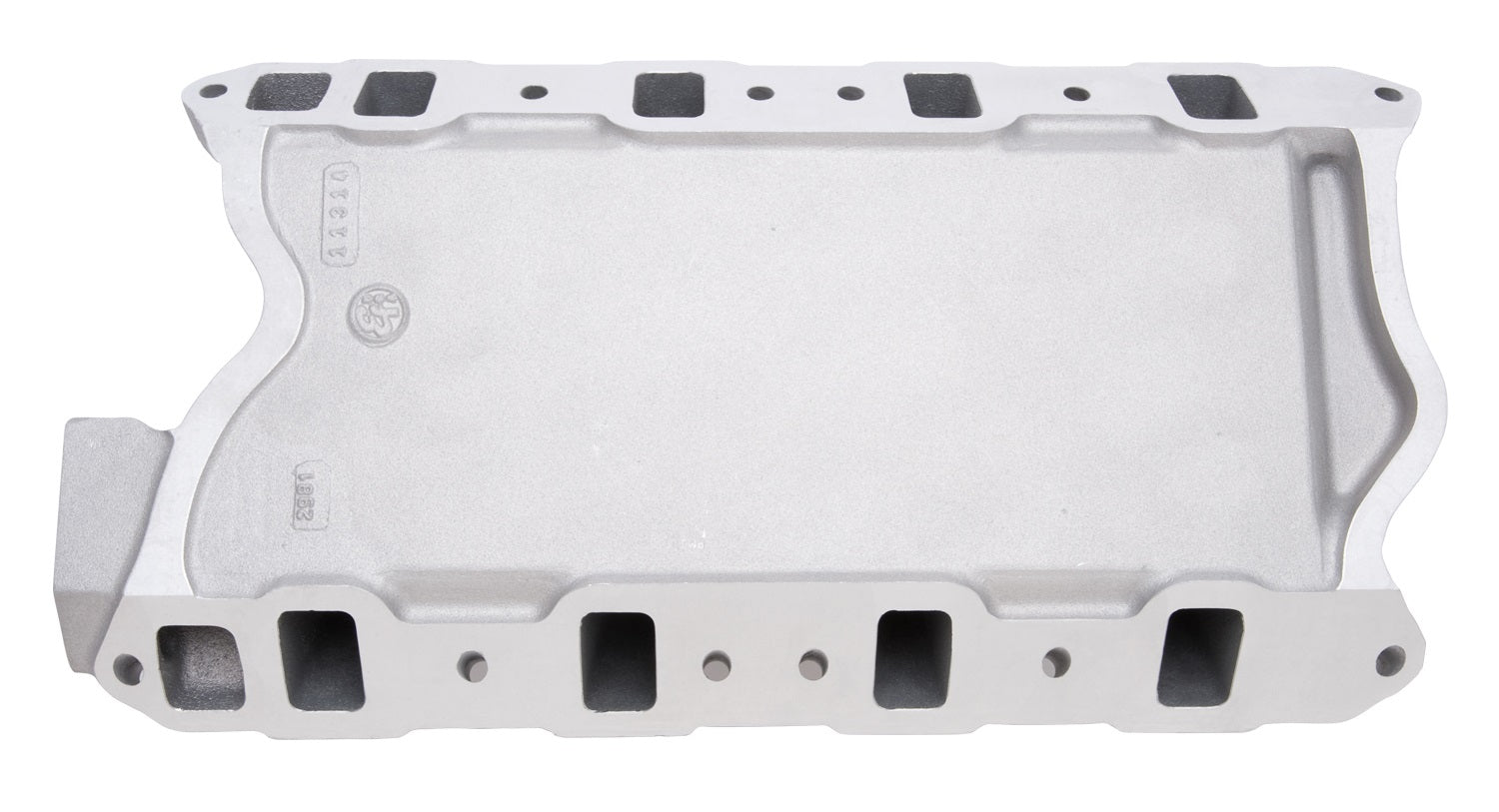

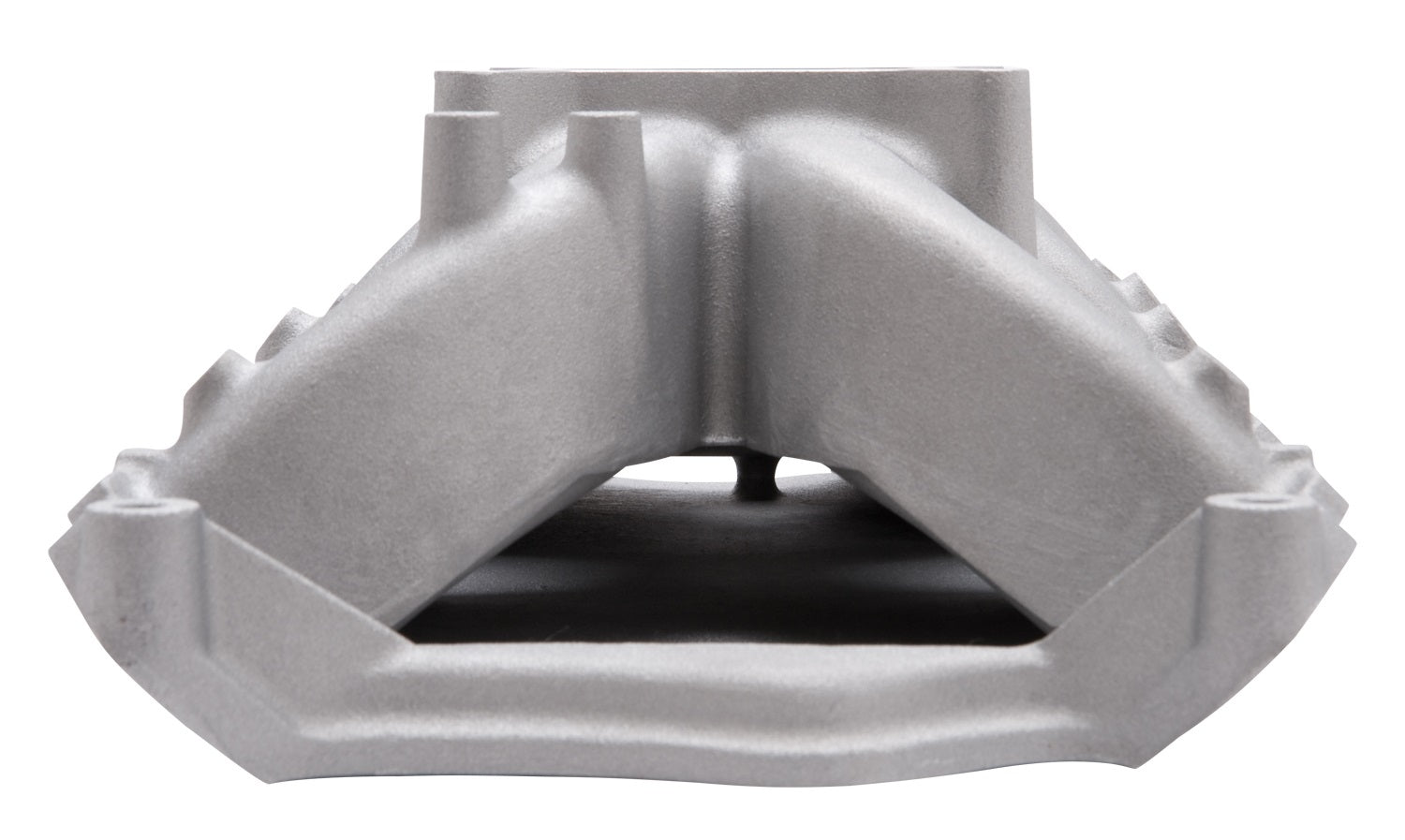

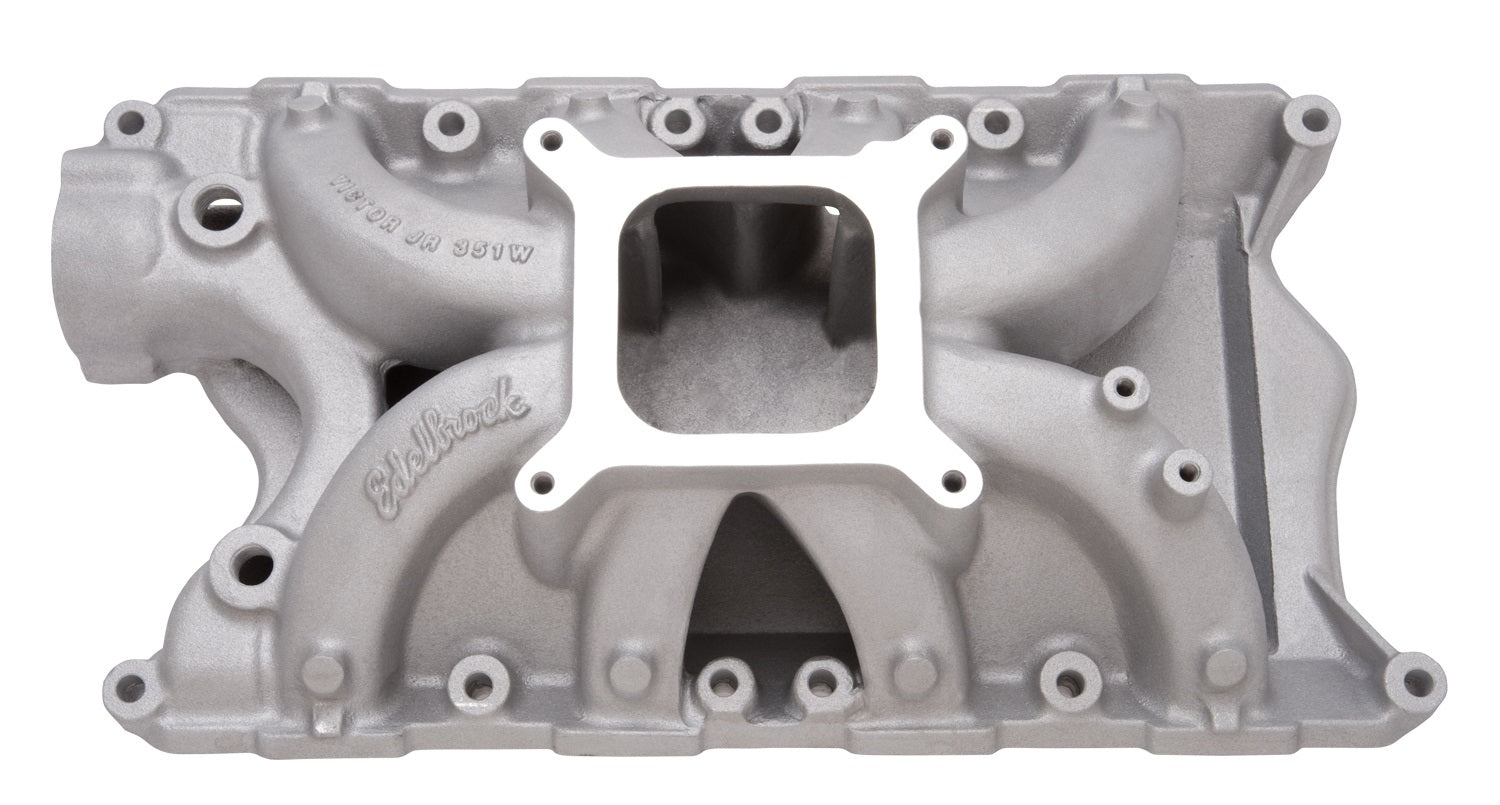

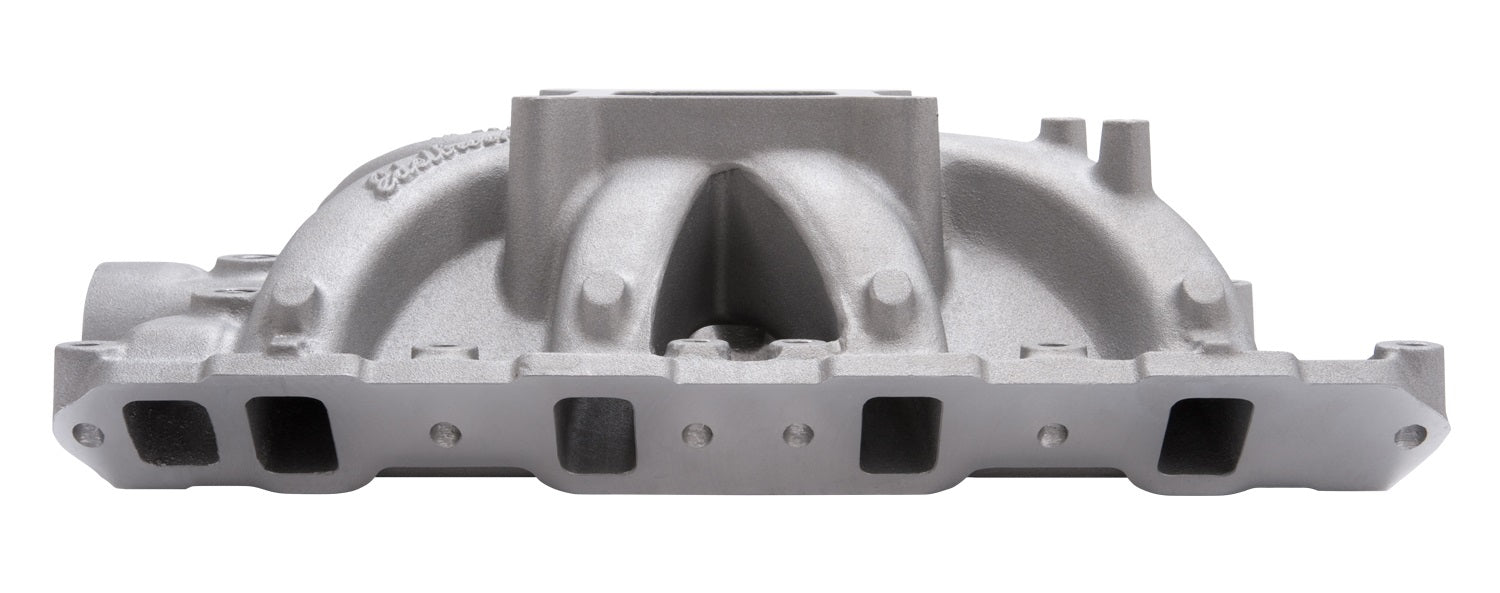

Brand New Edelbrock Victor Jr. 351W 9.5" Deck Intake Manifold for Ford 351-427 Small-Block Windsor V8 (Part #2981).
Edelbrock Victor Jr. 351W (9.5" deck) intake manifold is designed for competition 351 Windsor Ford V8's from 1969 and later with the following heads: Edelbrock Performer RPM heads #60259, Victor Jr. heads #77169, Victor heads #77219 or similar heads. This intake manifold fits SVO blocks with a 9.5" deck height. Ideal for both oval track and drag racing engines operating between 3500 and 7500 rpm. Runners have a 2.70 square-inch cross sectional area. The Edelbrock Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Specs:
-
Series: Victor
- Material: Aluminum
-
Gasket Or Seal Included: No
-
Recommended Intake Gasket: Edelbrock #7220 or Fel-Pro #1262
Manifold Height: A-5.75", B-5.75"
Carb Recommendations: Any size or type of carburetor class allowed - Vehicle Model: Ford
- RPM Range: 3500-7500 RPM
-
Rear Maximum Height: 5.750 in
- Plane Type: Single
You can view and download the complete assembly instruction booklet here.
