MANIFOLD, 1968-87 FORD 429-460, VICTOR, 4150 FLANGE

MANIFOLD, 1968-87 FORD 429-460, VICTOR, 4150 FLANGE

EDL 2966

$552.95
$552.95
View full details

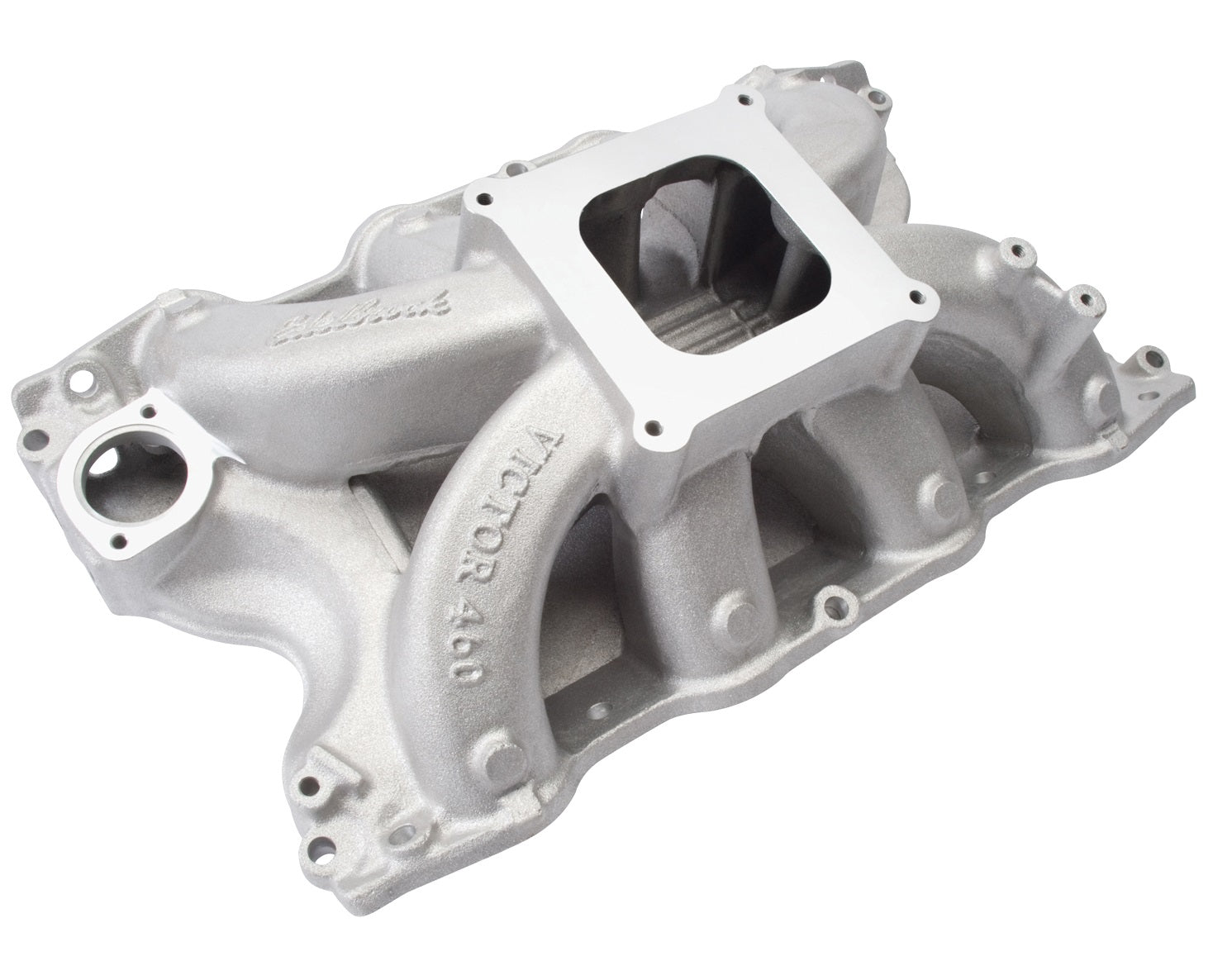

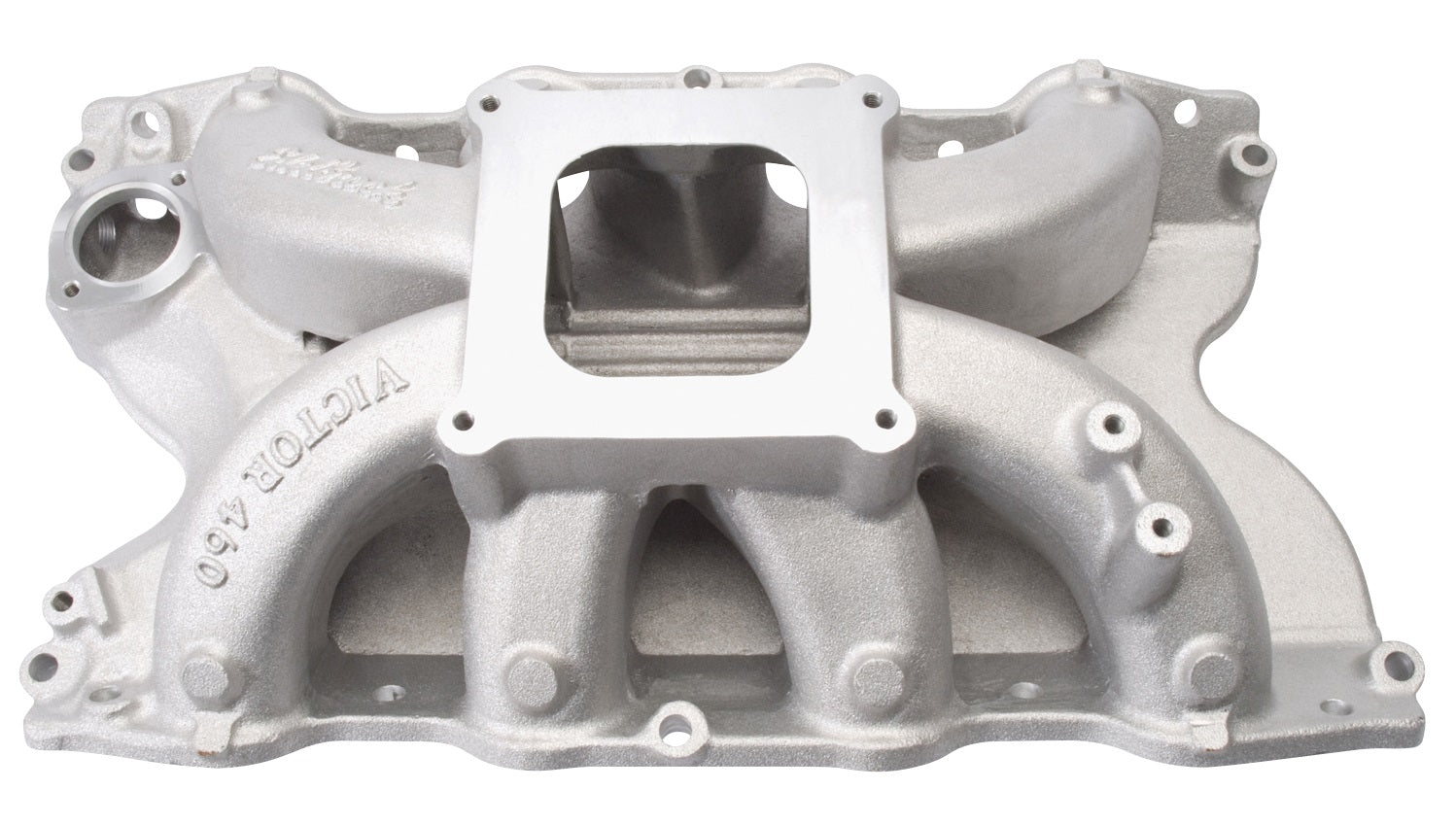

Brand New Edelbrock Victor 460 Intake Manifold for Ford 429/460 Big-Block V8 (Part #2966).

Edelbrock Victor 460 intake manifold is designed for Ford 429/460 competition engines using Cobra-Jet cast iron, SVO Cobra-Jet aluminum (M-6049-A429), or the Edelbrock 460 CJ aluminum heads. This intake manifold is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 8000 rpm. Standard 429/460 cast iron heads will require port matching of the head to fit manifold. Port exit size at head is 1.88" x 2.16" with enough extra material to open it up to the cast iron Cobra-Jet heads. Will not fit 1988 and later models.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Fel-Pro #1231
  • Carb Recommendations: For square-bore carburetors
  • Manifold Height: A-6.30", B-6.30"
  • Vehicle Model: Ford
  • RPM Range: 3500-8000 RPM
  • Rear Maximum Height: 6.30 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
