MANIFOLD, 1965-79 PONT 400-455, EFI, SUPER VICTOR, 4150 FLANGE

MANIFOLD, 1965-79 PONT 400-455, EFI, SUPER VICTOR, 4150 FLANGE

EDL 29575

$713.95
$713.95
View full details

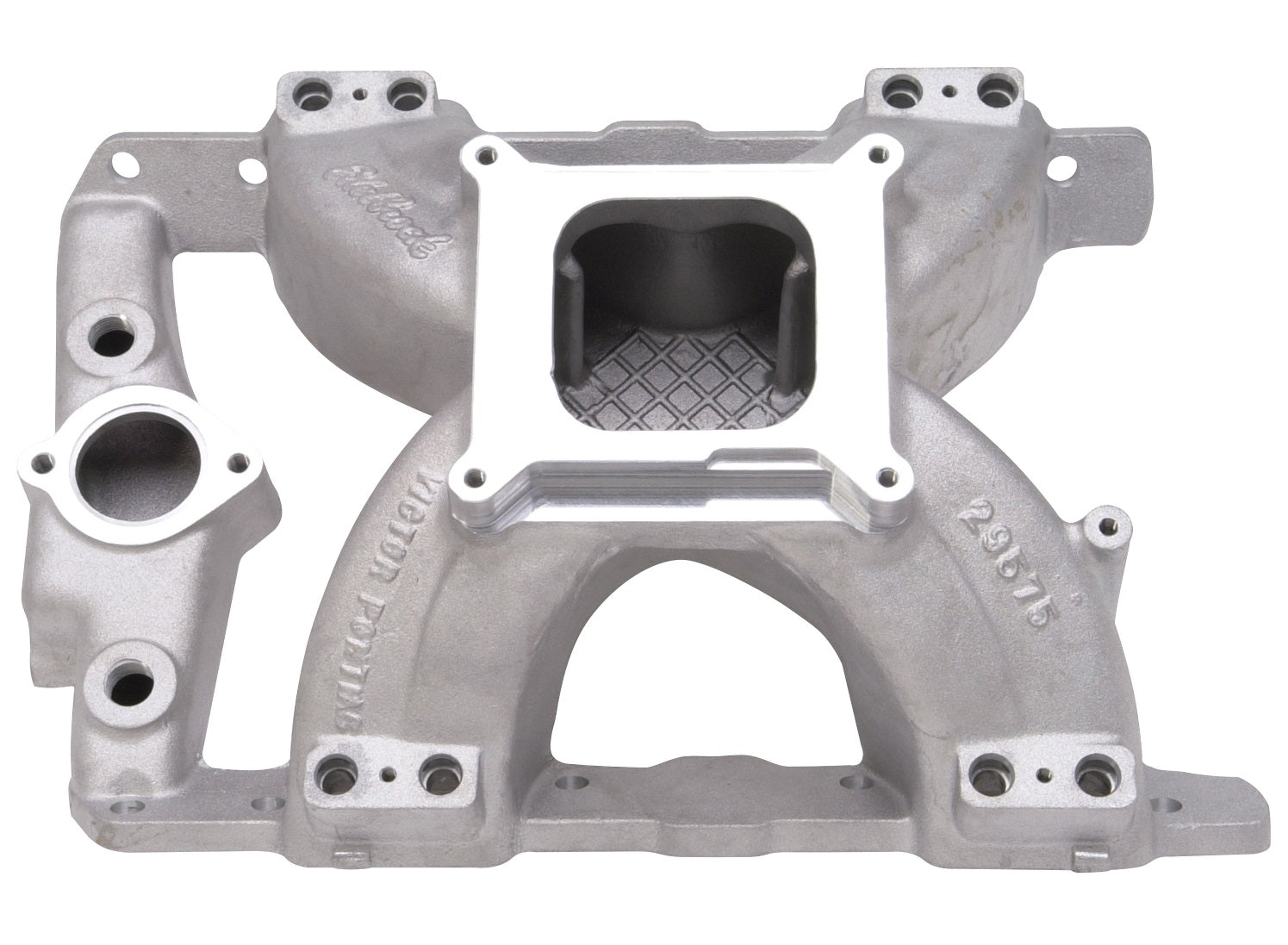

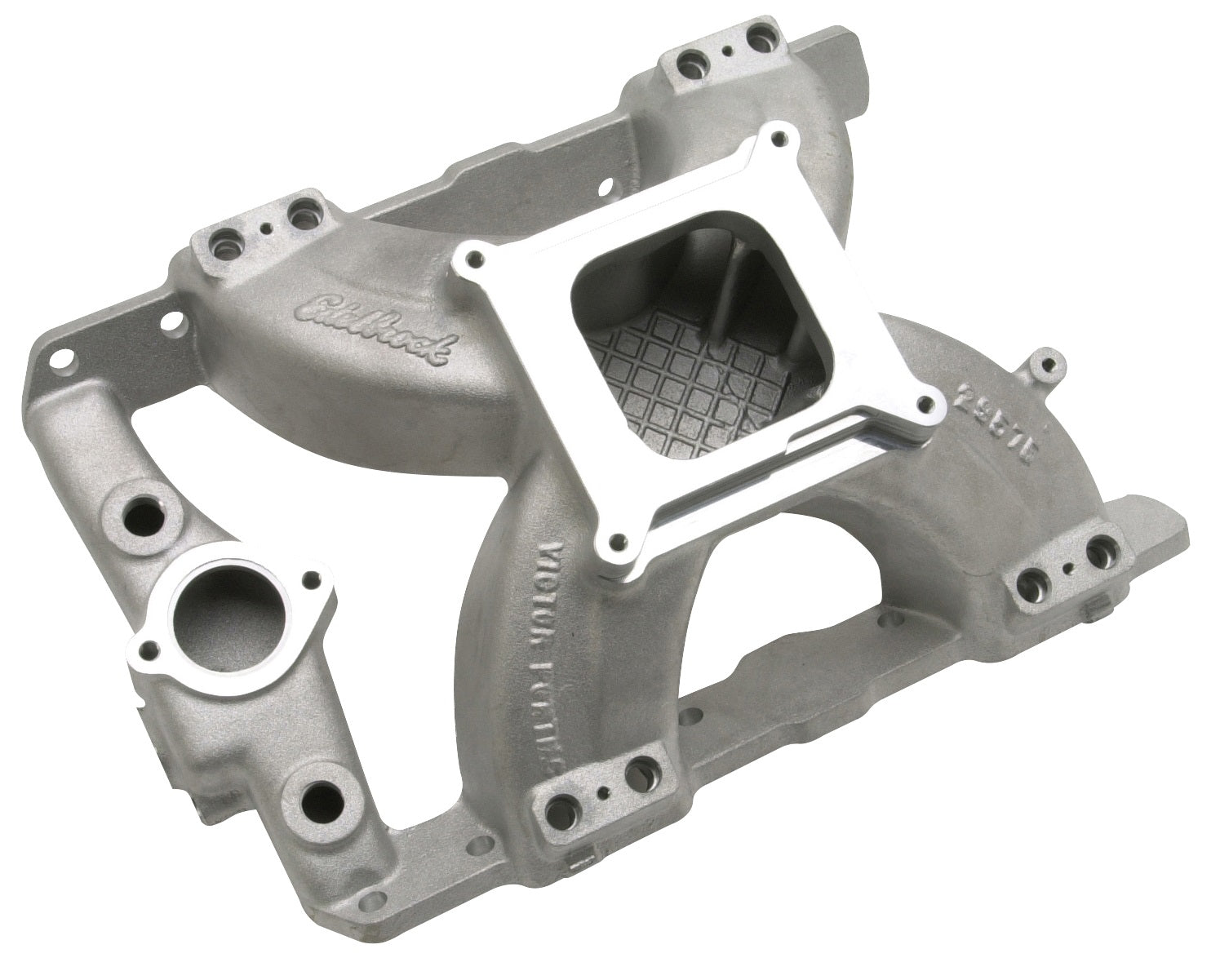

Brand New Edelbrock Super Victor EFI Pontiac Intake Manifold for 4150 Series Throttle Bodies for Pontiac 326-455 V8 (Part #29575).

Edelbrock Victor Pontiac EFI intake manifold is designed for use with 389-455 EFI competition engines. It is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 7500 rpm. Compatible with standard Pontiac cast iron heads, or use with Edelbrock Performer RPM Pontiac aluminum heads for maximum power. Port exit size at head is 1.08" x 2.10" with enough material to open it up to larger port openings. This intake manifold is machined for use with 4150 series carburetors and throttle bodies.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7280
  • Manifold Height: A-7.70", B-7.70"
  • Vehicle Model: Pontiac
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 7.70 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
