MANIFOLD, 1961-77 FORD 390-428 FE, VICTOR

MANIFOLD, 1961-77 FORD 390-428 FE, VICTOR

EDL 2936

$1,017.95
$1,017.95

Yes, we have this item in stock and ready to ship immediately!
View full details

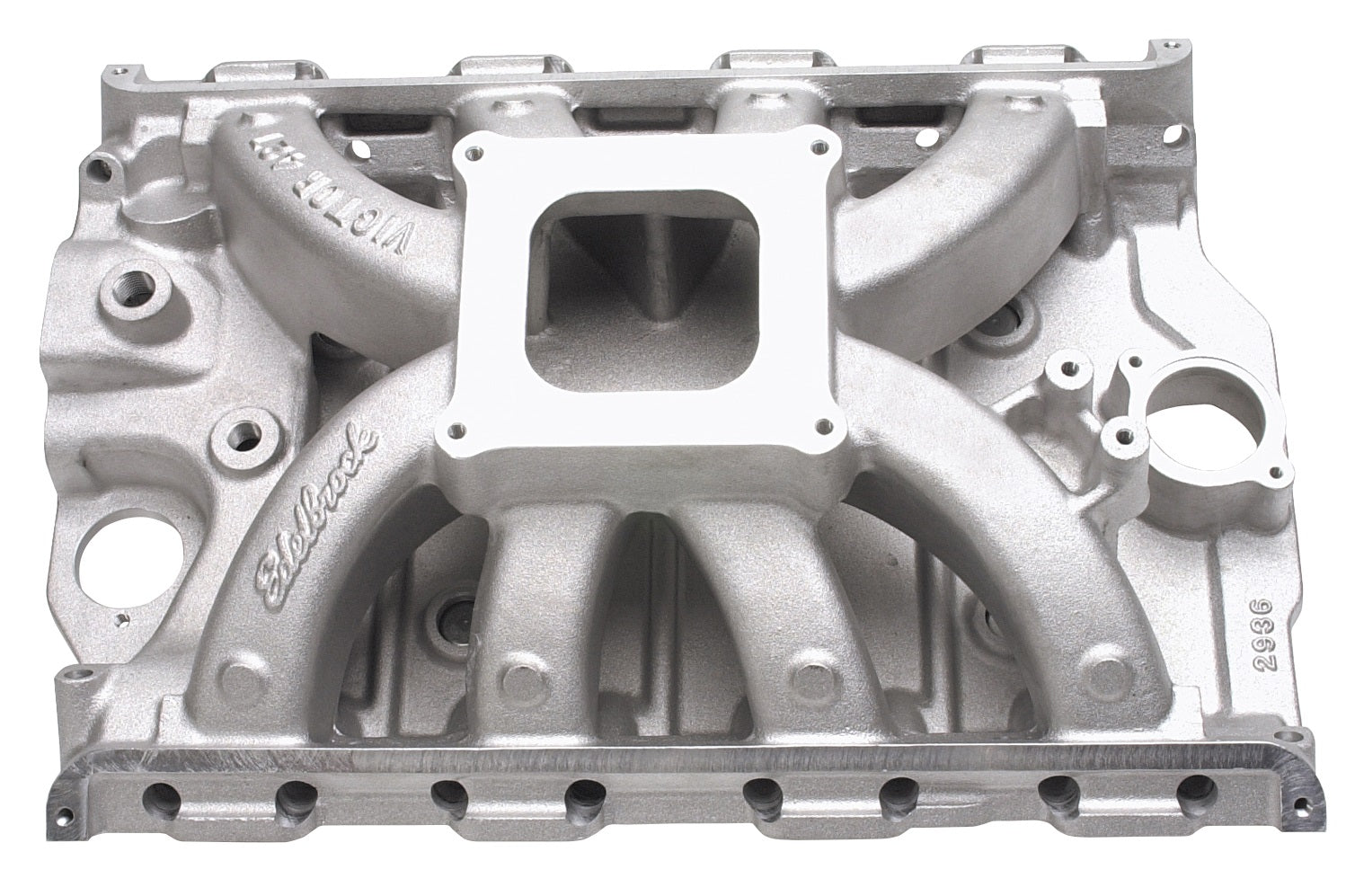

Brand New Edelbrock Victor FE Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 (Part #2936).

Edelbrock Victor FE intake manifold is designed for high performance 390-406-410-427-428 C.I.D. Ford FE engines. This single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our FE heads.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Fel-Pro #1247
  • Manifold Height: A-6.49", B-6.49"
  • Carb Recommendations: Square bore carbs. Use any size carb class that allows 90mm throttle body
  • Vehicle Model: Ford
  • RPM Range: 4000-8000 RPM
  • Rear Maximum Height: 6.490 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
