MANIFOLD, FORD 302 W/ 8.2 DECK, SUPER VICTOR, EFI

MANIFOLD, FORD 302 W/ 8.2 DECK, SUPER VICTOR, EFI

EDL 29285

$660.95
$660.95
View full details

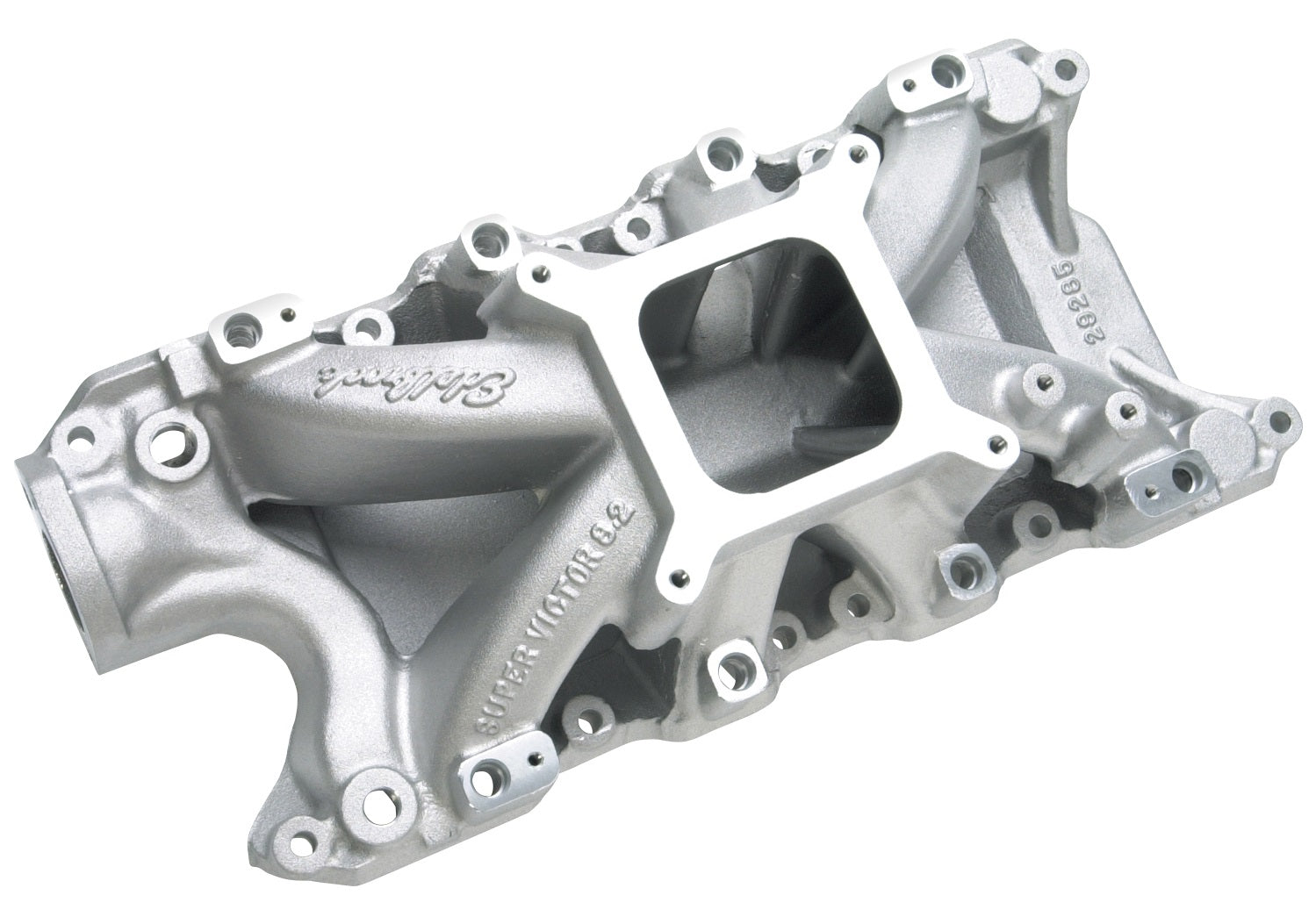

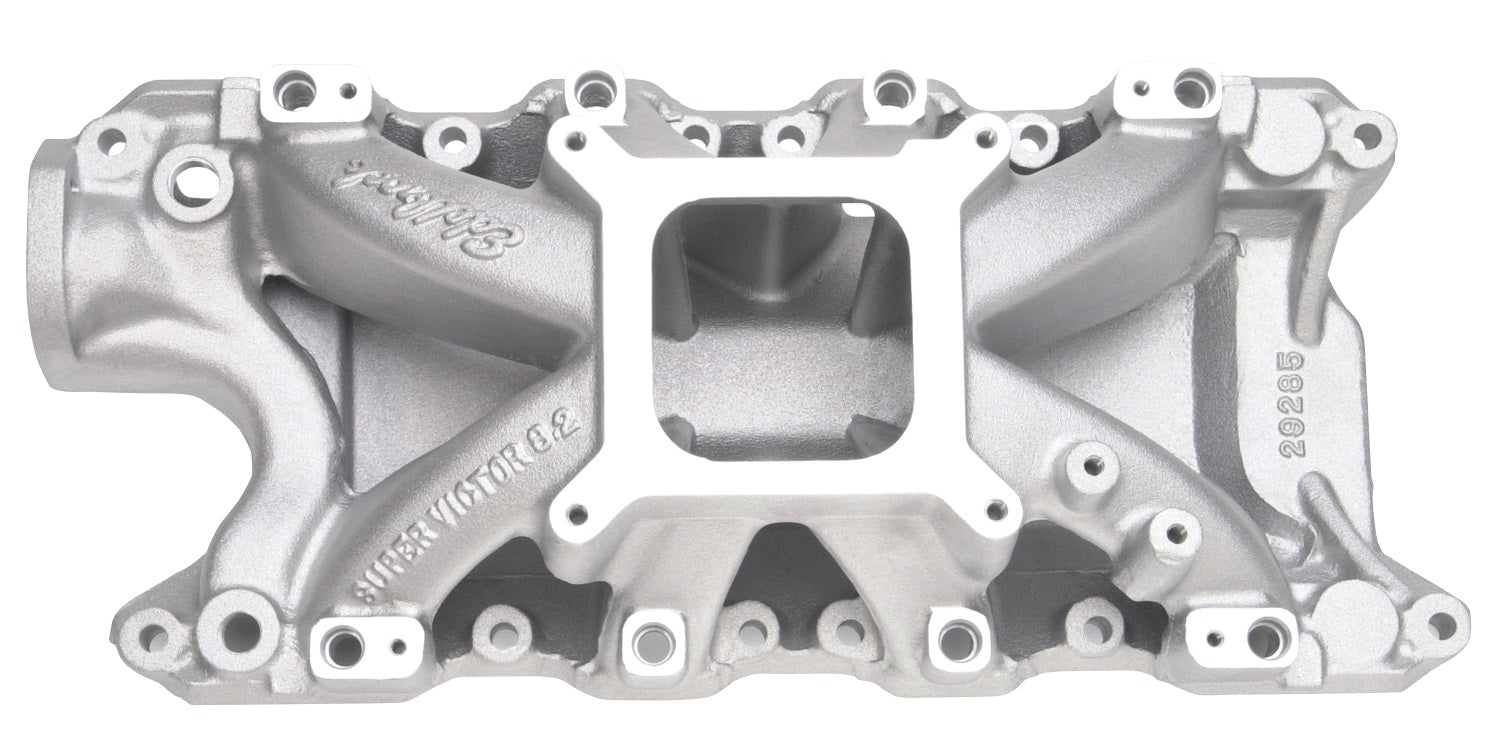

Brand New Edelbrock Super Victor 8.2 EFI Intake Manifold for Ford 289-347 Small-Block V8 (Part #29285).

Edelbrock Super Victor 8.2 EFI intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height and features a single-plane, high-rise intake design for maximum race-winning power. This intake manifold is ideal for use with large displacement drag racing engines. It delivers big power gains from 4500 to 8500 rpm and includes rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Fel-Pro #1262 or #1262R
  • Manifold Height: A-6.35", B-6.35"
  • Throttle Body Recommendations: Edelbrock #38783 4150 style 4V throttle body or #3849 EFI elbow and #3818 90mm throttle body
  • Vehicle Model: Ford
  • RPM Range: 4500-9000 RPM
  • Rear Maximum Height: 6.350 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
