MANIFOLD, 1963-01 FORD 289-302, SUPER VICTOR
MANIFOLD, 1963-01 FORD 289-302, SUPER VICTOR
SKU:EDL 2928
Couldn't load pickup availability

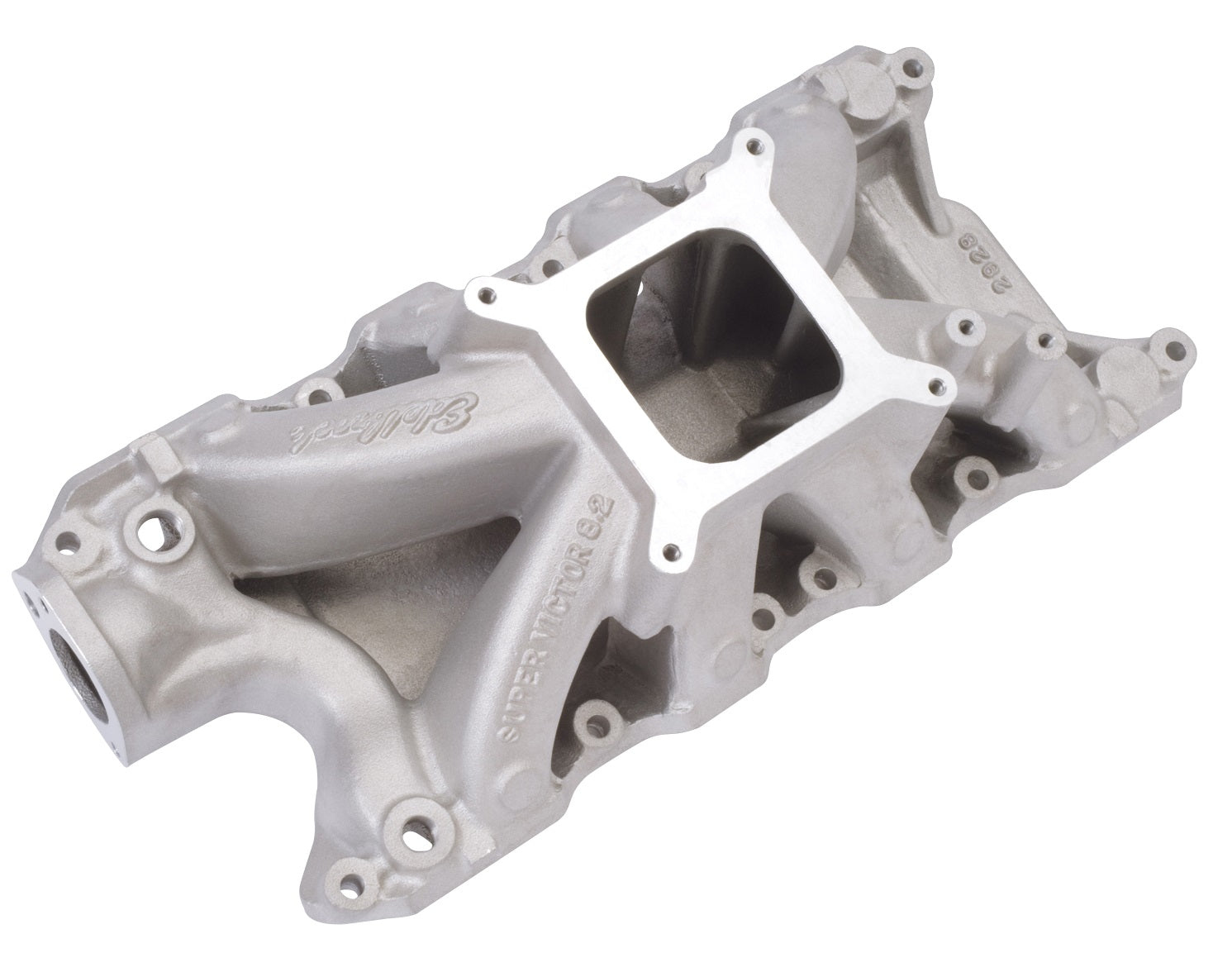

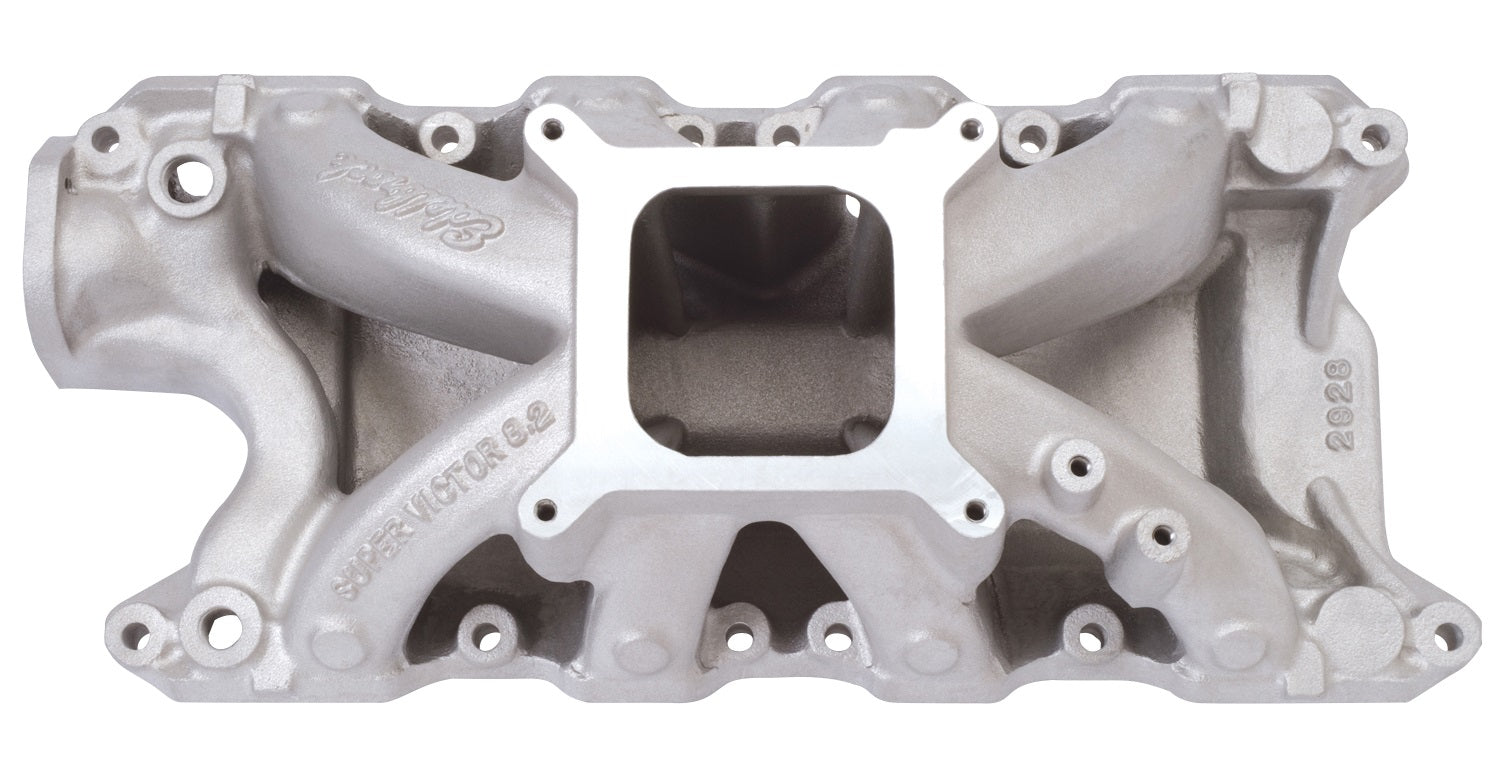

Brand New Edelbrock Super Victor 8.2 Intake Manifold for Small-Block Ford 289-347 V8 (Part #2928).
Edelbrock part #2928 Super Victor 8.2 intake manifold is designed for high-rpm and competition 302-347 engines with aftermarket Windsor-style racing cylinder heads such as the Edelbrock Victor heads #77219 or Victor Jr. heads #77169. The Super Victor 8.2 is for engines with a standard 8.2" deck height. Excellent for large displacement drag racing engines, this single plane race manifold delivers big power gains from 4500 to 8500 rpm and includes nitrous and rear cooling water bosses. The square-bore carburetor pad stands .850" taller than the Edelbrock Victor Jr. #2921.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Specs:
-
Series: Victor
- Material: Aluminum
-
Gasket Or Seal Included: No
- Recommended Intake Gasket: Fel-Pro #1262 or #1262R
- Manifold Height: A-6.35", B-6.35"
- Vehicle Model: Ford
- RPM Range: 4500-9000 RPM
-
Rear Maximum Height: 6.350 in
- Plane Type: Single
You can view and download the complete assembly instruction booklet here.
