MANIFOLD, FORD 351W, SUPER VICTOR

MANIFOLD, FORD 351W, SUPER VICTOR

EDL 2924

$549.95
$549.95
View full details

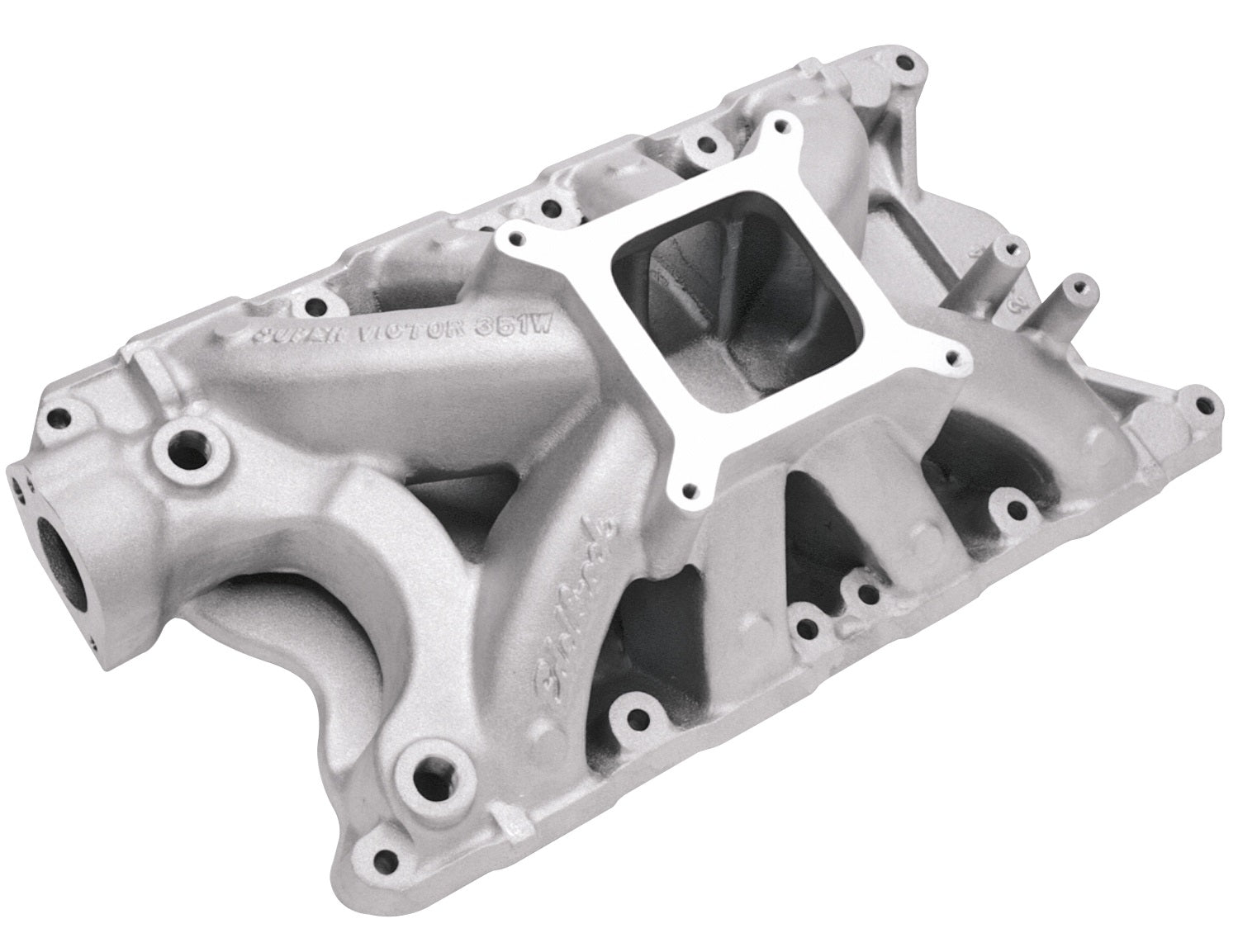

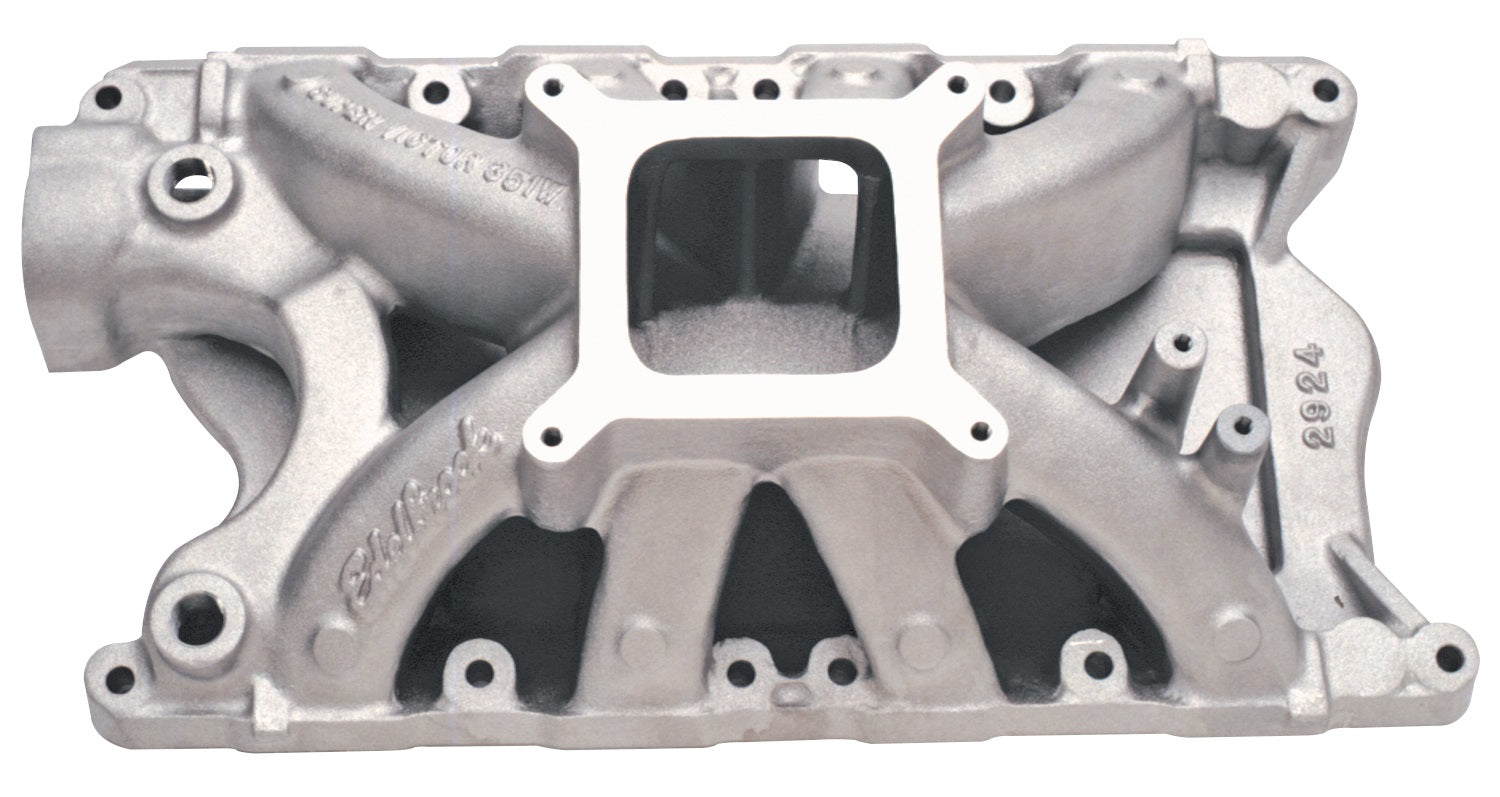

Brand New Edelbrock Super Victor 351W 9.5" Deck Intake Manifold for Ford 351-427 Small-Block Windsor V8 (Part #2924).

Edelbrock Super Victor 351W intake manifold is designed for high rpm or large displacement competition 351 Windsor Ford V8's with a deck height of 9.5" which are used in drag racing or oval track engines operating between 4500 and 8500 rpm. This intake manifold can be used with ported factory cast iron heads, however aftermarket aluminum heads are recommended, such as Edelbrock Victor Jr. #77169 or Victor heads #77219 for ultra high-horsepower. Runners have a 3.20 square-inch cross sectional area. This Super Victor is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

Installation Notes:
  • MSD distributor #8578 must be used to clear the front water crossover.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Fel-Pro #1262 or #1262R
  • Manifold Height: A-6.25", B-6.25"
  • Vehicle Model: Ford
  • RPM Range: 4500-8500 RPM
  • Rear Maximum Height: 6.250 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
